740nm vs 850nm IR LED: Visibility, Detector Response and Application Fit

This guide compares 740nm and 850nm emitters on the axes that change a design decision, and sets out what to measure before the wavelength is frozen.

Quick Answer: One Is More Visible, the Other Matches Silicon

An emitter at 740 nm is at the boundary of human vision. Most people perceive a clearly visible deep red glow at that wavelength, which becomes a design constraint as soon as the product is on a consumer-facing panel.

An emitter at 850 nm radiates further into the infrared. Its visible red glow is much weaker when viewed directly and it is invisible off-axis or through a filter, while silicon detectors remain strongly responsive in that region.

That single difference drives most of the decision: choose the shorter wavelength when the application needs or tolerates visible output, and the longer one when the requirement is invisible illumination with a forgiving detector match.

Governing Parameters: Detector Match, Filtering and Drive

The first parameter is detector responsivity. Silicon photodiodes are far more responsive in the near infrared than at the visible boundary, so the same radiant power produces a larger signal at 850 nm than at 740 nm in a silicon-based receiver.

The second is filter compatibility. Many sensing systems place a band-pass or long-pass filter in front of the detector to reject ambient light, and the filter has to pass the chosen wavelength while blocking the rest. A system designed for one of the two wavelengths is not automatically suitable for the other.

The third is the forward voltage and drive characteristic of the emitter itself. The two wavelengths do not share the same junction behaviour, so a driver sized for one is a starting point rather than an automatic match for the other.

Because the table mixes optical and electrical consequences, the decision usually belongs to a broader wavelength plan. The structure used in IR Wavelength & Application Selection keeps the optical choice, the emitter choice and the receiver choice in one decision rather than three separate ones.

Where Each Option Fits in Practice

Take 850 nm first where the product needs illumination that users should not notice, where the receiver is a silicon detector behind a near-infrared filter, or where the system already works in that band. Camera illumination, machine vision and most industrial sensing fall into this group, and our article on IR LED wavelength selection for security cameras covers how that choice is made in practice.

Take 740 nm where the application benefits from output at the visible boundary, or where the system already uses filters and detectors that suit it. It is also the practical choice when an installation needs a visible aiming indication from the same emitter that does the work.

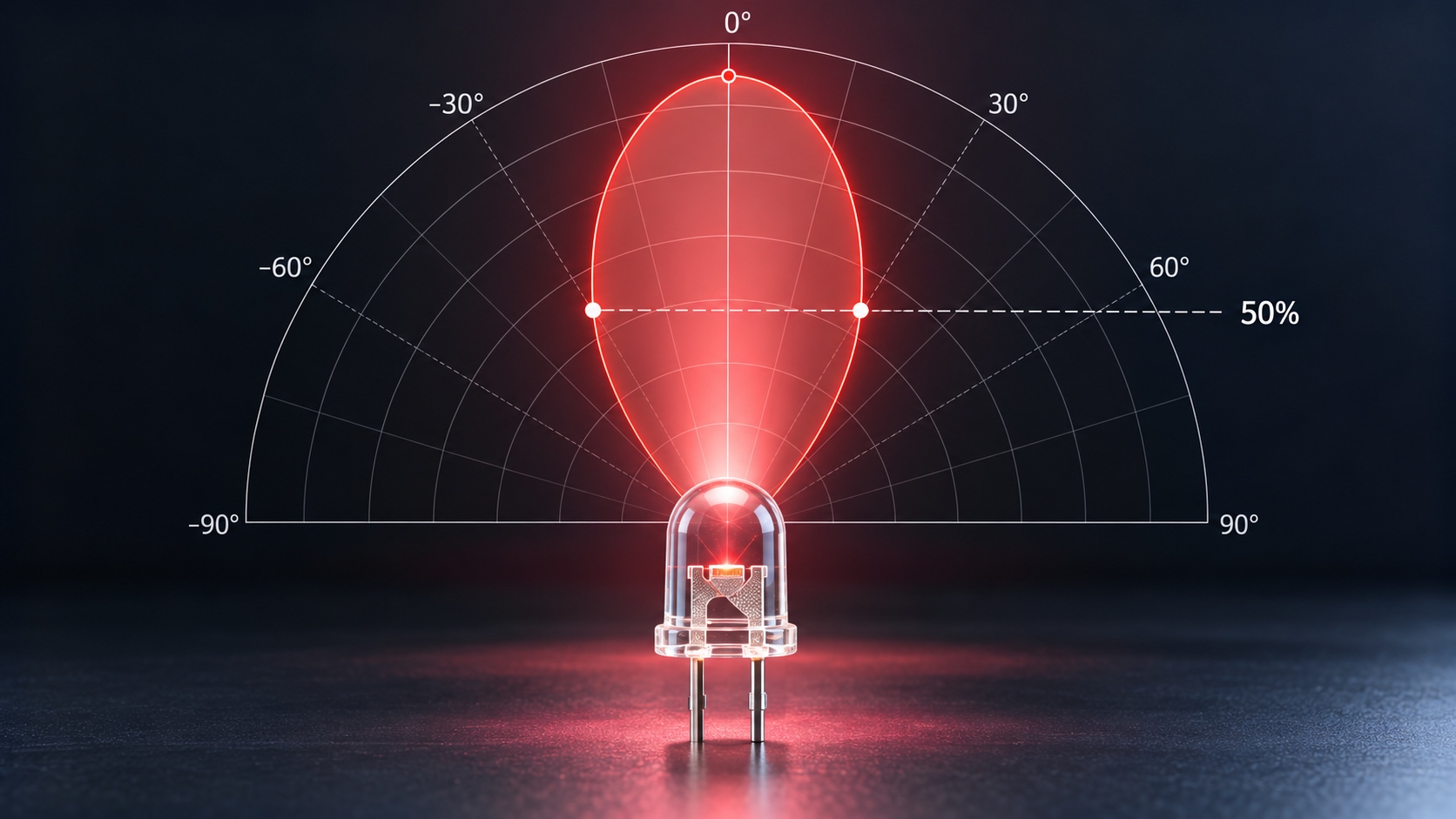

Neither wavelength is useful on its own unless the emitter geometry suits the optical path. Infrared emitter design decisions such as die size, package, lens and beam angle usually change the delivered result more than a modest change of wavelength, and they have to be settled alongside the wavelength choice rather than after it. HOUKEM supplies infrared emitters across a wide range for sensing, illumination and optical detection, including a 740nm infrared emitter in a single-watt class package, and the wider IR LED range covers the neighbouring wavelengths that a comparison usually has to include.

It is worth keeping the next comparison in view as well. Wavelengths further into the infrared change the receiver requirement rather than only the optical output, which is why our comparison of 940nm versus 980nm IR LED comes down to detector and filter behaviour as much as to emitter output.

Thermal and Production Consequences

Thermal design does not change because of the wavelength, but the drive current needed to reach a given radiant output does, and that current is what sets the heat load. A design carried over from one wavelength to the other therefore inherits a thermal assumption that may no longer hold.

Production consequences are more subtle. The visible glow of a 740 nm emitter becomes part of the cosmetic acceptance of the product, so an assembly with a leakage path becomes visible to the user in a way that an 850 nm emitter would hide.

That visibility cuts both ways. A faint glow can be treated as a defect in one product and as a useful indicator in another, which means the acceptance criterion has to be written deliberately rather than left to the inspection stage.

Validation Checklist Before Freezing the Wavelength

Measure the receiver output with the actual detector and the actual filter, at both wavelengths and at the working distance, rather than comparing emitter datasheets alone. Detector and filter behaviour usually dominates the result.

Measure the emitter output with a method that matches what the application cares about. Radiant intensity and irradiance are different quantities, and our note on radiant intensity measurement covers why the wrong quantity produces a comparison that looks decisive but does not transfer.

Then repeat the measurement with the ambient light level and the viewing angle the product will actually experience. Detection margin is a system property, and it depends on the environment as much as on the emitter.

Finally, record the wavelength, the detector, the filter, the working distance and the drive condition together as the accepted configuration. A wavelength decision that is recorded without its receiving chain cannot be re-verified later, and that is where IR LED system design usually loses traceability.

Frequently Asked Questions

How do 740nm vs 850nm IR LED options compare for OEM designs?

A 740 nm emitter produces a clearly visible red glow and works with receivers that suit the visible boundary, while an 850 nm emitter is far less visible and matches silicon detector response more closely. The comparison therefore turns on whether visible output is acceptable and what the receiver can detect.

Which 740nm vs 850nm IR LED choice fits an industrial application?

Industrial illumination, machine vision and camera sensing usually favour 850 nm because the output stays unobtrusive and silicon detectors respond well there. A 740 nm emitter suits applications that need or accept visible output from the same device.

What trade-offs matter when comparing 740nm vs 850nm IR LED?

The two main trade-offs are visible red glow against detector response, and filter compatibility against ambient light rejection. Drive current and the resulting thermal load follow from whichever emitter is chosen, so they belong in the same comparison.

How should engineers validate a 740nm vs 850nm IR LED decision?

Validate with the production detector, the production filter and the real working distance, measuring the received signal at both wavelengths. Confirm the result under the ambient lighting and viewing angles the product will meet in service.

Can 740nm and 850nm emitters share the same driver design?

They can share a driver topology, but the forward voltage and the current needed for a given radiant output differ, so the drive settings have to be re-derived. The thermal assumption carried over from the first wavelength should also be rechecked.

Conclusion: Decide the Wavelength With the Receiver in View

740nm versus 850nm is not only an emitter question. Visible glow sets what the user sees, silicon response and filter choice set what the receiver detects, and the drive current that reaches a given output sets the thermal load that follows.
