Peak Wavelength vs Dominant Wavelength: What Each Value Tells You

What Is the Difference Between Peak Wavelength and Dominant Wavelength?

Peak wavelength is the wavelength at which the emitted spectral power reaches its maximum. Dominant wavelength is the wavelength of a single monochromatic source that would produce the same perceived colour as the LED under a defined white reference. Peak wavelength describes where the emission is strongest, while dominant wavelength describes how the light is perceived.

Because three of these four values can be quoted for the same part, a statement that names the number without naming the metric is not a specification at all. A complete LED wavelength specification therefore states the metric, the reference conditions and the tolerance together, and our guide to how to read LED specifications sets out the rest of the parameters that belong alongside a wavelength figure.

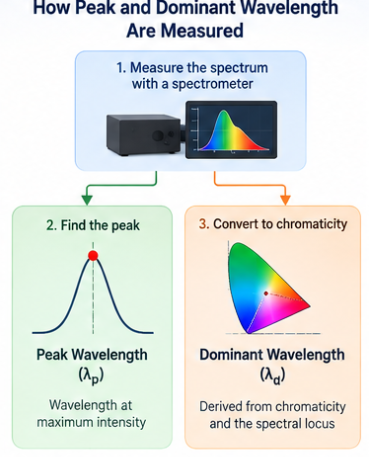

How Each Wavelength Value Is Determined

The difference between peak and dominant wavelength comes from two different measurement traditions, which is exactly why they diverge. Before deciding which wavelength value should I specify for an LED, it helps to see how each figure is produced.

Peak wavelength follows the emission maximum

Peak wavelength is read directly from a measured spectral power distribution: the spectrum is captured with a spectrometer and the highest point is located. It is a purely physical quantity, so it does not change with the observer or the reference illuminant, and it can be measured in bands where the eye cannot see at all.

Dominant wavelength follows a colorimetric match

Dominant wavelength is derived by converting the spectrum into chromaticity coordinates and extending a line from the white point through that coordinate to the spectral locus. It therefore depends on the reference white and on the colorimetric functions used, which means two laboratories can report slightly different dominant wavelength values for the same part if their reference conditions differ.

Centroid and bandwidth describe the shape, not the peak

For a broad emitter, the power-weighted centroid can sit some distance from the peak, and the bandwidth defines how far the emission spreads around it. A part with a strong secondary emission peak is a classic case where the peak wavelength alone gives a misleading picture of the colour.

Why the Two Values Diverge in Real Production

Even a well-controlled process produces wafers whose emission varies slightly across the wafer and between lots. Understanding which value shifts first helps you write a specification that survives production.

Colour consistency depends on the colorimetric value

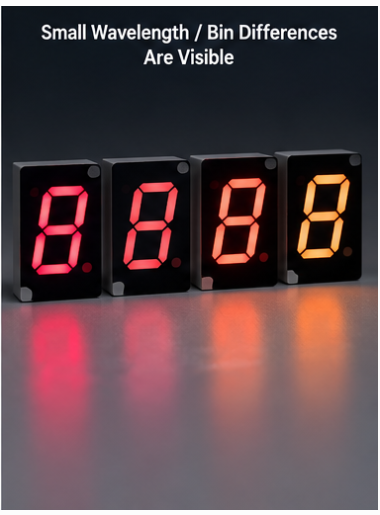

Two parts with identical peak wavelength can land in different colour bins if their spectral shapes differ. Because grading for visual colour consistency is normally built on colorimetric values, LED binning is the practical mechanism that keeps a multi-digit display looking uniform rather than patchy.

Invisible bands need the physical value instead

The peak wavelength vs dominant wavelength in UV and IR LEDs distinction matters most, because there is no visual perception to serve as the reference. In the ultraviolet range the physical emission values therefore carry the specification. HOUKEM states a top-level UV LED range of 255 to 415nm, with the exact wavelength and power combination confirmed per product and project, and the relevant figures are listed on the UV LED product range.

The same logic applies at the other end of the spectrum. For infrared emitters the wavelength chosen determines how a detector responds, and HOUKEM's confirmed IR capability extends to 1900nm for applicable model and project configurations, with the options shown on the IR LED product range.

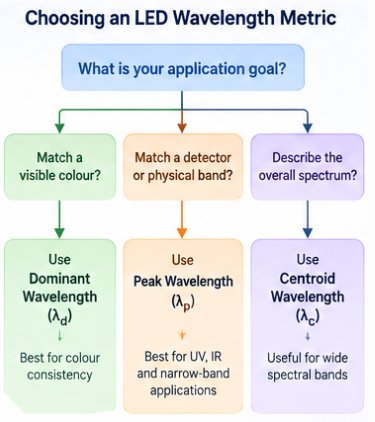

Which Wavelength Value Belongs in Your Specification?

Whichever value you choose, write the metric name, the reference conditions and the tolerance together. A tolerance quoted without its basis cannot be verified on an incoming lot.

Frequently Asked Questions

Why is dominant wavelength always longer than peak wavelength?

It is not always longer, although it often appears shifted because the colorimetric calculation weights the spectrum differently from a simple peak reading. The direction and size of the shift depend on the shape of the emission band and on the reference white used.

Can two LEDs with the same dominant wavelength look different?

Yes, because dominant wavelength fixes a colour match but not the bandwidth or the luminous intensity. Two parts can match colorimetrically yet differ in saturation or brightness when placed side by side.

Which value applies to UV and IR LEDs?

For UV and IR emitters the physical emission values are normally used, since the colorimetric definition relies on visual perception. Peak wavelength and bandwidth are the figures that describe the source in those bands.

Does the quoted wavelength change with drive current?

It can shift slightly as junction temperature and current density change, which is why datasheets state the test conditions alongside the wavelength. Always compare wavelength values measured under the same current and temperature.

How tight should a wavelength tolerance be?

It depends on whether colour is being matched between units or against an absolute target. Visual consistency usually needs a tighter bin range than an application where the exact wavelength is not perceptually critical.

Conclusion

Peak wavelength tells you where the emitter radiates most strongly, and dominant wavelength tells you what colour it appears to be. Neither replaces the other, and quoting the number without the metric is the most common source of disagreement between a datasheet and a delivered lot.

If you need wavelength figures confirmed for a visible, UV or IR application, send your project requirements to the HOUKEM team and we will match them against the applicable product and measurement scope.
