SMD 7 Segment Display Design: Packages, Footprints and PCB Layout

What Makes a 7 Segment Display SMD

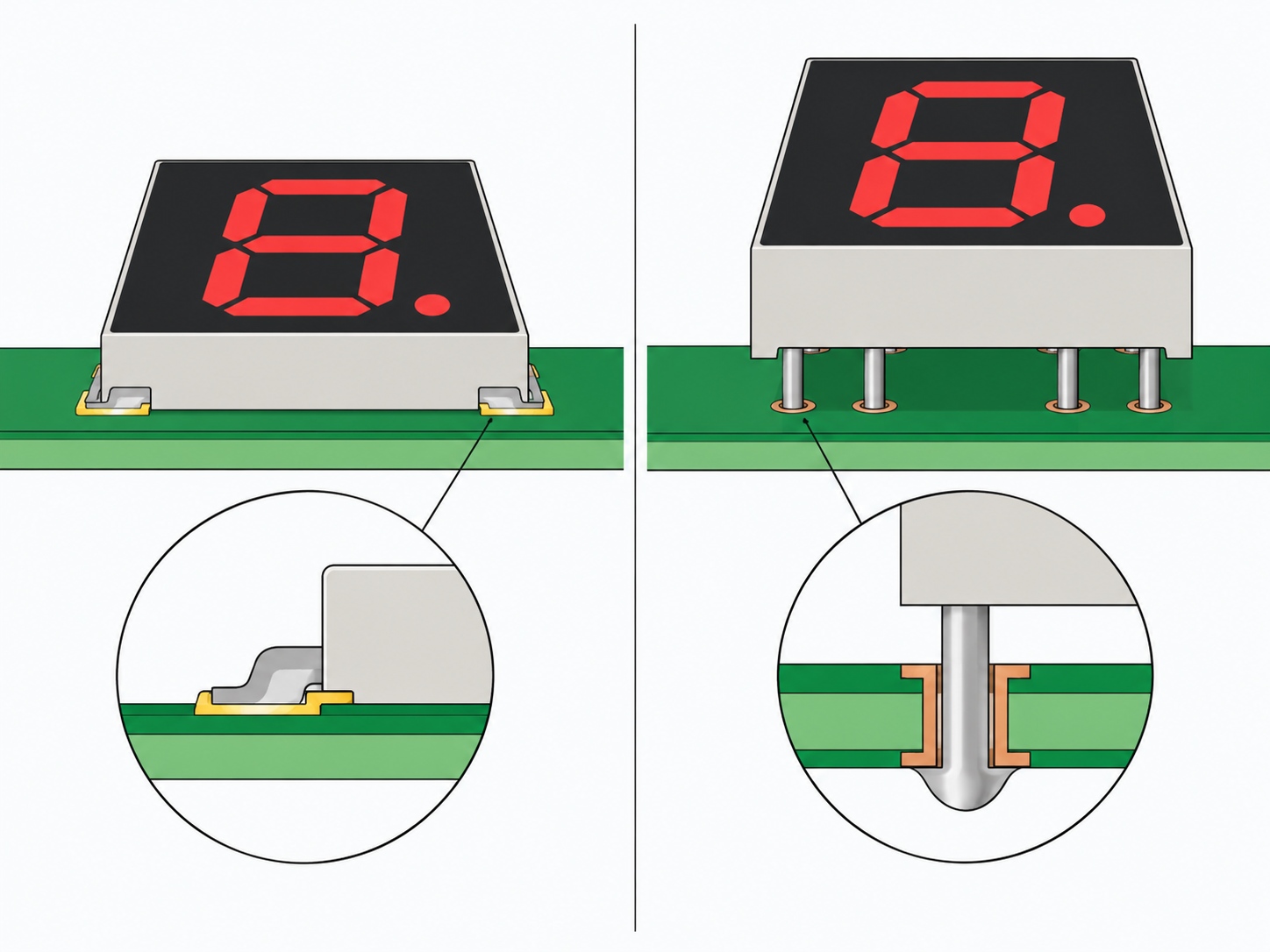

The difference is the mounting method rather than the display principle. A surface-mount part has no long pins passing through the board; its connections terminate in pads that sit on the surface, so the whole assembly can go through a reflow oven. That single change removes a drilling and wave-soldering step and allows placement on both sides of a board. It is also the centre of the SMD vs through hole 7 segment display decision, because the display principle itself is unchanged.

The trade-off is that the package has to manage its own mechanical and thermal path. The SMD 7 segment display package range covers one to three digits in compact heights, and it exists precisely because products have run out of room behind the panel. Those heights also mean the display is closer to the board surface, so light-piping and panel-fitting details matter more than they do in a taller through-hole part.

Package Sizes and Digit Height

The SMD 7 segment display digit height is the primary selector, because it determines reading distance and panel cut-out. Compact surface-mount ranges commonly span roughly 0.2 to 0.56 inch digit heights in one to three digit configurations, and the height you can accept is usually decided by the enclosure before it is decided by the board.

A documented 0.56 inch SMD display in a two-digit configuration is a useful reference point, because it shows how digit height, digit count and board area trade against each other in practice. Going smaller saves board area and panel depth but demands more from the optics; going larger improves legibility at distance and usually widens the package, which on a dense board is the harder constraint.

Colour also belongs in the size discussion rather than after it. Common colour options include red, green, blue, yellow and white on current models, and the colour affects both the forward voltage and the brightness the panel appears to have at a given current, which in turn affects the resistor or driver budget in the layout.

Footprint and Pad Design

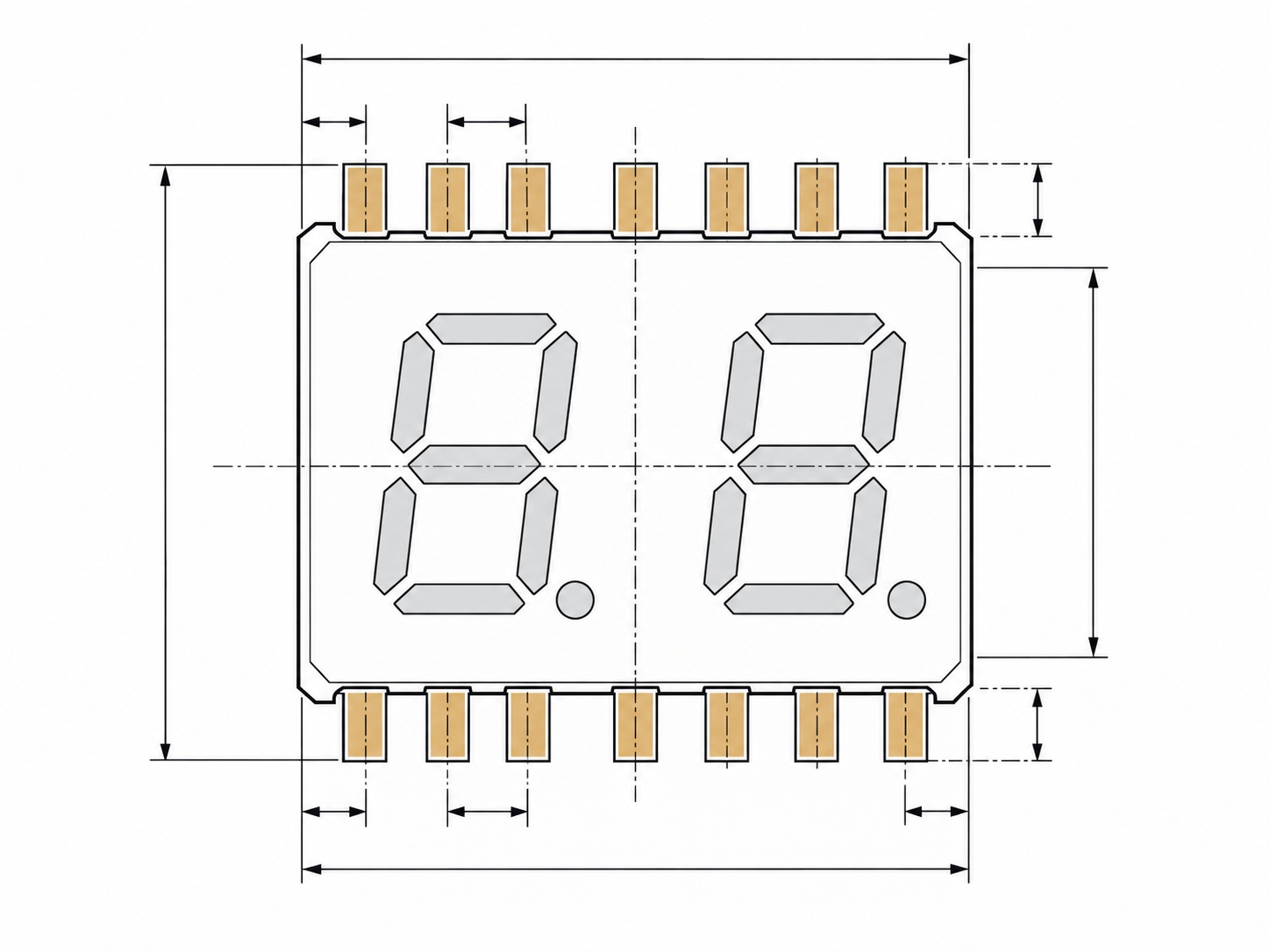

The SMD 7 segment footprint is where most surface-mount display problems are created. Pad geometry should always be taken from the supplier drawing for the specific 7 segment LED display module rather than copied from a similar-looking part, because pin positions vary between packages of the same digit height. Two displays with identical digit heights can have different pin rows, different pad widths and different body tolerances, which makes the SMD 7 segment display pin configuration part of the electrical review rather than a mechanical afterthought.

Three pad details matter most. First, pad length: slightly extended pads allow the package to self-align during reflow and give the solder fillet somewhere to form. Second, thermal relief: connecting large copper areas to display pads changes how heat drains during reflow and can leave some pins reflowing later than others. Third, courtyard: the outline needs clearance for placement tolerance, since a display that sits one millimetre off its window is visible from across the room.

Dimensioning should come from the drawing with tolerances, not from a nominal outline. Where the drawing and a reference design disagree, the drawing for the ordered part number wins, and any doubt is resolved with the supplier before the panel is cut. That is the whole of how to lay out an SMD 7 segment display correctly: the ordered drawing, its tolerances, and a panel cut-out that matches them.

Assembly and Reflow Considerations

A surface mount 7 segment display goes through the same reflow process as the surrounding components, which is its main advantage and its main risk. The package sees the full profile, so the display's maximum temperature and the board's peak temperature have to be compatible, and the recommendations supplied for the specific package should govern the profile rather than a generic assumption.

Placement accuracy is the second consideration. A display is one of the few components whose misalignment is visible to the end user, so the placement machine's repeatability should be checked against the courtyard allowance. Moisture handling matters too: plastic encapsulated packages absorb humidity, and the floor-life and baking rules that apply to the package class should be followed to avoid popcorn-type defects during reflow.

Inspection is easier than with through-hole, since the pads are visible after assembly, but the segment pattern should still be checked electrically before the board is closed into the enclosure, because a lifted connection on one segment is not always visible from the front.

Electrical and Optical Checks Before Freezing the Layout

Before the 7 segment display PCB layout is frozen, four checks catch most late redesigns. Polarity must be settled before routing, and the common anode vs common cathode comparison explains how the two arrangements differ at the pin level. Segment mapping should be verified against the driver, because multiplexed designs assign segments in ways that are easy to misread from a drawing.

Current setting is the third check. Each segment's resistor or current setting determines brightness, and brightness uniformity between digits is more visible on a compact panel than on a large one, so the per-digit budget should be matched rather than assumed. Finally, panel legibility should be reviewed with the real enclosure: a display that is bright on the bench can be washed out behind a tinted window or an overlay.

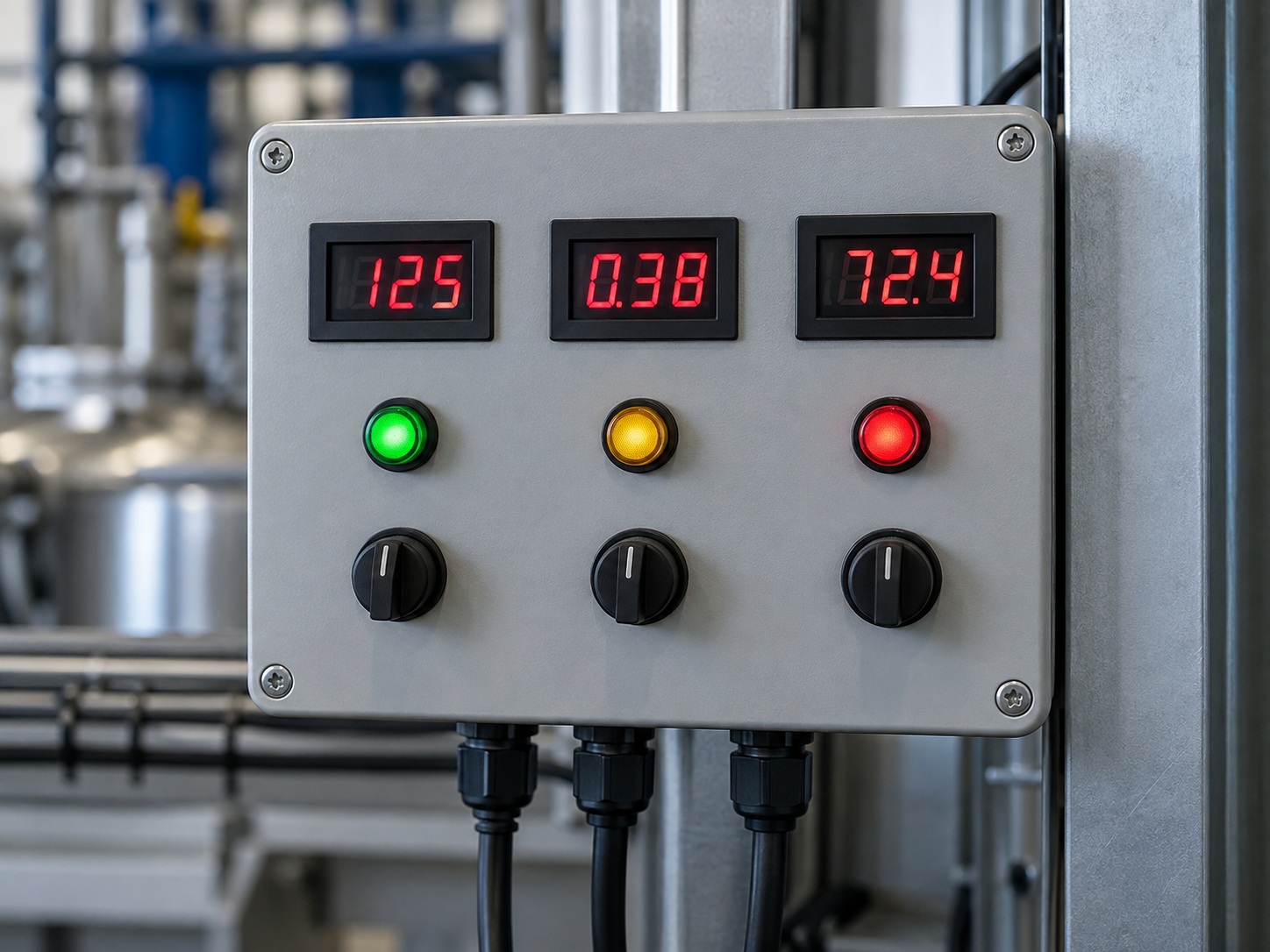

Applications such as meters, control panels and embedded PCB indications are the natural home for these compact parts. The most common request is an SMD 7 segment display for compact meters, where board area behind the panel is the limiting factor, and all of these applications reward a layout that was checked against the panel early rather than at the end.

When to Move From Standard to Custom

Standard packages cover a wide range, but panel geometry sometimes forces a different digit height, colour set or pin arrangement. Where a standard package cannot fit the panel, customized displays can be developed for a specific product design, with the drawing rather than the catalogue defining the outcome.

A custom route is worth the effort when the alternative is compromising the panel or the optics. It also carries an obligation: the electrical values, dimensions and pinout must be agreed against an approved drawing, and commercial terms such as minimum order quantity and lead time are set per model and project rather than as general figures. HOUKEM provides a two-year warranty across its full product range, with normal warranty terms and exclusions applying.

Conclusion

A good SMD 7 segment display design starts from the panel and works backwards to the footprint. Fix the digit height and colour from the enclosure, take the pad geometry from the supplier drawing for the ordered part, keep the reflow and placement limits in view, and verify polarity, segment mapping and brightness balance before the layout is frozen.

If you want a footprint or package choice checked against your panel height and assembly process, send your requirements and the engineering team will confirm the options that fit your board.

Frequently Asked Questions

What digit heights are typical for SMD 7 segment displays?

Compact surface-mount ranges commonly span roughly 0.2 to 0.56 inch in one to three digit configurations. The panel and reading distance usually decide the height before the board layout does.

Where should the footprint dimensions come from?

From the supplier drawing for the exact part number you are ordering, including tolerances. Similar-looking packages can have different pin rows, so copying a footprint from another part is a common source of assembly errors.

Can SMD 7 segment displays go through a standard reflow process?

Yes, that is their main advantage, but the package's temperature limit and moisture-handling rules must be respected. Use the profile recommendations supplied for the specific package rather than a generic assumption.

Why is my surface-mount display sitting at an angle after assembly?

A tilted display usually points to unequal pad thermal relief, a placement offset beyond the courtyard allowance, or uneven paste coverage. Checking pad connections to large copper areas normally finds the cause.

When is a custom SMD display worth specifying?

When the panel geometry, colour set or pin arrangement cannot be met by a standard package without compromising the product. A custom part is defined by an approved drawing, and terms are confirmed per project.
