Common Anode vs Common Cathode 7 Segment Display: Complete OEM Guide

Although both configurations use the same LED segments and deliver similar visual performance, they differ significantly in wiring methods, driver compatibility, multiplexing design, and system architecture.

For OEM manufacturers, selecting the wrong configuration can lead to unnecessary PCB redesigns, firmware modifications, and increased development costs.

This guide explains the differences between a common anode vs common cathode 7 segment display, helping engineers, purchasing teams, and product designers select the most suitable solution for their applications.

---

What Is a Common Anode Display?

A common anode display connects all LED segment anodes together internally and ties them to the positive supply voltage (VCC).

To illuminate a segment, the corresponding segment pin must be driven LOW, allowing current to flow from the common anode through the LED segment and into the driver circuit.

Characteristics of a Common Anode LED Display

• Common pin connected to VCC

• Segment turns ON when driven LOW

• Requires current-sinking drivers

• Commonly used in legacy systems

• Suitable for certain high-side switching architectures

Many older industrial control systems and legacy electronic products were designed around the common anode configuration, which is why replacement demand remains strong today.

---

What Is a Common Cathode Display?

A common cathode display connects all LED segment cathodes together internally and ties them to ground (GND).

To illuminate a segment, the corresponding segment pin is driven HIGH.

Current flows from the driver through the segment and returns through the common cathode connection.

Characteristics of a Common Cathode LED Display

• Common pin connected to GND

• Segment turns ON when driven HIGH

• Requires current-sourcing outputs

• Compatible with most modern display driver ICs

• Widely used in new electronic designs

Today, the common cathode 7 segment display is the preferred choice for many OEM projects because of its compatibility with popular driver ICs and simplified circuit design.

---

Common Anode vs Common Cathode Display: Quick Comparison

Feature	Common Cathode Display	Common Anode Display
Common Connection	Ground (GND)	Positive Supply (VCC)
Segment ON State	HIGH	LOW
Driver Requirement	Current Source	Current Sink
Multiplexing Complexity	Lower	Moderate
Driver IC Compatibility	Excellent	Limited
Design Simplicity	Easier	More Complex
Availability	Very High	Moderate
Typical Usage	New Designs	Legacy Systems

For most new products, engineers typically choose a common cathode display because it offers broader driver support and easier development.

---

Driver IC Compatibility

Driver compatibility is often the deciding factor when selecting between a common anode vs common cathode display.

Common Cathode Driver ICs

The following driver ICs are commonly used with a common cathode 7 segment display:

• MAX7219

• MAX7221

• TM1637

• TM1650

• HT16K33

• CD4511

These devices simplify multiplexing, brightness control, and firmware development.

Common Anode Driver Options

A common anode 7 segment display typically requires:

• Current-sinking shift registers

• Open-drain drivers

• PNP transistor arrays

• MOSFET switching circuits

While common anode designs remain viable, they generally require more supporting circuitry.

---

Understanding LED Display Polarity

One of the most common mistakes during development is misunderstanding LED display polarity.

Common Cathode

• Common pin = Negative

• Segment pin = Positive trigger

• HIGH signal lights the segment

Common Anode

• Common pin = Positive

• Segment pin = Negative trigger

• LOW signal lights the segment

Before designing a PCB, engineers should always verify the display datasheet to confirm the correct LED display pin configuration.

Using the wrong polarity can result in:

• Display malfunction

• Excessive current consumption

• Driver IC damage

• PCB redesign costs

---

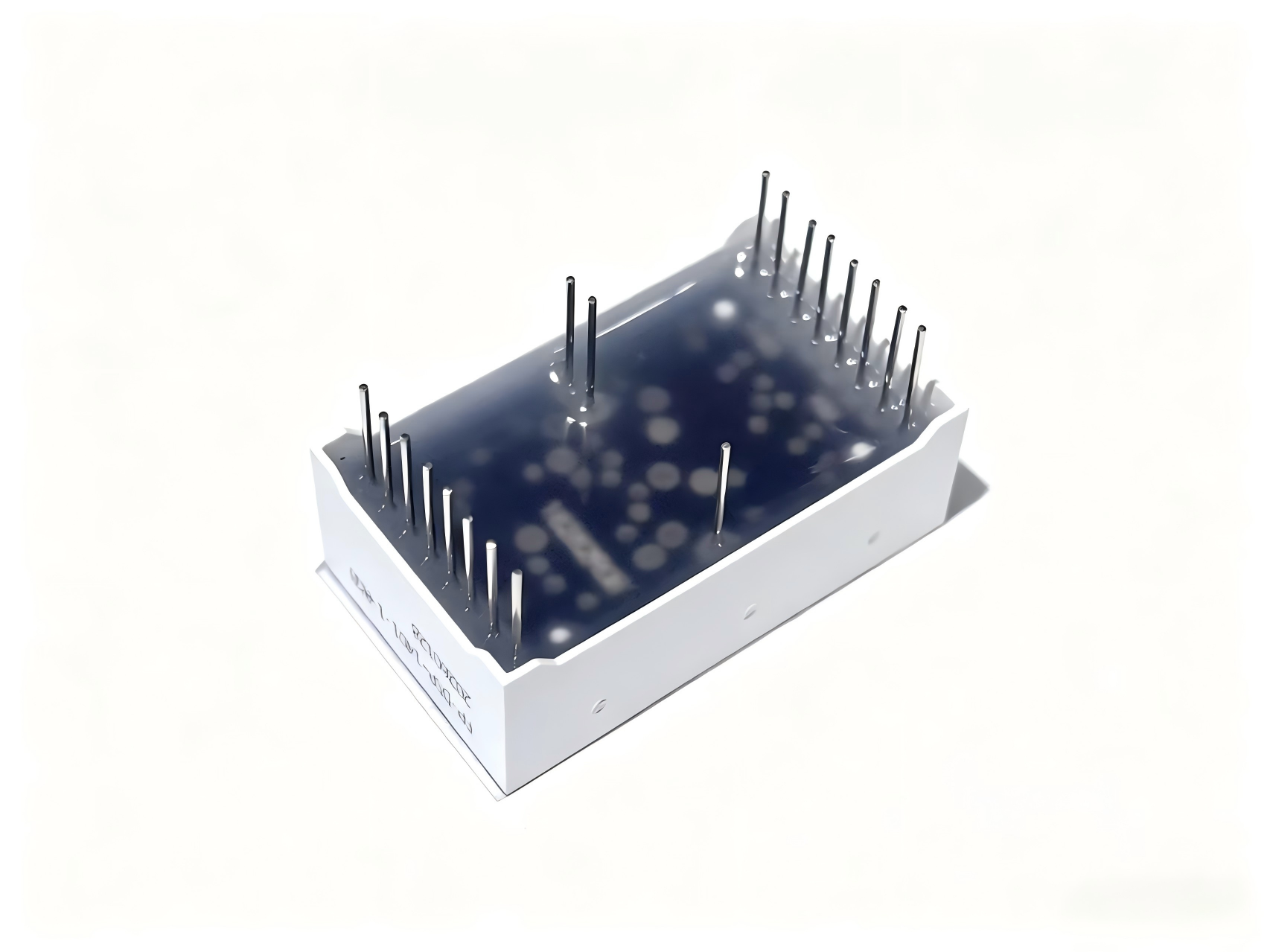

7 Segment Display Wiring Basics

Correct 7 segment display wiring is essential for stable operation.

Common Cathode Wiring

1. Connect common pin to GND.

2. Connect segment pins through current-limiting resistors.

3. Drive segments HIGH to illuminate.

Common Anode Wiring

1. Connect common pin to VCC.

2. Connect segment pins through current-limiting resistors.

3. Drive segments LOW to illuminate.

Regardless of configuration, every segment should have proper current-limiting protection to ensure long-term reliability.

---

Common Applications

Both configurations continue to be used across a wide range of industries.

Common Cathode Applications

• Digital clocks

• Measurement instruments

• Industrial controllers

• Medical equipment

• Consumer electronics

• Embedded systems

Common Anode Applications

• Legacy equipment upgrades

• Automotive electronics

• Existing control panels

• Specialized industrial systems

For new product development, most engineers choose a common cathode LED display because of its easier integration and broader ecosystem support.

---

Multiplexing Considerations

Most multi-digit displays use multiplexing to reduce pin count.

When multiplexing a numeric LED display module, the controller rapidly switches between digits while sharing segment lines.

Common Cathode Multiplexing

Advantages:

• Simpler low-side switching

• Lower component cost

• Easier firmware development

Common Anode Multiplexing

Advantages:

• Suitable for high-side switching architectures

• Useful in specific legacy designs

Disadvantages:

• Additional driver complexity

• Higher component count

For most modern OEM applications, common cathode multiplexing remains the preferred approach.

---

How to Identify a Display Without a Datasheet

Occasionally, engineers receive display samples without documentation.

A digital multimeter can quickly determine the display type.

Identifying a Common Cathode Display

1. Set the meter to diode mode.

2. Place the black probe on the suspected common pin.

3. Touch segment pins with the red probe.

If segments illuminate, it is a common cathode display.

Identifying a Common Anode Display

1. Place the red probe on the suspected common pin.

2. Touch segment pins with the black probe.

If segments illuminate, it is a common anode display.

This simple test can prevent wiring mistakes during prototype development.

---

Choosing the Right Configuration for Your Project

Choose a Common Cathode Display If:

• Designing a new product

• Using MAX7219 or TM1637 drivers

• Developing battery-powered devices

• Looking for the lowest BOM cost

• Seeking easier firmware development

Choose a Common Anode Display If:

• Replacing an existing legacy display

• Maintaining compatibility with older hardware

• Using high-side switching architectures

• Updating existing industrial equipment

In most new designs, the common cathode display remains the recommended option.

---

OEM Customization Options

As a custom LED display manufacturer, Houkem supports a wide range of display customization services.

Available options include:

• Common anode or common cathode configurations

• Single-digit to six-digit displays

• Custom pin layouts

• Custom colors and brightness levels

• Low-current versions

• Industrial-grade displays

• Custom PCB dimensions

• Private-label manufacturing

These customization capabilities help OEM customers reduce redesign costs while accelerating product development.

---

FAQ

Which is better: common anode or common cathode?

Neither is universally better. For new products, common cathode is usually preferred because it offers broader driver compatibility and simpler circuit design.

Can MAX7219 drive a common anode display?

No. MAX7219 is designed for common cathode displays.

Is a common cathode display more popular?

Yes. Most modern numeric display designs use common cathode architecture due to easier integration with available driver ICs.

How do I identify LED display polarity?

Use a multimeter in diode mode. The direction that illuminates segments reveals whether the display is common anode or common cathode.

Can I replace a common anode display with a common cathode display?

Not directly. The wiring, firmware, and driver circuitry are typically different.

Do you offer both common anode and common cathode displays?

Yes. Houkem supplies both standard and custom numeric LED display modules for OEM and industrial applications.

---
