LED Thermal Resistance: RθJA vs RθJC Explained

Quick Answer

LED thermal resistance describes how effectively heat moves from the LED junction toward a defined reference point, usually expressed in °C/W. RθJA refers to the junction-to-ambient path, while RθJC refers to the junction-to-case path. RθJA is strongly influenced by PCB and environmental conditions, whereas RθJC focuses on a defined package heat-flow path. The right parameter depends on whether you are evaluating the complete board-to-air system, the package itself, or a particular PCB or heatsink interface.

For a broader view of junction temperature, PCB design and heat removal, see our LED thermal management overview.

The LED Thermal Resistance Parameter Family

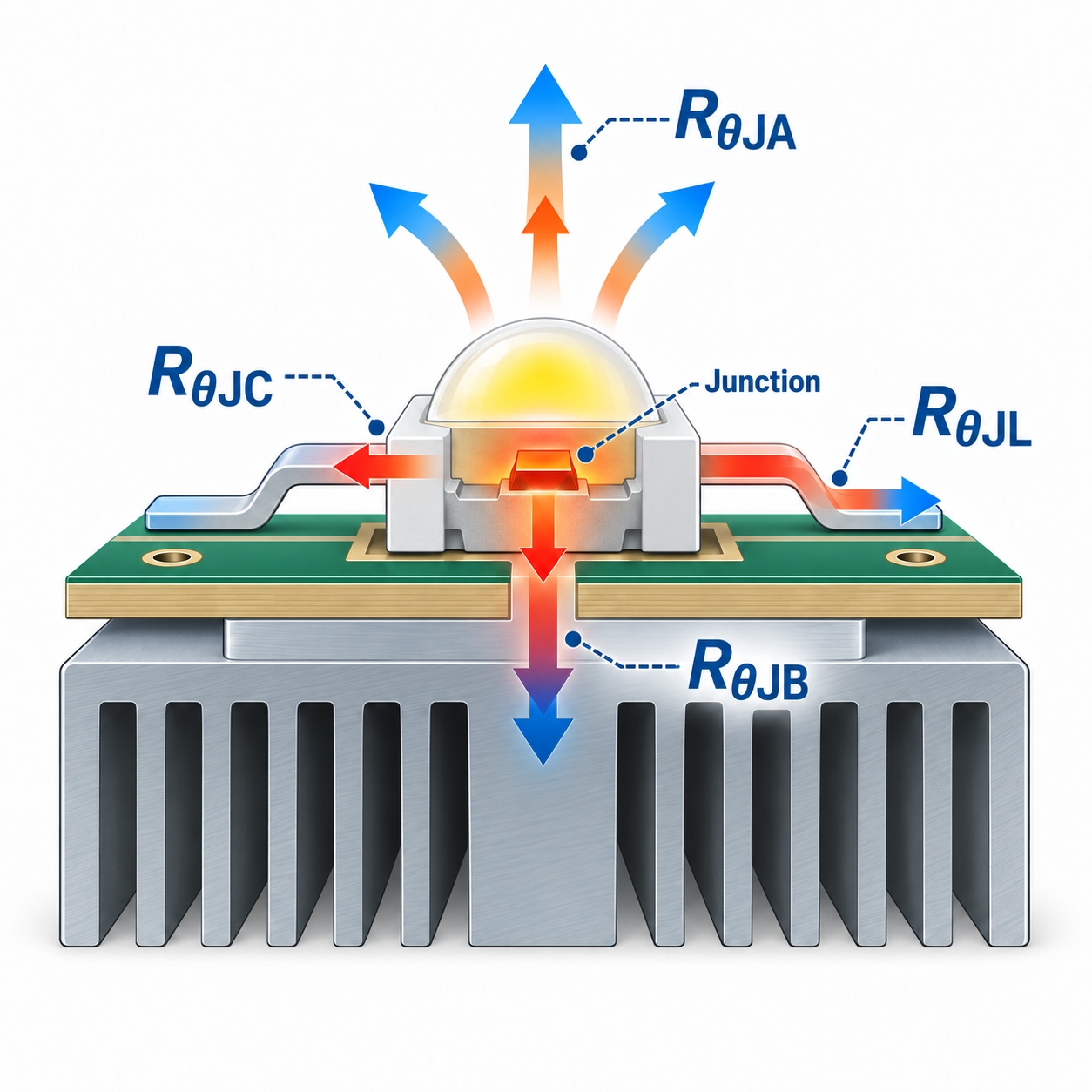

An LED datasheet may provide several thermal parameters, including RθJA, RθJC, RθJB and RθJL. Each describes a different thermal path, so the values should not be treated as interchangeable.

The most important question is always: between which two temperature reference points was this thermal resistance defined? A value describing junction-to-ambient behavior cannot automatically be substituted for a junction-to-case or junction-to-board value.

Thermal parameters are also characterized under defined test conditions. That means a datasheet value is most useful when you understand the test boundary behind it and how closely that boundary resembles your actual LED assembly.

RθJA — Junction-to-Ambient Thermal Resistance

RθJA represents the thermal path between the semiconductor junction and the surrounding ambient environment. It reflects the combined effect of heat moving through the LED package, PCB and surrounding environment under the specified test conditions.

Why RθJA Depends on the Application

RθJA is not simply an intrinsic property of the LED package. PCB copper area, board construction, thermal vias, nearby heat sources, enclosure conditions and airflow can all affect junction-to-ambient thermal behavior.

This is why two applications using the same LED can operate at different junction temperatures even when drive conditions are similar. A datasheet RθJA value should therefore be interpreted together with the test conditions used to obtain it.

When RθJA Is Useful

RθJA is useful for system-level thermal comparisons and first-pass junction-temperature estimates when the real application is reasonably close to the stated test conditions.

If your PCB, airflow or enclosure differs substantially from the reference condition, measurement or thermal simulation is usually more informative than treating the published RθJA as an exact system value.

RθJC — Junction-to-Case Thermal Resistance

RθJC describes thermal resistance between the semiconductor junction and a specified point on the package case. Unlike RθJA, it is intended to characterize a defined package heat-flow path rather than the complete junction-to-air system.

What RθJC Tells the Designer

RθJC helps describe how effectively heat can move from the LED junction toward the defined case reference point. It can be useful when the package has a thermal path intended to couple to a heatsink or another heat-spreading structure.

However, RθJC does not include the complete thermal path from the package to ambient. Thermal interface material, mounting conditions, heatsink performance and airflow belong to the external thermal path beyond the package reference point.

RθJC and Heatsink Design

When a package is designed to transfer a significant amount of heat through a defined case or thermal surface, RθJC can form one part of the heatsink calculation. The designer must still account for the case-to-interface, interface-to-heatsink and heatsink-to-ambient portions of the thermal path.

In practical design work, the thermal network should therefore be evaluated as a series of connected paths rather than assuming RθJC alone predicts the final junction temperature.

RθJB and RθJL — Other Thermal Paths

RθJB refers to the thermal path from the junction to a defined reference point on the board. It is particularly relevant when the PCB is an important heat-spreading path for the device.

For board-mounted LEDs, copper area, layer construction, thermal vias and the connection between the package and PCB can have a strong influence on overall thermal performance. RθJB can help engineers understand this board-directed path when the datasheet provides the parameter.

RθJL refers to junction-to-lead thermal resistance. It is more relevant to package types where heat conduction through a defined lead or terminal forms an important part of the thermal path.

Not every LED datasheet provides all four values. Always work with the parameters actually specified for the package instead of assuming that a missing thermal value can be estimated from another one.

How to Read Thermal Resistance on an LED Datasheet

Do not look at the °C/W number alone. The notes around the thermal table are often just as important as the value itself.

Check the Reference Points

First confirm what the two endpoints represent. For RθJC, identify where the case temperature is defined. For RθJB, determine the board reference location. A temperature measured at the wrong point can make a thermal calculation misleading even when the equation itself is correct.

Check the Test Conditions

For RθJA, review the specified board and environmental conditions. PCB construction, copper distribution and airflow can substantially affect junction-to-ambient behavior.

If your application differs from the datasheet test setup, use the published value as a reference rather than assuming it is the exact thermal resistance of your finished product.

Check the Power Used in the Calculation

Thermal resistance calculations use dissipated power, not simply the electrical input rating printed on a product page. For LEDs, the designer should distinguish between electrical input power, optical output and the portion of power ultimately converted to heat.

This is also why thermal calculations should be tied to the actual operating point rather than copied from a different current or application condition.

Common LED Thermal Resistance Mistakes

One common mistake is treating RθJA as a fixed package property. Because junction-to-ambient behavior depends heavily on the test environment and board, the same package can perform differently in a different PCB or enclosure.

Another mistake is using RθJC as if it represented the entire junction-to-ambient path. RθJC stops at the defined case reference point; the remaining interface, heatsink and ambient paths must still be considered.

A third mistake is comparing thermal numbers from two datasheets without checking whether the measurement methods and boundary conditions are equivalent.

The same principle applies to other LED parameters. When evaluating specifications, use the test conditions and parameter definitions together with the headline value. Our LED specifications reading guide covers this broader datasheet-reading approach.

How PCB Design Affects LED Thermal Performance

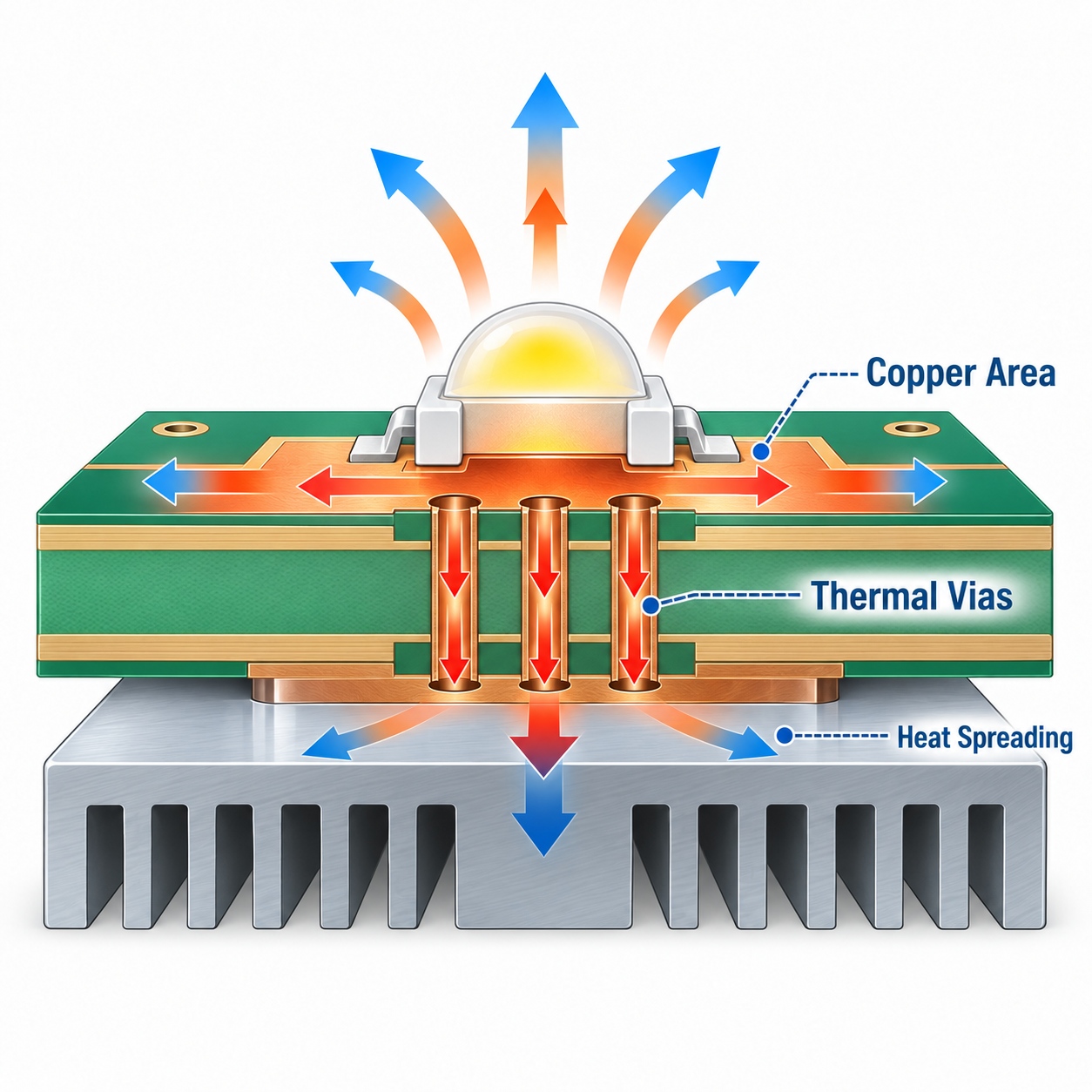

For LEDs that dissipate heat through the board, the PCB becomes part of the thermal system. Copper area can spread heat away from the package, while properly designed thermal vias can help transfer heat between layers or toward another heat-spreading structure when the package and PCB layout support that path.

Board thickness, copper distribution, via arrangement, component density and airflow can all influence the final junction temperature. This is why RθJA from a reference board should not be treated as a guaranteed value for a production PCB.

Thermal performance should ultimately be verified under conditions that represent the actual product as closely as practical.
