LED Forward Current vs Rated Current: How to Read the Limits

Quick Answer

LED forward current tells you how much current flows through the LED in the forward direction, but the current values shown on a datasheet do not all mean the same thing. Depending on the manufacturer, you may see recommended operating current, DC forward current, absolute maximum forward current and peak pulsed forward current. The safest approach is to read the value together with its test conditions, temperature limits and derating information rather than treating any single current number as the universal operating target.

For a broader explanation of electrical parameters, see our LED specifications reading guide.

Why LED Current Terms Can Be Confusing

LED datasheets do not always use identical terminology. One manufacturer may list “DC Forward Current,” another may use “Forward Current,” while another document may refer to a typical operating or rated current in a characteristics table.

This means the label alone is not enough. Engineers should first identify whether the number appears under recommended operating conditions, electrical characteristics or absolute maximum ratings, then check the temperature and test conditions attached to it.

In particular, the term “rated current” is not used consistently enough across all LED manufacturers to be treated as a universal synonym for continuous forward current. The surrounding datasheet context determines how the value should be interpreted.

What Is LED Forward Current?

Forward current, usually represented as IF, is the current flowing through the LED when it is forward biased. It is one of the main operating variables that influences light output, forward voltage, electrical power and junction temperature.

When choosing the operating current, the designer should consider more than the electrical value alone. Package thermal performance, PCB design, ambient or case temperature, required light output and lifetime goals all affect how much current is appropriate for the actual application.

Recommended Operating Current vs Maximum Current

A recommended or typical operating current is intended to describe a normal application condition or the condition used to characterize other specifications. An absolute maximum current, by contrast, defines a boundary that should not be used as the normal design target.

If a datasheet provides only an absolute maximum current, that does not mean the LED should normally be operated at that value. The engineer still needs to select an operating point that satisfies the thermal and reliability requirements of the finished product.

What Does Absolute Maximum Forward Current Mean?

Absolute maximum ratings define limits that should not be exceeded. They are not recommended operating conditions and should not be treated as performance targets.

For LEDs, the allowable forward current may also depend on junction or case temperature. A current that is within the maximum rating under one thermal condition may no longer be acceptable at a higher operating temperature.

This is why the absolute maximum table and the current-derating information should be read together.

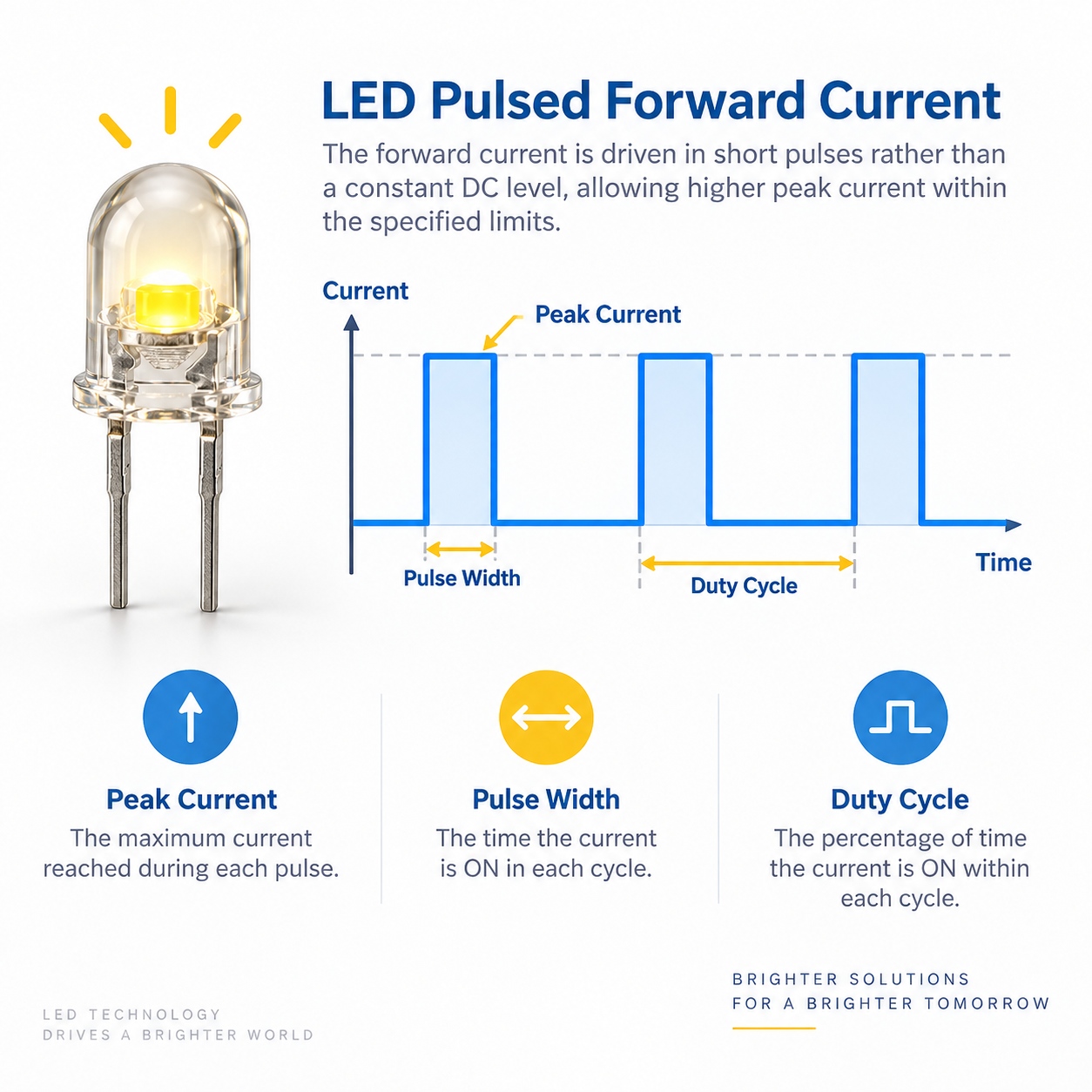

What Is Pulsed Forward Current?

Peak or pulsed forward current is a current limit specified for intermittent operation. It is usually higher than the permitted continuous current, but it is only valid under the pulse conditions stated by the manufacturer.

Those conditions can include pulse width, duty cycle, junction temperature or other operating restrictions. Without those conditions, the pulsed-current number is incomplete.

Why Pulse Width and Duty Cycle Matter

During a short current pulse, the LED junction may not reach the same thermal equilibrium it would under continuous operation. However, repeated pulses still contribute to average heating, while each pulse can create a peak junction-temperature excursion.

Therefore, a lower duty cycle does not automatically give permission to select any current above the continuous rating. The combination of peak current, pulse duration, duty cycle and thermal conditions must remain within the manufacturer's specified limits.

How to Read an LED Current Derating Curve

A derating curve shows how an allowable current or power limit changes as temperature rises. Depending on the LED, the relevant temperature may be ambient temperature, case temperature or another reference defined in the datasheet.

When the application operates at an elevated temperature, the allowable current may need to be reduced to keep the semiconductor junction within its permitted thermal range.

A Practical Reading Process

First identify which temperature appears on the horizontal axis. Next determine the allowable current at the highest temperature your product is expected to experience. Finally, verify that the selected current remains suitable after the complete thermal path and operating conditions are considered.

The important design point is usually the worst-case thermal condition, not the room-temperature value used for a laboratory characterization.

How the Constant Current Driver Fits Into the Design

The LED does not regulate its own forward current. In a constant-current system, the driver controls the operating current while the LED determines the electrical and thermal limits that the driver must respect.

Choosing the LED first and then programming the driver above the appropriate operating limit can still overstress the device. The driver setting should therefore be derived from the selected LED's datasheet, required output and thermal design.

For more detail on this part of the circuit, see our guide to constant current LED driver design.

Common Mistakes When Reading LED Current Ratings

Treating the Absolute Maximum as the Normal Operating Point

An absolute maximum value defines a boundary, not a recommended design center. Normal operation should be chosen with sufficient consideration for temperature, optical output, reliability and the manufacturer's stated conditions.

Using Pulsed Current as a Continuous Rating

A peak pulsed current is only valid under the pulse width and duty-cycle conditions specified in the datasheet. Removing those conditions from the number changes its meaning.

Ignoring Temperature Derating

A current value listed at a reference condition may not remain allowable across the complete operating-temperature range. Check the relevant derating curve before setting the final driver current.

Assuming “Rated Current” Has the Same Meaning on Every Datasheet

Manufacturers do not always use the term in exactly the same way. Verify where the current appears in the datasheet, how it is defined and what operating conditions accompany it.

What Should Engineers Confirm Before Setting LED Current?

Before finalizing the driver setting, confirm the following items:

• The intended LED model and package.
• The current parameter being used and whether it is an operating value or an absolute maximum.
• The applicable temperature or derating conditions.
• Whether the application is continuous or pulsed.
• Pulse width and duty cycle when pulsed operation is used.
• The expected PCB and thermal environment.
• The required optical output and lifetime target.

These factors should be reviewed as one operating system rather than as independent datasheet numbers.

How HOUKEM Supports Drive-Current Decisions

When selecting a HOUKEM LED for a specific project, provide the intended operating conditions so the engineering team can review the requirements against the selected product configuration.

You can first review the available HOUKEM LED product range, then provide the LED model, driver topology, continuous or pulsed operating mode, duty cycle where applicable, and the relevant thermal conditions.

Model-specific electrical values should be confirmed from the applicable product information rather than assumed from another LED package or a generic current value. MOQ and lead time are also confirmed according to the specific model and project.

Frequently Asked Questions

Is rated current the same as maximum forward current?

Not necessarily. A rated or recommended operating current describes an intended operating condition, while an absolute maximum forward current defines a limit that should not be used as the normal operating target. Always check how the manufacturer defines the term in that specific datasheet.

Can I drive an LED above its continuous current when using PWM?

Only when the datasheet provides a pulsed-current rating that permits the selected current under the specified pulse width, duty cycle and thermal conditions. PWM operation does not remove the need to respect peak-current and junction-temperature limits.

Why does the allowable LED current decrease at higher temperature?

As the surrounding or case temperature increases, less thermal margin remains before the junction reaches its permitted temperature limit. Current or power may therefore need to be reduced according to the applicable derating information.

Does the constant current driver determine the LED current?

Yes. The driver regulates the operating current in a constant-current system, while the LED datasheet defines the electrical and thermal limits that the selected driver setting must respect.

Can I use the same forward current for different LED models?

Not safely without verification. Different LED packages and chip structures can have different current ratings, thermal behavior and optical output, so the appropriate operating current should be confirmed for the specific model.

Does pulsed operation affect LED lifetime?

It can. Lifetime depends on the electrical and thermal stress created by the pulse conditions, including peak current, pulse duration, duty cycle and junction temperature. Use the manufacturer-defined pulse limits and validate demanding operating conditions when reliability is important.

Conclusion

LED forward current should never be interpreted as a single universal number. Recommended operating current, absolute maximum current and peak pulsed current describe different boundaries, and their meaning depends on the conditions stated in the datasheet. Temperature derating and the actual driver configuration also influence the final operating point.
