How to Choose a COB LED Module for OEM Lighting Projects

Choosing the right COB LED is rarely a matter of finding the highest lumen output or matching a wattage printed on a datasheet. In an OEM fixture, the COB has to work as part of a complete system: driver, optics, heat sink, housing, mounting structure, and operating environment.

A module that looks suitable electrically may produce the wrong beam with the existing reflector. Another may deliver the required output but run too hot inside a compact enclosure. Even two COBs with the same nominal wattage can require very different drivers.

For that reason, selecting a COB LED module for OEM lighting should begin with the application and system requirements, then work backward to the LED specifications.

This guide explains how to choose a COB LED module by looking at the parameters that have the greatest impact on optical performance, electrical compatibility, thermal reliability, and production integration.

What Should You Check Before Choosing a COB LED Module?

For most OEM lighting projects, seven areas deserve attention before a module is approved:

The important point is that these parameters interact.

A higher-power COB may increase light output, but it can also increase current demand, heat generation, and optical source size. If the existing driver, heat sink, or reflector cannot support those changes, the higher-power part may actually make the fixture perform worse.

Start With the Application, Not the Wattage

A common OEM inquiry begins with:

“Do we need a 30W or 50W COB?”

In most cases, that is not the first question to answer.

Start instead with what the fixture must achieve:

• Target light output
• Beam angle
• Working distance
• Fixture dimensions
• Operating hours
• Ambient temperature
• Dimming requirements
• Required CCT and CRI
• Available driver
• Existing reflector or lens

Once those conditions are clear, the suitable electrical power range becomes easier to determine.

For example, a spotlight may benefit from a smaller COB LED light emitting surface because a compact source is easier to control optically. An industrial high-bay fixture may place more emphasis on efficacy, thermal performance, and long operating hours.

Retail and studio fixtures may accept lower efficacy in exchange for higher CRI, stronger R9 values, and tighter color consistency.

The “best” COB therefore depends on what the final product is expected to do.

COB LED Specifications That Matter Most in OEM Selection

A COB datasheet can contain many values, but not all of them carry the same weight during early product selection.

Luminous Flux and Efficacy

Luminous flux tells you how much visible light the module produces, while efficacy indicates how efficiently electrical power is converted into visible output.

Both figures are useful, but they should never be compared without checking the test conditions.

A COB may show an impressive lumen value at a high test current, while another may be measured at a lower operating point. Junction temperature can also affect the result.

When comparing COB LED specifications, check:

• Test current
• Test temperature
• Typical versus minimum output
• Efficacy at the intended operating point

The highest lumen figure is not always the best choice if the fixture cannot remove the extra heat needed to reach it.

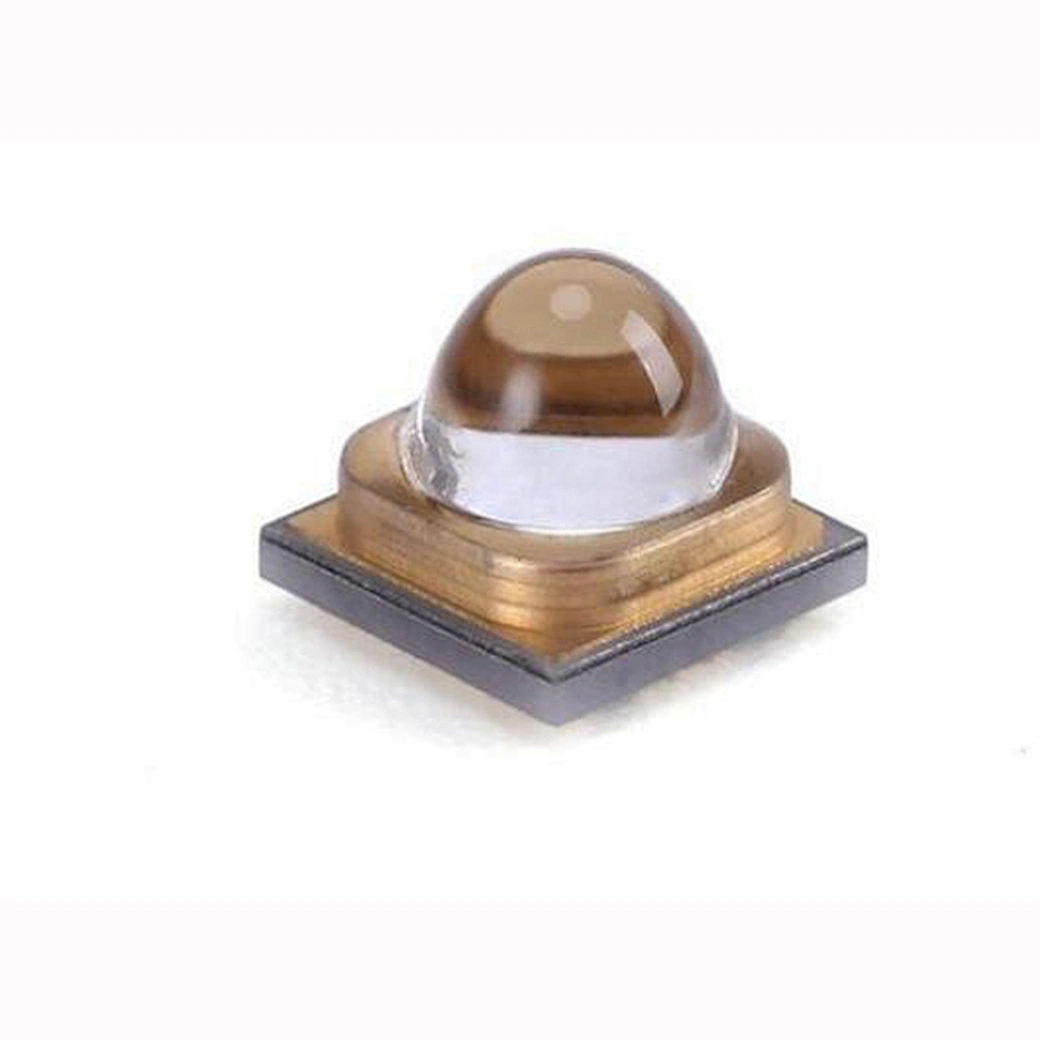

Light-Emitting Surface (LES)

LES is one of the most overlooked parameters in COB LED module selection.

It describes the active area from which light is emitted and has a direct effect on the optical system.

LES influences:

• Reflector geometry
• Lens selection
• Beam angle
• Focal position
• Optical efficiency
• Fixture depth

A smaller LES is generally easier to focus into a narrow beam. A larger emitting surface may work well for broader illumination but can make tight beam control more difficult.

This becomes particularly important when replacing an existing COB.

Two modules may have almost identical outer PCB dimensions while using different LES diameters. Mechanically, both fit. Optically, they may behave very differently.

For OEM projects using an existing reflector or lens, LES should be checked early rather than after sample assembly.

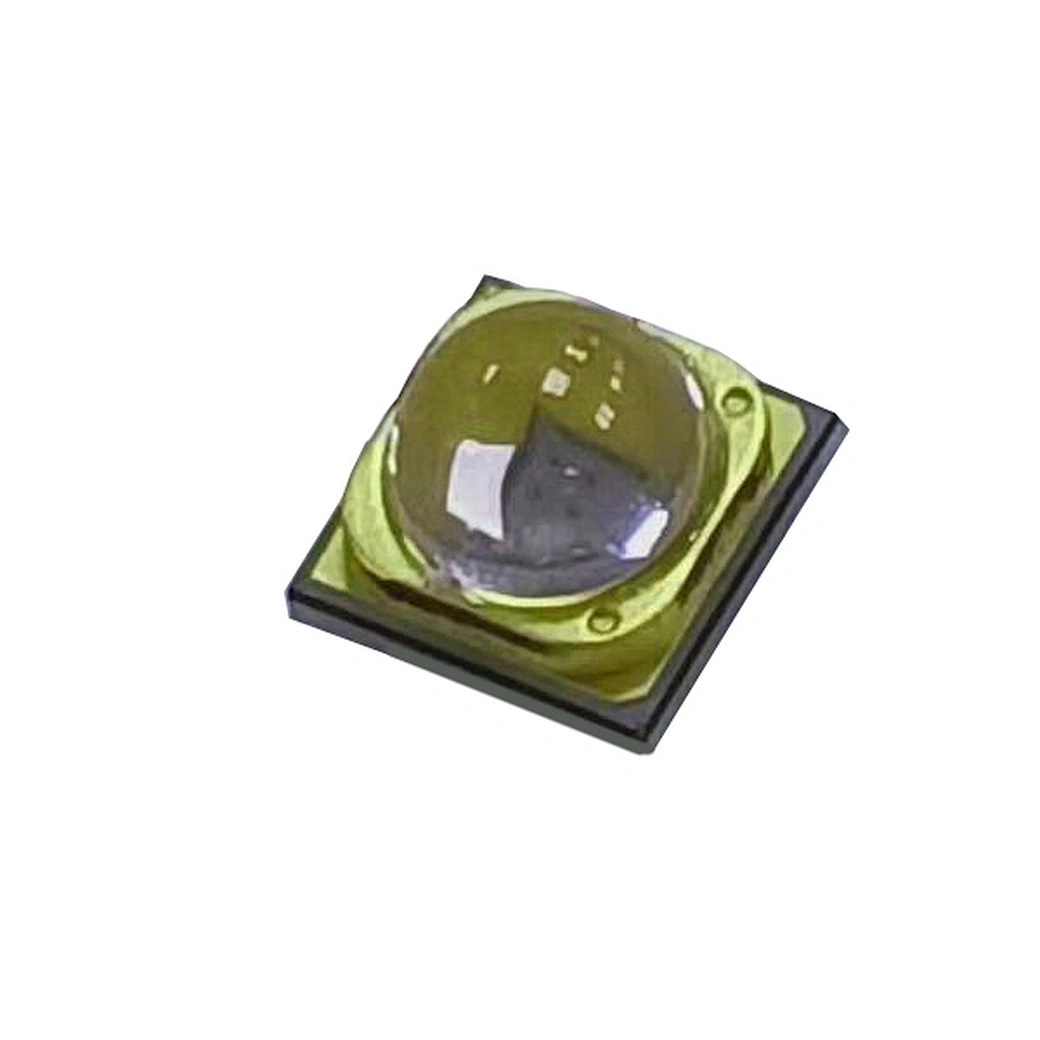

Forward Voltage and Rated Current

Electrical compatibility is another area where nominal wattage can be misleading.

Consider two modules:

• COB A: 36V at 1.4A
• COB B: 18V at 2.8A

They may operate at roughly similar power levels, but they cannot automatically use the same driver.

For proper COB LED driver compatibility, review:

• Typical forward voltage
• Maximum forward voltage
• Rated forward current
• Maximum current
• Test conditions
• Driver output range

If the project already has an approved driver, the COB should normally be selected to fit that electrical window unless there is a good reason to redesign the power stage.

How to Match a Driver to a COB LED

Most COB LEDs require a constant-current LED driver.

The first step is to match the regulated output current.

If the COB is designed to operate at 1050mA, the driver should normally regulate at or below that current, depending on the intended operating point.

The second step is checking the driver’s output-voltage window.

Suppose the COB has:

Forward voltage: 32–36V

and the driver provides:

Output range: 27–42V at 1050mA

That combination is potentially compatible because the driver can regulate the required current throughout the expected COB voltage range.

A driver described simply as “40W” or “50W” does not provide enough information to make that decision.

For OEM work, remember:

Same wattage does not mean same electrical compatibility.

Current and voltage range matter more than the headline power number.

Color Quality: CCT, CRI, R9 and Binning

For white COB modules, color specifications can become as important as electrical performance.

Common CCT options include:

• 2700K
• 3000K
• 4000K
• 5000K
• 6000K

General commercial lighting may use CRI 80, while retail, hospitality, studio, and color-sensitive applications often require CRI 90 or 95.

R9 may also matter where saturated reds need to appear natural.

However, CRI alone does not tell the whole story.

If multiple fixtures will be installed in the same space, color consistency between modules and production batches matters. That is where binning and SDCM control become important.

For a large OEM order, it is worth confirming not only the target CCT and CRI, but also how tightly the supplier controls color variation from batch to batch.

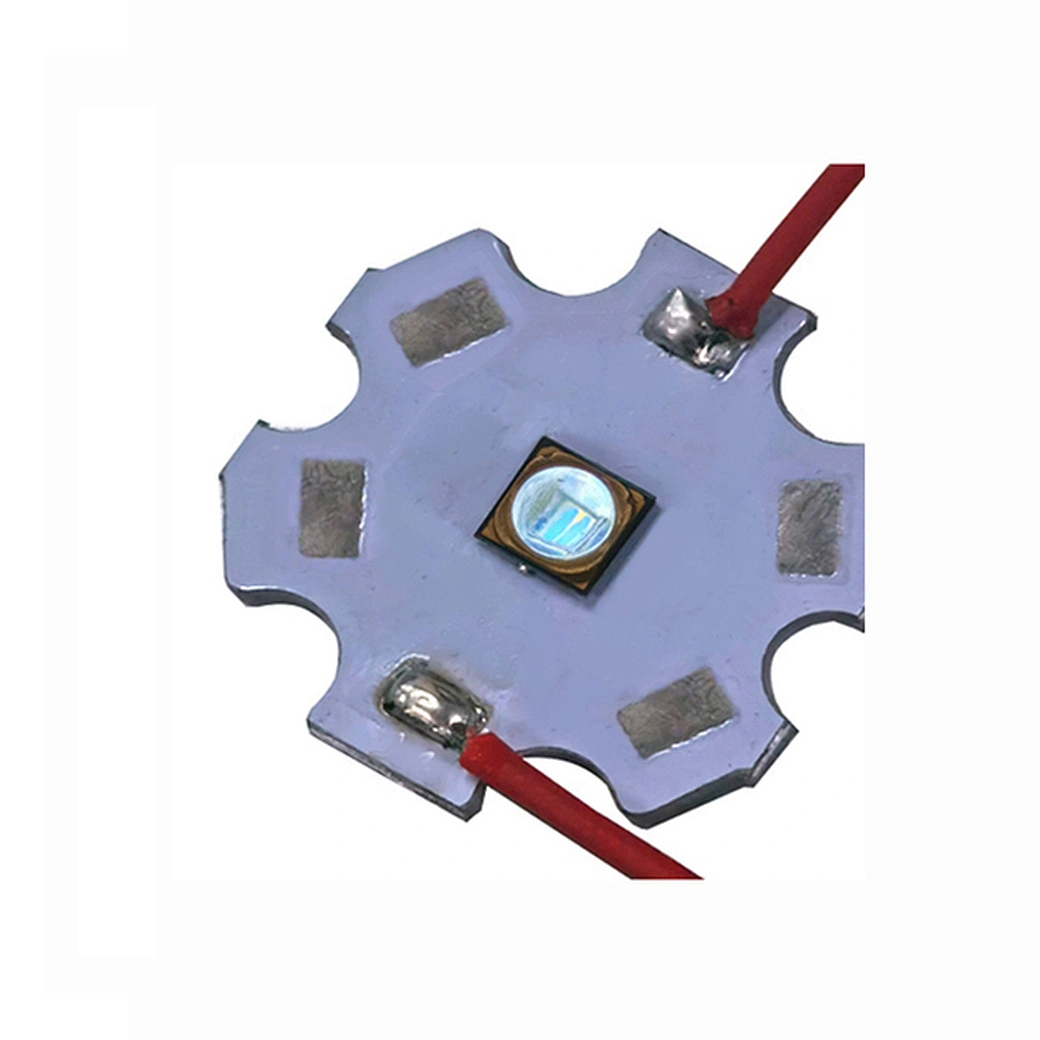

COB LED Thermal Management

Thermal performance is often what separates a successful prototype from a reliable production fixture.

A high power COB LED module concentrates significant heat into a relatively small area. That heat has to travel through several layers before it reaches the surrounding air:

LED junction → COB substrate → thermal interface material → heat sink → ambient air

Any weak point in this path increases junction temperature.

Important thermal information may include:

• Maximum junction temperature
• Thermal resistance
• Case temperature limits
• Recommended operating temperature
• Derating curves

Good COB LED thermal management is not simply about attaching a large heat sink. Thermal-interface quality, mounting pressure, airflow, fixture orientation, and ambient temperature all affect the result.

Why Open-Bench Testing Can Be Misleading

A COB can perform perfectly on a large exposed laboratory heat sink and still overheat in the finished product.

Inside a compact fixture, airflow may be limited. The driver may add heat to the same enclosure. Ambient temperature may also be much higher than during laboratory testing.

For this reason, thermal validation should be performed in the actual fixture, or in a mechanical prototype that closely represents the final product.

Long-duration testing is particularly important for industrial lighting that may operate for many hours at a time.

Mechanical Fit Matters More Than It Seems

Mechanical compatibility is often discovered too late in an OEM project.

Before approving a COB, check:

• PCB diameter or dimensions
• Substrate thickness
• Mounting-hole positions
• Screw size
• Solder-pad layout
• Connector position
• LES center position
• Distance between LES and optics

Even a few millimeters of difference can affect reflector alignment or mounting hardware.

When replacing an existing module, it is useful to compare a mechanical drawing rather than relying only on product photos or nominal size.

Can One COB LED Replace Another?

Yes, but only after checking more than wattage.

A practical replacement review should cover four areas.

Electrical compatibility

Check Vf, rated current, driver range, and dimming method.

Optical compatibility

Compare LES, luminous output, CCT, CRI, and how the module behaves with the existing reflector or lens.

Thermal compatibility

Review thermal resistance, power density, substrate contact area, and heat-sink capacity.

Mechanical compatibility

Confirm PCB dimensions, holes, connectors, and LES position.

If any of these areas differ significantly, the replacement may require changes elsewhere in the fixture.

This is why a “50W COB replacement” search rarely gives enough information for an OEM decision.

Standard or Custom COB LED Module?

A standard product is usually preferable when it already meets the design requirements. It reduces development time and generally makes sampling and production easier.

A custom COB LED module becomes useful when the fixture requires something a standard part cannot provide.

Typical customization requests include:

• Special PCB dimensions
• Different mounting-hole positions
• Custom voltage or current
• Specific LES size
• Special CCT or CRI
• RGB or multi-channel designs
• UV or IR wavelengths
• Mixed-spectrum configurations
• Custom connectors
• Non-standard electrical layouts

Customization should solve a real engineering requirement rather than simply create a unique product code.

For many OEM projects, small mechanical or electrical changes can be more valuable than developing a completely new module.

Common COB LED Selection Mistakes

Several problems appear repeatedly during OEM development.

One is choosing by wattage alone. Another is increasing COB power without first checking whether the existing heat sink can handle the additional thermal load.

Other common mistakes include:

• Ignoring LES size
• Comparing lumen values measured under different conditions
• Assuming similar PCB dimensions mean interchangeable optics
• Ignoring driver voltage range
• Using maximum current as the normal operating point
• Overlooking batch-to-batch color variation
• Approving a sample before testing it inside the final fixture

Most of these problems can be avoided by evaluating the COB as part of the lighting system rather than as an isolated component.

What Should You Send to a COB LED Supplier?

A supplier can make a much more useful recommendation when the application requirements are clear.

For an OEM inquiry, provide as much of the following information as possible:

• Lighting application
• Target lumen output
• Target power
• CCT
• CRI and R9 requirements
• Preferred LES size
• Forward voltage range
• Forward current
• Existing driver specifications
• PCB dimensions
• Mounting requirements
• Reflector or lens information
• Heat-sink design
• Ambient temperature
• Dimming method
• Sample quantity
• Expected production volume

If an existing COB is being replaced, sending its datasheet, mechanical drawing, and driver specifications can save considerable time.

How to Evaluate a COB LED Module Manufacturer

For an OEM program, product availability is only part of supplier selection.

A reliable COB LED module manufacturer should be able to provide clear electrical, optical, thermal, and mechanical information.

Useful capabilities to evaluate include:

• Complete datasheets
• Defined optical test conditions
• Vf and current consistency
• CCT and binning control
• Thermal data
• Mechanical drawings
• Sample support
• Customization capability
• Batch traceability
• Engineering communication

Consistency is particularly important for repeat production.

A module with slightly lower headline performance but stable electrical and optical characteristics may be easier to integrate than a higher-specification product that varies noticeably between batches.

COB LED Module Selection Checklist

Before approving a COB for production, confirm:

• The application and target output are clearly defined.
• LES works with the intended optics.
• CCT and CRI meet the lighting requirement.
• Forward voltage matches the driver window.
• Rated current matches the driver output.
• Thermal resistance is suitable for the heat-sink design.
• Mechanical dimensions fit the fixture.
• Mounting and connectors are compatible.
• Samples are tested with the actual optics.
• Thermal testing is completed inside the final housing.
• Production samples meet the required color and electrical consistency.

For most OEM projects, prototype validation should come before final sourcing approval.

FAQs About Choosing COB LED Modules

How do I choose the right COB LED wattage?

Start with the required light output, beam, fixture size, and thermal capacity. Wattage should then be selected together with the driver and heat-sink design rather than treated as the starting point.

Does a COB LED module need a driver?

Most COB LEDs require a constant-current driver. The driver must match both the COB’s rated current and its forward-voltage range.

What does LES mean on a COB LED?

LES stands for light-emitting surface. It is the active emitting area of the COB and affects lens compatibility, reflector design, beam angle, and optical control.

Can I replace a COB LED with one of the same wattage?

Not automatically. Forward voltage, current, LES, thermal requirements, dimensions, CCT, CRI, and driver compatibility should also be compared.

When should an OEM use a custom COB LED module?

A custom module is useful when standard products cannot meet electrical, optical, mechanical, spectral, or thermal requirements such as PCB size, LES, voltage, current, mounting, wavelength, or multi-channel design.

Choosing the Right COB LED Module for an OEM Project

The most suitable COB LED module for OEM lighting is the one that works with the entire fixture, not simply the one with the highest output.

A practical selection path is:

Application → Optical Requirements → Electrical Compatibility → Thermal Design → Mechanical Fit → Prototype Validation

Define the beam, output, color quality, operating environment, and fixture limitations first. Then evaluate the COB’s LES, forward voltage, current, thermal characteristics, and dimensions against the driver, optics, and heat sink.

If a standard module already meets those requirements, it is normally the simplest solution. If the project needs a different PCB layout, LES, electrical configuration, spectrum, or mounting structure, a custom COB LED module may be more appropriate.

For OEM lighting projects, HOUKEM can support COB LED selection and customization based on power, forward voltage, current, LES, color requirements, PCB dimensions, thermal conditions, and application requirements.
