LED Thermal Management: How Heat Affects Performance and Lifespan

Heat is easy to overlook when selecting an LED. A device may meet the required wavelength, current, power and package specifications on paper, yet perform very differently once it is installed in a real system and begins to heat up.

As junction temperature rises, an LED can lose optical efficiency, show changes in forward voltage and wavelength, and age faster over time. For high-power, UV and IR applications, these changes may affect not only component life but also the stability of the entire process.

That is why LED thermal management should be considered during component selection and system design, not after a prototype begins overheating.

What Is LED Thermal Management?

LED thermal management is the process of moving heat away from the LED junction and keeping its operating temperature within an acceptable range.

An LED does not convert all electrical power into useful light. Some of the input energy becomes heat inside the semiconductor device. That heat then has to travel through several layers before it can reach the surrounding environment.

A typical thermal path looks like this:

LED junction → package → solder joint → PCB → heat sink → ambient air

If heat cannot move efficiently through this path, the LED junction temperature rises.

The purpose of thermal management is therefore not to keep an LED completely cool. That is neither realistic nor necessary. The goal is to keep the actual junction temperature low enough for the LED to deliver the required output, stability and service life.

Where Does LED Heat Come From?

An LED converts electrical energy into two main outputs:

Electrical input = optical output + heat

The ratio between light and heat depends on LED material, wavelength, efficiency, drive current and operating conditions.

This becomes especially important as LED power increases.

A higher drive current can produce more optical output, but it also increases the thermal load. If the PCB, package or heat sink cannot remove the additional heat effectively, the LED temperature rises and part of the expected performance gain may be lost.

This is one reason engineers should be careful when designing around the maximum current shown in a datasheet.

A maximum current rating is a limit. It is not necessarily the best continuous operating point for every application.

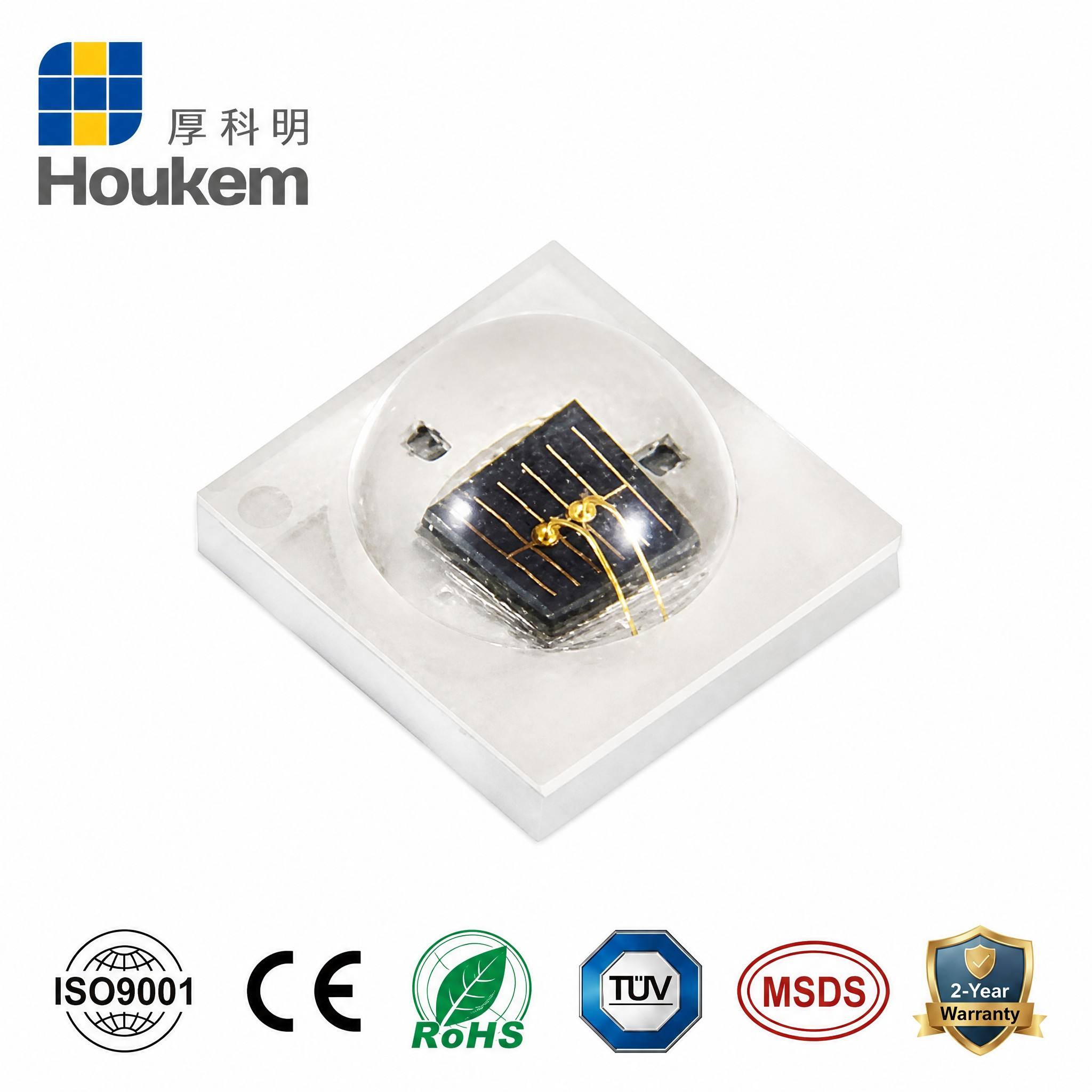

Junction Temperature, Case Temperature and Ambient Temperature

One of the most important concepts in LED thermal management is the difference between ambient temperature and junction temperature.

They are not the same.

For LED reliability, junction temperature (Tj) is usually the most important value.

An LED may be operating in a room at 30°C while its internal junction is much hotter. The difference depends on power dissipation and how efficiently heat can escape through the package and surrounding structure.

This distinction matters because checking the temperature of the room—or even the outside of the product—does not tell you the actual LED junction temperature.

A system can feel only moderately warm on the outside while the semiconductor junction is operating under much greater thermal stress.

How Heat Changes LED Performance

Excess heat does more than shorten component life. It can change LED behavior while the product is operating.

Optical Output Can Fall as Temperature Rises

For many LED types, optical efficiency decreases as junction temperature increases.

In practice, this means the same LED running at the same current may produce less useful optical output when it is hot than when it is tested under cooler laboratory conditions.

The size of that change depends on the LED material, wavelength and package design. There is no reliable percentage that applies to every LED.

For this reason, engineers should check the temperature-related output curves in the datasheet rather than relying only on room-temperature ratings.

This is particularly important in applications where output consistency matters, such as UV curing, machine vision, sensing and industrial illumination.

Forward Voltage Changes With Temperature

LED forward voltage is also temperature dependent.

For many semiconductor LEDs, forward voltage decreases as junction temperature rises.

That can affect driver design, multi-LED circuits and systems that operate across a wide temperature range.

A circuit designed only around a room-temperature forward voltage may behave differently after the LED reaches its normal operating temperature.

This is also why stable current regulation is important. Thermal behavior and electrical behavior should not be treated as separate design problems.

Wavelength and Color Can Shift

Temperature can influence the emission spectrum of an LED.

For visible LEDs, this may appear as a change in color characteristics. In UV and IR applications, the effect can be more significant because the system may depend on a defined wavelength range rather than visible brightness.

For example, a UV curing system relies on the interaction between the LED wavelength and the photoinitiator in the adhesive, coating or ink.

An IR LED used with a sensor or camera may also need consistent radiant output and spectral characteristics.

In these applications, good LED heat dissipation supports not only lifetime but also process stability.

How Heat Affects LED Lifespan

High temperature usually does not make an LED fail immediately.

The more common problem is accelerated aging.

Long-term thermal stress can speed up degradation in the semiconductor, package materials, encapsulation, phosphor systems, solder interfaces and other parts of the assembly.

Over time, the result may appear as:

• lower optical output;
• reduced efficiency;
• changes in electrical characteristics;
• increased color or wavelength variation;
• degraded package materials;
• premature component failure.

This is why LED lifespan should not be judged only by whether the device remains below its absolute maximum temperature.

An LED may technically remain within its specified limit while still operating hotter than is desirable for a long-life industrial product.

For OEM design, a better question is:

What junction temperature will this LED reach during normal continuous operation?

That is far more useful than simply asking whether the LED can survive its maximum rated temperature.

What Is LED Thermal Resistance?

LED thermal resistance describes how difficult it is for heat to move from one location to another.

It is normally expressed in °C/W.

Common specifications include:

• junction-to-case thermal resistance, RθJC;
• junction-to-ambient thermal resistance, RθJA;
• package-specific thermal resistance values defined by the manufacturer.

A lower thermal resistance generally means heat can move away from the junction more efficiently.

A simplified estimate is sometimes written as:

Tj ≈ Ta + Pheat × RθJA

where:

• Tj = junction temperature;
• Ta = ambient temperature;
• Pheat = heat that must be dissipated;
• RθJA = junction-to-ambient thermal resistance.

This formula is useful for understanding the relationship, but real LED assemblies are usually more complicated.

The complete thermal path may include solder, copper traces, thermal vias, MCPCB material, thermal pads, mechanical interfaces, heat sinks and airflow.

For accurate design work, engineers should use the thermal data and test conditions provided for the actual LED package.

The Thermal Path Matters More Than the Heat Sink Alone

When an LED overheats, the heat sink is often the first component people look at.

But a large heat sink cannot compensate for every thermal problem.

Heat has to reach the heat sink first.

If the solder connection, PCB layout or interface material has high thermal resistance, heat may remain concentrated near the LED even when a substantial heat sink is attached.

This is why LED cooling should be considered as one continuous path:

junction → package → PCB → thermal interface → heat sink → air

A weak point anywhere along that route can restrict the entire system.

How to Improve LED Heat Dissipation

There is no single cooling method that is correct for every LED.

The right design depends on power density, package size, operating time, enclosure conditions and allowable junction temperature.

Start With the PCB

For lower-power LEDs, a properly designed FR-4 PCB may be sufficient.

As power density increases, designers may consider:

• larger copper areas;
• thermal vias;
• aluminum MCPCBs;
• copper substrates;
• dedicated thermal pads.

The choice should be based on how much heat must be moved, not simply on whether the LED is described as “high power.”

Pay Attention to the Thermal Interface

Small interface problems can create surprisingly large temperature increases.

Factors such as solder quality, contact area, mounting pressure, surface flatness and thermal interface materials all influence the final thermal resistance.

For high-power LED arrays, assembly quality can be just as important as the nominal specification of the heat sink.

Choose the Heat Sink for the Real Thermal Load

Physical size alone does not determine heat sink performance.

Engineers should also consider:

• thermal resistance;
• material;
• fin geometry;
• airflow direction;
• mounting orientation;
• available ventilation;
• ambient temperature.

A heat sink that performs well in open air may behave very differently inside a sealed enclosure.

Do Not Ignore Drive Current

Reducing thermal stress does not always require a larger cooling system.

Sometimes the more effective solution is to reconsider the operating current.

Running an LED slightly below its maximum current can improve efficiency, reduce junction temperature and provide more thermal margin for long-term operation.

The best operating point is therefore often a balance between optical output, electrical efficiency, temperature and expected life.

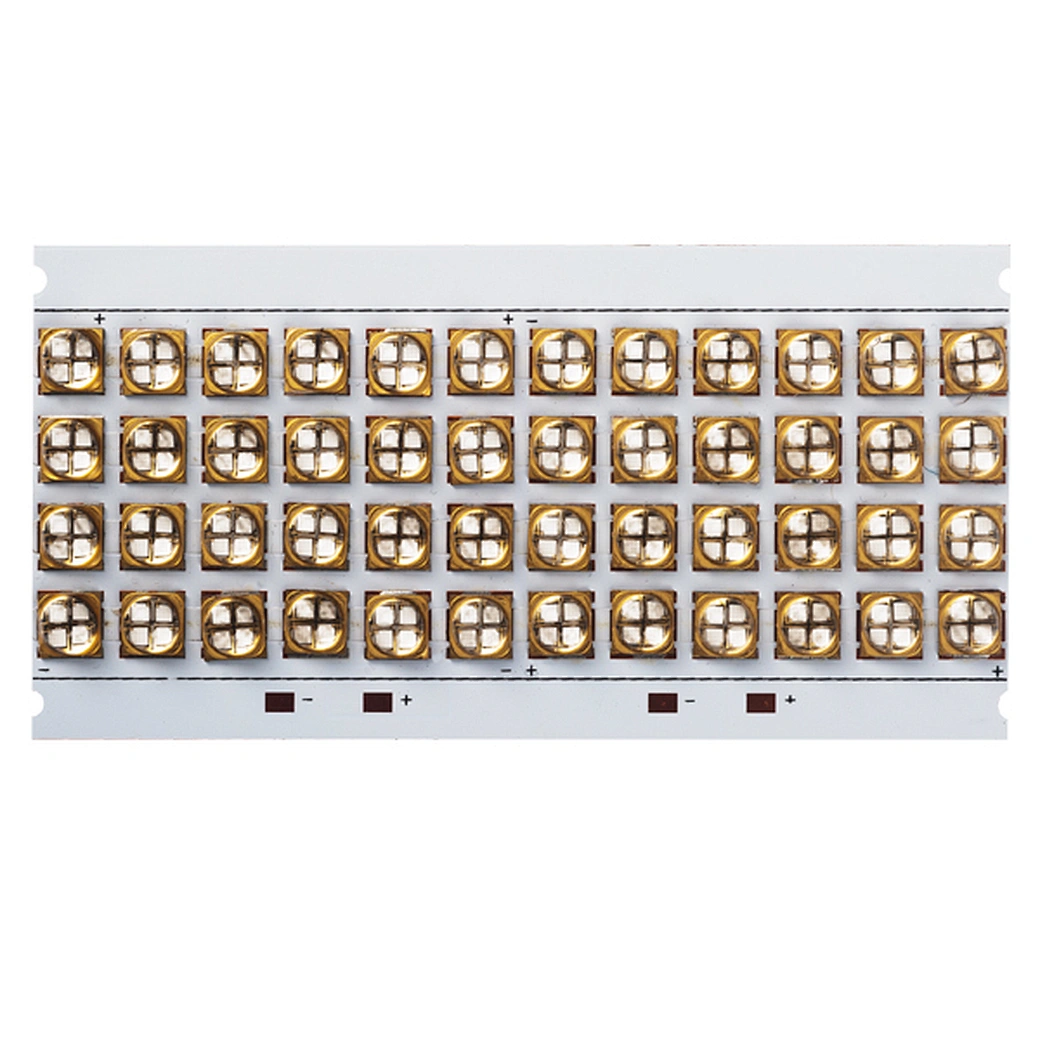

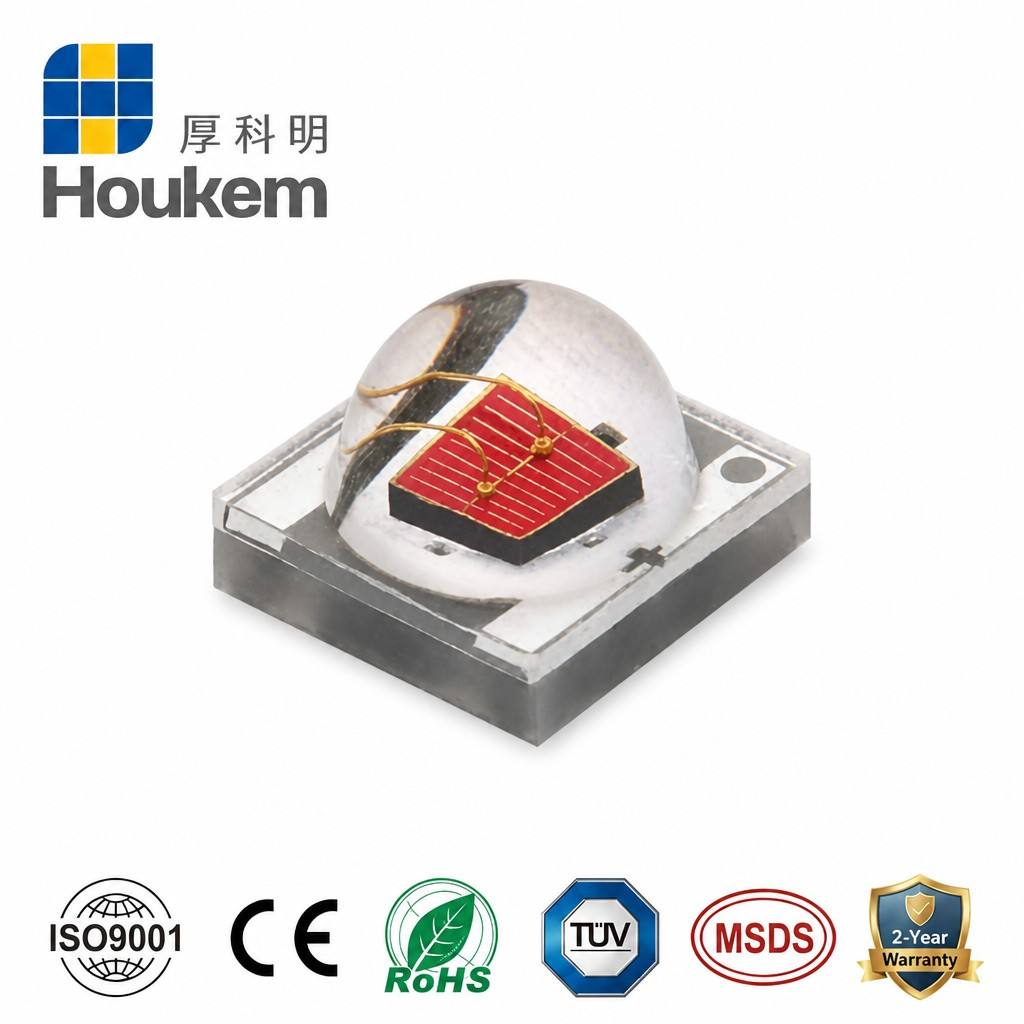

Why High-Power LEDs Need More Thermal Attention

As LED power density increases, thermal design becomes less forgiving.

More heat must be transferred through a relatively small package area, so interface resistance, PCB construction and cooling conditions have a greater effect on junction temperature.

This is especially relevant for:

• high-power UV LEDs;
• UV curing arrays;
• IR illumination;
• machine vision;
• industrial sensing;
• high-output LED modules.

A high-power LED system can appear to work normally during initial testing and still have inadequate thermal management.

The problem may only become obvious after continuous operation, when the LED heats up and optical output begins to change.

For industrial applications, thermal testing should therefore be carried out under realistic operating conditions rather than only during short bench tests.

Thermal Management for UV and IR LEDs

UV and IR LEDs deserve particular attention because their performance is often judged by radiant output and wavelength rather than visible brightness.

For UV LEDs, thermal conditions can affect optical power, wavelength stability and long-term output degradation. This matters in UV curing, printing, fluorescence inspection and other applications where the process depends on consistent irradiance.

For IR LEDs, increasing temperature can influence radiant intensity and spectral characteristics. This can affect cameras, sensors, detection systems and machine vision applications.

In both cases, simply confirming that the LED turns on is not enough.

Engineers should verify how the device performs after it reaches its normal operating temperature.

What Thermal Parameters Should You Check in an LED Datasheet?

When comparing LEDs for an OEM project, look beyond nominal wattage and maximum current.

Useful parameters include:

• maximum junction temperature;
• operating temperature range;
• thermal resistance;
• forward current;
• forward voltage;
• power dissipation;
• derating curves;
• optical output versus temperature;
• recommended PCB or mounting conditions.

The characteristic curves are often more useful than the headline maximum ratings.

They show how the LED behaves as current and temperature change, which is much closer to real engineering conditions.

Common LED Thermal Management Mistakes

Several mistakes appear repeatedly in LED projects.

Looking only at ambient temperature.
The internal junction can be much hotter than the surrounding air.

Designing around maximum current.
The highest allowed current is not automatically the best continuous operating current.

Ignoring PCB thermal resistance.
In compact LED packages, the PCB can be a major part of the heat-transfer path.

Selecting a heat sink only by size.
Airflow, mounting and thermal interfaces matter just as much.

Testing only for a few minutes.
Some thermal problems become visible only after the system reaches thermal equilibrium.

Assuming efficient LEDs do not generate much heat.
High efficiency reduces wasted energy, but high-power LEDs can still generate substantial thermal loads.

Quick LED Thermal Management Checklist

Before approving an LED design, check:

Frequently Asked Questions

What temperature is too hot for an LED?

There is no single temperature limit for every LED. The correct limit depends on the semiconductor material, package and manufacturer specification. Check the maximum junction temperature and recommended operating conditions for the exact LED being used.

Does heat shorten LED lifespan?

Yes. Sustained high junction temperature generally accelerates material degradation and can reduce the useful operating life of an LED.

Is junction temperature the same as ambient temperature?

No. Ambient temperature is the temperature around the LED system. Junction temperature is the temperature inside the LED semiconductor and is normally higher during operation.

Do all high-power LEDs need a heat sink?

Not necessarily the same type or size. Cooling requirements depend on power dissipation, PCB design, thermal resistance, ambient temperature, airflow, duty cycle and the required junction temperature.

How can LED junction temperature be reduced?

The main options are improving the PCB thermal path, reducing interface resistance, using an appropriate heat sink, improving airflow and selecting a suitable operating current.

Thermal Design Should Start Before the Prototype Overheats

The best time to solve an LED thermal problem is during component and system design.

An LED with the highest rated power or optical output is not automatically the best choice for an OEM product. What matters is whether it can maintain the required output, wavelength and reliability after the entire system reaches its real operating temperature.

This becomes especially important in high-power LED, UV LED and IR LED applications, where thermal conditions can directly affect optical performance and process stability.
