UV LED Light vs UV Lamp: Which Is Better for Disinfection? (2025 Comparison)
The Short Answer First
Neither UV LED light nor UV lamp is universally better — the right choice depends on your application requirements.
Use UV LED light when you need frequent on/off cycling, compact system design, mercury-free operation, and instant startup performance.
Use mercury UV lamps when you require very high flow rates, continuous 24/7 operation, and the lowest possible initial system cost.
This guide compares both technologies from an engineering and B2B perspective, including efficiency, UV LED wavelength performance, lifetime, total cost of ownership, and system integration feasibility.
What Is UV LED Light?
UV LED light is a semiconductor-based ultraviolet light source used in UV disinfection light systems, sterilization equipment, and industrial UV applications.
Unlike traditional UV lamps, UV LED systems emit light at a precise UV LED wavelength (typically 260–280nm for UVC applications), enabling targeted disinfection with improved design flexibility and mercury-free operation.
This makes UV LED technology increasingly popular in modern UV LED sterilization systems used in water treatment, air purification, and surface disinfection.
UV LED vs UV Lamp: Technical Overview
UV LED and UV lamp technologies differ fundamentally in how ultraviolet light is generated and delivered.
| Feature | UV LED Light | UV Lamp |
|---|---|---|
| Light source | Semiconductor chip | Mercury vapor discharge |
| UV LED wavelength | 260–280nm (±5nm) | 254nm (broad spectrum) |
| Emission pattern | Directional (60–150°) | Omnidirectional |
| Warm-up time | Instant (<1µs) | 3–10 minutes |
| Mercury content | None | Yes |
| System integration | Flexible PCB modules | Rigid tube structures |
From a system design perspective, UV LED technology enables more compact and modular industrial UV LED systems, while UV lamps remain widely used in legacy high-output installations.
UV Disinfection Performance and Dose Efficiency
UV disinfection effectiveness is determined by UV dose (mJ/cm²), not by the light source type alone.
Typical dose requirements:
- E. coli: 6–10 mJ/cm²
- Salmonella: 8–12 mJ/cm²
- Legionella: 10–15 mJ/cm²
- Adenovirus: 40–60 mJ/cm²
- Bacterial spores: 50–100 mJ/cm²
Both UV LED and UV lamp systems can achieve effective disinfection when properly designed.
However, UV LED systems offer directional emission, which reduces optical losses and improves energy targeting in compact UV sterilization comparison designs.
UV LED Wavelength and Efficiency Differences
UV LED light typically operates in the 260–280nm range for germicidal applications, where DNA absorption efficiency is highest.
UV lamps, especially low-pressure mercury lamps, emit at approximately 254nm with broader spectral distribution.
Key differences:
- UV LED provides narrow-band emission with precise UV LED wavelength control
- UV lamp provides broader UV output with higher total radiation power
- UV LED systems enable targeted irradiation
- UV lamps rely on reflectors, causing optical energy loss
In modern UV-C LED technology, wavelength precision is a key advantage for system optimization.
Total Cost of Ownership (TCO) Comparison
From a B2B engineering perspective, system cost is not just initial price — it includes energy, maintenance, and replacement costs.
5-year TCO perspective:
UV LED systems:
- Higher initial cost
- Lower maintenance cost
- No lamp replacement required
- Better long-term stability
Mercury UV lamp systems:
- Lower upfront cost
- Higher maintenance and replacement costs
- More frequent servicing required
For low-utilization systems, UV lamps may still be cost-effective. For frequent cycling or long-term operation, UV LED systems often achieve lower lifecycle cost in UV LED sterilization applications.
When to Choose UV LED Light
Choose uv led light systems when:
- Frequent on/off cycling is required
- Compact integration is needed
- Mercury-free operation is mandatory
- Instant full output is critical
- Variable output control is required
Typical applications:
- Point-of-use water disinfection systems

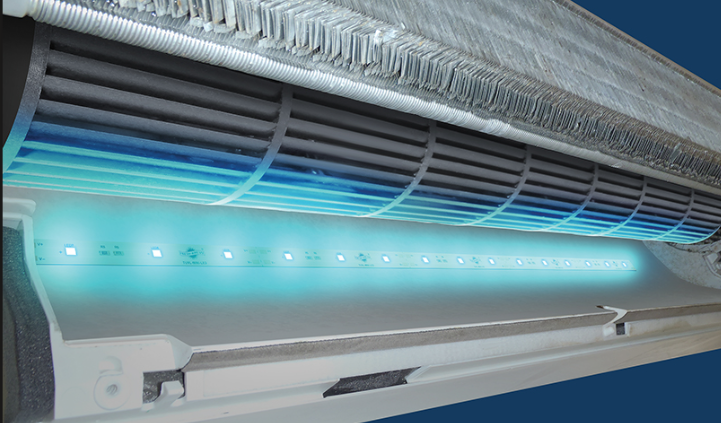

- HVAC air sterilization units
- Surface disinfection conveyors
- Portable sterilization devices
UV LED is the preferred solution for modern industrial UV LED systems requiring flexible integration.
When to Choose UV Lamp
Mercury UV lamps are still suitable when:
- Very high flow rate systems are required (>200 GPM)
- Continuous 24/7 operation is needed
- Initial capital cost is the main constraint
- Existing legacy infrastructure is in place
Typical applications:
- Municipal water treatment systems
- Large-scale wastewater disinfection
- Industrial pool and cooling systems
However, regulatory pressure is increasing, making UV LED a growing mercury UV lamp replacement technology.
System Design and Retrofit Considerations
Replacing UV lamps with UV LED light is not a direct drop-in process.
Key differences:
- Electrical drivers are not compatible
- Optical design must be redesigned
- Thermal management requirements are different
- Mechanical structure must be modified
In most cases, full system redesign is required rather than simple retrofitting.
This is especially important in high-performance UV disinfection light systems where dose accuracy and uniformity are critical.
Application Comparison: UV LED vs UV Lamp
| Application | Recommended Solution | Reason |
|---|---|---|
| Point-of-use water systems | UV LED light | Compact, instant on |
| Municipal water plants | UV lamp | High flow capacity |
| HVAC air disinfection | UV LED light | Cycling operation |
| Food surface sterilization | UV LED light | Directional control |
| Marine ballast water | Both | Hybrid adoption stage |
| Portable medical devices | UV LED light | Size and battery use |
Safety and Regulatory Considerations
UV systems must comply with international safety standards due to potential eye and skin exposure risks.
UV LED advantages:
- Mercury-free operation
- Easier regulatory approval
- Increasing adoption in green building standards
Mercury UV lamp limitations:
- Mercury handling regulations (Minamata Convention)
- Hazardous waste disposal requirements
- Stricter environmental compliance in EU/US
Relevant standards include IEC 62471, UL 8802, and NSF/ANSI 55.
FAQ: UV LED Light vs UV Lamp
Is UV LED as effective as UV lamps?
Yes. At the same UV dose (mJ/cm²), both technologies achieve equivalent disinfection performance.
Which lasts longer?
UV LED systems typically last 10,000–20,000 hours, depending on thermal design and operating conditions.
Can UV LED replace UV lamps directly?
No. System redesign is usually required due to differences in optics, power supply, and thermal management.
Are UV LEDs more energy efficient?
UV lamps have higher raw efficiency, but UV LED systems can be more system-efficient due to directional output and reduced optical loss.
What is the main advantage of UV LED?
Mercury-free operation, compact design, and instant on/off control.
Conclusion
UV LED light is rapidly becoming the preferred solution for next-generation disinfection systems, especially in applications requiring compact design, frequent cycling, and mercury-free operation.
Mercury UV lamps remain suitable for high-flow, continuous operation systems, but regulatory pressure and system design trends are accelerating the shift toward UV LED technology.
For B2B buyers and system designers, the best choice depends on application conditions, total cost of ownership, and system architecture requirements.
UV LED technology continues to evolve and is expected to become the dominant solution in most industrial UV disinfection applications in the coming years.
If you are evaluating UV LED or UV lamp solutions for your project, contact us for technical support, datasheets, and OEM/ODM customization options for industrial UV disinfection systems.
