How to Measure IR LED Output: A Practical Measurement Framework

What "IR LED Output" Actually Means

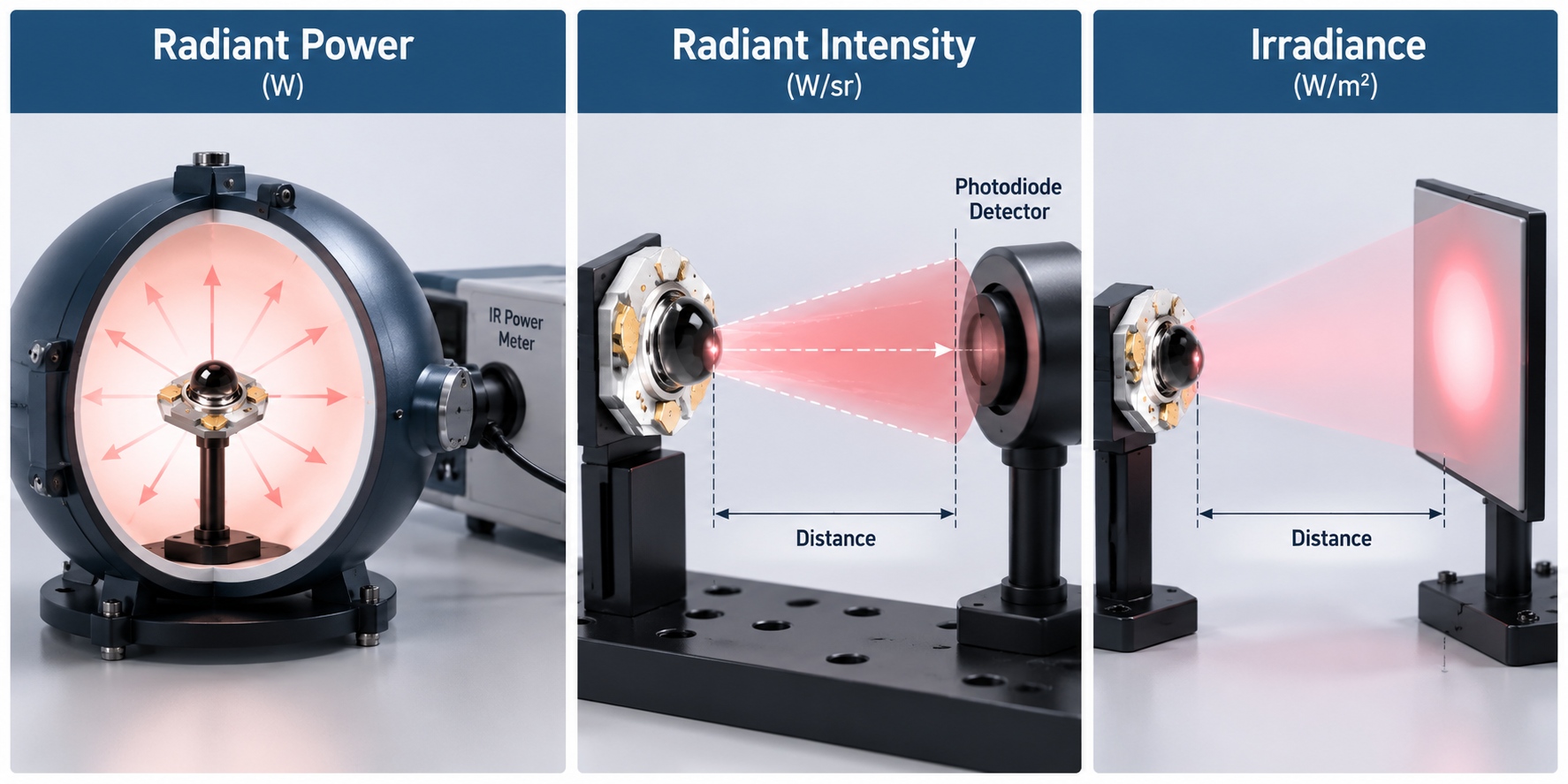

The first decision is the quantity itself. Radiant power, measured in watts, describes the total optical output of the device. Radiant intensity, measured in watts per steradian, describes output in a specific direction, which is what most sensing and illumination geometries actually experience. Irradiance, in watts per square metre, describes what arrives at a target plane. IR LED radiant intensity deserves its own attention because datasheets and applications rarely mean the same thing by "output". Datasheets may list IR LED radiant power, radiant intensity or both, so read the unit before the value. Deciding which quantity you need is the first step of any infrared LED output measurement, and skipping that decision is the most common reason two engineers report contradictory numbers for the same part.

Choose the Measurement Objective First

The framework below applies whether you measure IR LED output once a quarter or on every incoming lot, but its settings depend on the objective. For supplier comparison, relative readings under identical conditions matter more than absolute calibration. For incoming verification, you need a threshold decision against agreed limits. For design work, you need absolute values with known uncertainty so optical budgets can be built on them. Write the objective down before touching an instrument, because the objective determines the acceptable geometry, the required instrument class and how many repeat readings are enough. Any IR LED optical power measurement campaign is only as comparable as that written objective makes it.

Measurement Geometry and Instruments

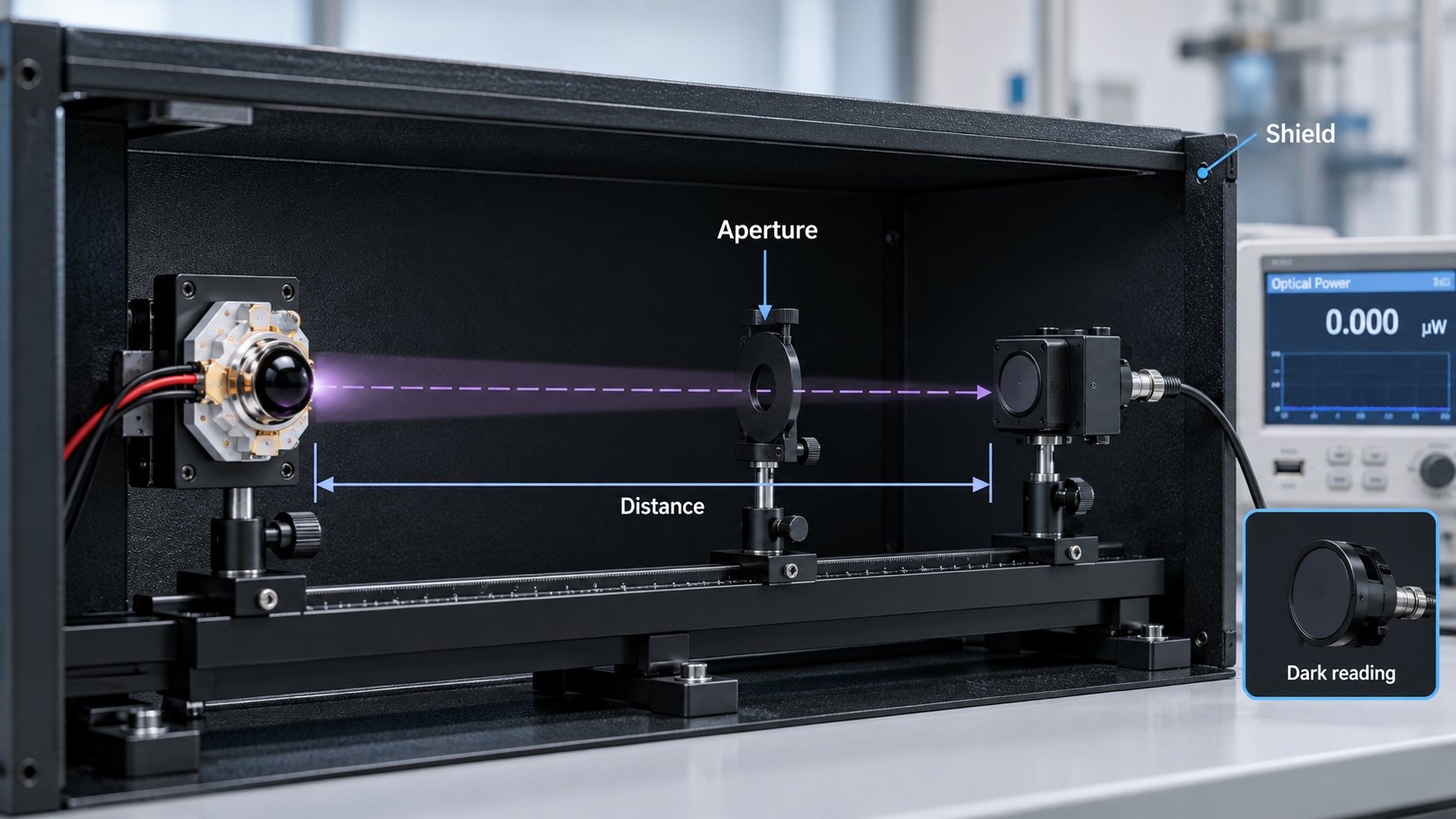

Geometry converts a good instrument reading into a meaningless one, or the reverse. Radiant intensity requires the detector to sit in the far field of the emitter, on its mechanical axis, at a documented distance with a defined detector aperture. Radiant power requires capturing the emission, typically with a calibrated large-area detector or an integrating geometry placed to collect the beam. For an IR LED radiant intensity measurement setup, the essential recorded parameters are distance, detector aperture, alignment method and ambient-light shielding.

Infrared detectors also respond to ambient sources, so shielding and background subtraction matter more than they do for visible LEDs. A dark reading before each session costs seconds and removes a whole class of silent errors, which is why IR photodiode measurement routines always start with one.

Control the Drive Condition

Optical output follows drive current, junction temperature and duty cycle. If you want to know how to compare IR LED output under the same drive condition, the discipline is to fix all three and record them: the same continuous or pulsed current, the same pulse width and frequency when pulsed, the same warm-up time, and the same mounting so the thermal path is identical. Small forward-voltage differences between samples change the actual current in a voltage-driven circuit, which is one more reason constant-current drive or a measured series resistor is used for comparisons. HOUKEM's confirmed IR capability extends up to 1900nm for applicable model and project configurations, and drive conditions for such parts are defined together with the engineering team per project; the same measurement discipline applies at any wavelength.

From Reading to Report: Repeatability Rules

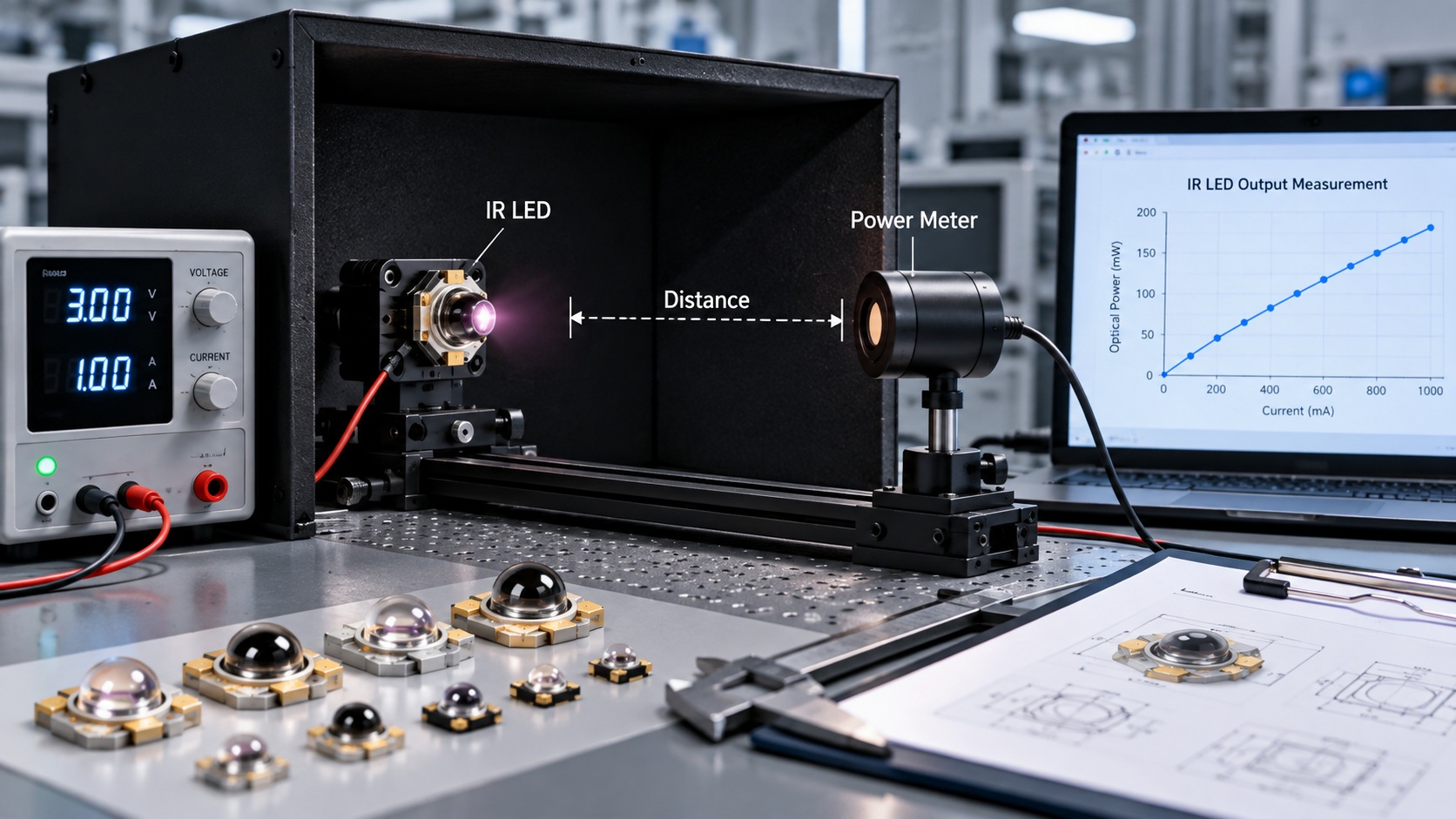

Knowing how to measure IR LED optical output is mostly knowing how to make the number repeatable. Record the instrument and its calibration date, the geometry, the drive condition, the ambient correction and the number of averaged readings. Report the quantity explicitly, because a radiant power value and a radiant intensity value are both "output" numbers and confusing them undoes the whole exercise. When the task is to measure radiant power from an infrared LED, state whether the setup captured the full beam; when it is intensity, state the distance and aperture. A result that cannot be reproduced next week by a colleague is not yet a measurement.

When You Need More Than a Bench Setup

Bench comparisons catch drift and rank samples, but absolute radiant measurements with traceable uncertainty are a different class of work. For high-power infrared emitters, where high-power IR LED design brings thermal behaviour into every reading, thermal steady-state, duty cycle and heatsink mounting dominate the result. If your programme requires calibrated absolute values, plan a laboratory-grade measurement campaign rather than stretching a bench setup beyond what it can honestly report.

Frequently Asked Questions

Can a phone camera measure IR LED output?

No, a camera only shows near-infrared emission as a faint glow and its response is neither calibrated nor linear. It is a presence check, not an output measurement.

Why do two samples read differently under the same voltage?

Forward voltage differences change the actual current each sample receives in a voltage-driven circuit. Comparisons should use controlled current, or measured current with a documented series resistance.

What distance should I use for intensity measurements?

Use a distance in the far field of the emitter and keep it identical between sessions, documenting it in every report. Consistency between readings matters more than the specific distance chosen.

Does ambient light really affect infrared measurements?

Yes, detectors respond to ambient and thermal backgrounds unless they are shielded or the background is subtracted. Take a dark reading first and record the ambient conditions.

How is radiant power different from radiant intensity?

Radiant power sums all emitted optical energy, while radiant intensity describes emission density in one direction in watts per steradian. The right choice depends on whether your application sees the whole beam or a narrow cone.

Bringing the Measurement Plan Together

Quantitative infrared work becomes routine once the objective, geometry, drive condition and reporting format are fixed and written down. That is what separates a repeatable measurement from a glowing camera image, and it is the fastest way to make supplier samples, incoming lots and design iterations comparable on one scale. If you are selecting infrared emitters for a sensing or illumination design, review the HOUKEM IR LED product range and talk to our engineering team about the drive conditions and measurement data your application needs.
