How to Calculate LED Junction Temperature

Quick Answer

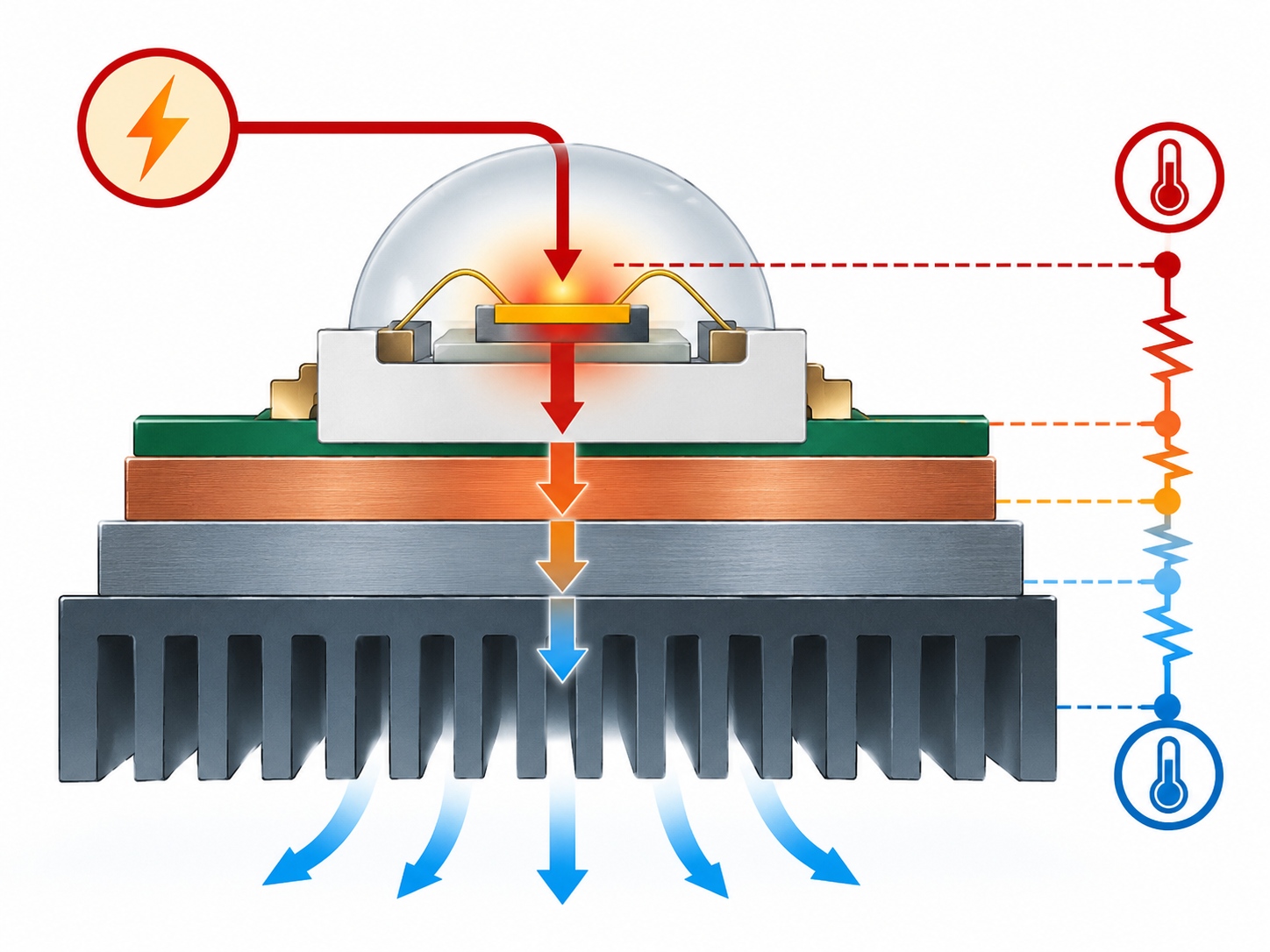

Junction temperature is a reference temperature plus the temperature rise produced by dissipated power flowing through a thermal resistance. Symbolically, Tj equals Tref plus P multiplied by Rθ(path), where Tref is the temperature at the point the quoted thermal resistance is referenced to, P is the power dissipated inside the device, and Rθ(path) is the resistance from junction to that same point. The result is valid only when all three inputs refer to the same physical path; mixing a resistance quoted to the case with an ambient reference temperature is the most common way to produce a confident but wrong answer.

The three inputs you need before any calculation

Reference temperature

The reference temperature is not automatically room temperature. It is the temperature at whichever point the thermal resistance you intend to use is referenced to. Datasheets commonly reference junction-to-ambient, junction-to-case and sometimes junction-to-board or junction-to-lead paths, each paired with a different reference point, so read the measurement conditions attached to the figure and use the temperature that matches them.

Power dissipation

Power dissipation is the electrical power that ends up as heat inside the device, not the power the system draws. A first estimate multiplies forward current by forward voltage at the operating point you intend to use, since both vary with current and temperature. Where the drive is modulated, use a representative time-averaged value rather than the peak, and state that as an assumption.

The thermal resistance that matches your mounting

A datasheet thermal resistance describes one mounting condition, and the value changes with board material, copper area, thermal vias and any external heatsinking. A junction-to-ambient figure measured on one board does not transfer to a different board without change. If the available resistance does not describe the way you are mounting the part, treat the calculation as an upper bound with an explicit margin. Deciding which of the several thermal-resistance figures is the right one for a given mounting arrangement is a separate question, and the calculation becomes valid only once that question has an answer.

The basic equation and what it does not tell you

The equation gives a point estimate, not a distribution. It says nothing about how heat divides between parallel paths or how the values shift as the device warms, so treat the output as the mean of a range whose width you must estimate yourself.

The calculation sequence

Step 1: fix the reference point

Decide in advance whether the calculation is junction-to-ambient, junction-to-case or junction-to-board, and write that decision down. Every later input must be expressed against the same point, because results from different paths cannot be averaged.

Step 2: derive the power dissipation

Take the operating forward current and the forward voltage at that current and at the expected junction temperature, then multiply. If the expected junction temperature is well above the datasheet test condition, forward voltage will typically be lower, so a first-pass estimate using the datasheet voltage is conservative rather than wrong.

Step 3: select or correct the thermal resistance

Use the parameter that matches your mounting. If you have added a heatsink or forced-air path, that addition can only reduce the effective junction-to-ambient resistance, and the reduction depends on an interface and a contact area the datasheet knows nothing about, so record it as an assumption.

Step 4: solve, then test the weakest assumption

Multiply and add to obtain Tj, then compare it against the design limit you are applying, which is a decision you make rather than a number the equation supplies. Re-run the calculation with your least certain input varied to the edge of its plausible range; if the result still satisfies the limit the estimate is decision-grade, and if it does not, the answer is usually to measure rather than to tighten the arithmetic.

Where calculations most often go wrong

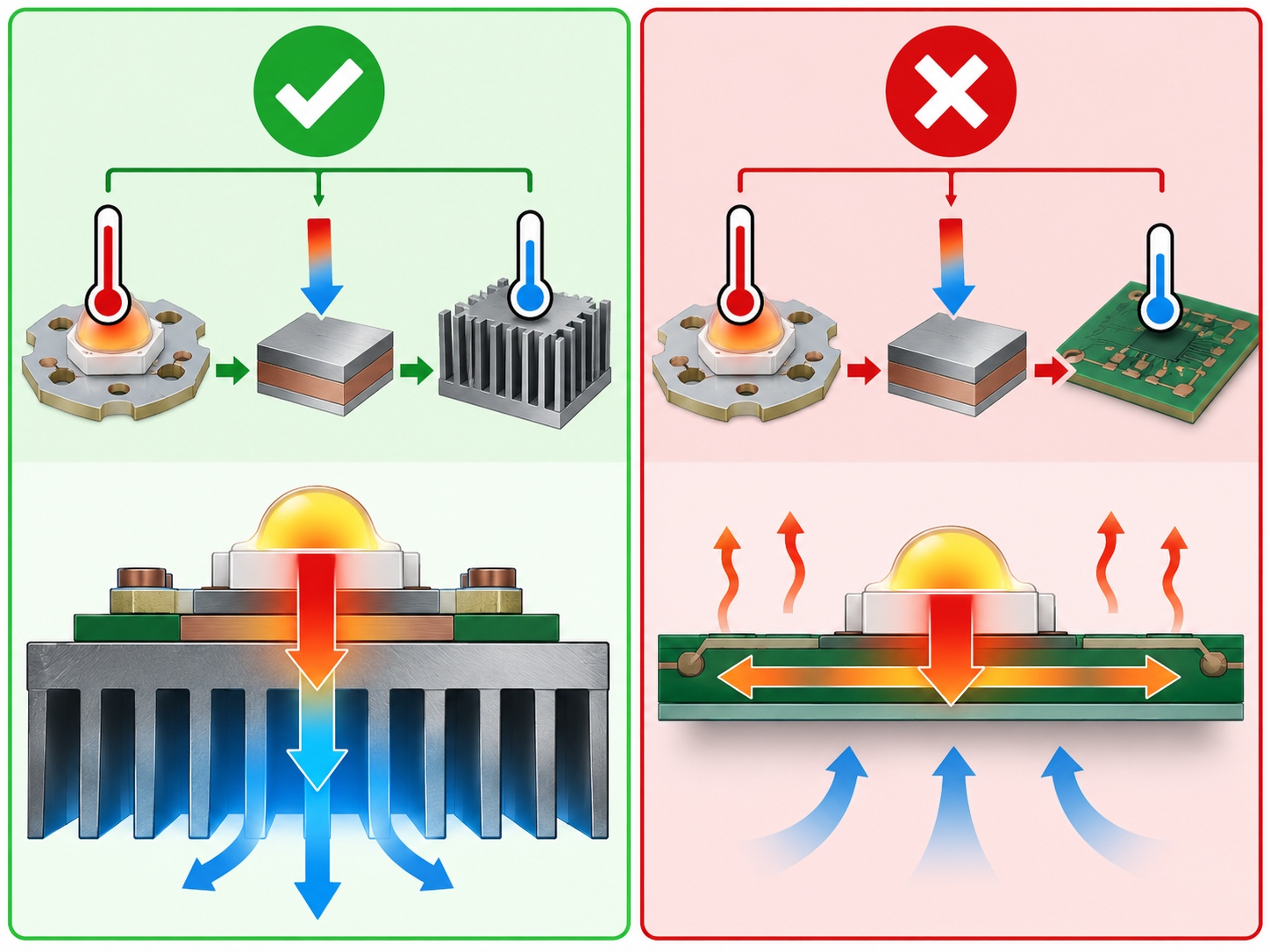

• Reference mismatch. A resistance quoted to the case is combined with an ambient reference temperature, which can be wrong by a large margin with no warning sign.
• Board transfer. A vendor test-board value is applied unchanged to a differently built board; copper area and thermal vias move this value substantially.
• Double counting. An external heatsink resistance is added on top of a quoted resistance that already includes board spreading.
• Nominal current or steady state assumed. The datasheet test current replaces the operating current, and a pulsed design is evaluated with an average when the binding condition is the worst sustained interval.

From junction temperature to design decisions

A computed Tj with a stated uncertainty is what justifies a board material change, a larger copper area, added thermal vias, forced air, or accepting a lower drive current. It is also what justifies asking a supplier for measurement conditions rather than a headline figure, because a thermal resistance without its conditions cannot be applied to your design.

This matters most in high-power work, where the thermal path rather than the electrical design usually sets the limit. HOUKEM's confirmed high-power LED capability extends up to 1600W for applicable model and project configurations, and the exact wavelength, power and package combination is project-specific, so thermal conditions have to be established for the configuration actually being used rather than transferred from a neighbouring part number.

Frequently Asked Questions

What is the formula for LED junction temperature?

Junction temperature equals the reference temperature plus the product of dissipated power and the thermal resistance along the path from junction to that reference point. Written symbolically, Tj equals Tref plus P multiplied by Rθ(path).

Which thermal resistance should I use?

Use the parameter whose measurement conditions match how you have mounted the device. If your mounting differs from the test board, treat the quoted value as an upper bound and carry an explicit margin.

How do I avoid double counting the thermal path?

Establish exactly what the quoted resistance already includes before adding anything to it. If the parameter is junction-to-ambient on a defined board, adding a separate board-spreading resistance counts the same path twice.

How do I get a reliable reference temperature?

Take the temperature at the point the quoted thermal resistance is referenced to, measured or estimated in your real operating environment rather than assumed to be room temperature. If you cannot state the reference point precisely, the calculation cannot be closed.

What causes the largest error in the estimate?

A reference-temperature mismatch and a board transfer error dominate, because either can shift the result by more than the numerical precision of the inputs. Nominal-versus-operating current is the next most common source.

When should I measure instead of calculate?

Move to measurement when the calculation leaves no margin after varying your least reliable input, or when the device operates in a transient regime the steady-state equation does not describe. Measurement resolves what the model cannot, particularly for thermal path details that are unknown until the board exists.

Conclusion

Calculating LED junction temperature is arithmetic wrapped around three input decisions that determine whether the answer means anything. Fix the reference point first, derive power dissipation from the operating current rather than the test current, and correct or reject any thermal resistance that does not describe your mounting.
