4 Digit vs 3 Digit LED Display Module Guide

Introduction

Upgrading a product that uses a digital LED display module is rarely as simple as swapping components.

In many OEM projects, engineers start with a 3-digit design, then later discover that product requirements have changed — more data needs to be shown, or the interface becomes harder to read in real applications.

That’s usually when the question comes up:

Should we stay with a 3 digit LED display module, or move to a 4 digit LED display module?

On paper, the difference looks small. In real engineering work, it can affect PCB layout, driver selection, current consumption, and even long-term product scalability.

This guide breaks down the decision in a practical way, based on how these modules are actually used in industrial and embedded systems.

---

What a 3 Digit LED Display Module Is Used For

A 3 digit LED display module is typically chosen when space and simplicity matter more than data capacity.

It is a common form of numeric LED display module used in compact electronic systems where only limited values need to be shown.

In real applications, engineers often use it in:

• Basic industrial controllers
• Simple counters or timers
• Compact embedded devices
• Cost-sensitive product designs

In many cases, a 3-digit configuration is selected not because it is the best long-term option, but because it fits early-stage product constraints.

This is where LED display digit configuration decisions often get locked too early in development.

---

What a 4 Digit LED Display Module Changes

A 4 digit LED display module extends the display capacity by one digit, but the impact goes beyond just “showing one more number”.

It is widely used in industrial LED display module designs where operators need more complete real-time information at a glance.

Typical use cases include:

• Power meters and monitoring devices
• Industrial control panels
• Test and measurement equipment
• Timing and counting systems

Compared with 3-digit versions, a 4-digit module improves readability and reduces the need for secondary displays or scrolling values.

In many embedded LED display module designs, this reduces firmware complexity as well.

---

3 Digit vs 4 Digit LED Display in Real Design Work

When engineers evaluate 3 digit vs 4 digit LED display options, the real decision is rarely about size alone.

It usually comes down to system constraints:

From a LED display module types perspective, digit count is one of the earliest architecture decisions in product design.

Once locked in, it can influence everything from firmware structure to enclosure design.

---

Pin Compatibility and System Constraints

In many OEM projects, the biggest challenge is not display performance — it is compatibility.

A LED display module guide for engineers usually starts with one question:

Can a 4-digit module replace a 3-digit module without changing the PCB?

In most cases, the answer is no.

A typical LED numeric display comparison shows that 4-digit modules require additional common pin control, which affects:

• MCU GPIO usage
• Driver IC selection
• PCB routing complexity

This is why many designs that use a 7 segment LED display module architecture need careful planning before upgrading digit count.

Some suppliers offer pin-matched versions, but they must be confirmed at the schematic level before mass production.

---

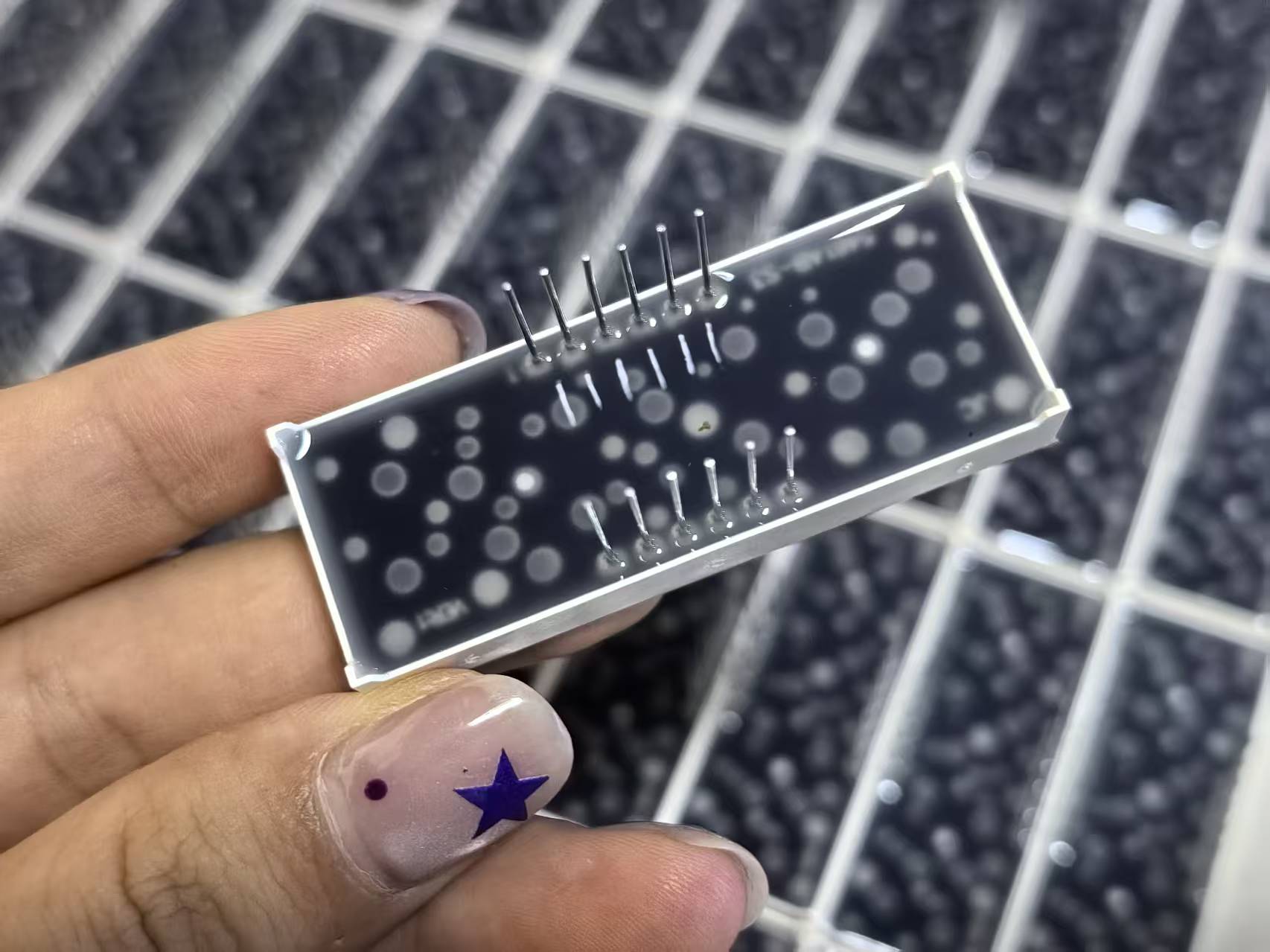

Power and Driving Considerations

Digit count also affects how the display is driven.

A numeric LED display module usually operates in multiplexing mode, where digits are refreshed rapidly instead of being powered simultaneously.

In practice:

• 3-digit modules have fewer refresh cycles
• 4-digit modules require faster multiplexing to maintain brightness consistency

This directly impacts:

• Perceived brightness stability
• Driver IC selection
• Overall system efficiency

In most modern designs, engineers prefer dedicated driver ICs for both configurations to simplify control logic.

---

Industrial and Embedded Applications

From a system perspective, digit selection is closely tied to application environment.

A industrial LED display module used in factory equipment may prioritize readability and stability, while a compact embedded device may prioritize power consumption and size.

In embedded systems, a digital LED display module is often part of a larger control architecture, where display logic is tightly integrated with firmware behavior.

This is why LED display digit configuration should always be considered early in product design, not during final optimization.

---

LED Display Module Types in OEM Design

Beyond digit count, engineers also evaluate different LED display module types, including:

• Standard through-hole numeric displays
• Surface-mount embedded displays
• Custom PCB-integrated modules
• Multi-digit segmented configurations

Each type affects manufacturability, reliability, and long-term supply chain stability.

In many OEM projects, working with a custom LED display module manufacturer becomes necessary when standard configurations do not meet mechanical or electrical requirements.

---

How to Choose Between 3 Digit and 4 Digit Modules

In real engineering decisions, there is no universal “better” option.

A simplified rule used in many OEM projects is:

• Choose 3-digit when:
  • Cost and PCB space are critical
  • Display values are simple
  • System is single-function
• Choose 4-digit when:
  • More complete data must be shown
  • System is industrial or multi-function
  • Long-term scalability matters

This is the most practical way to approach a LED display module guide for real-world product design.

---

FAQ

What is the main difference between 3 digit and 4 digit LED display modules?

The main difference is display capacity, but in real systems it also affects PCB design, driver requirements, and firmware structure.

---

Can a 4 digit LED display module replace a 3 digit module?

Not always. It depends on pin compatibility, driver IC, and PCB layout. In most cases, redesign or minor modification is required.

---

Which is better for industrial applications?

A 4 digit LED display module is usually preferred in industrial systems because it provides better visibility and reduces display limitations.

---

What is a digital LED display module used for?

It is used in embedded systems, industrial controllers, measurement devices, and any application requiring numeric output.

---

Are all LED display module types interchangeable?

No. Different LED display module types vary in pinout, driving method, and electrical characteristics.

---

Final Thoughts

Choosing between a 3 digit LED display module and a 4 digit LED display module is not just a component decision — it is a system architecture decision.

In most modern OEM and industrial designs, digit configuration defines how flexible, readable, and scalable the final product will be.

If you are planning a new design or upgrading an existing system, selecting the right configuration early can significantly reduce redesign cost later.
