What Is an LED Golden Sample? A Buyer's Guide

This guide explains what a golden sample is in LED manufacturing, how the process works step by step, and how to control the reference so it keeps protecting your project years after sign-off.

Quick Answer

A golden sample in LED manufacturing is a physically agreed reference unit — or set of units — that both buyer and manufacturer sign off as the definitive standard for appearance, dimensions, optical characteristics and workmanship of a custom part. It is sealed, dated and controlled by both parties, and it becomes the arbitration baseline for incoming inspection and any later quality dispute. Anything that cannot be judged from a drawing or datasheet — color shade, brightness uniformity, legibility, surface finish — is judged against the golden sample.

Why Drawings and Datasheets Are Not Enough

Engineering drawings pin dimensions and tolerances, and datasheets specify electrical and optical parameters. But custom LED parts carry qualities that resist paper definition: the exact shade of white, the uniformity of segments across a batch, the sharpness of a printed legend, the way a diffuser softens a dot. Two shipments can both "meet the datasheet" and still look different on your control panel.

The golden sample closes that gap. It converts subjective-sounding requirements into a physical agreement, which is why serious LED manufacturers propose it for customized and OEM projects rather than waiting for the buyer to ask.

What a Golden Sample Should Cover

• Visual appearance. Color shade and consistency, segment or dot uniformity, surface finish, legend quality.
• Dimensions and fit. Outline, pin or connector positions, mounting features — confirmed against the approved drawing.
• Optical behavior. Brightness class, viewing-angle appearance, and any agreed optical characteristic relevant to the application.
• Workmanship boundaries. What counts as acceptable cosmetic variation versus a defect, agreed before mass production starts.
• Marking and packaging. Labels, date codes and packaging condition as approved.

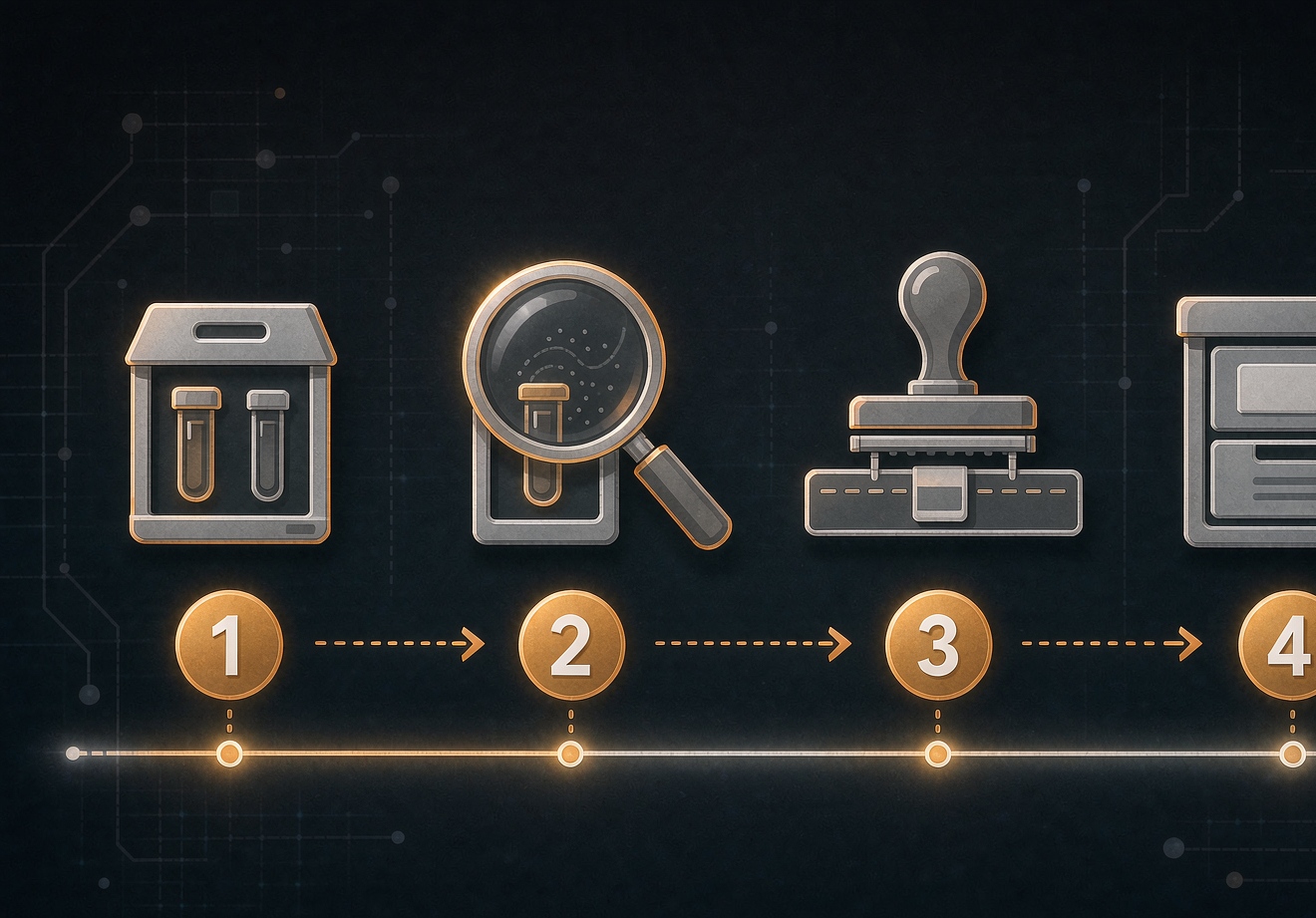

The Golden Sample Process Step by Step

1. Sample submission. The manufacturer produces pre-production samples built with the intended materials, process and tooling — not hand-finished prototypes.
2. Joint evaluation. The buyer inspects samples against the drawing, datasheet and application requirements, ideally in the end-product environment.
3. Sign-off. Both parties agree in writing which unit(s) become the golden sample, referencing the drawing revision and specification version they correspond to.
4. Sealing and registration. Units are labeled with a unique ID and date, then sealed in protective packaging. Typically at least two identical sets exist: one held by the buyer, one by the manufacturer.

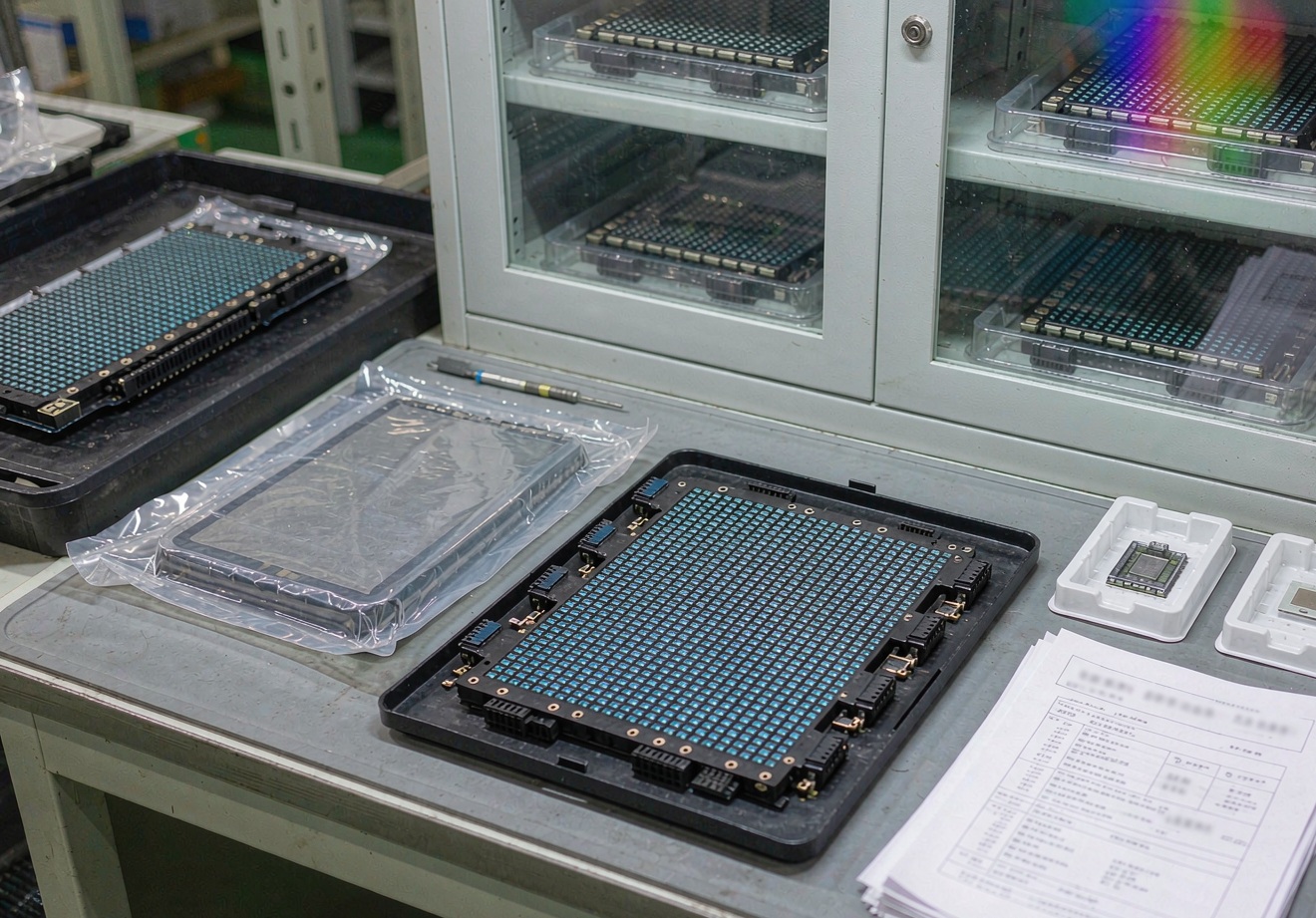

5. Inspection linkage. The golden sample set becomes the visual reference for incoming inspection, first-article approval of each production batch, and any dispute review.
6. Change control. Any material, process or tooling change triggers re-approval and a new golden sample generation, documented with its own revision.

Golden Sample Versus First Article and AQL Inspection

These three tools answer different questions and work together. The golden sample answers "what does correct look like?" — it is the reference standard. First-article inspection answers "does this production run start correctly?" — it checks the first units off a new batch or tooling change against drawing and golden sample. AQL sampling answers "is this shipment acceptable overall?" — it applies a statistical sampling plan to a lot and uses the golden sample as the visual arbiter for borderline findings.

A practical acceptance program for custom LED parts uses all three: the golden sample defines the standard, the first article verifies each run's setup, and AQL sampling governs release decisions per shipment. Without the golden sample, the other two lose their reference point and inspection findings turn into negotiation.

How to Keep the Reference Trustworthy

• Control storage. Golden samples age: UV exposure, heat and humidity shift LED appearance over time. Store sealed, dark and at stable conditions, and define a review interval.
• Control access. Only authorized staff may open the seal, and every opening should be logged, because handling itself can degrade the reference.
• Anchor to document revisions. Record the drawing revision, specification version and material list the sample was approved against, or the reference drifts from the paperwork.
• Replace deliberately. If LEDs age or a technology change forces it, retire the sample under a documented re-approval, never informally.
• Define dispute use. Agree in advance that disputed shipments are compared under defined lighting and viewing conditions against the sealed sample.

What to Ask an LED Supplier About Golden Samples

A capable OEM/ODM LED manufacturer treats the golden sample as standard practice for customized parts, not an extra. When you evaluate suppliers, ask how samples are produced and approved, how many sealed sets are provided, how sample revisions are managed after engineering changes, and how the sample links to their outgoing inspection records.

HOUKEM supports OEM and ODM customized LED display projects in which specifications, dimensions, colors and circuit requirements are confirmed through approved drawings and samples, with MOQ and lead time determined by the specific model and project. Commitments about what a production part will look like should always trace back to an agreed golden sample and the drawing revision behind it — that is what makes the reference enforceable on both sides.

Frequently Asked Questions

How many golden samples should be created for a project?

At minimum two identical sealed sets: one retained by the buyer and one by the manufacturer, so a disputed shipment can be compared on both sides. High-volume or multi-site projects often add a third set for the receiving factory's inspection line.

Who owns and stores the golden sample?

Both parties own their respective sealed sets, and the agreement should say so explicitly. The buyer's set arbitrates incoming inspection, while the manufacturer's set arbitrates outgoing checks and root-cause analysis.

What happens when a design changes?

Any material, process or tooling change requires new samples and a fresh joint sign-off, registered as a new golden sample revision. The old generation is retired in writing so two standards never coexist.

Can a golden sample expire?

Effectively yes: LED appearance and brightness shift with aging, heat and UV exposure, so a sealed sample stored for years may no longer represent current production appearance. Define a review interval and a documented re-approval path rather than trusting an aging reference indefinitely.

Is a golden sample legally binding?

It is binding to the extent your quality agreement references it as the acceptance standard and defines how disputes are evaluated against it. Its practical power comes from that written linkage, not from the physical part alone.

Conclusion

The golden sample is the cheapest quality insurance available on a custom LED project: a handful of sealed units that convert subjective appearance into an agreed, enforceable standard. Run the process formally — joint sign-off, sealed sets on both sides, revision control, defined dispute conditions — and link it to first-article and AQL inspection so every shipment is judged against the same reference. Projects that skip it usually pay for the omission later, in exactly the disagreements the sample was meant to settle.

If you are planning a customized LED display or LED component project, submit your drawing and application requirements through the HOUKEM inquiry page. The team will confirm applicable configurations, propose the sample and approval workflow for your project, and quote MOQ and lead time for the confirmed specification.
