LED Forward Voltage Explained: What Engineers Need to Know

This article explains what forward voltage means, why it varies between LED colors and between individual parts, and how it should shape your circuit and procurement decisions.

Quick Answer

Forward voltage (VF) is the voltage drop across an LED when a specified forward current flows through it in the conducting direction. It is not a fixed rating but an operating point: for the same LED, VF shifts with current, junction temperature and the LED's emission color, which is set by the semiconductor material's bandgap. That is why datasheets specify VF as a range under defined test conditions, and why drive circuits are designed around current control rather than voltage control.

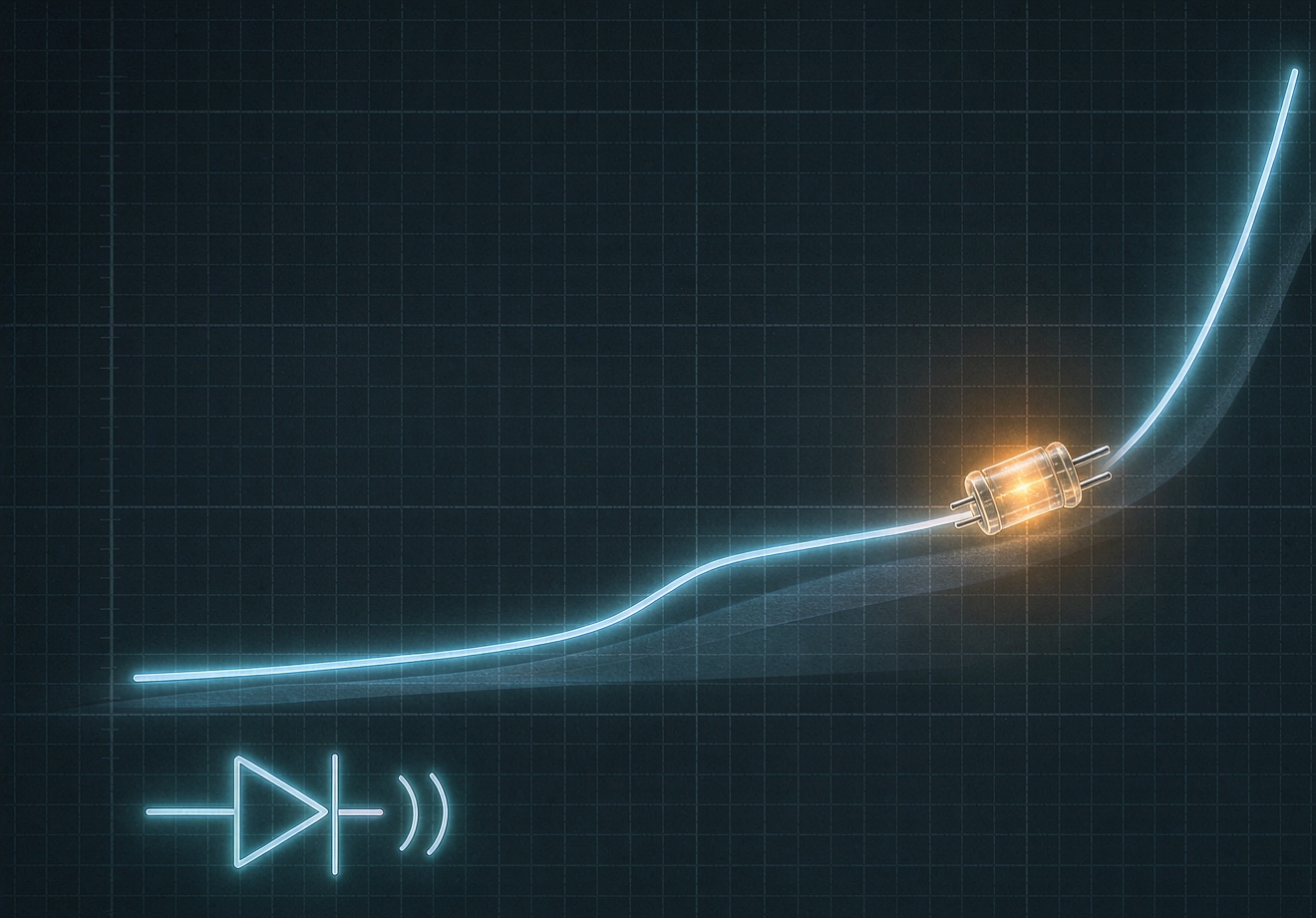

What Forward Voltage Actually Represents

An LED is a diode: below its turn-on region, almost no current flows; once forward current flows, the junction sustains a voltage drop that rises gently with current. That drop is the forward voltage. It exists because energy is required to lift electrons across the semiconductor's bandgap — the same energy that is later released as photons.

This connection between bandgap and emission color is the key to understanding VF differences. Higher-energy emission requires a wider bandgap, which appears as a higher forward voltage at the same current.

Why Forward Voltage Differs by Color

Red, yellow, green, blue and white LEDs are built from different semiconductor materials and junction structures, so their forward voltages differ systematically. As a practical orientation, red LEDs typically show the lowest forward voltages, yellow and green occupy a middle region, and blue-based emitters — including white LEDs, which use a blue die under a phosphor — sit at the higher end. Treat any specific values as material-family behavior, not universal constants: the exact figures depend on the die technology and the current at which the part is characterized.

The practical consequence matters more than the numbers. A constant-voltage supply sized for one color will not correctly drive another color at the same brightness, and mixed-color designs — indicator panels, RGB displays — need per-channel current control.

What Makes VF Move During Operation

• Forward current. VF generally increases as forward current increases, following the LED's nonlinear current-voltage relationship. The operating current must be selected within the applicable device ratings and thermal limits. For the distinction between recommended, rated, maximum, and pulsed current, see our LED Forward Current vs Rated Current Guide.
• Junction temperature. VF falls as the junction heats, a negative temperature coefficient that matters for thermal design and for circuits that rely on VF for sensing.
• Manufacturing variation. Datasheet ranges exist partly because die-to-die variation shifts the VF of individual parts within a batch.
• Aging. Over long operating lives, junction changes can modestly alter the VF-versus-current curve.

How to Read VF on a Datasheet

An LED datasheet may list minimum, typical, and maximum forward-voltage values under specified test conditions. The exact presentation varies by manufacturer and product family.

Before using these figures for design, confirm the forward current, temperature, and test method associated with the published values.

Typical VF is a representative characterization value, while maximum VF may define an upper specification limit under the stated conditions. Engineers should review the manufacturer's actual specification notes rather than assuming every datasheet uses the same guarantee or binning method.

For component comparisons, use the same current and temperature conditions wherever possible. When available, VF-versus-current and VF-versus-temperature curves provide a more useful picture than one nominal value.

If your application depends on VF behavior — for example, temperature estimation from junction voltage, or matching strings of LEDs — ask the supplier for the VF-versus-current curve and its temperature dependence rather than working from the single table value.

Design Consequences: Current Control, Not Voltage Control

Because the VF-versus-current curve is steep, small voltage changes produce large current changes. A simple resistor works when the supply voltage comfortably exceeds VF and current is small, because the resistor absorbs the variation. In higher-power or mixed-color designs, a constant-current driver or per-channel regulation keeps emission stable despite VF variation between parts, colors and temperatures.

This is also why series strings work and parallel strings need care: identical current through series parts is natural, while paralleling LEDs with different VF values shares current unequally unless the design forces it otherwise.

LED Forward Voltage Example in a Simple Circuit

A practical example helps explain the difference between LED forward voltage, supply voltage, and forward current.

Suppose an indicator LED has the following illustrative operating conditions:

The series resistor can be calculated using:

R = (VS − VF) / IF

For this example:

R = (5V − 2.0V) / 0.02A = 150Ω

The LED drops approximately 2.0V at the assumed operating current, while the resistor drops the remaining 3.0V.

The resistor power dissipation at this nominal operating point is:

P = I² × R = 0.02² × 150 = 0.06W

These figures are illustrative, not verified specifications for a particular HOUKEM LED.

Why the Actual Forward Voltage Matters

If VF changes because of LED manufacturing variation, operating temperature, or current, the voltage across the resistor also changes.

As a result, the actual LED current may differ from the nominal 20mA target.

Engineers should check the minimum and maximum expected forward-voltage values, supply tolerance, resistor tolerance, and temperature conditions before approving the final circuit.

For detailed calculations, read our LED Current Limiting Resistor Calculation Guide.

Key takeaway: Forward voltage is the LED's voltage drop at a specified current. It is not the same as the total supply voltage, and it should not be used alone to set LED current.

Forward Voltage in OEM Procurement

For OEM buyers, VF is a fitting parameter, not a headline feature. What matters is that the supplier's VF specification is defined at your operating current, that replacement parts fall within the same range so your driver design stays valid, and that any color-mixing requirement accounts for the systematic VF differences between colors.

HOUKEM supplies LED components and displays across indicator, numeric, dot matrix, UV and IR product families, with electrical characteristics specified per model. When a project requires replacement compatibility or mixed-color consistency, the electrical specifications of the specific model — including forward voltage ranges — should be confirmed against the applicable datasheet and approved sample rather than assumed from a family name. That habit prevents most field surprises that trace back to a VF assumption made at the quotation stage.

Frequently Asked Questions

Is LED forward voltage the same as supply voltage?

No, forward voltage is the drop across the LED itself while the supply must provide that drop plus whatever the series element consumes. Design the supply around the total circuit, not around VF alone.

Why do blue and white LEDs have higher forward voltage than red ones?

Blue emission requires a wider-bandgap semiconductor, which sustains a larger junction voltage at the same current. White LEDs inherit that higher voltage because they are blue dies with a phosphor coating.

Does forward voltage change with temperature?

Yes, VF decreases as junction temperature rises, which is a well-known negative temperature coefficient. Sensitive circuits account for it, and it can even be used in reverse to estimate junction temperature.

Can I run an LED directly from a voltage source set to VF?

This is unreliable because the steep VF-versus-current curve turns small voltage errors into large current changes. Use a resistor or a constant-current source so the current, not the voltage, is the controlled quantity.

How should I compare VF between two suppliers' datasheets?

Check that both figures are quoted at the same test current and temperature, then compare the full range rather than only the typical value. If the conditions differ, normalize by requesting curves at your actual operating point.

Conclusion

Forward voltage is best understood as an operating point on a curve, not a fixed rating. It varies systematically with emission color, drifts with temperature, and differs between individual parts — which is why robust LED designs control current and why datasheet VF values must always be read together with their test conditions. Make VF-vs-current confirmation part of your component qualification, and most drive-circuit surprises disappear before production.
