Yellow Color 0.56 inch 2 Digits 7 Segment Display
Product Description
2 digits 7 segment led display
2 digits 7 segment led display red
2 digits 7 segment led display blue
2 digits 7 segment led display white
2 digits 7 segment led display yellow
2 digits 7 segment led display green
2 digits 7 segment led display super green
2 digits 7 segment led display purple
2 digits 7 segment led display orange
0.56 inch 2 digits 7 segment led display red
0.56 inch 2 digits 7 segment led display blue
0.56 inch 2 digits 7 segment led display white
Yellow Color 0.56'' 2 digits 7 segment display
0.56'' 2 digits 7 segment anode display Yellow Color
0.56 inch Yellow Color 2 digits 7-segment display
Part No.: | Houkem-5621-A/BY | Warranty: | 2 years |
Digit Height: | 14.2 mm=0.56 inch | Application: | Audio equipment or instrument panels |
Epoxy Color: | Milky White / Clear | Pixels: | 2.5 mm |
Luminous intensity: | 60 mcd | Operating Temperature: | -20℃~60℃ |
Product Dimension: | 25x 19 x 8 mm | Brand name: | Houkem |
Surface color: | Black / Grey | Certification: | CE, REACH, RoHS |
Polarity: | Common cathode/ Common anode | HS Code: | 8531200000 |
Emitting color: | Yellow color | Country of Origin | China |
Current: | 35 mA | Key words: | 2 digits 7 segment display 7 segment 7 segment display anode |
Voltage: | 2.1~2.5V |
Other colors for options:
Different colors vary in price.. What color do you want ?
Ultra Red 1 | 625~640 nm, 30 mA, 2.1~2.5 V, 200-270mcd |
Ultra Red 2 | 625~640 nm, 30 mA, 2.1~2.5 V, 300-350 mcd |
Super Red | 625~640 nm, 20 mA, 1.8~2.3 V, 80-120 mcd |
High Red | 640~660 nm, 20mA, 2.1~2.5 V, 12 mcd |
Amber | 605~615nm, 30mA, 2.1~2.5V, 30 mcd |
Super Green | 565~575 nm, 30 mA, 1.9 ~2.4 V, 50 mcd |
Pure Green | 515~525 nm, 40 mA, 3.3~4.0 V, 600 mcd |
Yellow | 590~600 nm, 35 mA, 2.1~2.5 V, 60 mcd |
Blue | 465~475 nm, 40 mA, 3.1~3.5 V, 220 mcd |
White | 3.1~3.5 V, 20 mA,125 mcd |
New Yellow | 583-586 nm, 35 mA, 2.1~2.5 V, 140-168 mcd |

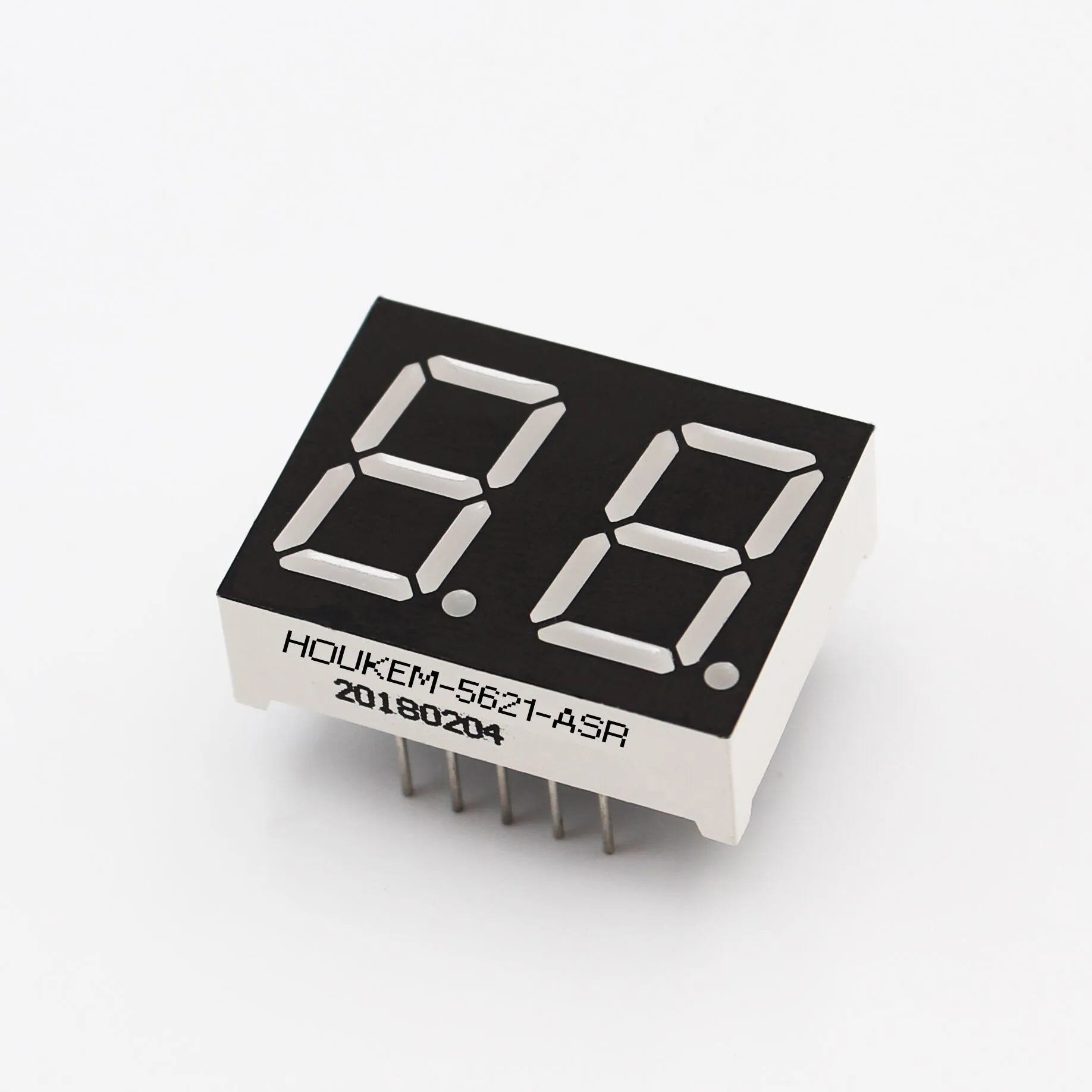

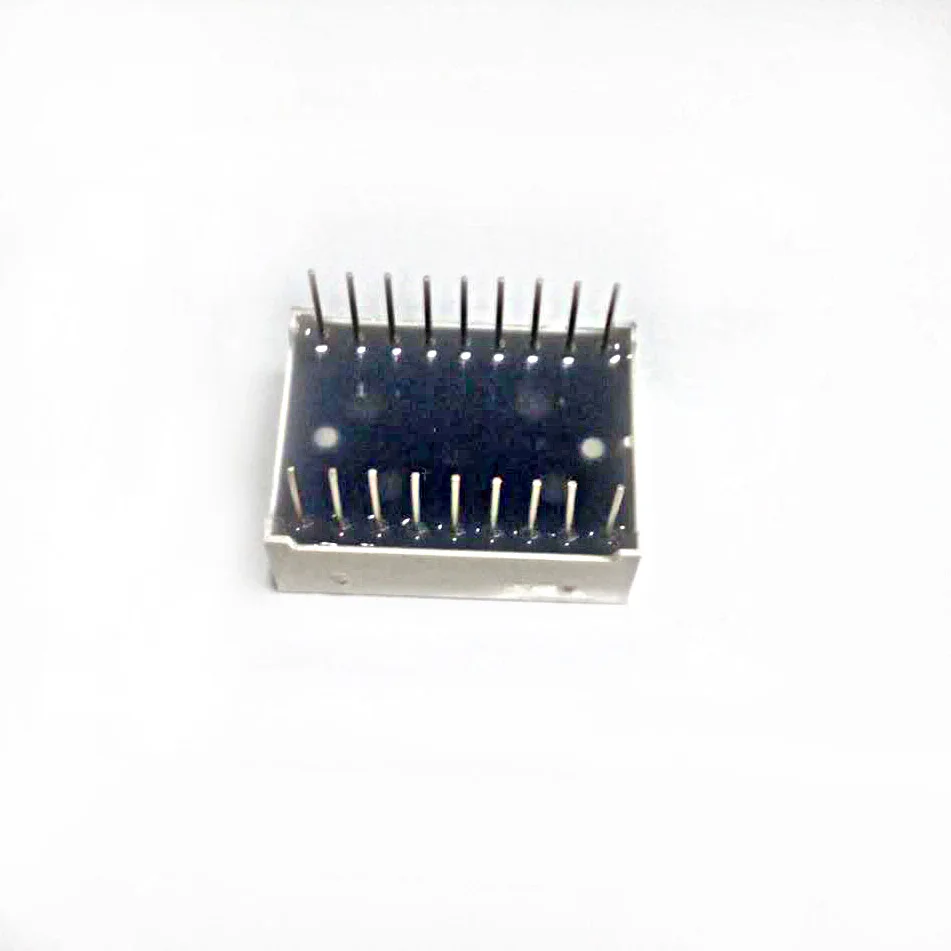

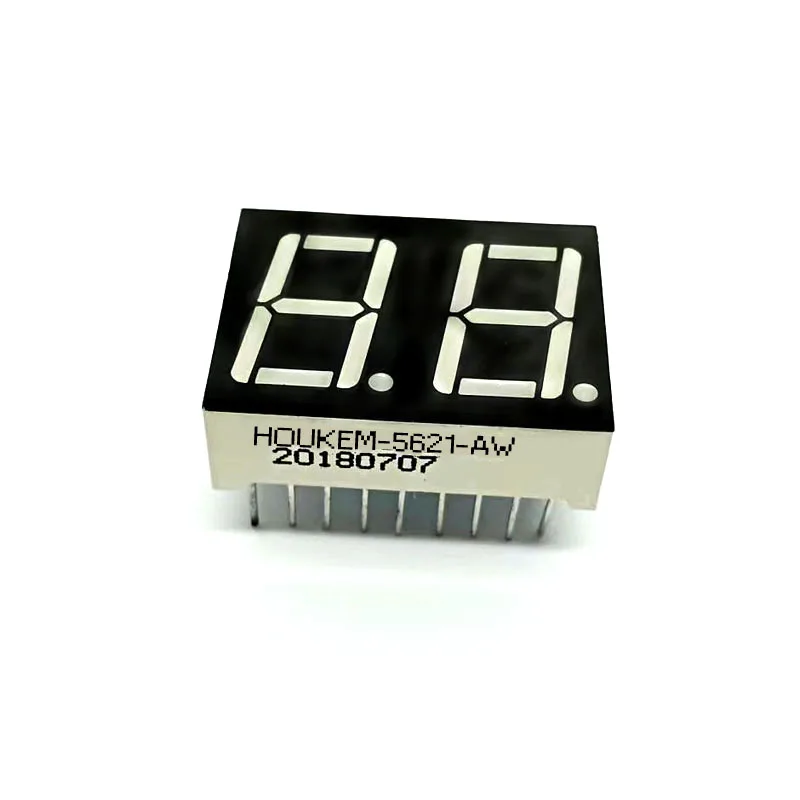

Product pictures
|
|
|
|
Dimension and internal circuit diagram
( If you need other internal circuit diagrams, please contact our salesperson.)
Application
Other relative products
|
|
|
|
|
|
Company Profile
Company name: Dongguan Houke Electronic Co., Ltd
Address: No.3 Gongye Street, Baihao Industrial District, 523957,Houjie Town, Dongguan City, Guangdong province, China
Dongguan Houke Electronic Co., Ltd was established in 2023 in Dongguan City, Guangdong Province, specializing in the production of 7 segment LED display, dot matrix LED display, SMD 7 segment LED display, 14/16 segment LED display, bar LED, UV LED, UVC SMD LED and IR LED.
After 22 years of hard work, Houke's production technology and process have been increasingly improved, and its products have passed CE, RoHS, and REACH certifications.
The product quality is recognized by customers, and customers are all over the world, with long-term stable relationships.
Houke has obtained ISO900001, Authentication Certificate of Corporate Social Accountability Management System and other certificates. Dongguan Houke Electronic Co., Ltd has been committed to improving product quality and service levels, and providing customers with high-quality products and services.
Certifications
