RGB 8x8 LED Matrix Module Display
RGB LED Matrix Display Module 8x8
RGB color common anode 6mm square dot 8x8 LED matrix Houkem-5088-BRGB | RGB LED matrix display module for industrial embedded applications

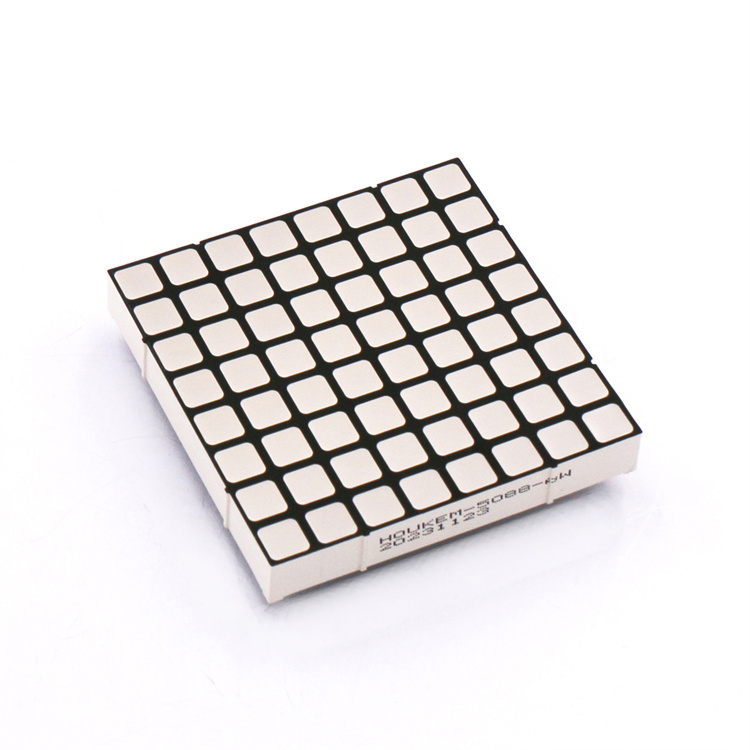

TheRGB LED matrix display module (HOUKEM-5088-BRGB) is a compact and high-brightness 8x8 dot matrix designed for embedded systems, industrial control panels, and programmable visual display applications. It delivers stable performance with low power consumption and multi-color RGB output.
Key Features
1, Low consumption
2, High brightness
Supported LED matrix configurations:
rgb led dot matrix display 8x8
rgb led dot matrix display 5x7
rgb led dot matrix display 1616
rgb led dot matrix display 32x16
8x8 rgb led dot matrix display
5x7 rgb led dot matrix display
16x16 rgb led dot matrix display
32x16 rgb led dot matrix display
5x8 rgb led dot matrix display
rgb led dot matrix display 5x8
1.9 inch rgb led dot matrix display
3.0 inch rgb led dot matrix display
Product Specifications
| Item No. | HOUKEM-5088-BRGB |
| Dimension | 60.2*60.2*9mm |
| dot | 6mm |
| Surface color | Black / Grey |
| Segment color | White / Clear |
| Emitting color | RGB |
LED Chip Characteristics (IF=15mA)
Color Code & Chip characteristic PER CHIP (Test Condition: IF=15mA)
| Emitting Color | Wavelength (nm) | Forward Voltage (V) | Luminous Intensity (mcd) |
|---|---|---|---|
| Amber | 600-605 | 1.8-2.0 | 100-120 |
| Super green | 565-575 | 1.8-2.0 | 48-55 |
| Super red | 620-625 | 1.8-2.0 | 110-130 |
| Ultra red | 620-625 | 1.8-2.0 | 200-350 |
| High red | 638-660 | 1.8-1.9 | 15-20 |
| Yellow green | 570-580 | 1.8-2.0 | 43-50 |
| Yellow | 580-600 | 1.8-2.0 | 70-80 |
| Blue | 465-475 | 2.95-3.0 | 150-200 |
| Ultra blue | 467-469 | 2.9-3.0 | 360-385 |
| Pure green | 515-525 | 2.95-3.0 | 600-640 |
| White | - | 2.8-3.0 | 200-220 |
Quality Assurance
Two years quality warranty
Applications
ThisRGB LED matrix display module is widely used in:
Industrial control panels
Embedded electronic devices
Smart home systems
Advertising display systems
IoT visualization modules
Instrument and meter display systems
Our LED Display Solutions

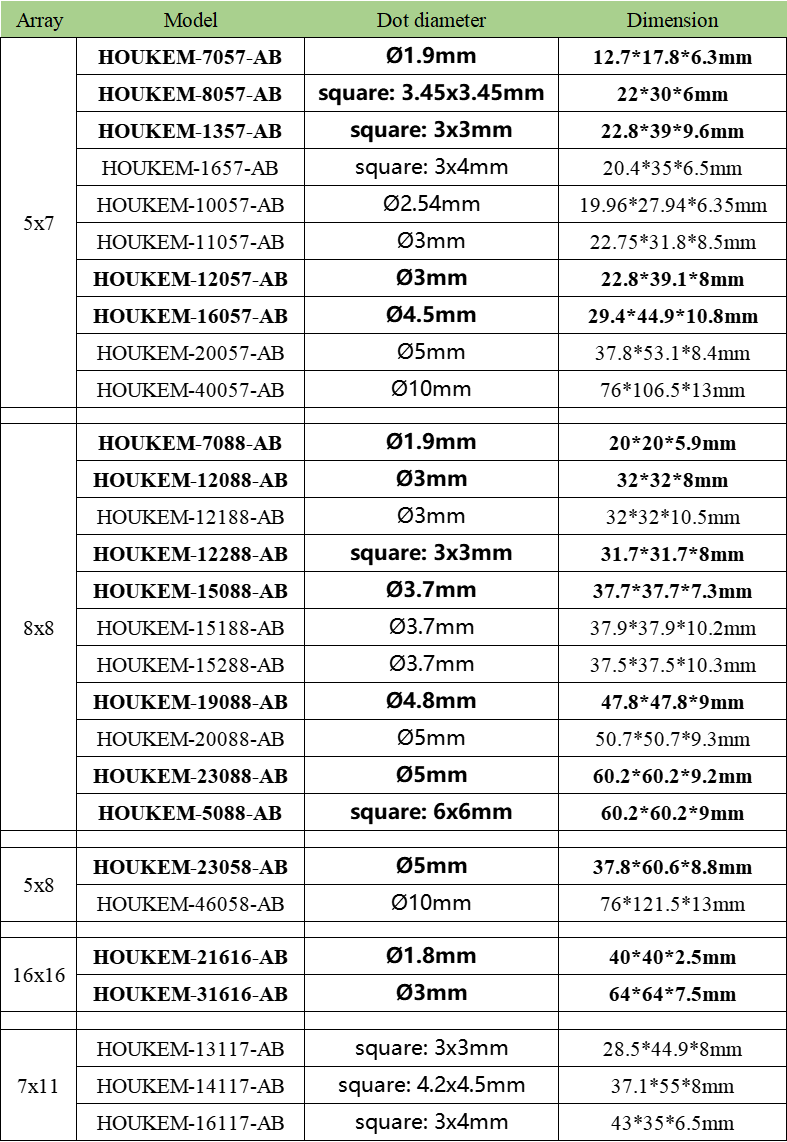

LED dot matrix options
5*7, 5*8, 8*8, 11*7, 16*16
7 Segment LED display
| 1 digit | 0.2'' to 20'' available sizes |
| 2 digit | 0.28'' to 1.5'' available sizes |
| 3 digit | 0.25'' to 0.8'' available sizes |
| 4 digit | 0.25'' to 1.2'' available sizes |
| 5 digit | 0.28'' to 0.56'' available sizes |
| 6 digit | 0.3'' to 0.36'' available sizes |
14 / 16 segment displays
| 1 digit | 0.39'' to 2.3'' |
| 2 digit | 0.39'' / 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'' / 0.54'' |
| 6 digit | 0.4'' |
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
Frequently Asked Questions
1. What is this RGB LED matrix display used for?
It is used in embedded systems and industrial control panels for visual data display.
2. Can this LED matrix module be customized?
Yes, OEM and ODM customization is available for size, color, and configuration.
3. Is this module suitable for industrial environments?
Yes, it is designed for stable performance in industrial applications.
4. What is the typical lifespan of this LED module?
It offers long operational life with stable brightness and low degradation.
5. Do you support bulk and wholesale orders?
Yes, we support large-scale production and global B2B supply.
Get OEM Pricing & Samples
Looking for a reliable RGB LED matrix display module supplier? We provide OEM/ODM service, bulk pricing, and fast global delivery.
