Wholesale price led bar red light display square shape 15*15mm 40*40mm led bar

Model NO.
Houkem-L15-SR
Price:
USD 0.13-1.00 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:25mm
  • Tube Chip Color:green
  • Brand Name:KEM
  • Model Number:Houkem-L15-SR
  • Screen Dimension:15*15mm


Product Describtion

 business

super red 15*15mm led bar indoor usage led bar red light display



Features:

1, Low consumption

2, High brightness







 Product details:

Item No.Houkem-L15-SR
Dimension15*15mm
Surface color  Black  / Grey
epoxy colorWhite  /RED
Emitting color Super red

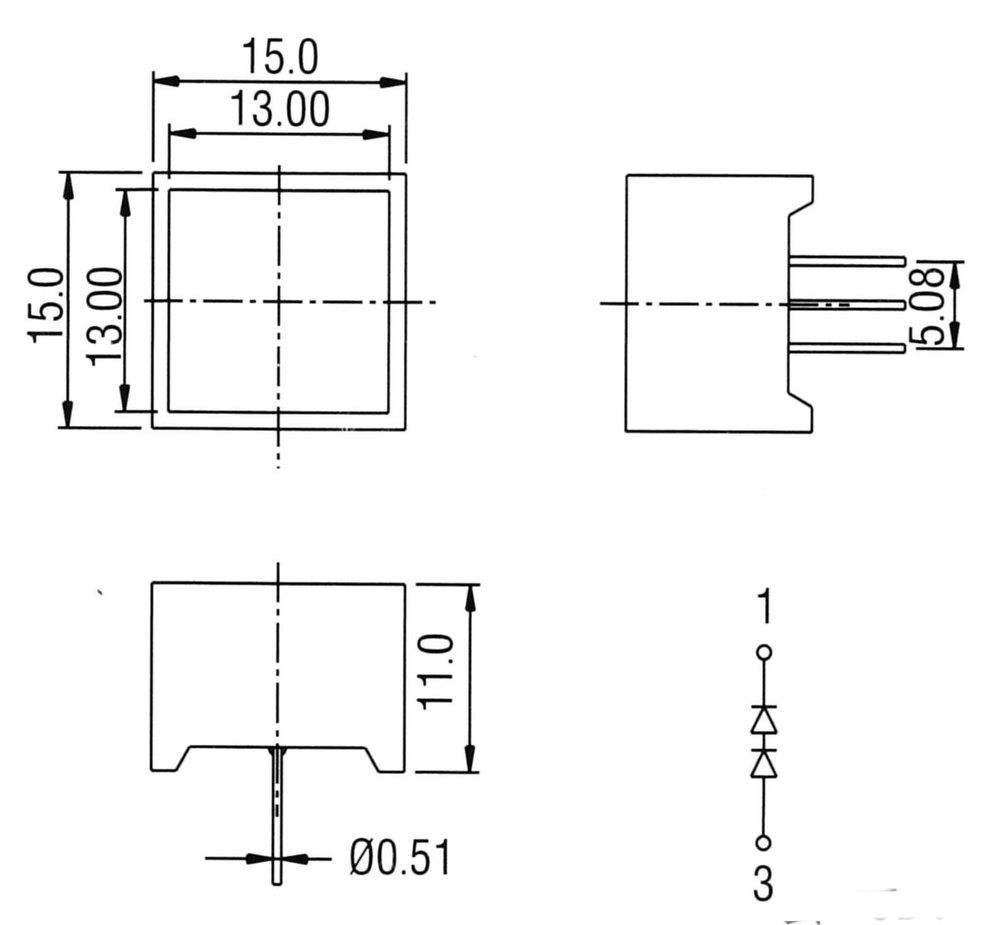

Package dimension & Internal circuit diagram

 L15.3

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200







 RED

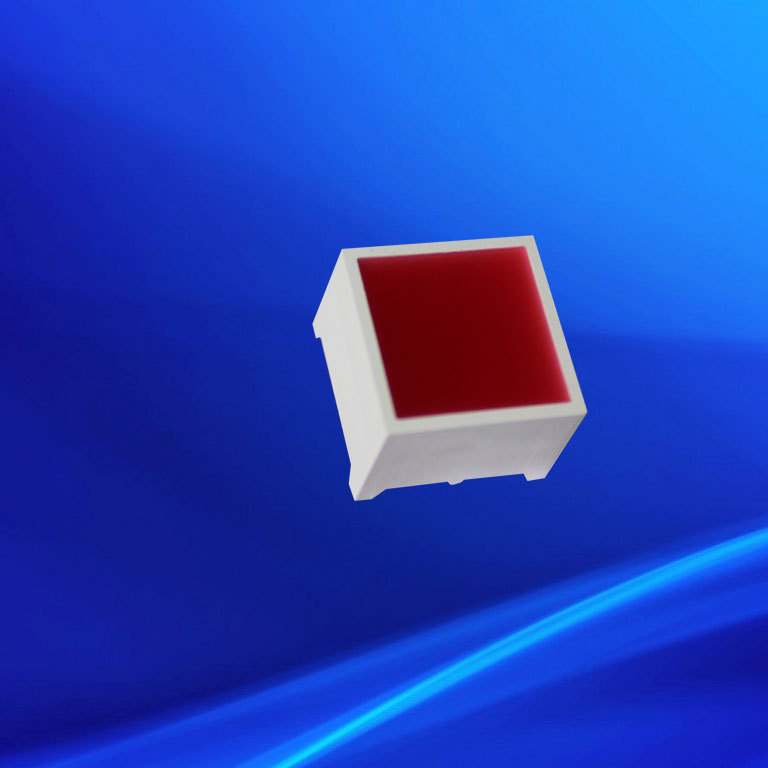

L15-2

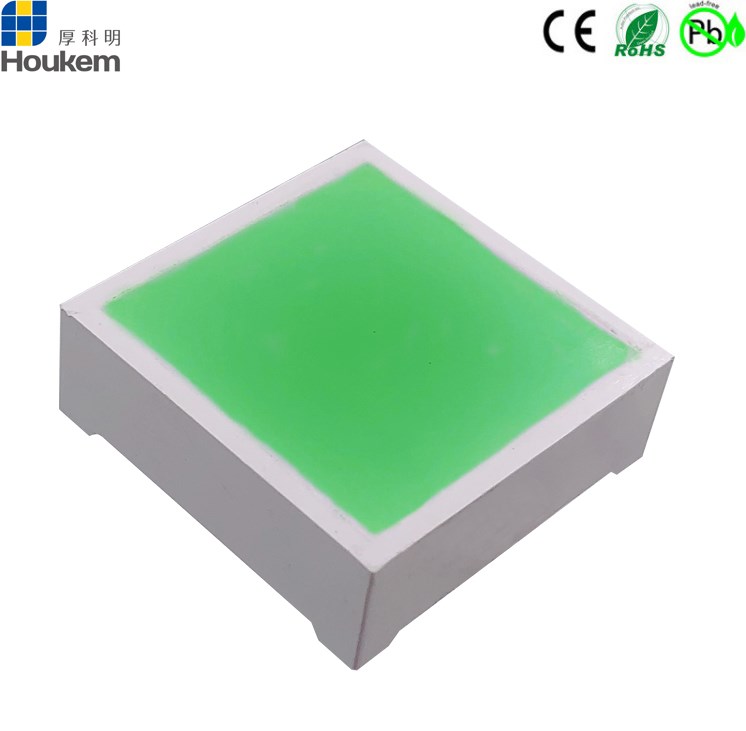

L15



GREEN

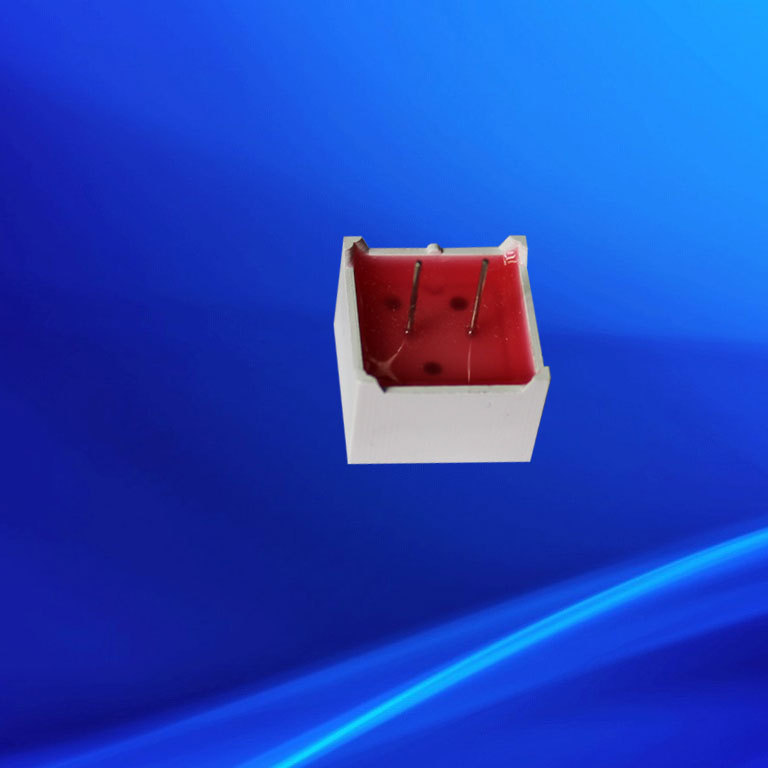

L15



Our Services



Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led







Packaging & Shipping

packing (1)

express-611

Contact us




Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.


 factory



Related Products



 40*40mm

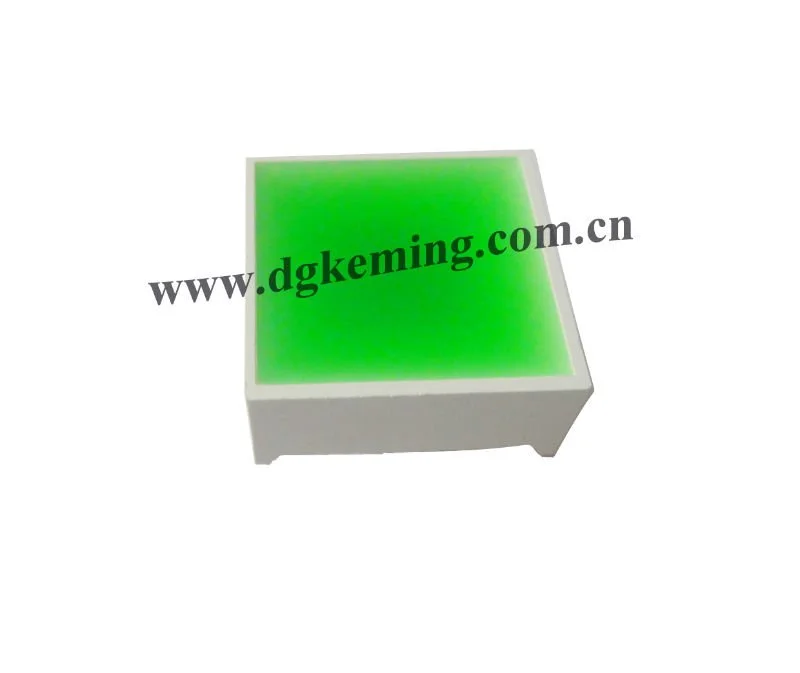

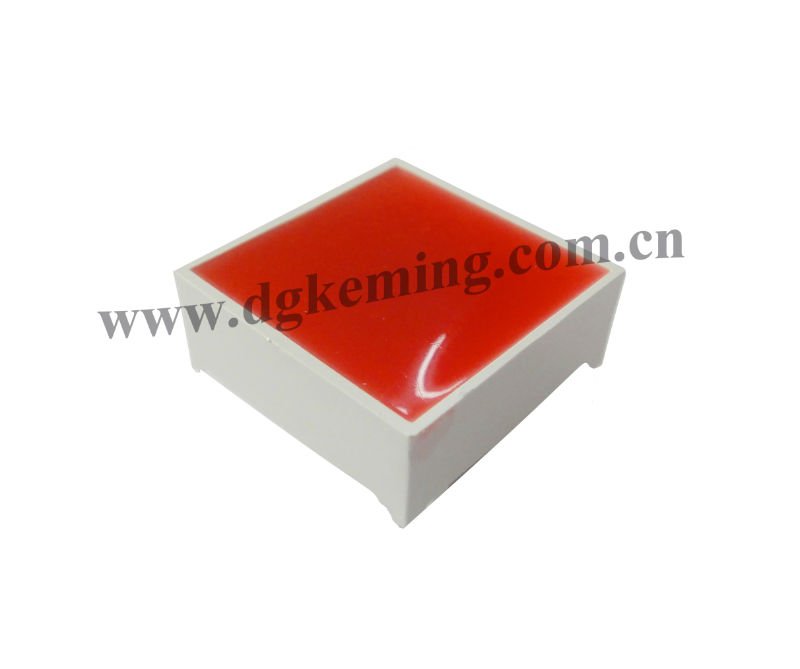

 square-bar-with-green-colorsquare-bar

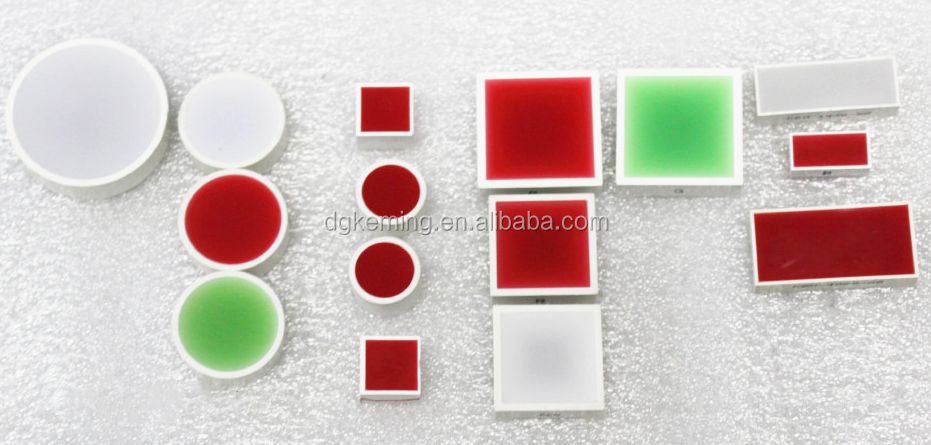

led bar.png
