wholesale price 410nm led high power 100w uv led 415nm for UV coating
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:uv curing, uv coating, uv ink
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power LED 415nm
- Emitting Colour:purple
- Forward Current:3000-3500mA
- Forward Voltage:30-34v
- Application:uv curing, uv ink, uv coating
- Warranty:2 Years
- Wave length:410-415nm
- Certification:ce, RoHS

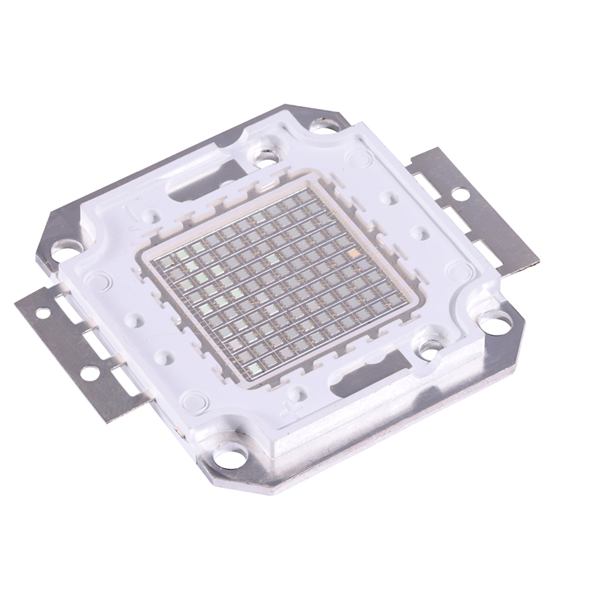

High power 100w 415nm UV led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 3500mA | 30 | 32 | 33 | V |
Radiant power Flux | Φv | IF = 3500mA | 38000 | 39000 | 40200 | mW |
Viewing Angle | 2θ1/2 | IF = 3500mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 3500mA | 412 | 414 | 415 | nm |

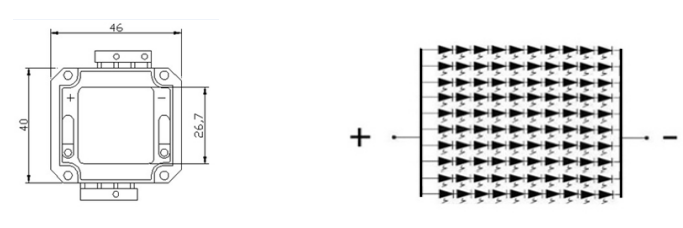

10 series& 10parallel

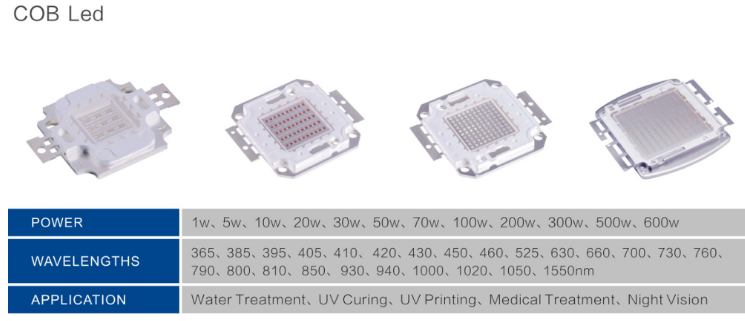

Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,

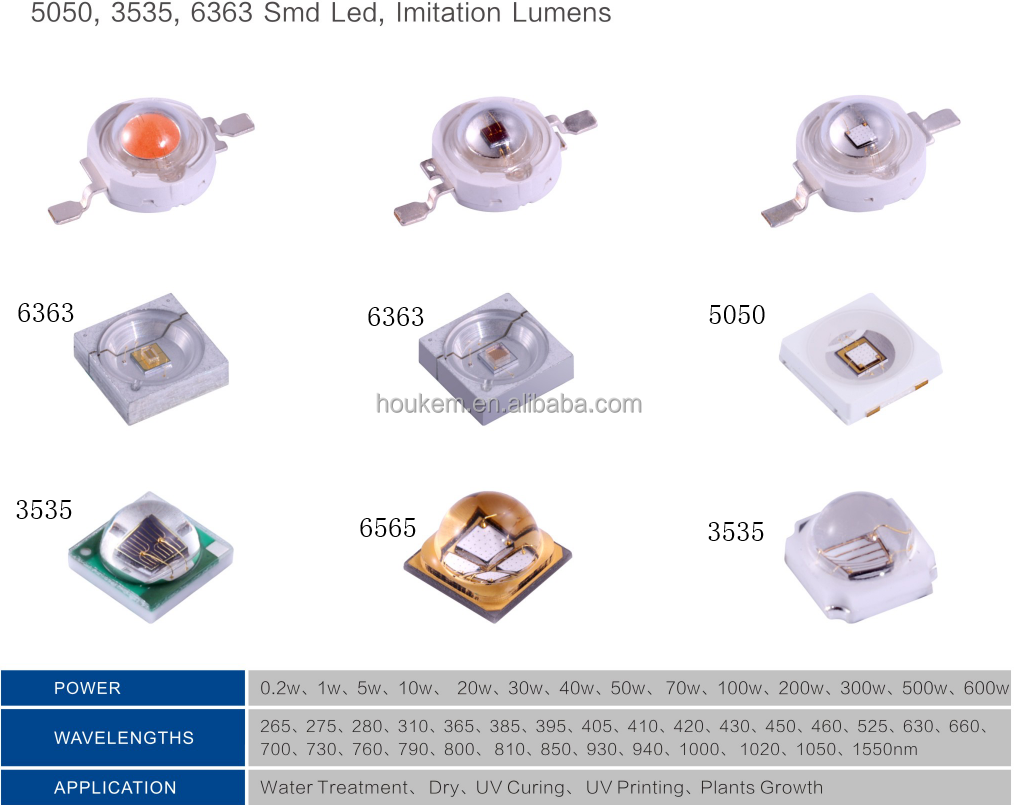

SMD LEDs, street light LED, LED optical lens, 50w-1000w LED grow light, 10w-200w led flood light, uvc led sterilizer light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
