wholesale price 100W led high power 480nm 485nm blue led 485 nm
- Input Voltage(V):DC28-30 V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):440
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:INGAN
- Emitting Color:blue
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power blue LED 480nm
- Emitting Colour:blue
- Forward Current:3000-3500mA
- Warranty:2 Years
- Wave length:480-485nm
- Chip brand:Epileds
- Other Wavelength:255nm-1550nm
- Chip Size:45mil
- Base material:Red Copper
- Certification:ce, rohs

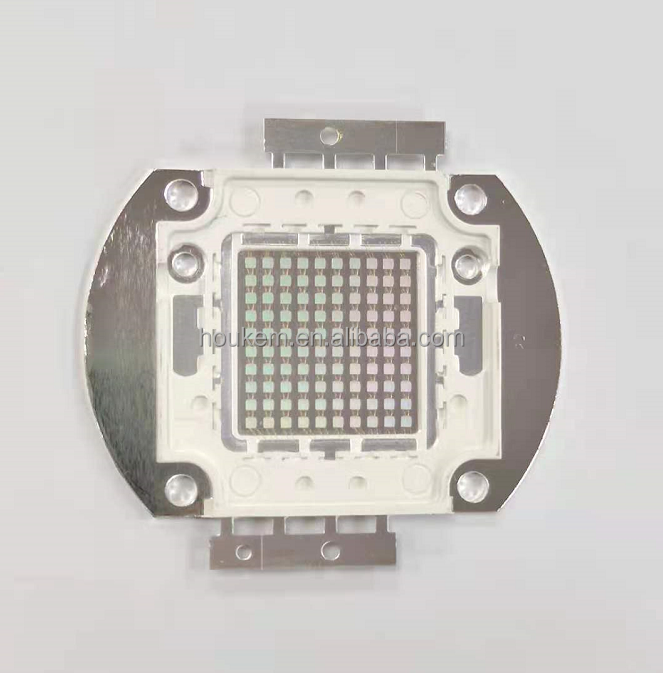

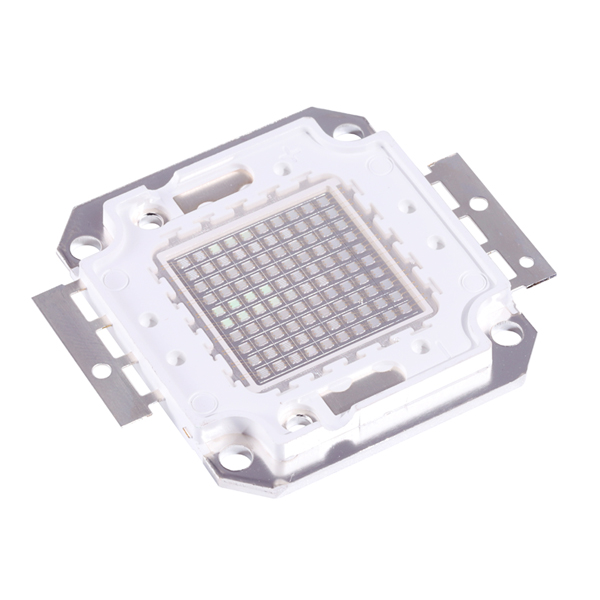

High power 100w 480nm 485nm blue led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 3500mA | 28 | 29 | 30 | V |
Radiant power Flux | Φv | IF = 3500mA | 44000 | 44500 | 46000 | mW |
Iv(mcd) | IF = 3500mA | 2200000 | 2300000 | 2500000 | mcd | |
Viewing Angle | 2θ1/2 | IF = 3500mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 3500mA | 480 | --- | 485 | nm |

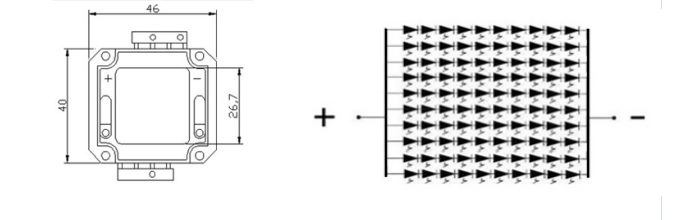

10 series& 10 parallel
other base
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
