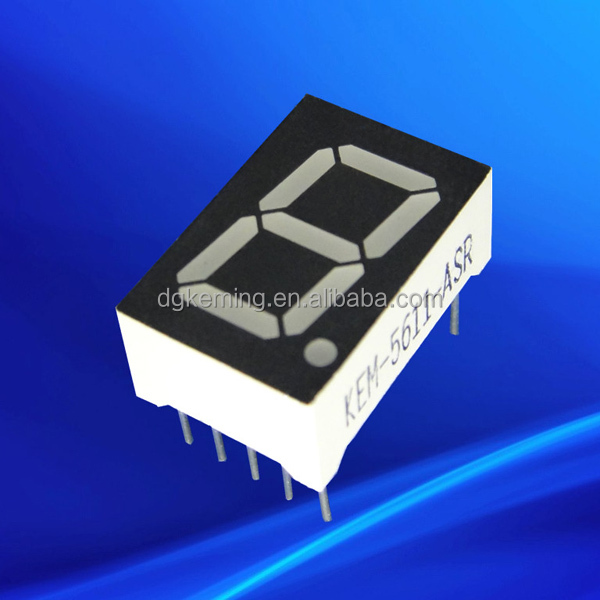

Single digit 0.56 inch 1 digit 7 segment led display 14.25mm height seven segment display white 5613bw-Houke

• Application:0.56 inch 1 digit 7 segment led display
• Color:White
• Panel Size:19*12.6*8mm
• Pixel Pitch:2.54mm
• Supplier Type:Original manufacturer
• Media Available:datasheet
• Place of Origin:Guangdong, China
• Model Number:KEM-5613-A/BW
• Brand Name:HOUKEM
• use:advertising publish, display of dishes, exhibition hall
• Function:SDK
• Pixels:2.5mm
• Specification:Digital Poster
• Key words:0.56 inch 7 segment led display
• Dimension:19*12.6*8mm
• Segment Color:white or same as emitting color
• Digit height:0.56 inch
• Digit number:One/ Single
• Face color:Black, grey or red
• OEM:Yes
• Package:EPE or as your request
• LED source:Taiwan Epistar LED
• Origin:China

Display-Through-hole-Digital LED displays-Single digit

KEM-5613-AW: Common Cathode

KEM-5613-BW: Common Anode

Features

•Industrial standard size.

•Low power consumption.

•Categorized for luminous intensity.

•Pb free and RoHS compliant.

Description

•The KEM-5613-A/BB is a 15.24mm (0.56") digit height seven-segment display.

•The display provides excellent reliability in bright ambient light.

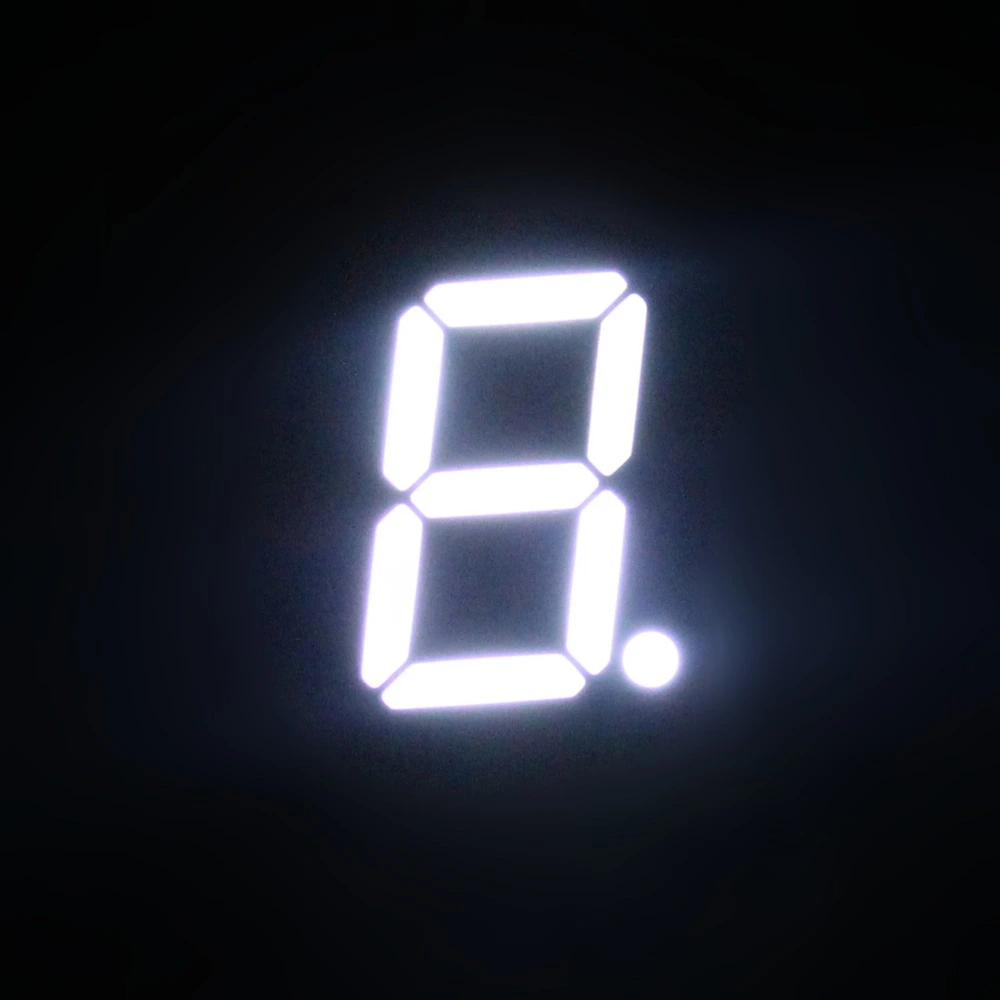

•The device is made with white segments and gray surface or black surface.

Applications

•Home appliances

•Instrument panels

•Digital readout displays

Product Review

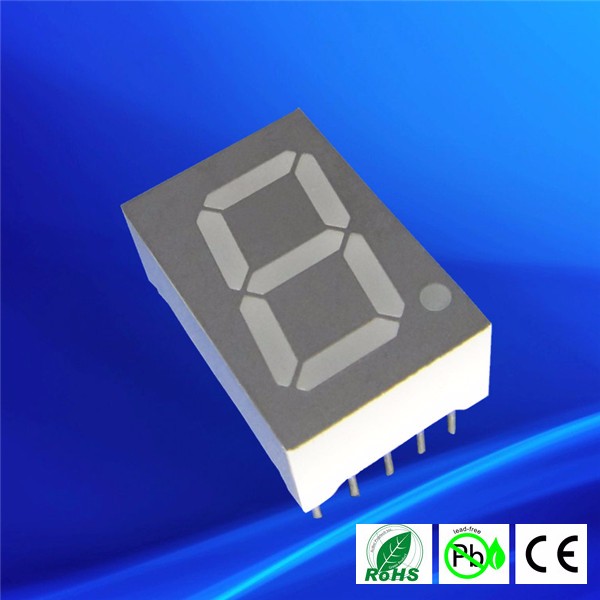

Both gray surface and black surface are available.

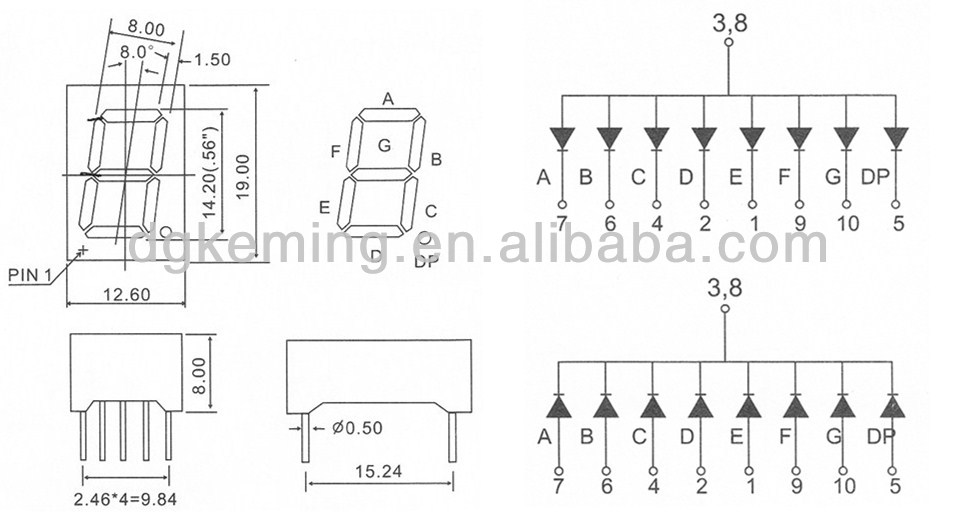

Internal Circuit Diagram

Warranty

Our products made of Taiwan Epistar LED chips with 3 years warranty.
