Model No: HOUKEM-5611SMD-BW
0.56'' single digit smd 7 segment display
smd 7 segment display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
1000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.50 - US $1.00 / pieces
- Application:Indoor
- Color:white
- Panel Size:mm
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-5611SMD-BW
- Brand Name:HOUKEM
- use:advertising publish
- Pixels:2.54
- Specification:--
- Display Function:Graphics
- Warranty:2Years
- PCB Polarity:common anode
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Life span:100000hours
- Certificate:CE/ROHS/ISO9001/Reach
Product Describtion
Common anode 1digit 0.56 inch smd 7 segment led display white color
Features:
1, Low consumption
2, High brightness
3, IC compatible, Easy assembly,
4, ESD 1000V
Product details:
| Item No. | HOUKEM-5611SMD-BW |
| Dimension | 12.56*19.56*3.75mm |
| digit height | 0.56'' |
| Surface color | gray |
| Segment color | White |
| Emitting color | white |
| brightness | 200mcd |

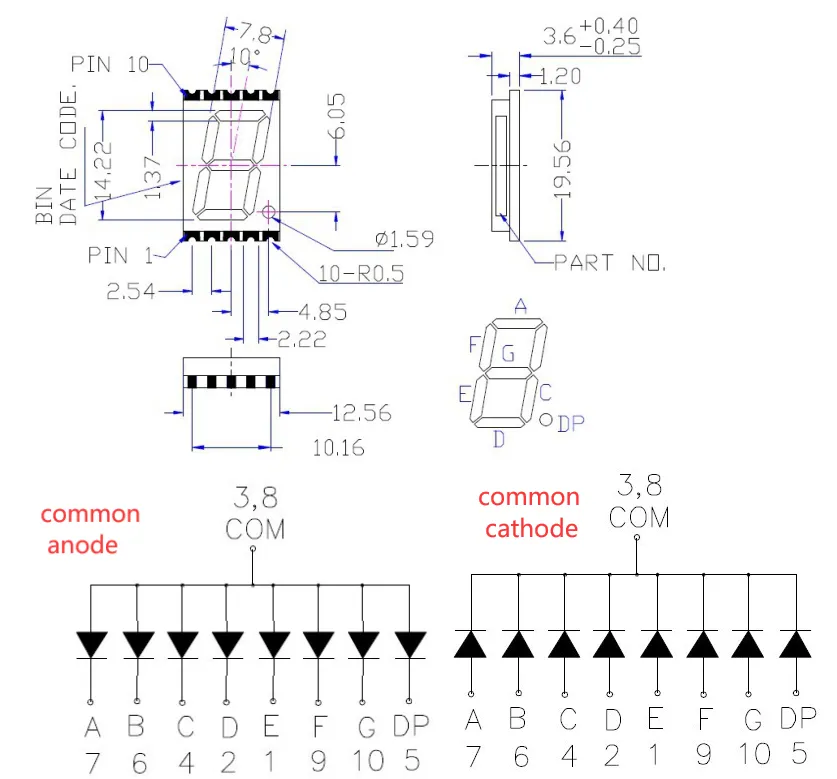

Package dimension & Internal circuit diagram
1 digit
3 digit
2 digit

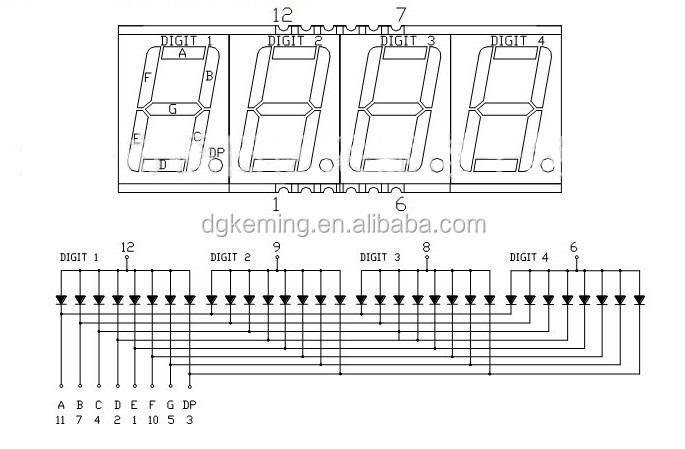

4 digit
Related Products
I
If you need other sizes, please feel free to contact us.
Our Services

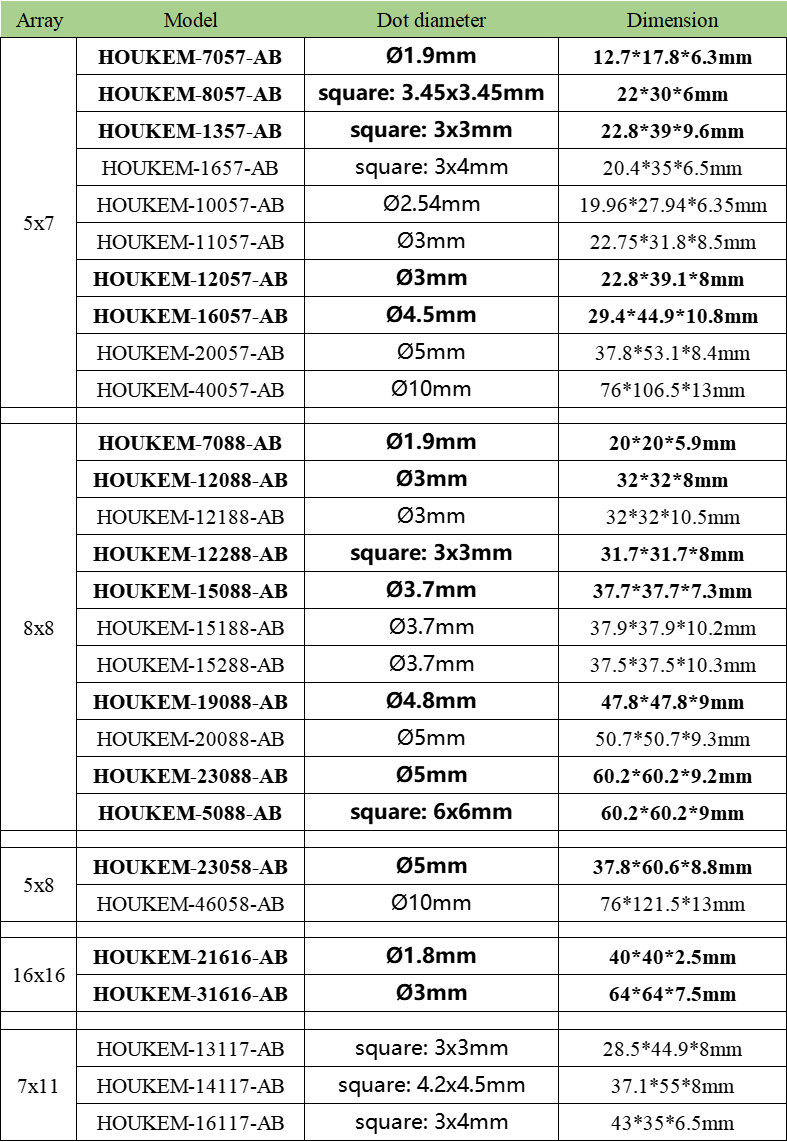

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

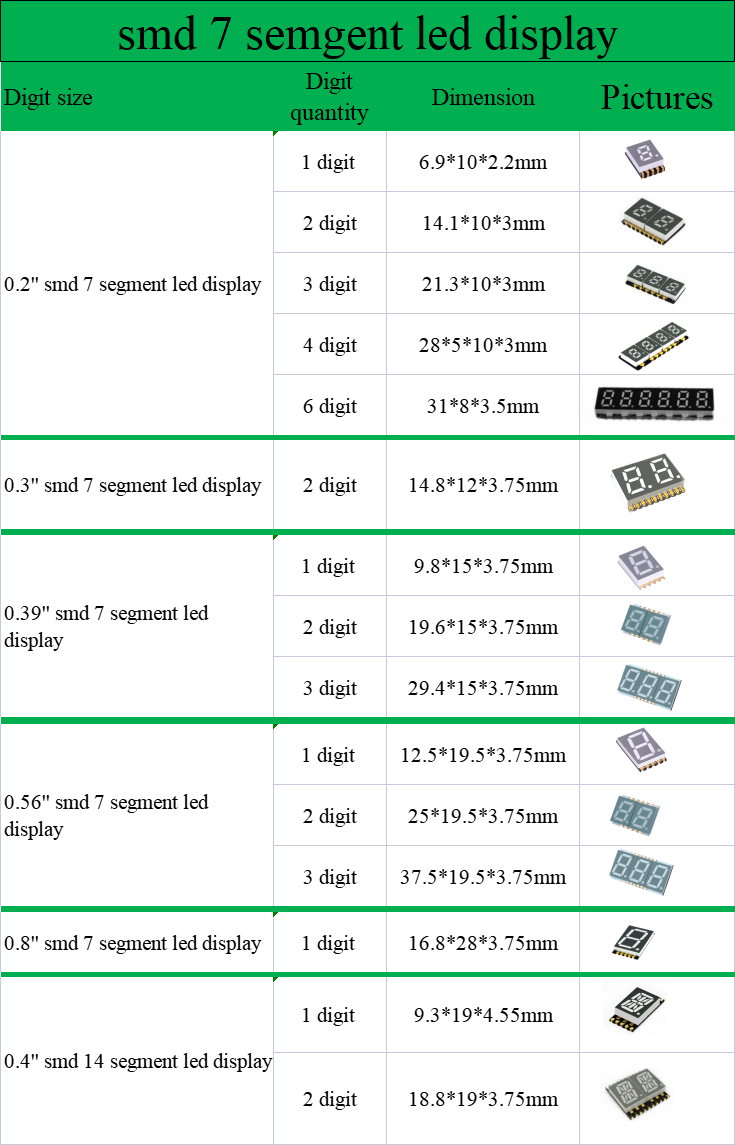

7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.26'' 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.56'' |
| 6 digit | 0.3'', 0.36'' |
14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'', 0.54'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available

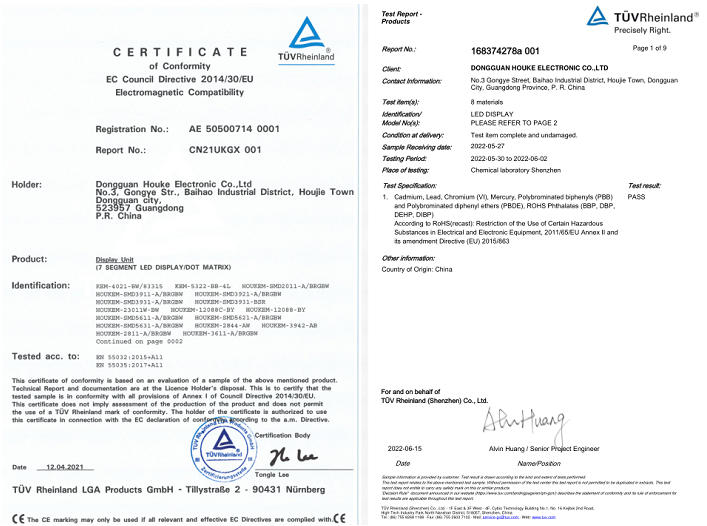

Certifications
