White color square led bar 40*40mm for touch switch
- Place of Origin:CN;GUA
- Application:touch switch, Graphics
- Color:white
- Panel Size:40*40mm
- Model Number:HOUKEM-L40-W
- Brand Name:HOUKEM
square led bar 40*40mm
1,Low consumption
2, High brightness
| Item No. | HOUKEM-L40-W |
| Dimension | 40*40mm |
| Surface color | Black /Grey |
| Segment color | White /Clear |
| Emitting color | WHITE |

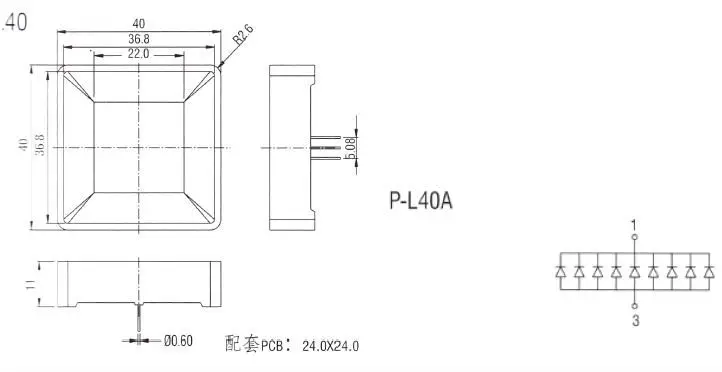

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=10-15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=10-15mA | 465-475 | 40 | 2.7 | 2.9 | 150 | 200 |
Pure green | IF=10-15mA | 515-525 | 40 | 2.7 | 2.9 | 180 | 250 |
White | IF=10-15mA | - | - | 2.7 | 2.9 | 180 | 200 |

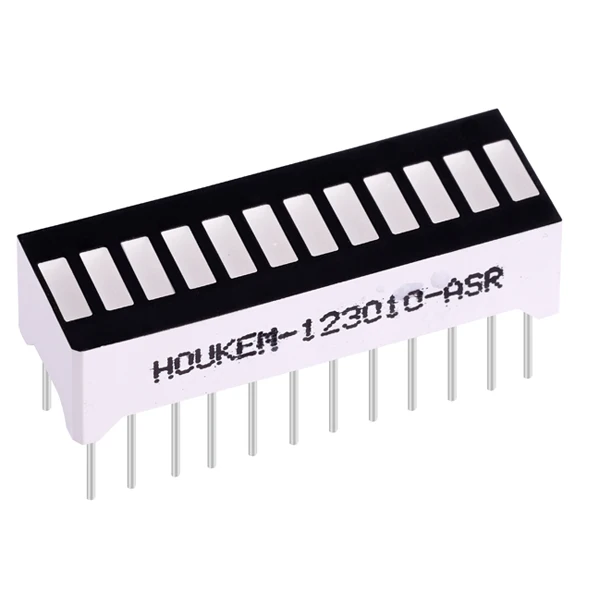

(If you are interested in other led bar, please kindly click the picture.)
Home appliances such as: water heater, air conditioning, fans, induction cooker, pressure cooker, heating stove, heating table shows the time, date, temperature and other available digital parameters.
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offer---- SAMPLES for your test within 3-5 days.
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.
4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
5. high power led: white /red /blue/green/IR/UV led
Customized products are available
