Model No: HOUKEM-31616-A/BW
3mm white led 16x16 dot matrix 64*64mm led matrix display screen
dot matrix led display houkem is 7 segment led display professional manufacturer
minimum order :
1 piece
Quantity :
$5.50 - $5.60 / piece
- Application:Indoor
- Color:white
- Panel Size:64*64mm
- Pixel Pitch:4mm
- Supplier Type:Original manufacturer, ODM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:KEM-31616-A/BW
- Brand Name:KEM
- use:advertising publish, welcome display, subway
- Pixels:3mm
- Specification:Digital Poster
- Screen Dimension:64x64x7.5mm
- Light Source:Epistar
- Dot Diameter:3 mm
- Apply:LED display indoor
- Emitting Color:white
- Warranty:2 years
- Product name:3mm white 16x16 led matrix
Products Description
3mm white led 16x16 dot matrix 64*64mm led matrix display screen
Part No. | Houkem-31616-A/BW | Dimension | 64x64xmm | |||
Pixel | 3 mm | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | white | |||
Luminous intensity | 200-250mcd/chip | Polarity | Common Cathode / anode | |||
If need other specifications, Please contact with our sales to get what you want. | ||||||

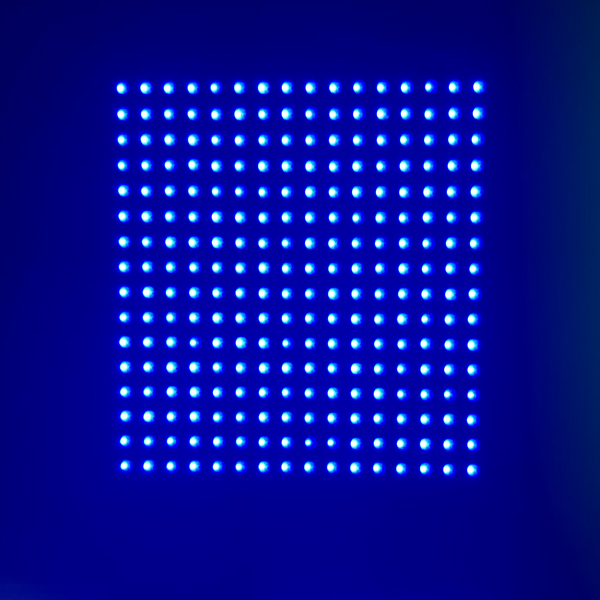

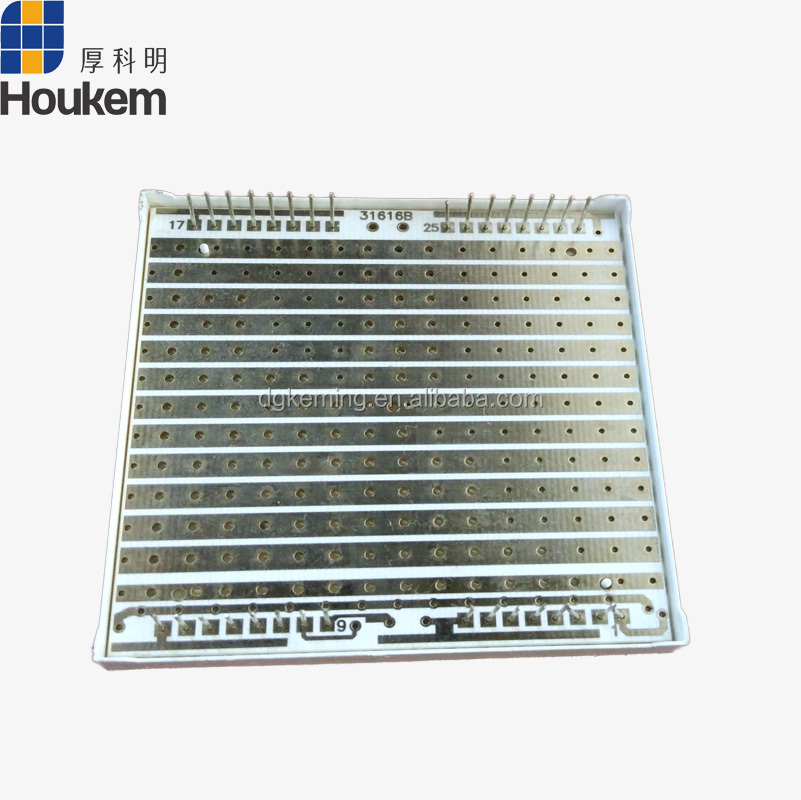

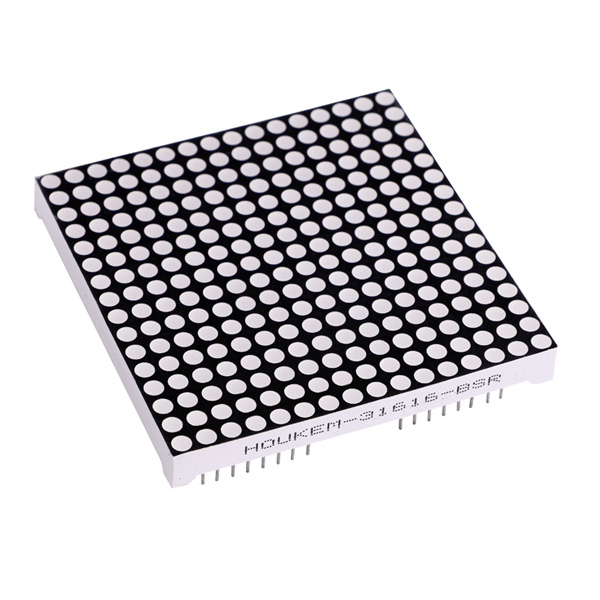

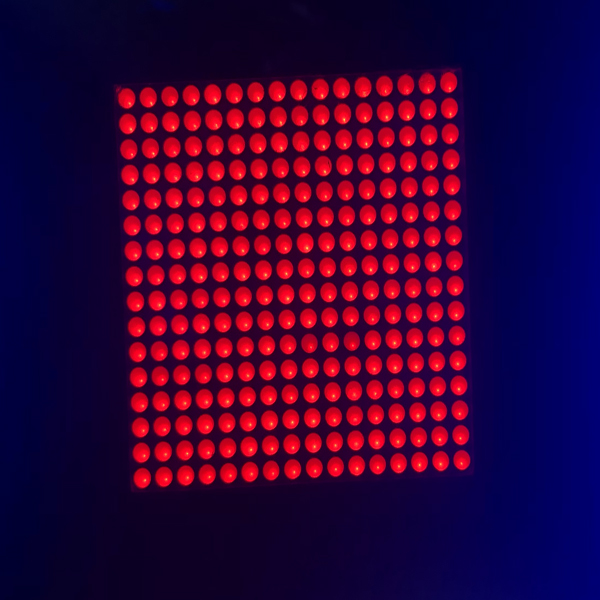

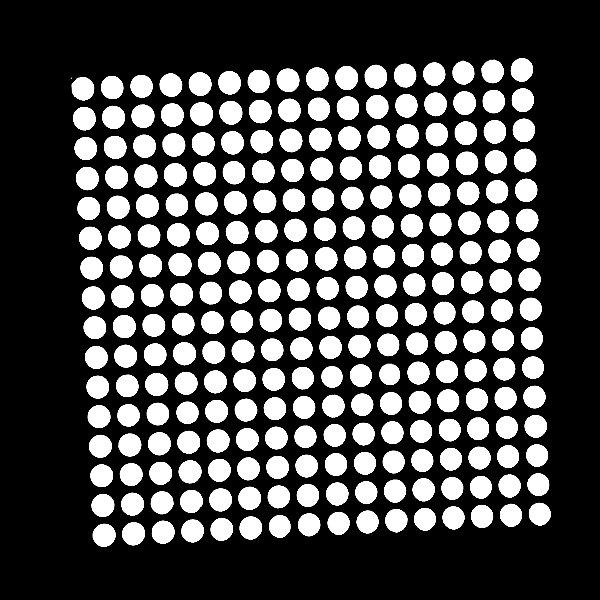

Details Images
Features:
1. white 16x16 dot matrix led display
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

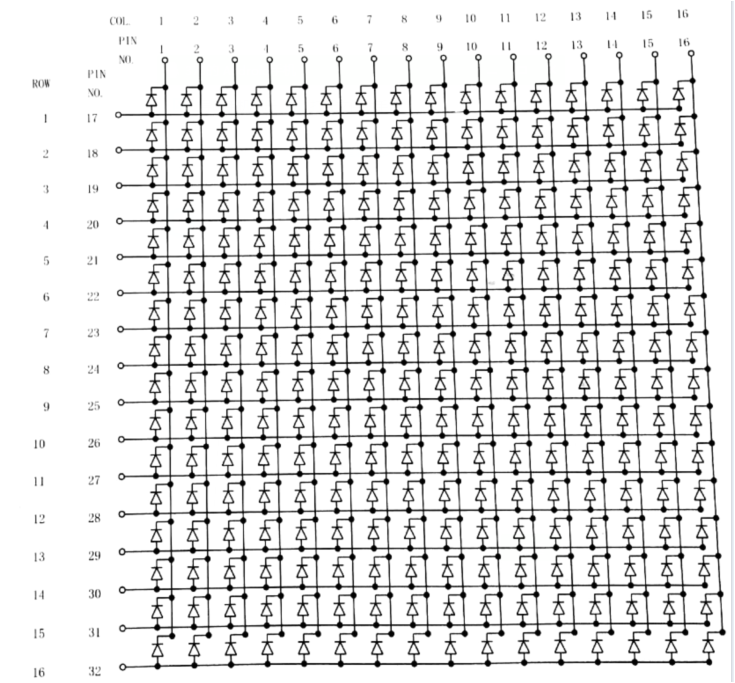

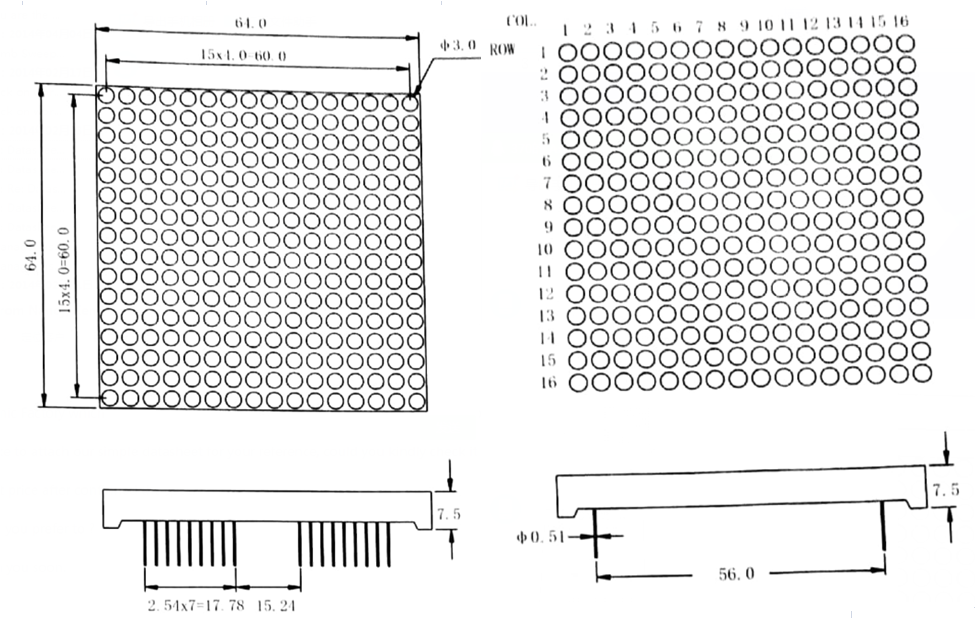

Dimension and Internal Circuit Diagram
Relative Products:
All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display

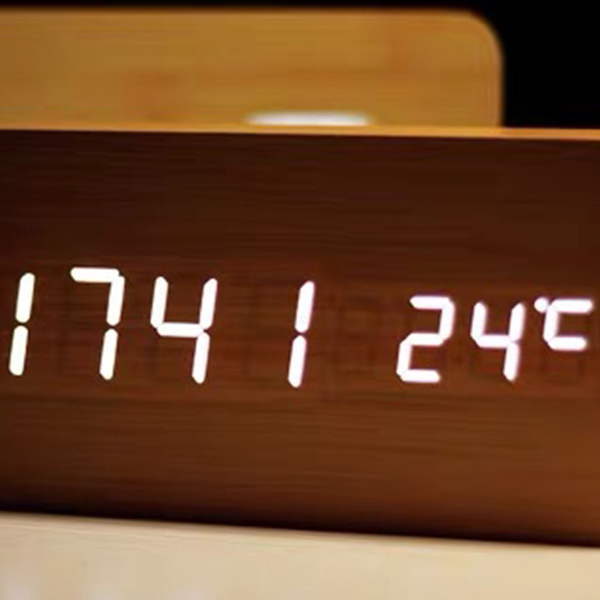

Clock LED Display
Home Appliance LED Display

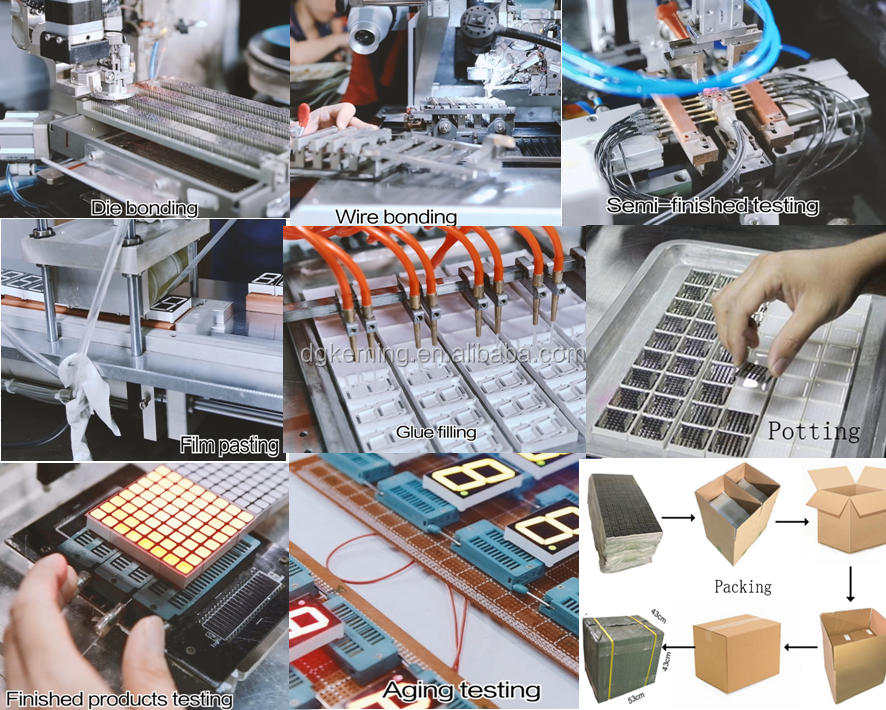

Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

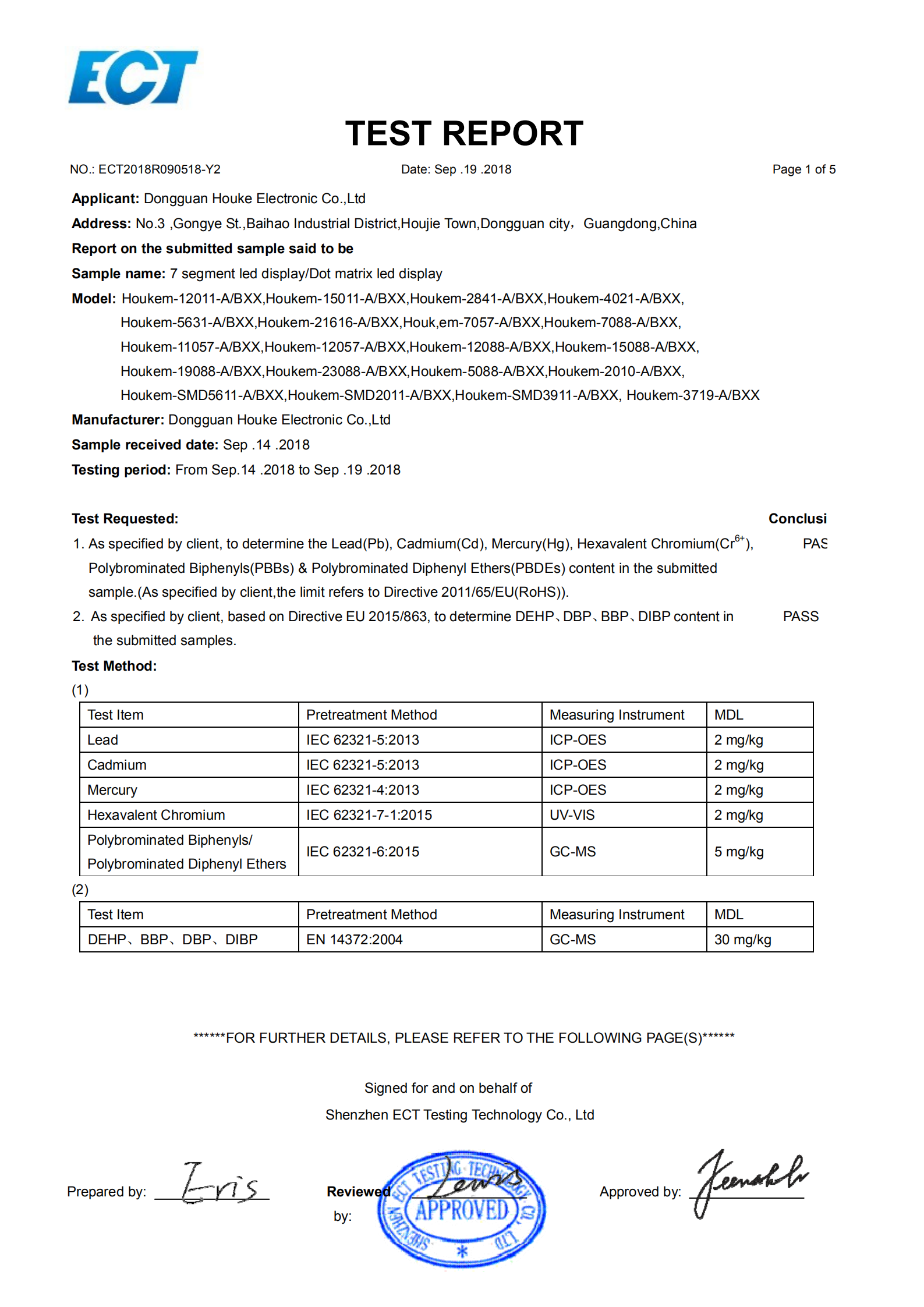

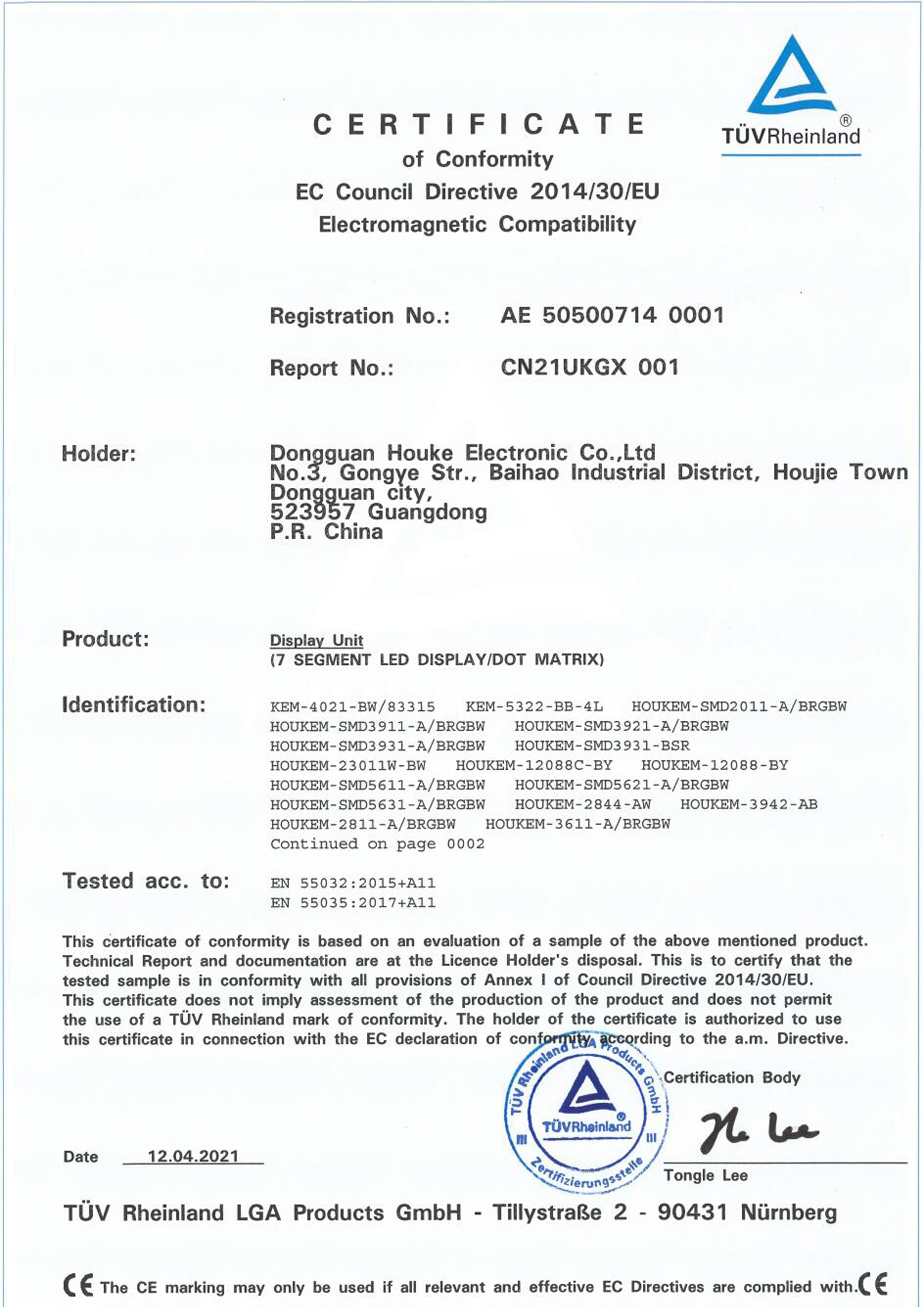

Certifications
