Model NO.
Houkem-3651-BW
Price:
USD 1.07-1.15
Delivery:
FOB
Minimum order quantity:
10
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Blue
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:Houkem-3651-BW
  • Screen Dimension:36.5*14mm


Product Describtion
business

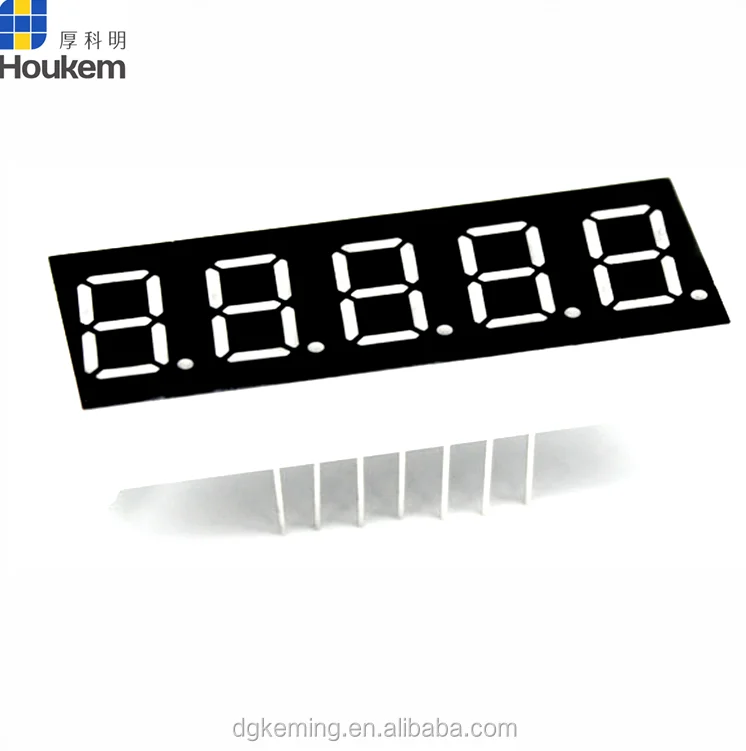

white 0.36inch 5 digits 7 segment display ca



1,Low consumption

2, High brightness



Houkem-3651-AW---------common andoe(CA)

Houkem-3651-BW----------common cathode(CC)







Item No.Houkem-3651-BW
PG36.5*14*8mm
Surface color  Black  /Grey
epoxy color white/yellow
Emitting color  white

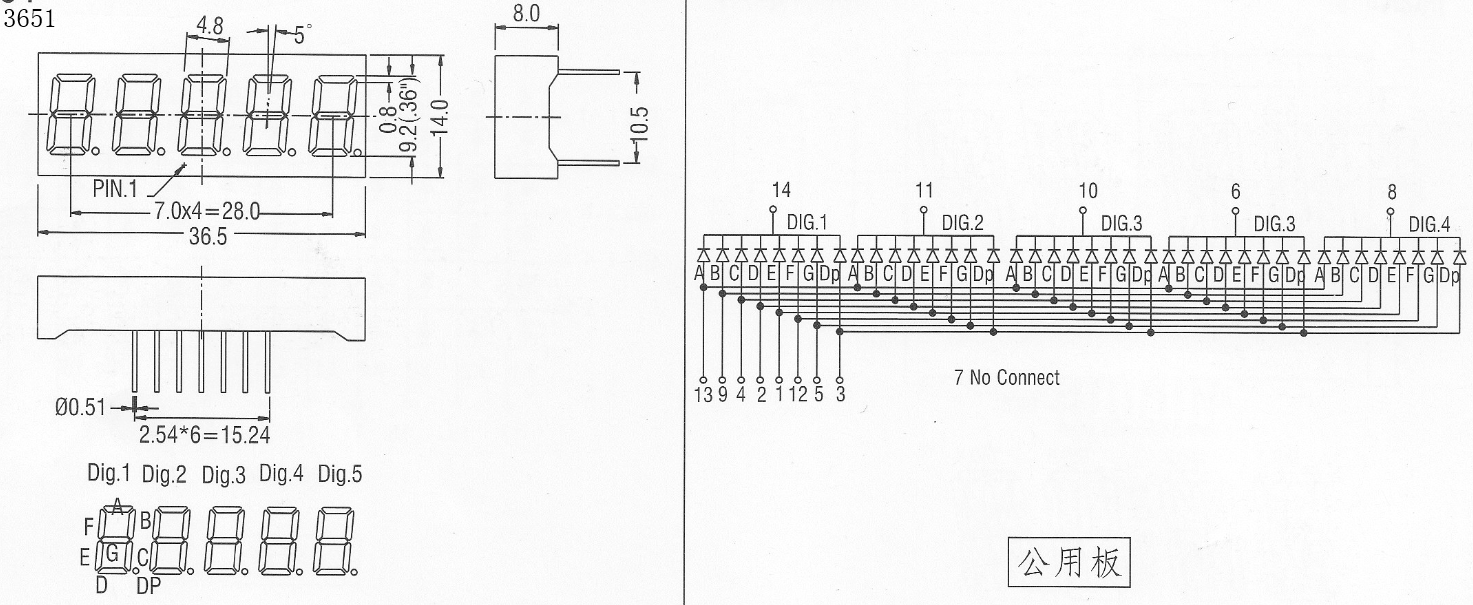

Package dimension & Internal circuit diagram



 3651 (2)



Note: If this PCB layout don't meet your requirements, please contact me for other choices.





Two years quality warranty



0.36'' 5 digit 7 segment led display

0.36'' 5 digit seven segment led display














Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200






Our Services


Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer---- SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

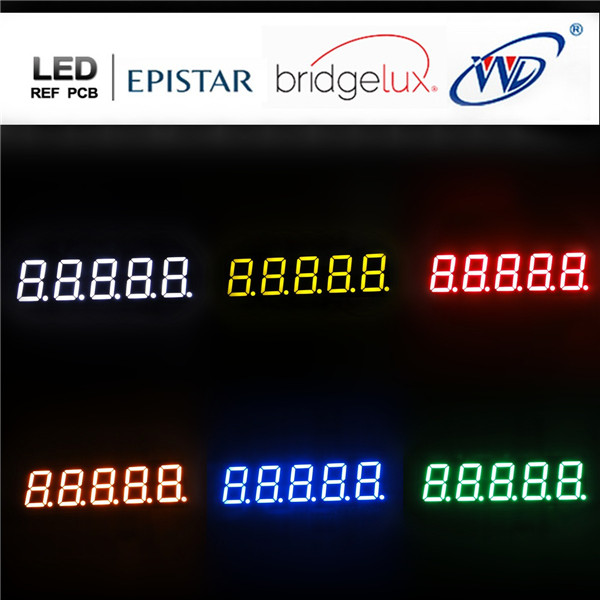

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led







Packaging & Shipping

packing (1)

express-611

Factory pictures

 new factory

7 segment dot matrix LED

Related Products

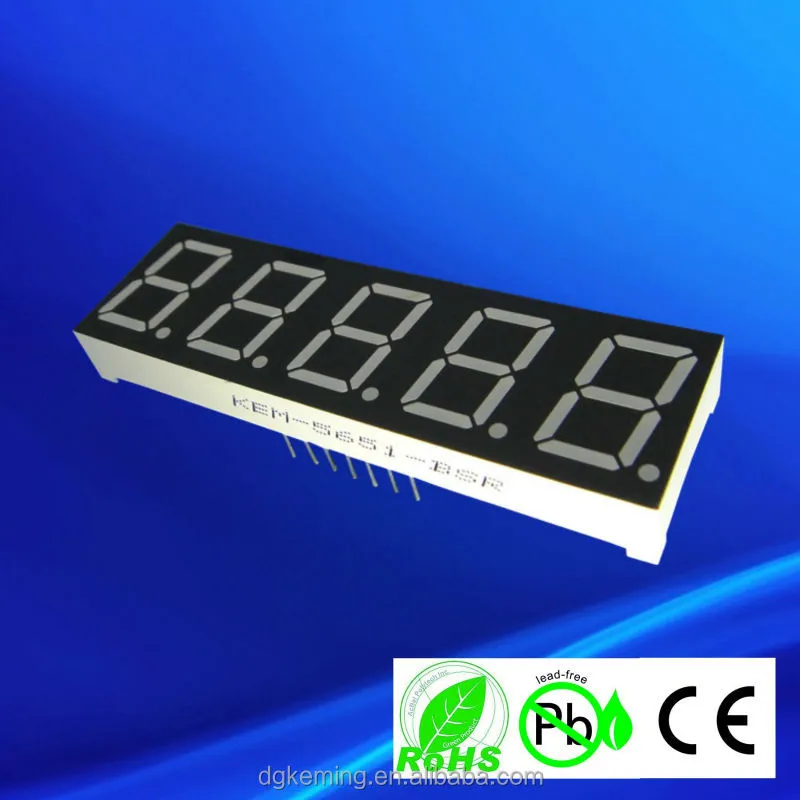

0.56inch

 5651-111111

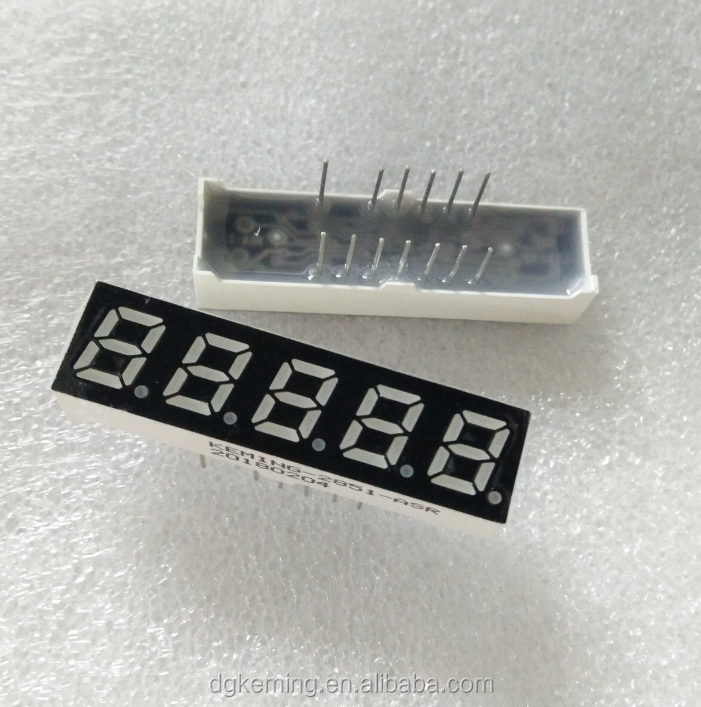

0.28''
