uvb led 308nm 311nm 315nm 310nm led 0.6W high power 310nm uvb led for medical treatment
- Color Temperature(CCT):310nm
- Input Voltage(V):DC 5.5-6V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):26
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:0.6w
- Viewing Angle(°):120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:0.6W High Power uvb LED 310nm
- Emitting Colour:puple
- Forward Voltage:5.8-6v
- Lifespan:50000 Hours
- Application:medical treatment
- Warranty:2 Years
- Wave length:305-315nm
- Current:100mA
- Chip Size:20*20mil
- Certification:ce, rohs
High power 0.6w 310nm uv b led
Electrical and optical characteristics (Ta = 25℃, If=100mA)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 100mA | 5 | 5.8 | 6.2 | V |
Radiant Flux [mW] | mW | IF = 100mA | 10 | 12 | 13 | mw |
Viewing Angle | 2θ1/2 | IF = 100mA | ---- | 120 | ---- | Deg. |

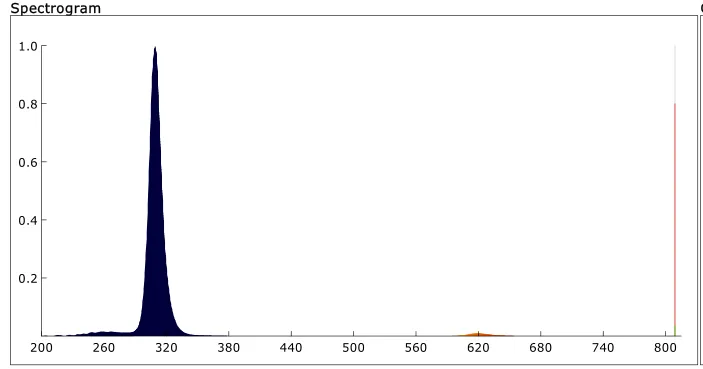

Dominate Wavelength | λd | IF = 150mA | 305 | 310 | 315 | nm |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization
UVC LED sterilizer light
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
