UV LED module 385nm 390nm 395nm 405nm 415nm 50w uv led array for UV curing system
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:uv curing, uv coating, uv ink
- Luminous Efficacy(lm/w):400
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:50w
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:50W High Power LED 405nm
- Emitting Colour:purple
- Forward Current:1200-1400mA
- Forward Voltage:36-40v
- Lifespan:50000 Hours
- Application:uv curing, uv ink, uv coating
- Warranty:2 Years
- Wave length:400-405nm
- red copper board size:51*31mm
- Certification:RoHS, CE

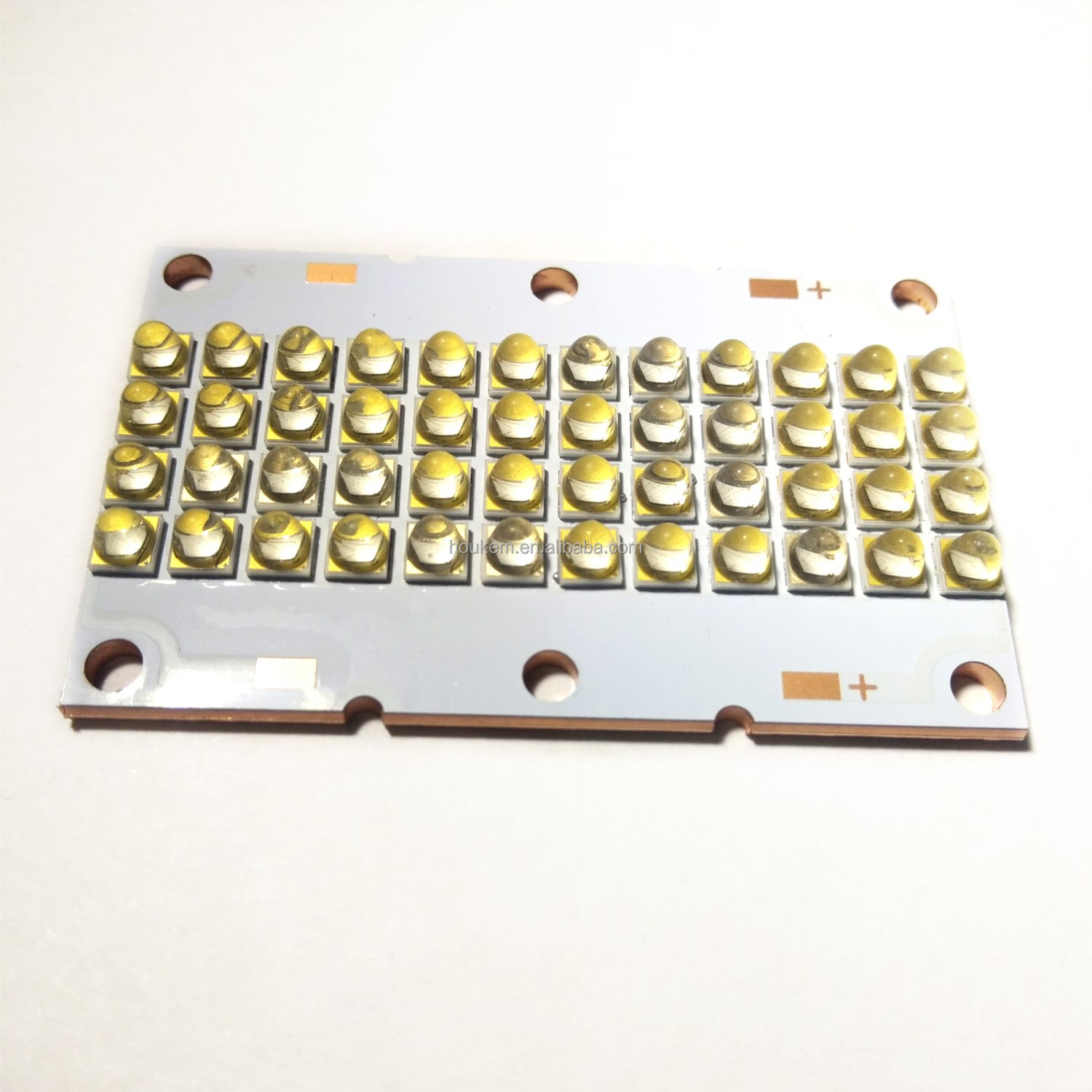

High power 50w 405nm UV led module
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 50w uv LED module 405nm |
| Radiant flux | 19200mw |
| size | 51*31mm |
| Color | purple |
| view angle | 60degree or 30degree or 120degree |
| Wavelength | 380-385nm, 390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm |
| Forward Current | 1200-1400mA |
| Forward Voltage | 36-40v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
12 series 4 parallel
2. Our products must pass strict quality control procedures.

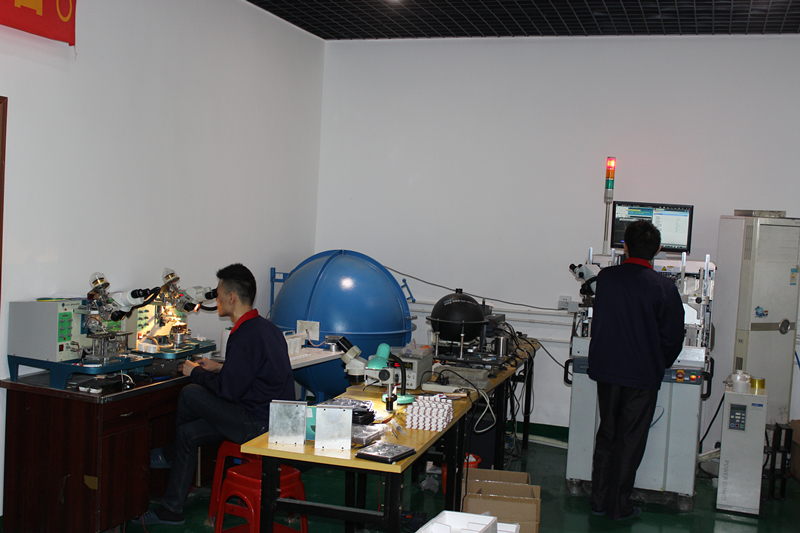

3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.

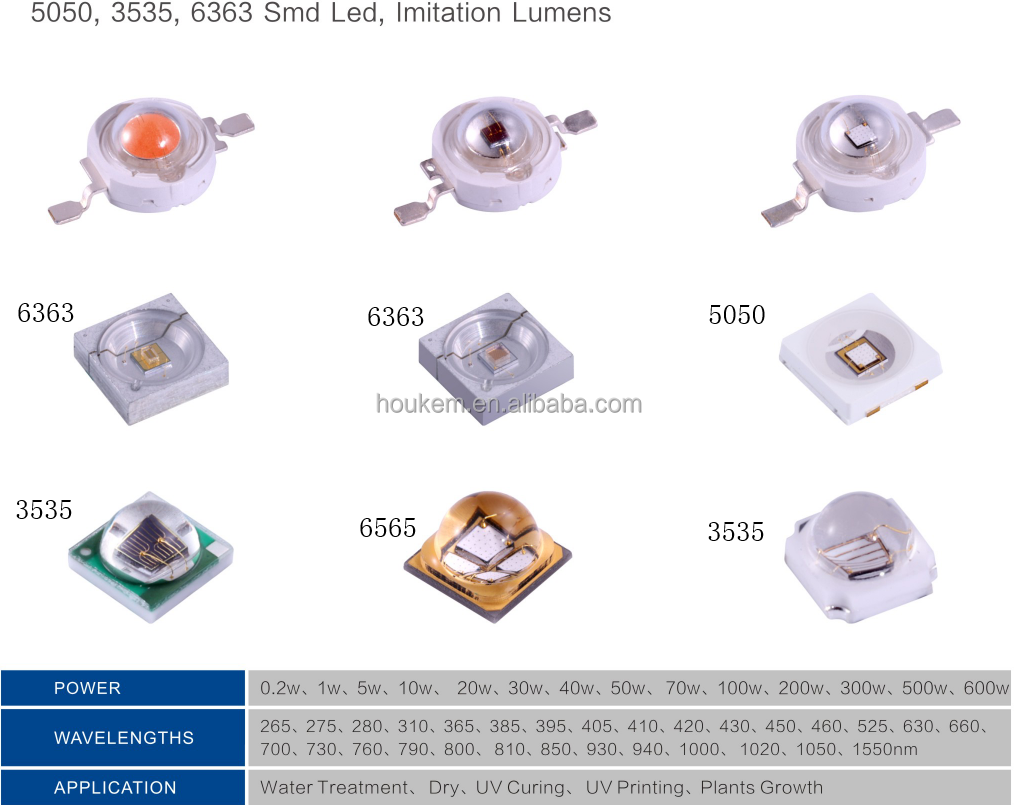

Established in 2003, our factory is specialized in LED products, including High power led, high power 255nm to 1550nm LED arrays,

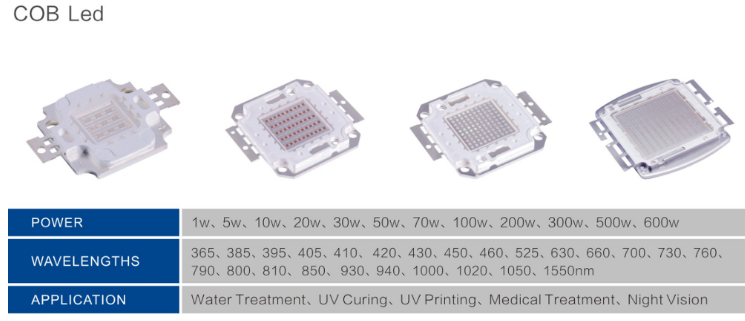

COB LEDs, SMD LEDs, street light LED, LED optical lens, LED grow light, led flood light, street light,and all LED lighting application solution, etc.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
