uv led 395nm 405nm UV-A LED 3528 smd led chip
- Type:High Power LED
- Chip Material:AlGaInP
- Power:1W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:uv
- Viewing Angle(°):120
- Color Rendering Index(Ra):80
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:HOUKEM
| Item | 3528 uv LED |
| Power | 1w |
| Color | uv |

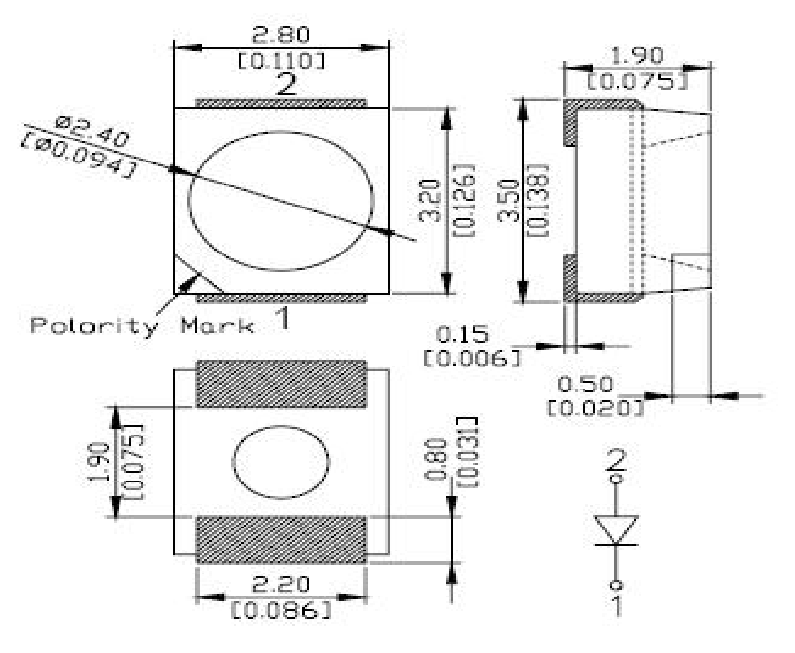

| Diode type | 3528 smd type |
| View Angle of the Lens | 120 degree |
| Wavelength | 395-405nm |
| Forward Current | 20mA/chip |
| Forward Voltage | 3-3.6v/chip |

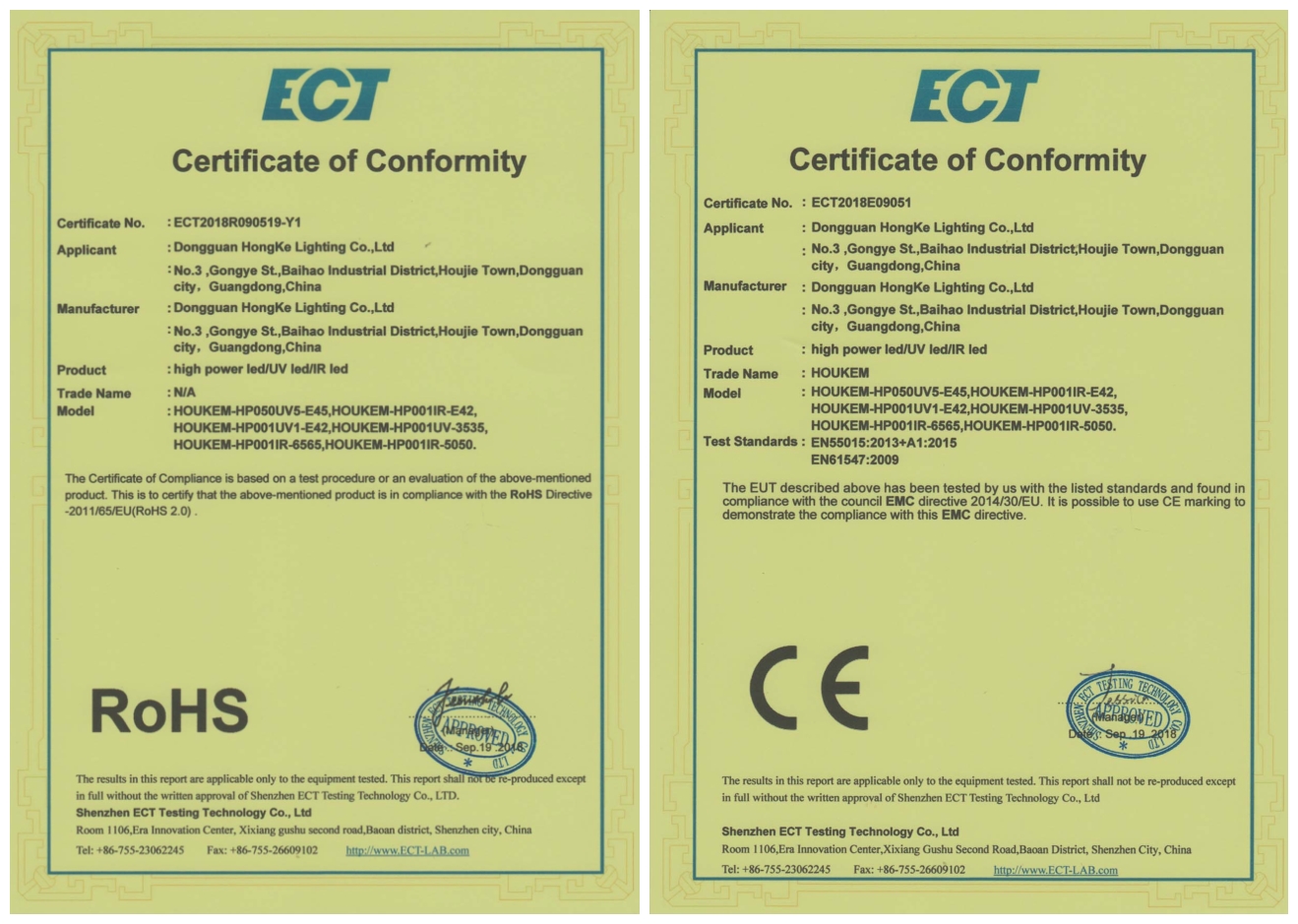

| Certification | CE, RoHS |

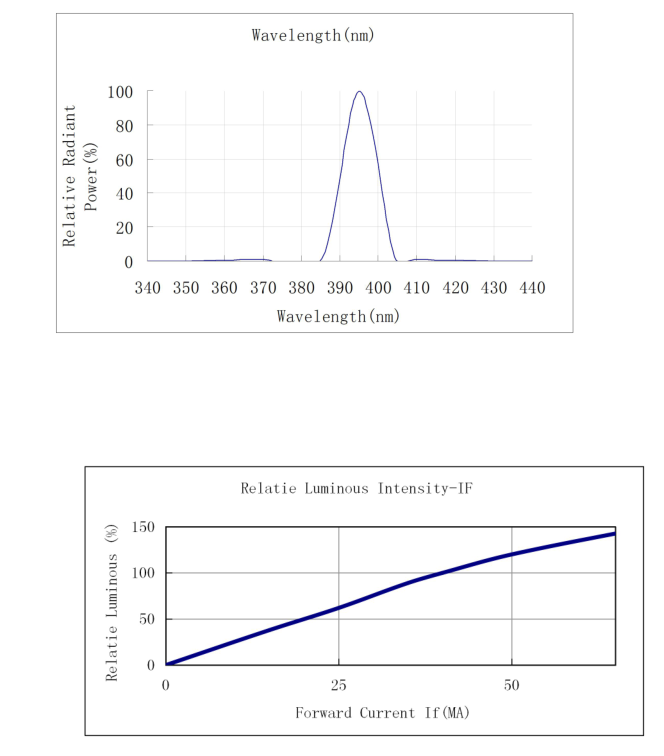

Optical Electrical Characteristics (T A =25℃ ℃ I F =20mA)
| Parameter | Unit | Condition | MIN | TYP | MAX |
| Forward Voltage (V F ) | V | I F =20mA | 3 | 3.4 | 3.6 |
| Optical Output Power (P out ) | mW | I F =20mA | 1 | 2 | 3 |
| Peak Wavelength (λp) | nm | I F =20mA | 395 | 395 | 405 |
| FWHM (Δλ) | nm | I F =20mA | 9 | 11 | 14 |

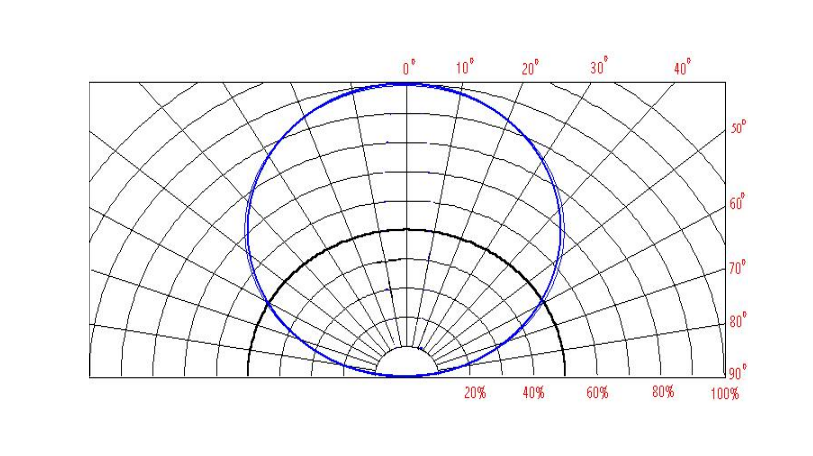

| Viewing Angle 2θ 1/2 | dge | 120° | |||
| ESD(H.B.M) V | v | 4000V |
Note:
Optical output power’s measurement tolerance: ±10%.
Voltage’s measurement tolerance: ±0.1V.
Dominant wavelength’s measurement tolerance: ±1nm.
Pulse Operation (1 KHZ; Duty Cycle: 5%); Maximum Current: 100mA.
Features:
1. Less power consumption: light effects of the LED power consumption than equivalent incandescent brightness reduced by 80%;
2. Long life: product life of up to 50,000 hours;
3. Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;
4. A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;
5. Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;
6. Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary
colors to form a variety of colors, can realize full-color gradients, and other color effects.
Application
1. We have our own independent R&D department on existing products for better maintenance,
we still continue to develop high-tech products. We have our own patented products.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.

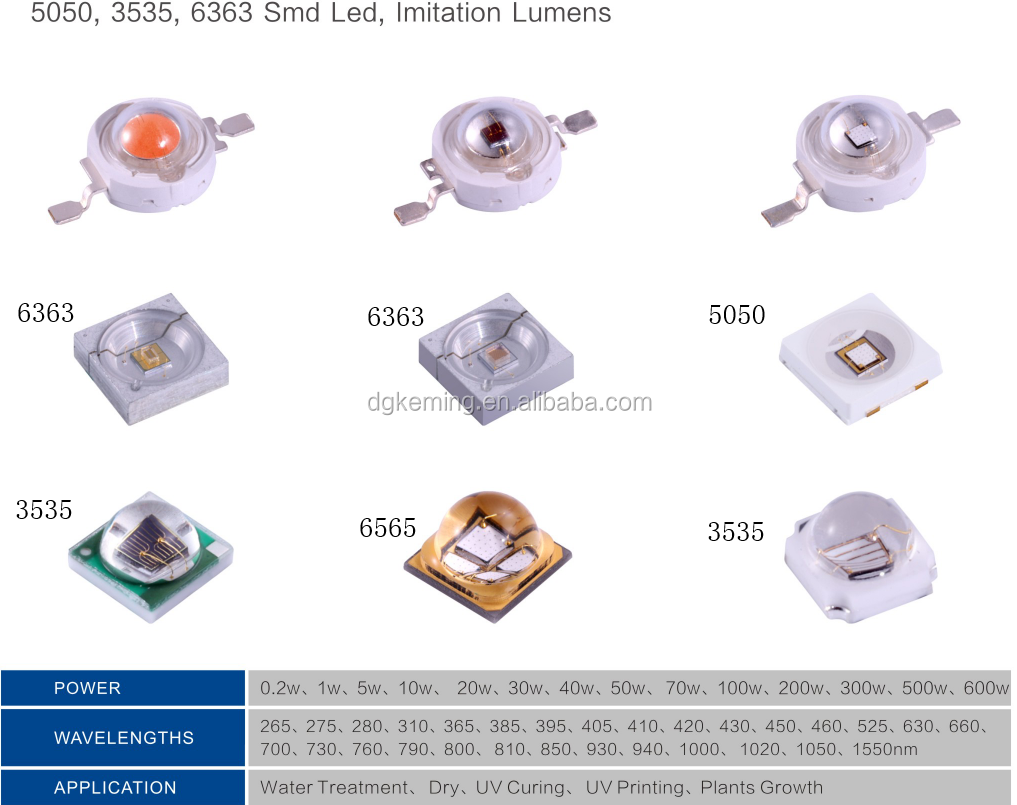

We are the LED professional manufacturer, have over 14 years experience on LEDs. We can offer you 7 segment led display, dot matrix,

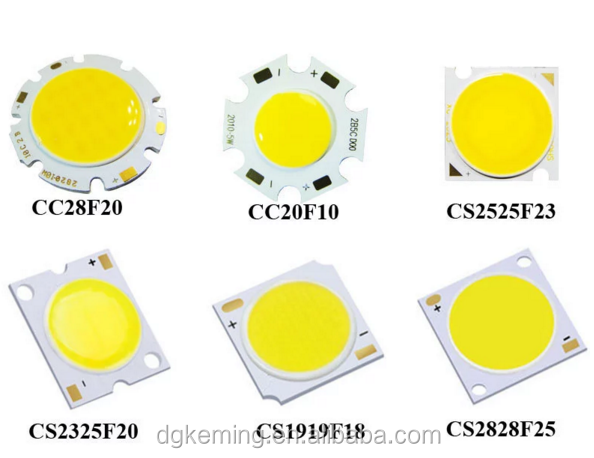

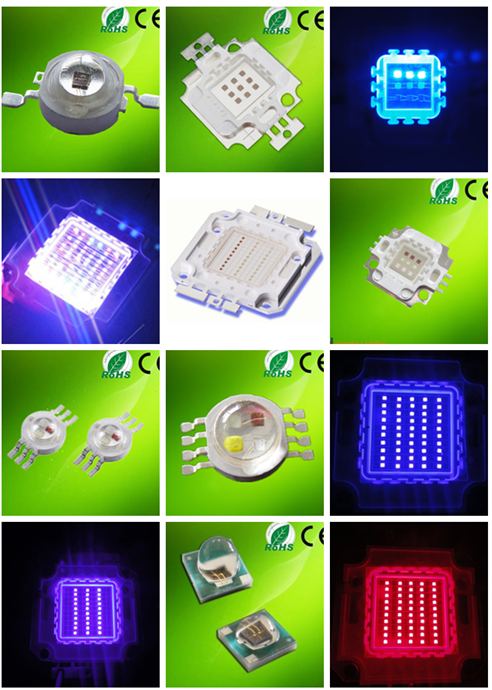

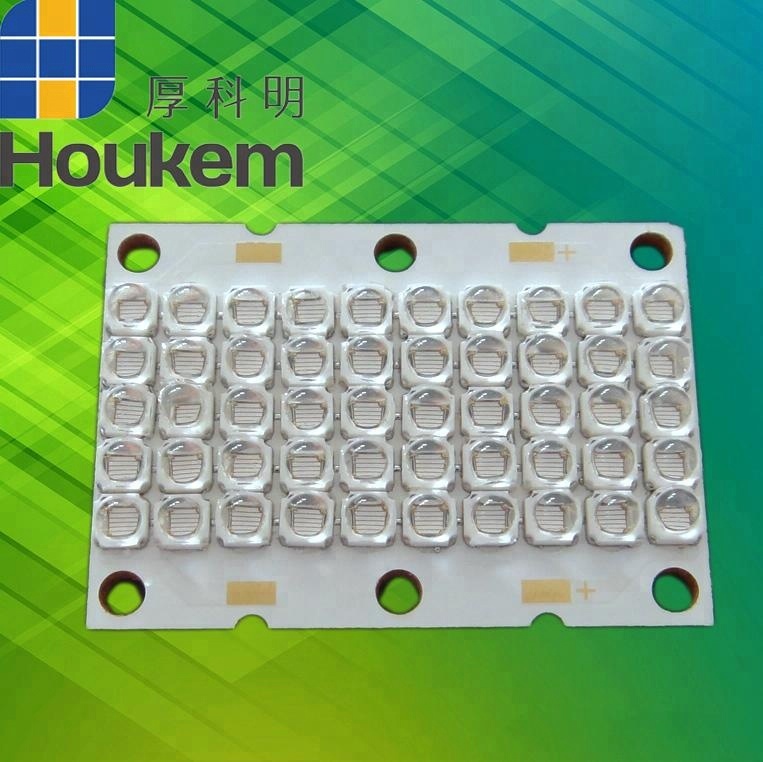

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light, grow light
and all LED lighting application solution.
