UV LED 275nm 280nm smd 3535 led 20w UV LED Array for sterilization
- Type:High Power LED
- Warranty(Year):1-year
- Lighting solutions service:Lighting and circuitry design
- Chip Material:AlGaInP
- Certification:CE
- Certification:RoHS
- Place of Origin:CN;GUA
- Luminous Efficacy(lm/w):10
- Luminous Intensity:70
- Luminous Flux(lm):70
- Optical Attenuation(%):1
- Power Dissipation:1
- Viewing Angle(°):140
- Color Rendering Index(Ra):80
- Color Temperature:standard
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:KEM
- Emitting Color:UV

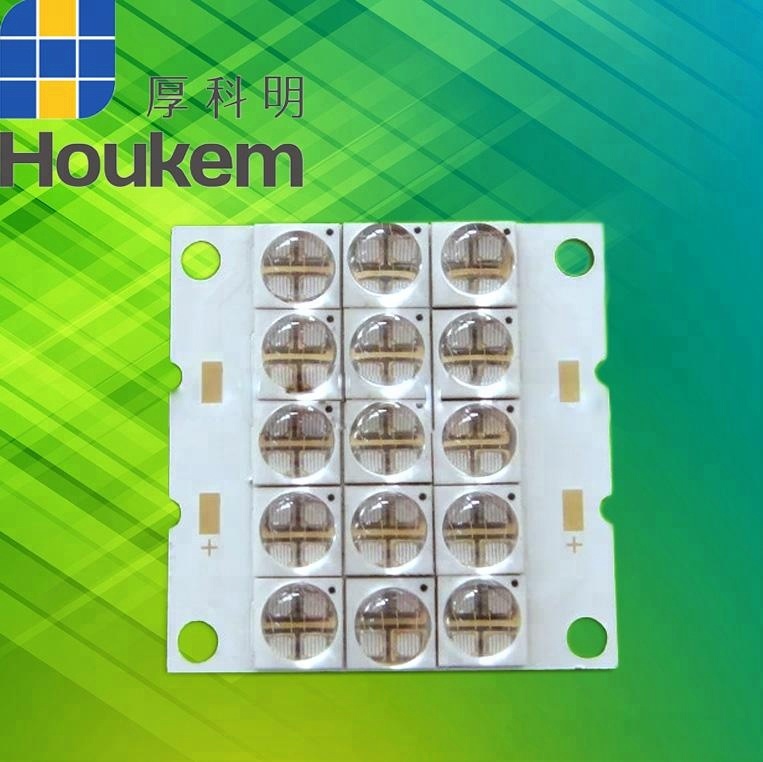

| Item | High Power 20w UV LED Array 280nm |
| Power | 20w |
| Color | UV |

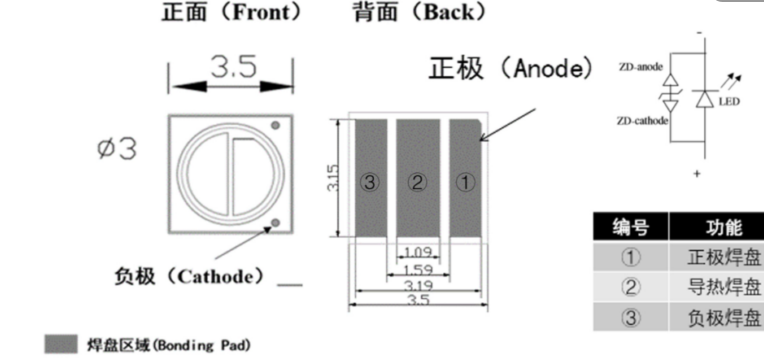

| Diode type | 3535, 6363 smd type |

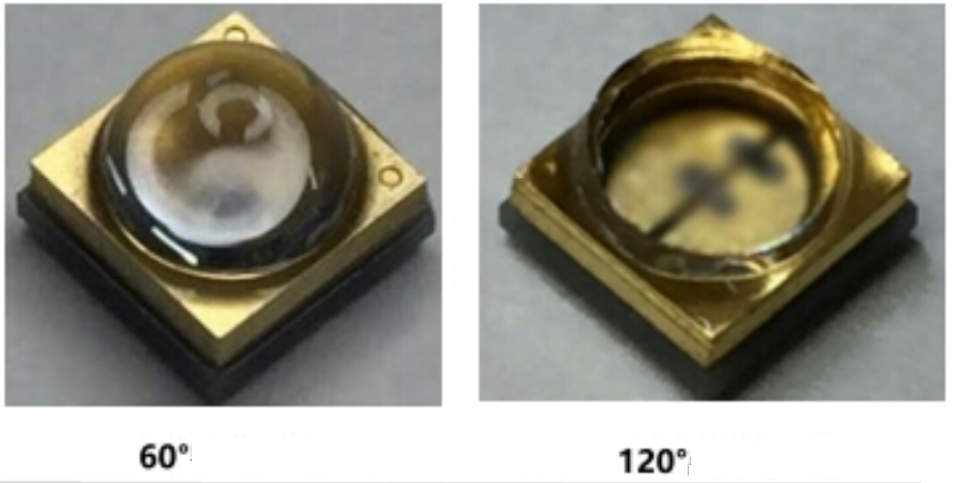

| View Angle of the Lens | 60 degree |

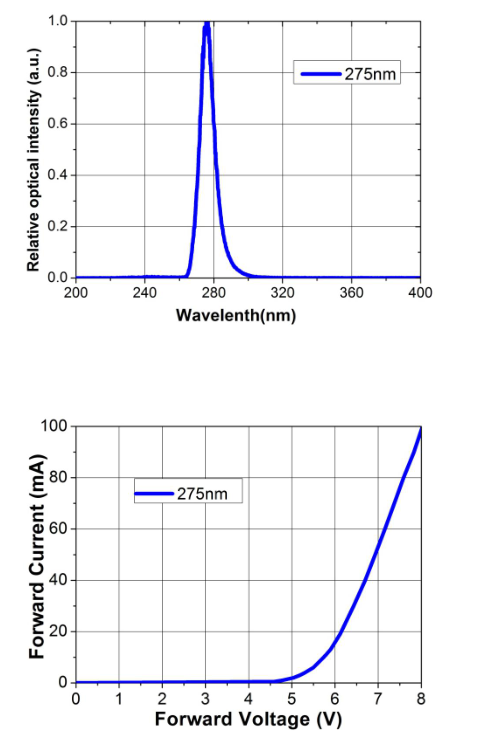

| Wavelength | 270-280nm |
| Forward Current | 100mA/chip |

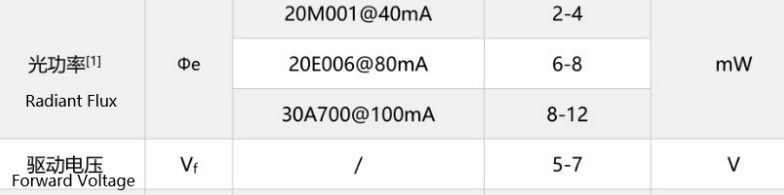

| Forward Voltage | 5-7/chip |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |

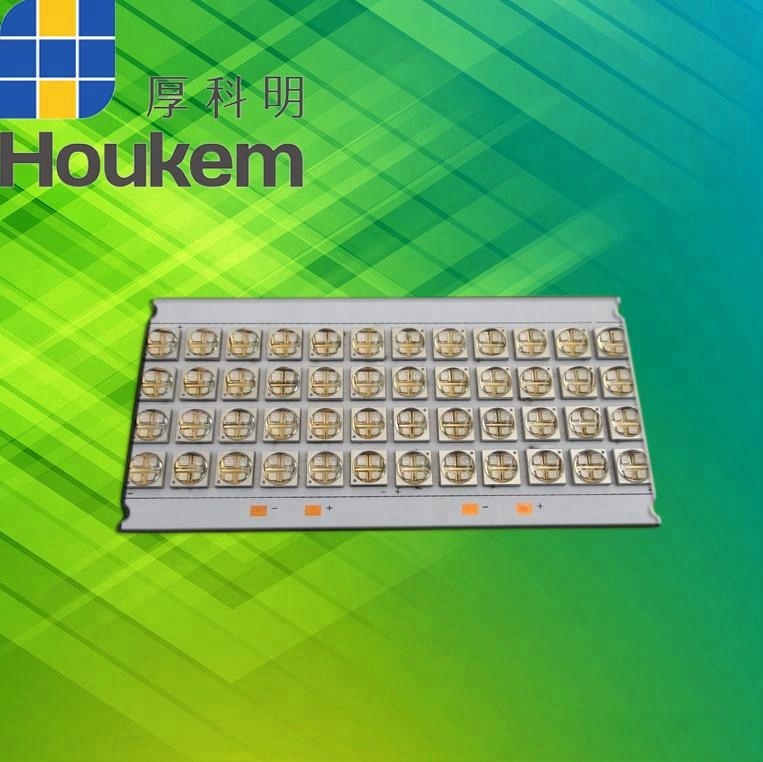

| PCB Size | 120*53mm,41*30mm (3535 smd) 100*50mm(6363smd), 51*31mm(3535smd) |
12 series 4 parallel.
400mA, 60-84V
other type
Features:
1. Less power consumption: light effects of the LED power consumption than equivalent incandescent brightness reduced by 80%;
2. Long life: product life of up to 50,000 hours;
3. Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;
4. A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;
5. Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;
6. Color: different wavelengths produce different colored light, bright saturated, no filter, can control red, green and blue primary
colors to form a variety of colors, can realize full-color gradients, and other color effects.
1. We have our own independent R&D department on existing products for better maintenance,
we still continue to develop high-tech products. We have our own patented products.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
6.In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offer---- SAMPLES for your test within 2-5 days.
We are the LED professional manufacturer, have over 14 years experience on LEDs. We can offer you 7 segment led display, dot matrix,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED grow light, high bay light, street light,
and all LED lighting application solution.
