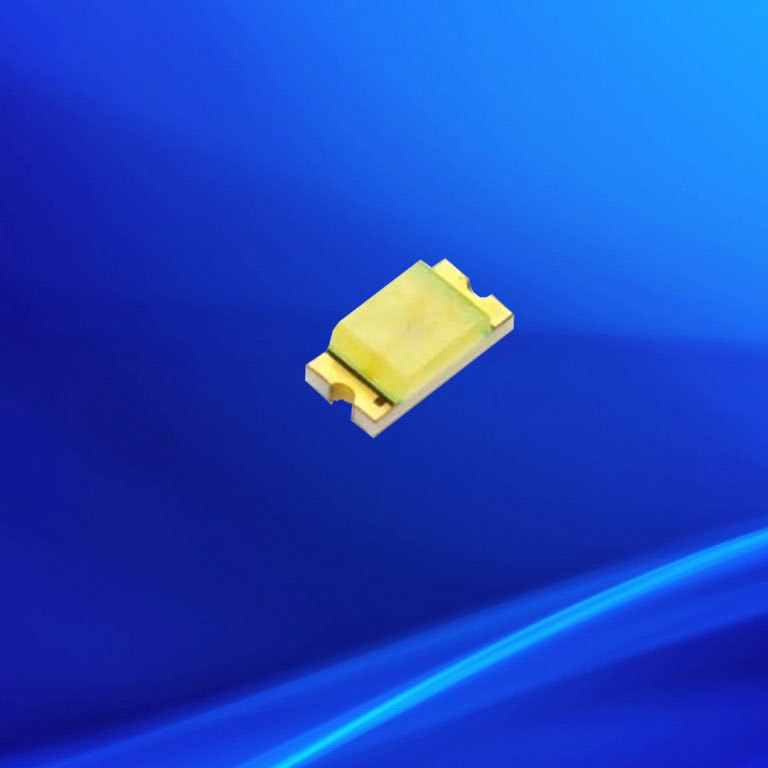

ultra bright white color 0805 smd diode smd led chip
- Place of Origin:CN;GUA
- Display Function:Graphics
- Screen Dimension:2*1.25mm
- Brand Name:KEM
- Pixels:11mm
- Usage:Indoor
- Model Number:KEM-SMD0805-UW
- Tube Chip Color:Ultra bright white
Light on:

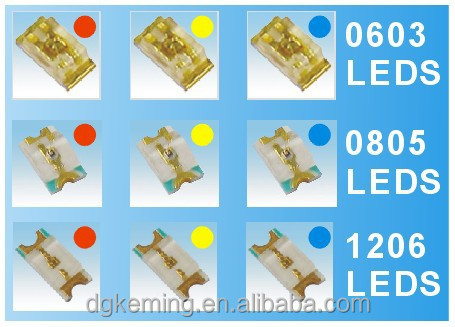

All of colors are available:
Light off:
Features
•Package ( L/W/H ) : 2× 1.25× 0.8mm
•Color : Ultra Bright White
•Lens: Water Clear Flat Mold
•EIA STD Package
•Meet ROHS, Green Product
•Compatible With SMT Automatic Equipment
•Compatible With Infrared Reflow Solder And Wave Solder Process
Part No | KEM-SMD0805-UW |
| Dimension | 2*1.25*0.8mm |
Dice Material | InGaN / GaN |
| Epoxy color | Water clear |
| Soldering Condition | Reflow soldering : 260°C For 5 Seconds |
| Emitting color | Ultra white (3500k~15000k) |
| Luminous intensity | 180mcd/chip |
| Viewing Angle | 120 deg |

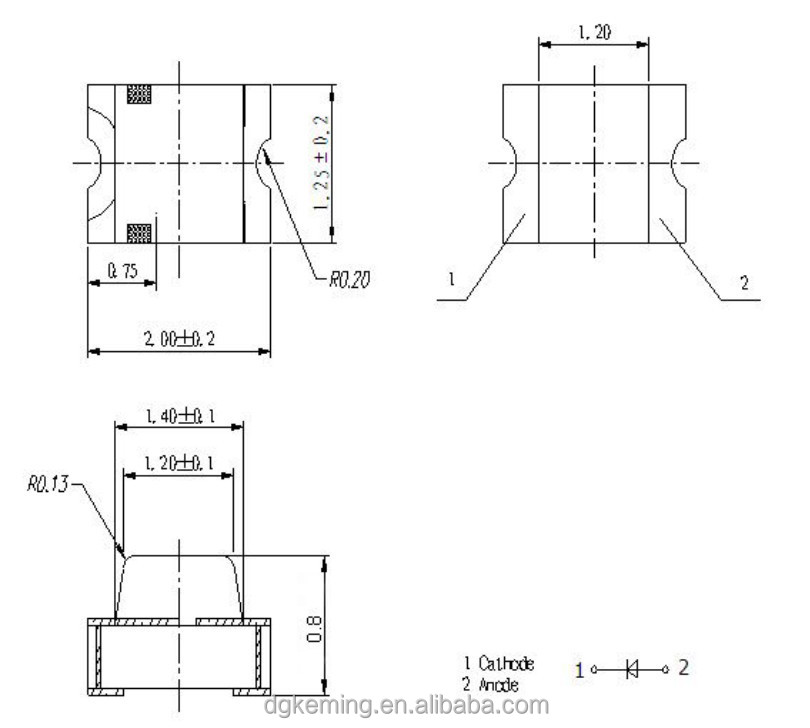

Dimension and Internal Circuit Diagram:
Notes:
- All dimensions are in mm.
- Tolerance: 0.2mm
Absolute Maximum Ratings(Ta = 25℃)
Items | Symbol | Maximum | Units |
Forward Current | IF | 20 | mA |
Pulse forward Current | i FS | 100 | mA |
Reverse Voltage | VR | 5 | V |
Operation Temperature | Topr | -40~+85 | ℃ |
Storage Temperature | Tstg | -40~+85 | ℃ |

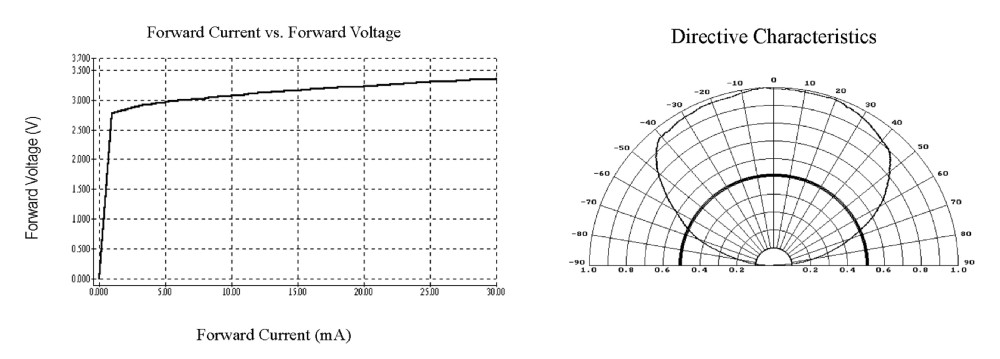

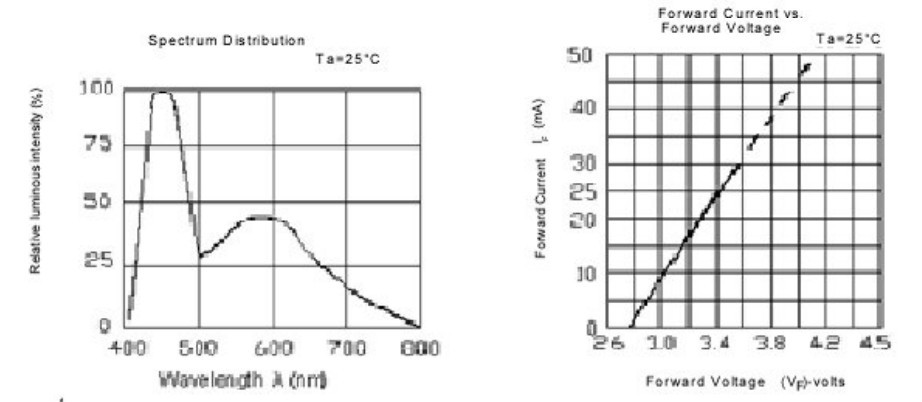

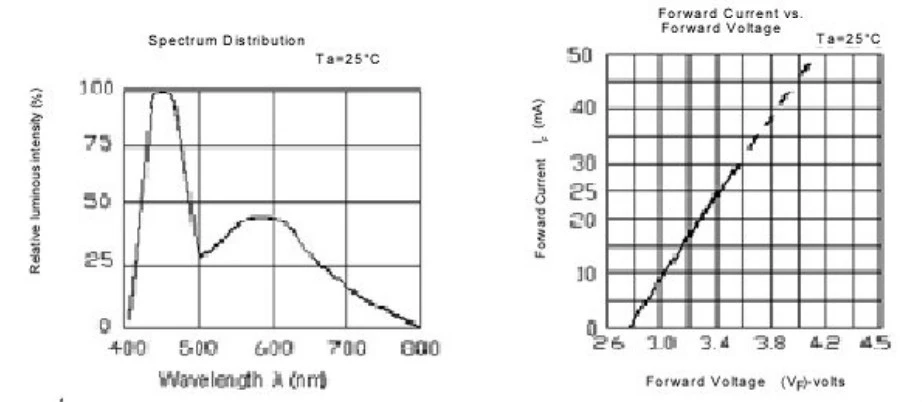

Product Optical Properties(Ta = 25℃)
Item | Symbol | Conditions | Min | Average | Max | Units |
Forward Voltage | VF | VF=20mA | 3.0 | 3.4 | V | |
Reverse current | IR | VR=5V | --- | 1 | μA | |
Wavelength | λd | IF=20mA | 460 | 466 | 469 | nm |
Luminous Intensity | IV | IF=20mA | 150 | 180 | 216 | mcd |

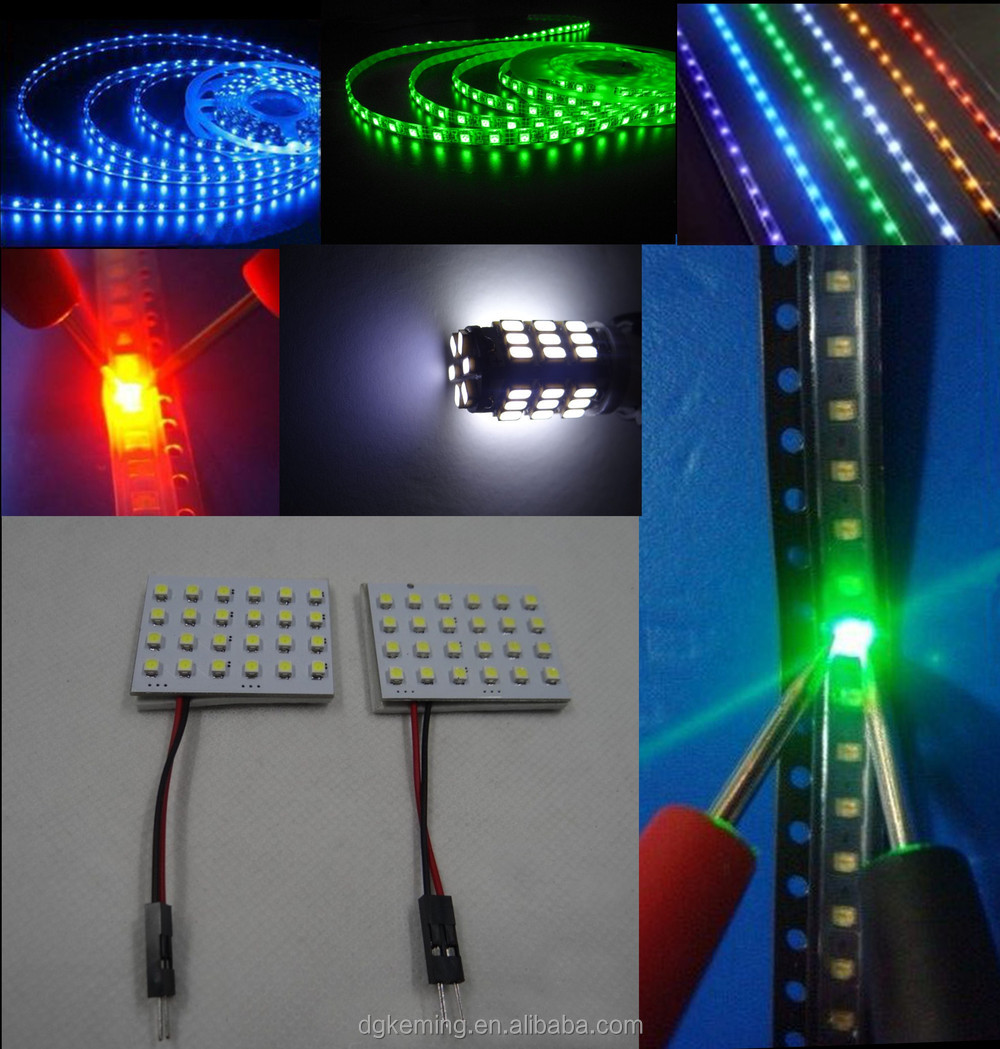

Application:
1. We also can supply you all kinds of 7 segment LED display and dot matrix:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
All of our led products with 3 years warranty.
Main Processes of Our Segment Display(Factory pictures):
Delivery Time:
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days

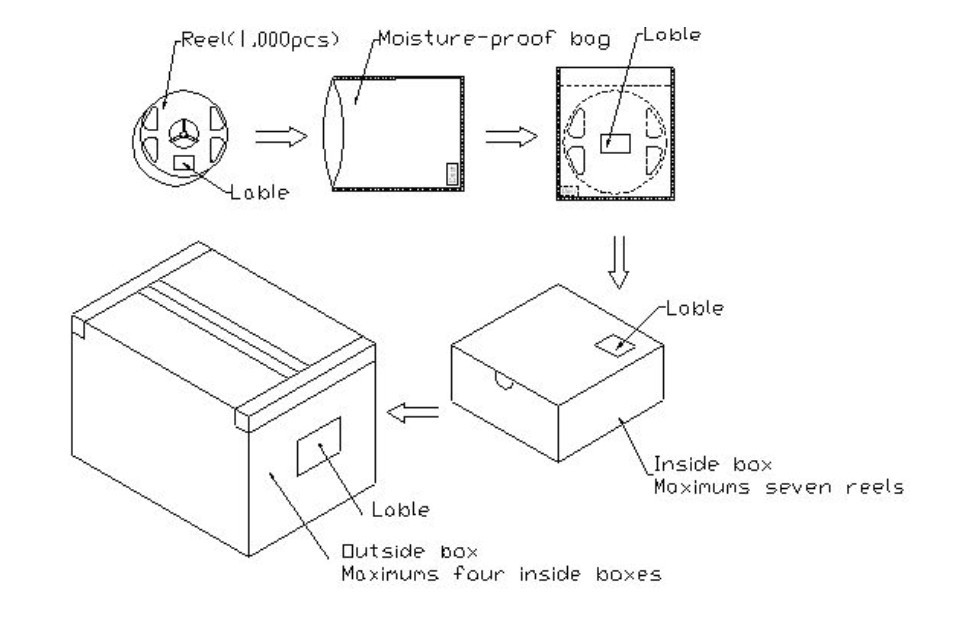

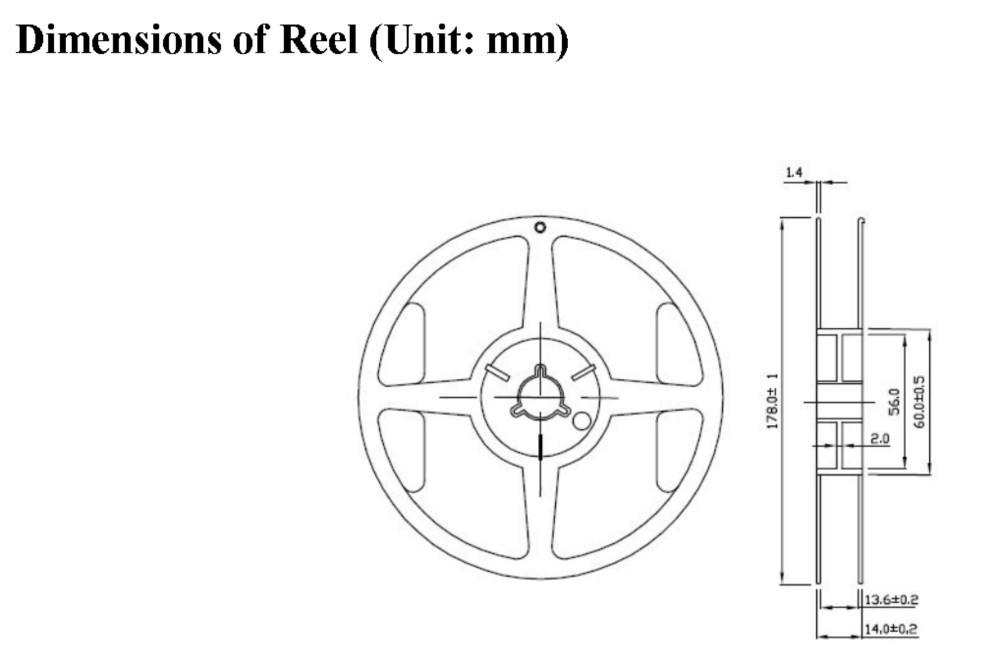

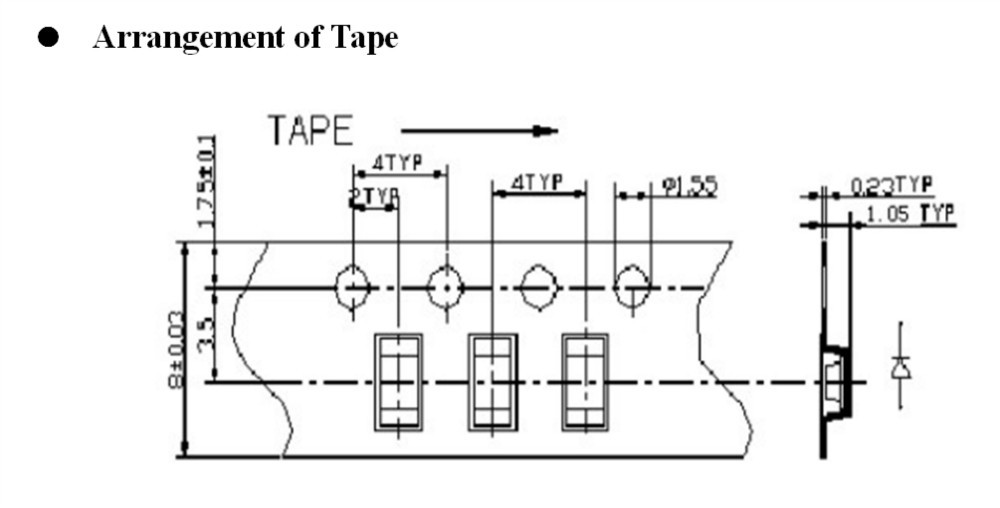

Our safety packing for your goods:
