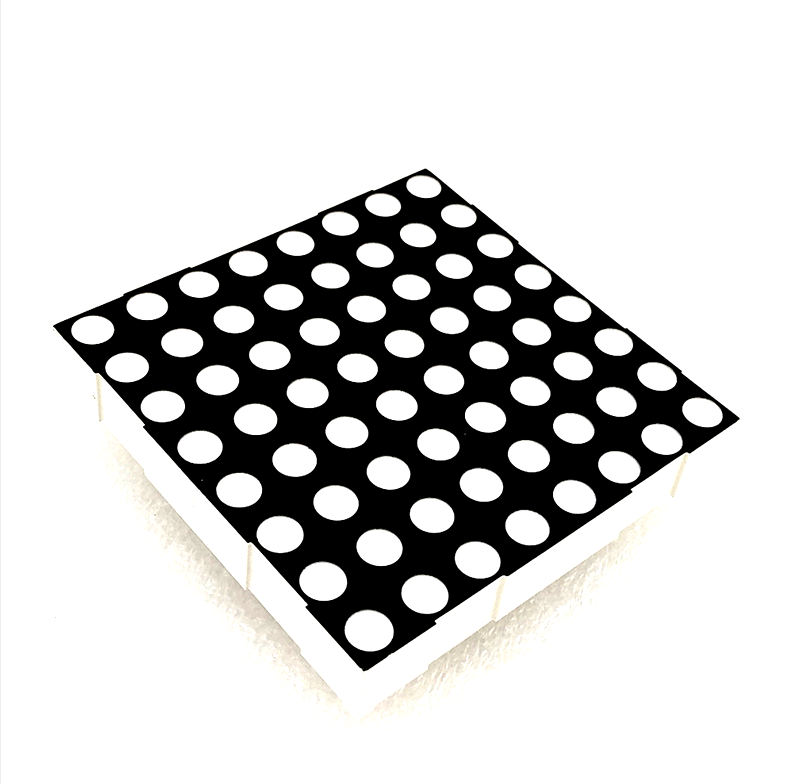

RGB LED Matrix 8x8 Dot Display Module
RGB LED Matrix 8x8 Dot Display Module Overview
HOUKEMRGB LED Matrix is a high-quality 8x8 LED dot matrix display module designed for industrial equipment, electronic devices, advertising displays, and customized display solutions. With RGB full-color output, 5mm LED dots, and reliable common anode circuit design, this module provides excellent brightness, stable performance, and flexible integration options for professional applications.
As an experienced LED display manufacturer, HOUKEM provides OEM and ODM services for customers requiring customized RGB LED Matrix Display solutions. The product supports indoor and semi-outdoor applications and is widely used in control panels, information displays, smart devices, and embedded electronic systems.
Key Features of RGB LED Matrix Display
- High-quality8x8 RGB LED Matrixdesign
- Full-color RGB LED display with red, green, and blue LEDs
- 5mm square LED dot design for clear visual output
- Common anode polarity structure for easy circuit integration
- Compact 60.2×60.2mm panel size
- Pixel pitch: 2.54mm
- Supports OEM and custom-made solutions
- Long service life with stable optical performance
- CE, RoHS, REACH, and ISO9001 certified
- Suitable for industrial and commercial display applications
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | RGB LED Matrix 8x8 Dot Display Module |
| Model Number | HOUKEM-23088-BRGB |
| Display Type | RGB LED Dot Matrix Display |
| LED Arrangement | 8×8 Matrix |
| LED Dot Size | 5mm |
| Panel Size | 60.2×60.2×9.2mm |
| Pixel Pitch | 2.54mm |
| Emitting Color | Ultra Red + Pure Green + Ultra Blue |
| Surface Color | Black |
| Epoxy Color | Milky White / Clear |
| Polarity | Common Anode |
| Application | Indoor, Semi-outdoor |
| Warranty | 2 Years |
| OEM | Available |
| Customization | Available |
| Certification | CE / ROHS / ISO9001 / REACH |
RGB LED Matrix Optical Performance
The HOUKEM 8x8 RGB LED Matrix Display uses high-quality LED chips to achieve balanced color performance and reliable brightness.

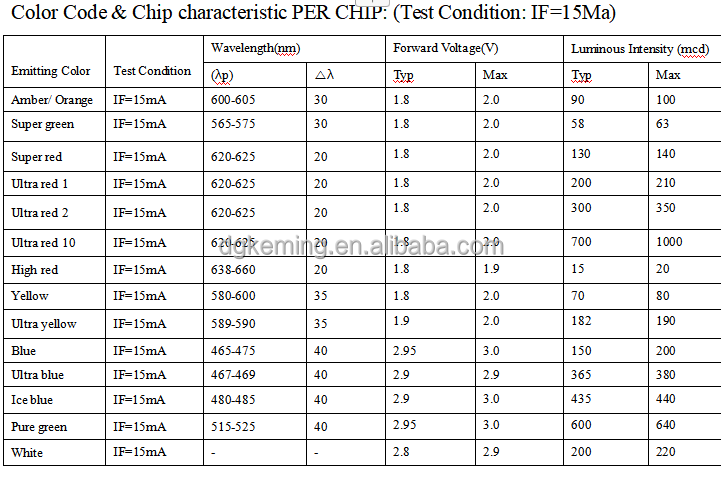

Luminous Intensity
| Color | Luminous Intensity |
|---|---|
| Ultra Red 2 | 300-350mcd |
| Pure Green | 600-640mcd |
| Ultra Blue | 365-380mcd |
The RGB structure allows customers to create multiple colors by combining red, green, and blue light output. This makes the module suitable for applications requiring dynamic information display and customized visual effects.

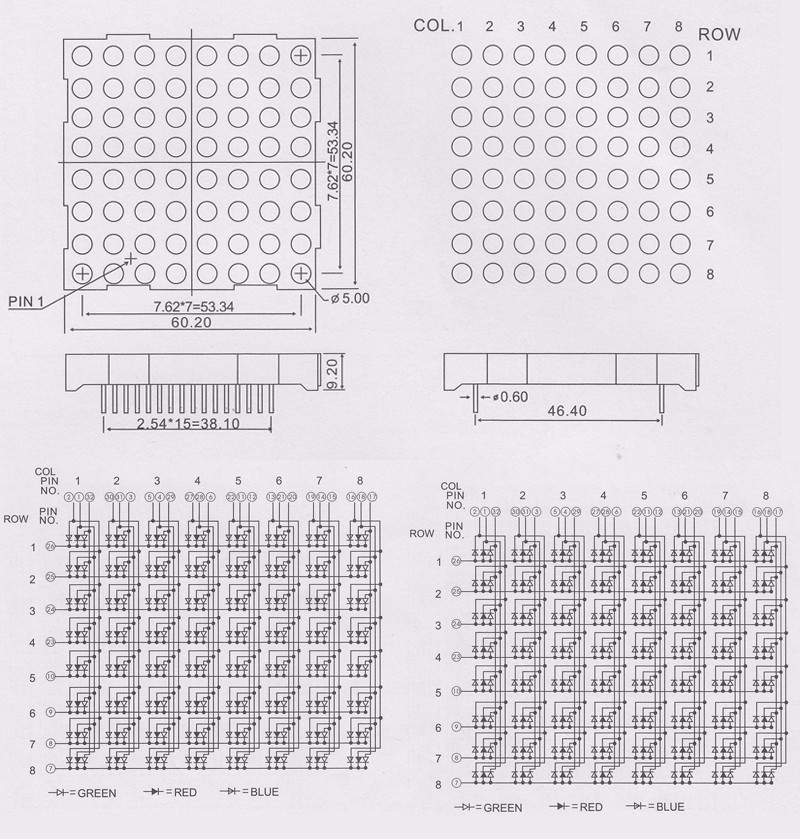

Circuit Design and Custom Options
The HOUKEM LED Dot Matrix Module features a common anode design, which simplifies connection with control circuits and embedded systems.
Standard specifications include:

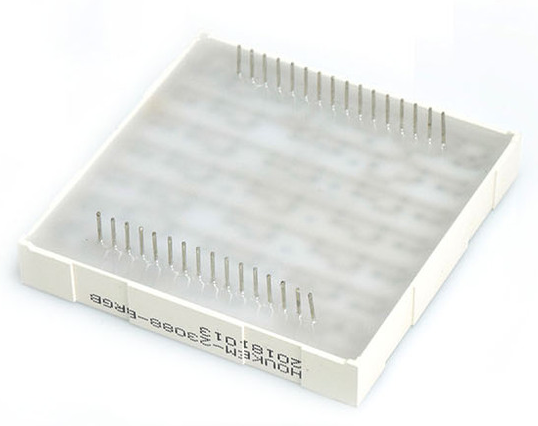

- Part No.: HOUKEM-23088-BRGB
- Dimension: 60.2×60.2×9.2mm
- Square dot: 5mm
- RGB emitting structure
- Common anode PCB polarity
For projects requiring different specifications, HOUKEM can provide customized solutions including:
- Different LED colors
- Customized dimensions
- Customized circuit design
- Special brightness requirements
- OEM branding and packaging
Applications of RGB LED Matrix Module
The HOUKEM RGB LED Matrix Display is designed for various professional electronic applications.
Industrial Equipment Display
Used for:
- Equipment status indicators
- Control panels
- Industrial information displays
Electronic Products and Smart Devices
Suitable for:
- Home appliance displays
- Embedded electronic systems
- User interface indicators
Advertising and Information Display
Applied in:
- Digital signage equipment
- Promotional displays
- Customized information boards
Clock and Decorative Displays
Commonly used for:
- Digital clocks
- Decorative LED displays
- Interactive display systems
Why Choose HOUKEM RGB LED Matrix Solutions?
HOUKEM has more than 19 years of experience in LED product development, manufacturing, and customization. We specialize in:
- RGB LED Matrix Display
- LED Dot Matrix Module
- 7 Segment LED Displays
- SMD LED Displays
- UV LED and IR LED products
With ISO9001 quality management certification and advanced production capabilities, HOUKEM provides reliable LED components for global customers.
Our advantages include:
- Factory-direct supply
- Professional R&D team
- OEM and ODM customization support
- Strict quality inspection before shipment
- Flexible production capacity
- Global export experience
FAQ
What is the main application of an RGB LED Matrix?
RGB LED Matrix modules are mainly used for industrial displays, electronic devices, advertising equipment, and customized visual interfaces.
Can HOUKEM customize the LED Matrix Display module?
Yes, HOUKEM supports OEM and ODM customization, including size, color, circuit design, and packaging requirements.
What is the advantage of the common anode design?
The common anode structure provides easier circuit integration for engineers designing electronic control systems.
Is this 8x8 RGB LED Matrix suitable for mass production projects?
Yes, HOUKEM provides stable production capacity and supports both sample orders and large-volume manufacturing.
What certifications are available for this LED Dot Matrix Module?
The product is available with CE, RoHS, REACH, and ISO9001 certifications to support international applications.
Contact HOUKEM for RGB LED Matrix Solutions
Looking for a reliable RGB LED Matrix manufacturer for your electronic display project?
HOUKEM provides customized 8x8 LED Matrix Display modules with professional OEM support, stable quality, and competitive factory pricing. Contact our team today to discuss your application requirements and request a quotation.
