Houkem 0.39 Inch 16 Segment LED Display
Houkem 0.39 Inch 16 Segment LED Display

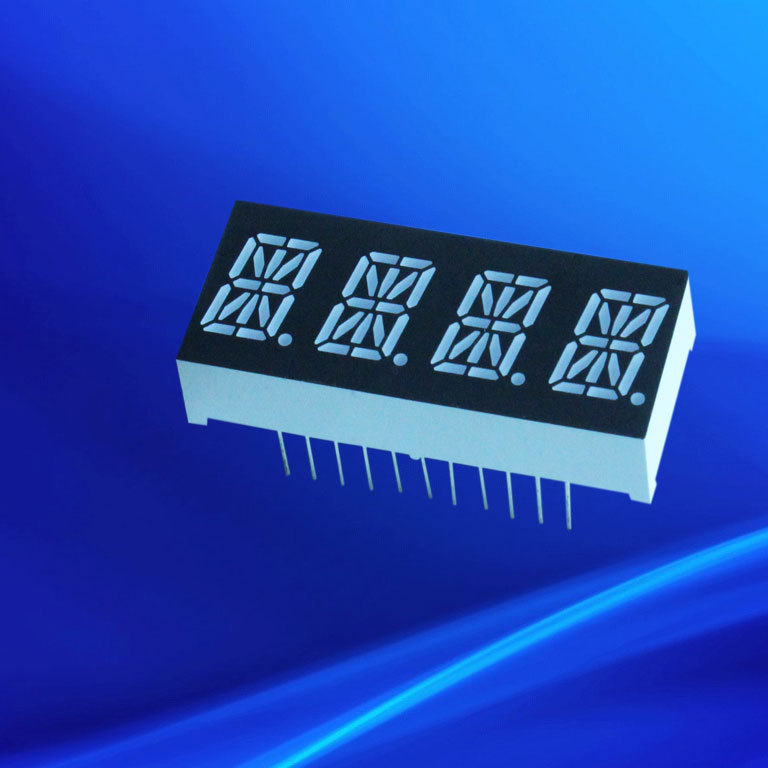

The Houkem-394D-A/B is a 0.39 inch 16 segment LED display designed for compact alphanumeric information in industrial equipment, electronic instruments, control panels, home appliances, counters, and commercial display systems. With four digits, white emission, and a 40.4 × 16 mm panel size, this display provides a practical solution for OEM applications requiring clear letters, numbers, and symbols.
Product Specifications
This0.39 inch alphanumeric LED display uses a four-digit, 16-segment configuration for flexible character presentation. The compact industrial-standard package supports PCB or socket mounting and is suitable for integration into electronic equipment.
| Specification | Details |
|---|---|
| Model Number | Houkem-394D-A/B |
| Selection Guide Model | Houkem-394D-BW |
| Digit Height | 0.39 inch |
| Digit Quantity | 4 |
| Segment Type | 16 Segment |
| Panel Size | 40.4 × 16 mm |
| Pixel Pitch | 2.54 mm |
| Pixel / Dot Size | 2.5 mm |
| Segment Color | Milky White |
| Face Color | Black |
| Emitting Color | White |
| Dominant Wavelength | Non |
| Luminous Intensity | 200 mcd/chip |
| Forward Voltage | 3.0 V/chip |
| Reverse Voltage | 5 V |
| Recommended Operating Current | 20 mA |
| Operating Temperature | 25–75°C |
| LED Source | Taiwan Epistar |
| Supplier Type | Original Manufacturer |
| Place of Origin | Guangdong, China |
| Warranty | 3–5 Years |
The4 digit 16 segment LED display is designed to present alphanumeric information more flexibly than a conventional 7-segment display. Its 16-segment structure supports numbers, letters, and commonly required symbols for electronic equipment and control interfaces.
Features and Benefits
- 0.39-inch digit height with four-digit configuration
- 16-segment alphanumeric LED structure

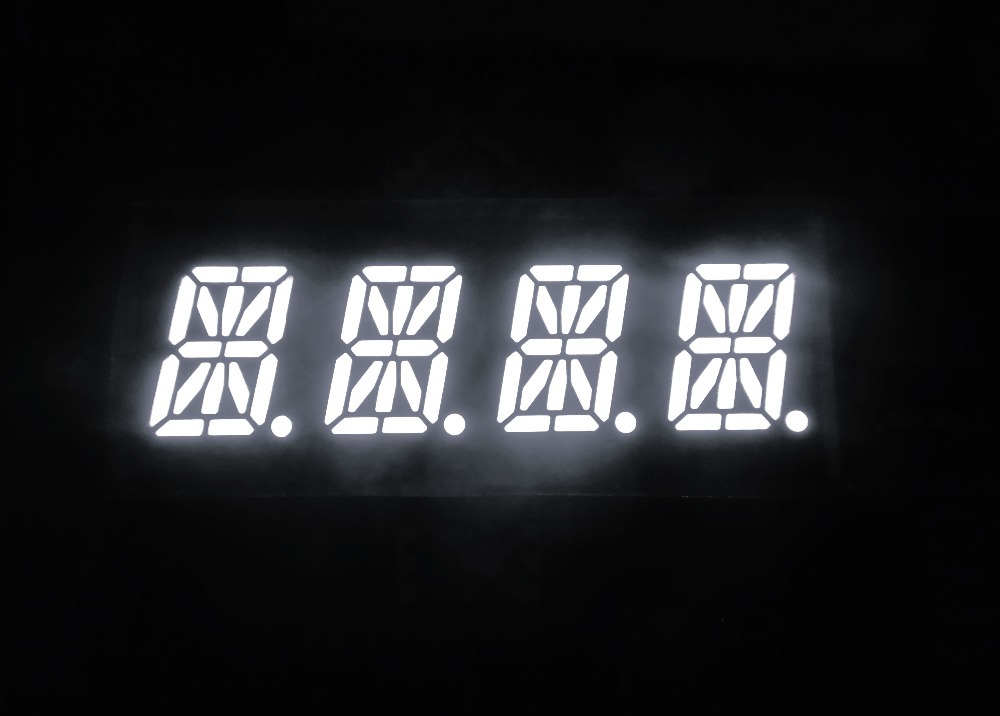

- White emitting color with milky-white segments
- Black face color for clear visual contrast
- 200 mcd/chip luminous intensity
- Low-current and low-power operation
- Industrial-standard size

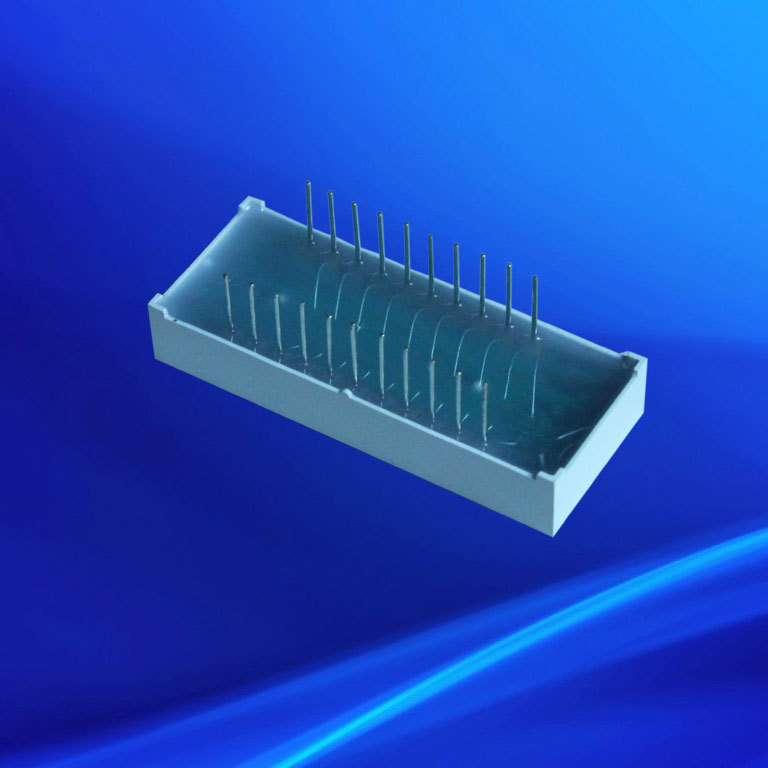

- Easy mounting on PCBs or sockets
- Multiple emitting colors available
- OEM customization supported
- Suitable for professional electronic equipment

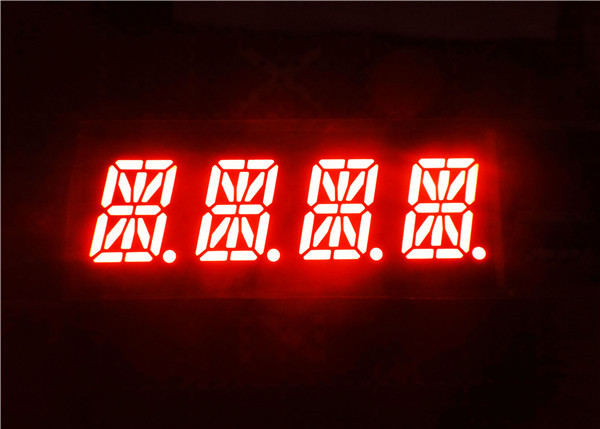

Houkem can provide different emitting colors, including red, green, yellow, blue, orange, white, bi-color, and RGB. Face colors can include black, gray, and red, while lens colors can be milky white or matched to the emitting color according to project requirements.
Applications
This16 segment LED display is suitable for industrial equipment, electronic instruments, control panels, digital counters, home appliances, commercial displays, exhibition equipment, and other embedded electronic systems.
The alphanumeric configuration is especially useful when equipment needs to display short codes, operating modes, letters, numerical values, or status information. Engineers can use the compact 40.4 × 16 mm package where panel space is limited.
Available LED Display Options
Houkem supplies a broad range of LED display configurations for different product designs. Available 7-segment LED display sizes range from 0.25 inch to 20 inches, with 1-, 2-, 3-, 4-, 5-, and 6-digit options.
Both 7-segment and 14-segment displays are available, while customized 16 segment alphanumeric displays can also be developed according to customer requirements. If the standard size or configuration does not meet your application, OEM customization is available.

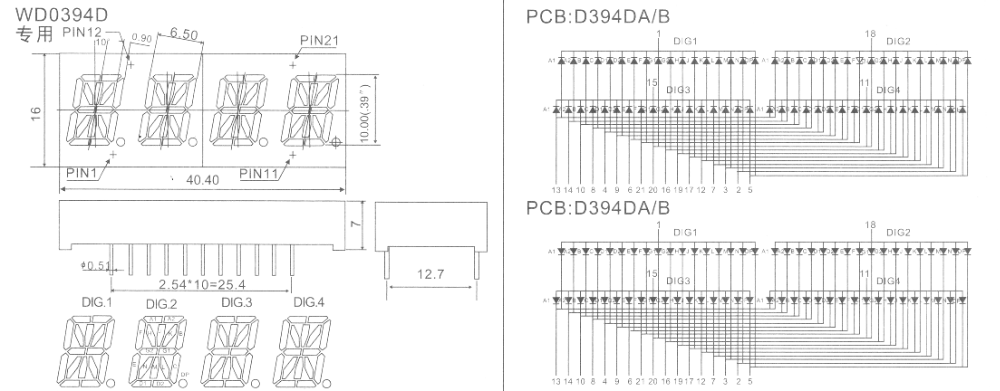

Drawing and Internal Circuit
The product drawing and internal circuit diagram provide important information for engineers evaluating mechanical dimensions, PCB layout, and electrical integration. Datasheets and technical information can be provided for product selection and engineering verification.
Manufacturing and OEM Support
Dongguan Houke Electronic Co., Limited is an original LED display manufacturer located in Dongguan, Guangdong, China. Houkem has more than 18 years of experience in LED product manufacturing, development, and sales, supported by an ISO 9001 quality management system.

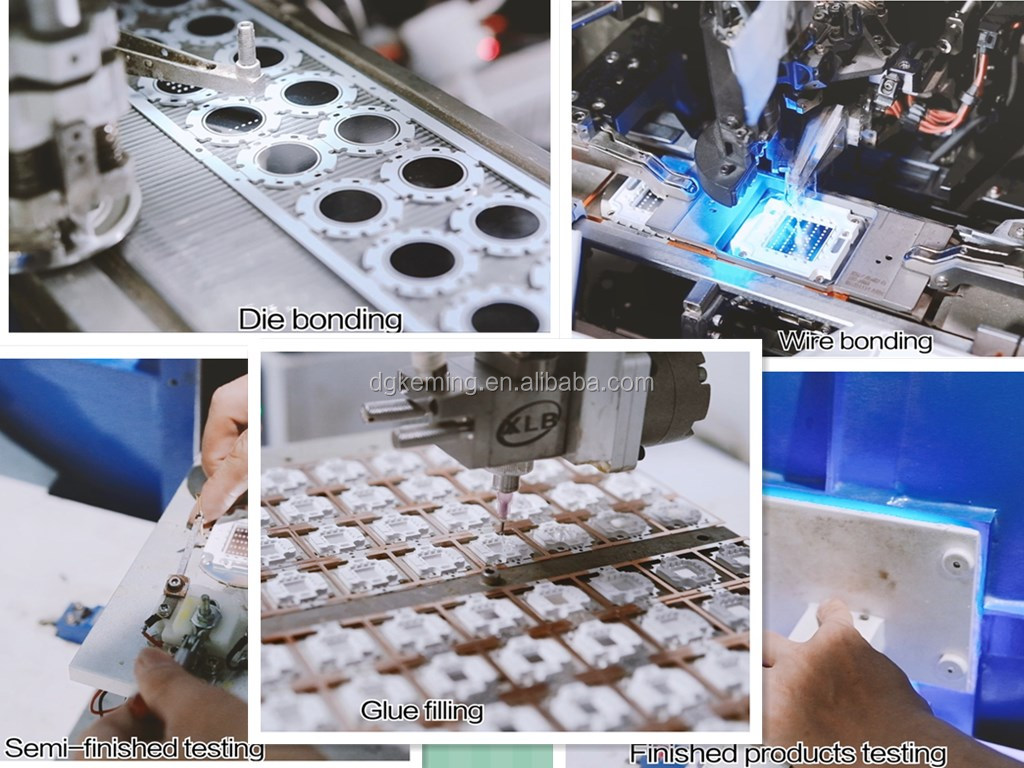

The company's product range includes customized LED displays, 7-segment and alphanumeric displays, dot matrix displays, UV LEDs, and IR LEDs. For B2B customers, Houkem provides factory-direct support covering product selection, samples, OEM customization, mass production, and logistics.
FAQ
Q1: What can a 16-segment display show that a 7-segment display cannot?
A 16-segment structure provides greater flexibility for displaying letters and symbols alongside numbers.
Q2: Is this display suitable for PCB integration?
Yes, the industrial-standard package is designed for easy mounting on PCBs or compatible sockets.
Q3: Can Houkem supply different colors for this LED display?
Yes, multiple colors including red, green, blue, yellow, orange, white, bi-color, and RGB are available.
Q4: Can the 0.39 inch 16 segment LED display be customized?
Yes, Houkem accepts OEM requirements when customers need different dimensions, configurations, colors, or other specifications.
Q5: Can I request technical information before ordering samples?
Yes, Houkem can provide datasheets and product information to support engineering evaluation and prototype development.
Request a Quote for Your LED Display Project
Looking for a 0.39 inch 16 segment LED display for an industrial, instrumentation, or OEM application? Send Houkem your required quantity, display configuration, color, dimensions, and application. Our team can help confirm the specification and provide samples, customization support, and factory-direct solutions.
