thin 0.56 inch 2 single numeric 1 digit led 7-segment display smd
- Place of Origin:Guangdong, China
- Model Number:Houkem-SMD-5611-A/BSR
- Brand Name:Houkem
- Display Function:Graphics
- Tube Chip Color:Red
- Pixels:20mm
- Usage:Indoor
- Key words: 0.56 inch 1 digit led 7 segment display smd - Houke
- Dimension:19*12.5*3.75mm
- Segment Color:white or same as emitting color
- Digit height:0.56 inch
- Face color:Black, grey or red
- Digit number:one/ single
- OEM:Yes
- Package:EPE or as your request
- Feature:Energy saving & long life
- Origin:China
- Screen Dimension:19*12.5mm
Light on:

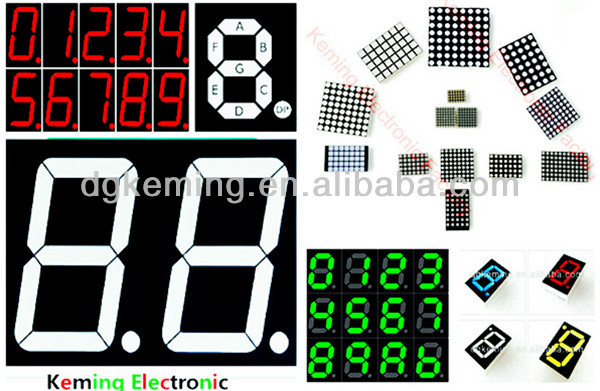

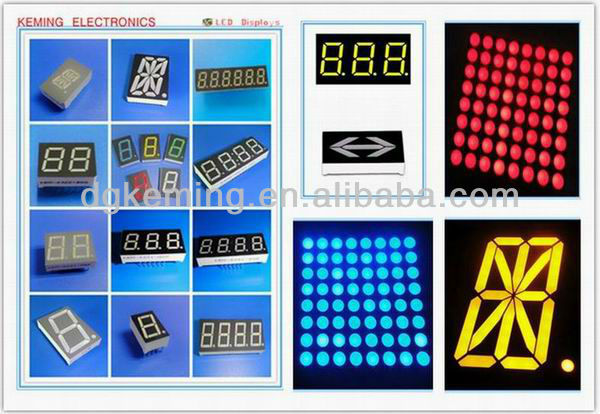

All of colors are available:
Light off:
Part No | KEM-SMD-5611-A/BSR |
| Dimension | 19*12.5*3.75mm |
| Digit height | One |
| Surface color | Black/gray |
| Segment color | white / clear |
| Emitting color | Ultra Red |
| Luminous intensity | 180mcd/chip |
| Pin configuration | common anode/common cathode |

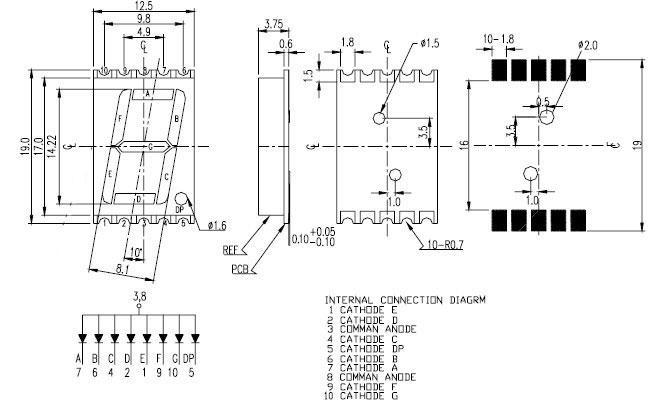

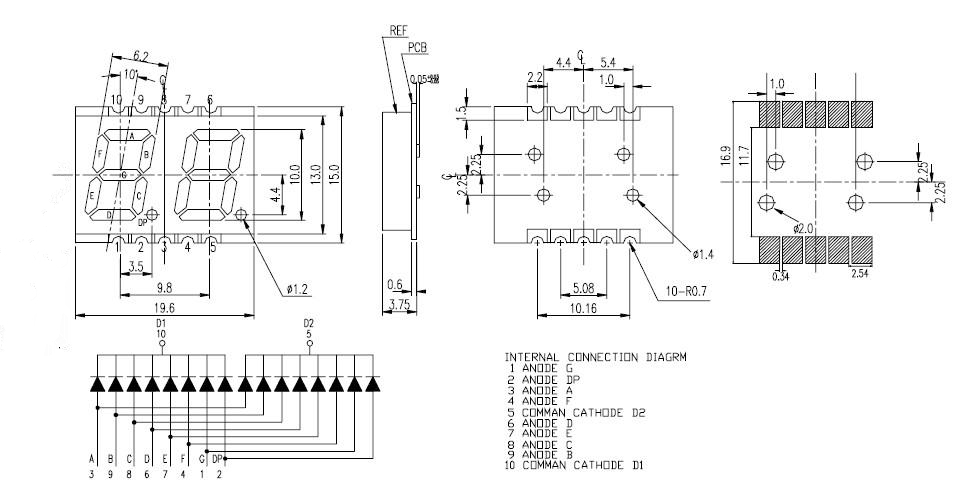

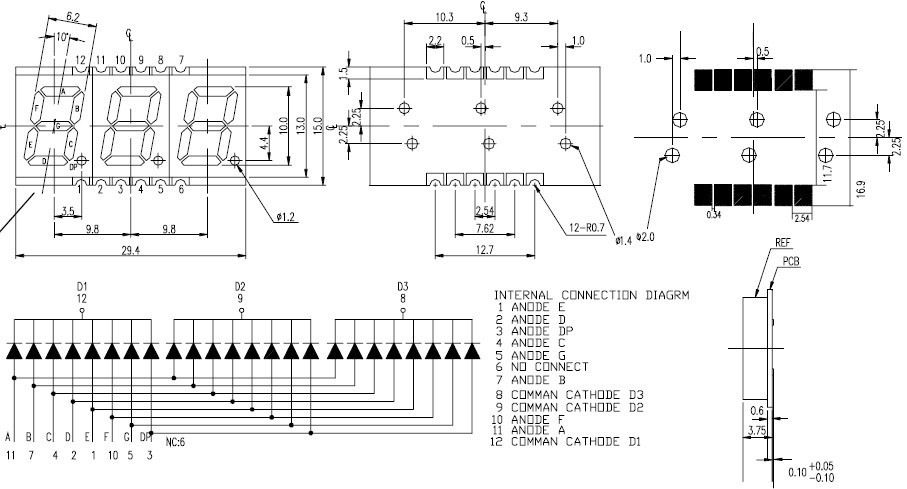

Dimension and Internal Circuit Diagram:
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
1. We can supply you all kinds of thin 0.56 inch 2 single numeric 1 digit led 7-segment display smd:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
All of our led products with 3 years warranty.

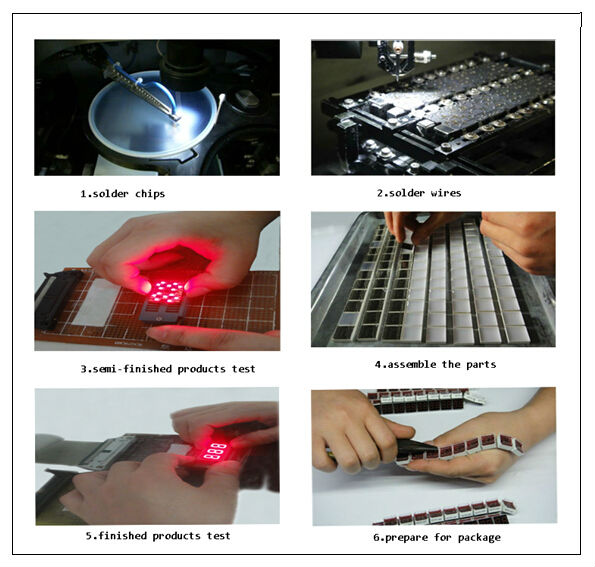

Main Processes of Our Segment Display(Factory pictures):
Delivery Time:
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Our safety packing for your goods:
Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)
LED professional manufacturer KEM with over 11 years experience in led field,
we do believe we can become your reliable supplier!
