0.56 Inch SMD 7 Segment Display
SMD 7 Segment LED Display 0.56 Inch 2 Digit
TheSMD 7 Segment LED Display is a high-reliability 0.56 inch dual-digit numeric display designed for industrial control panels, measuring instruments, and OEM electronic devices. It supports SMT assembly and stable long-term performance in mass production environments.
Product Images

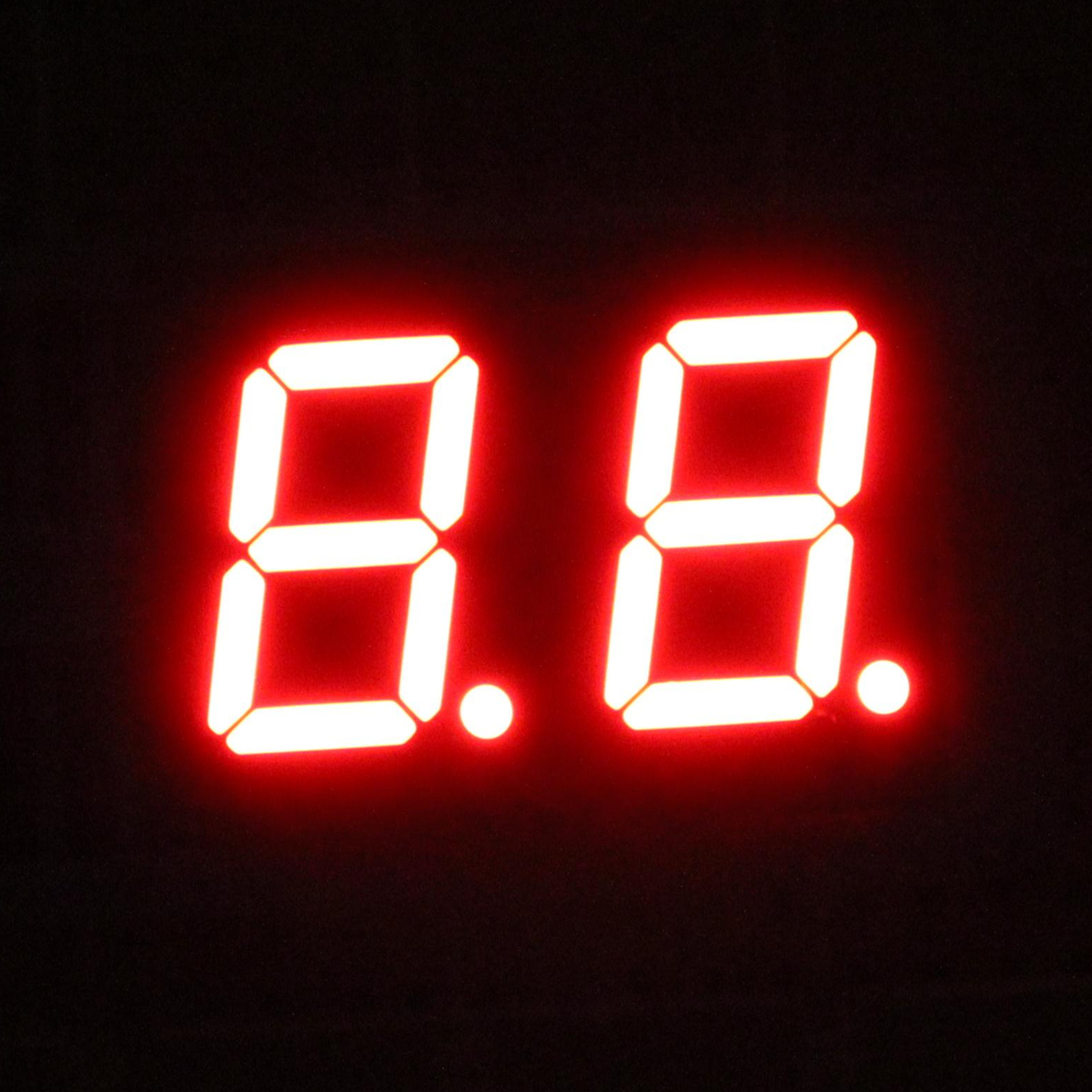

Light On Display

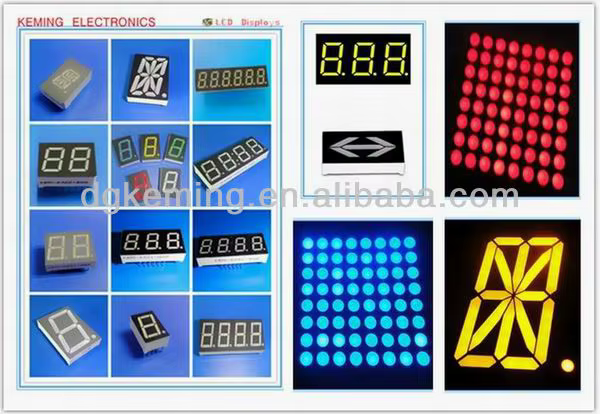

Color Options Available

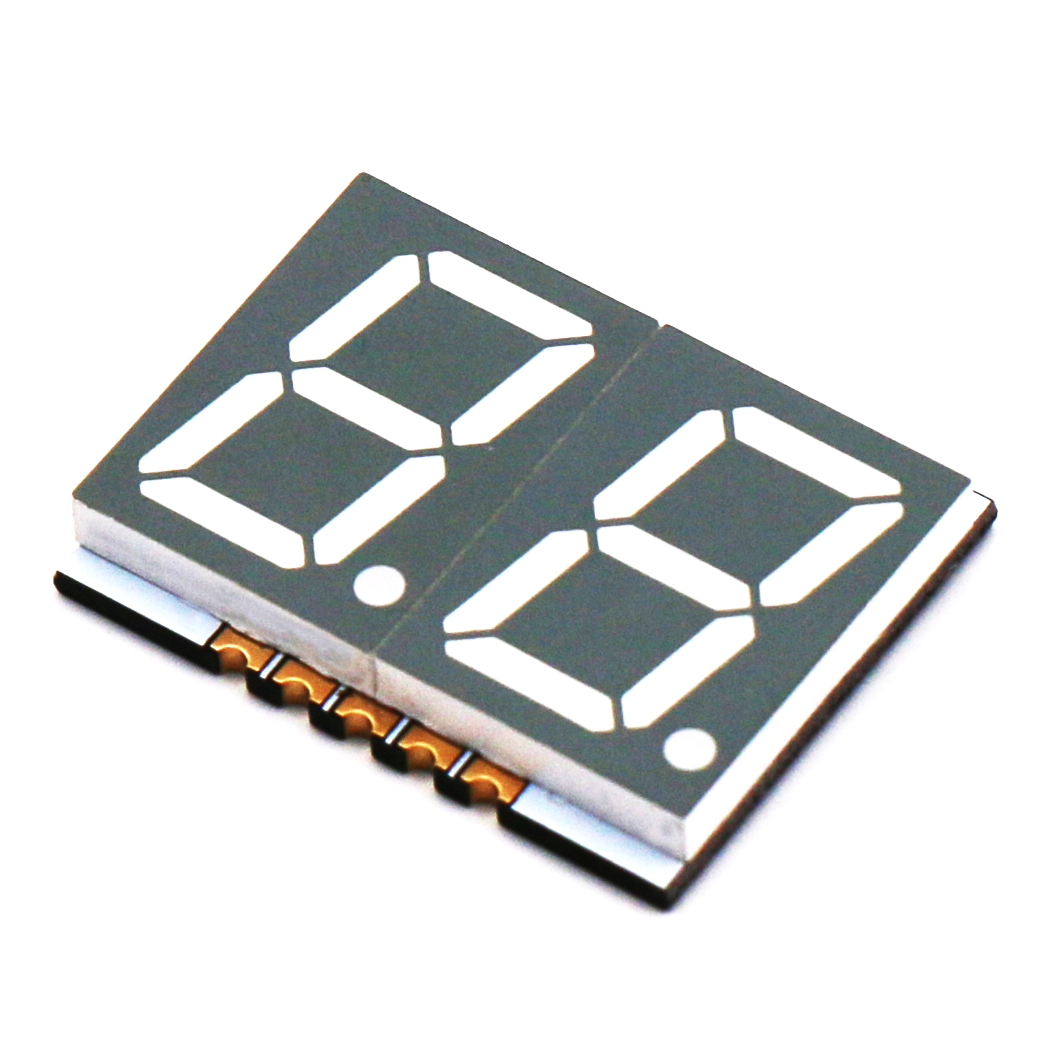

Light Off View

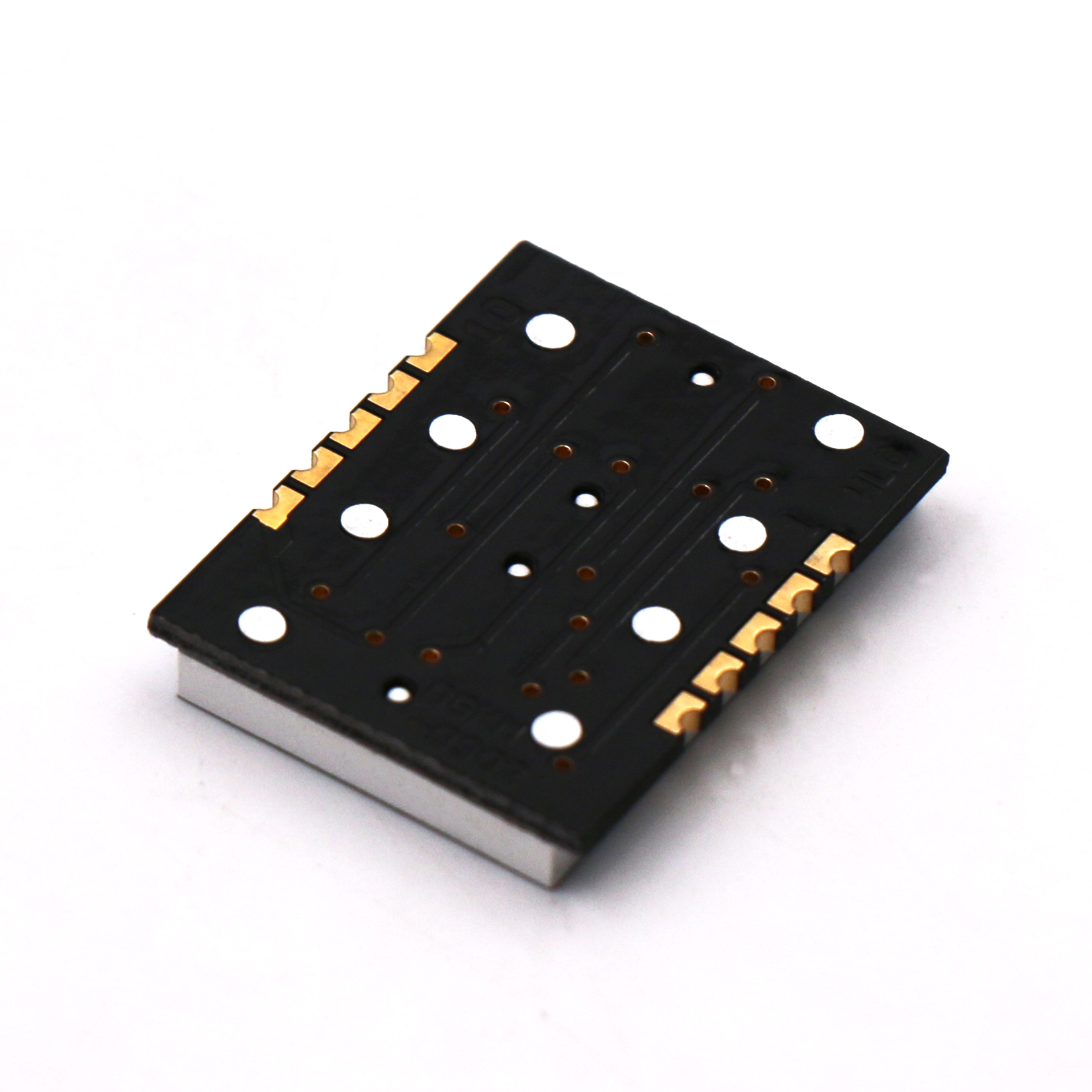

Structural Detail
Product Description
ThisSMD 7 Segment LED Display (0.56 inch, 2 digit) is designed for surface mount PCB assembly. It is widely used in industrial instruments, smart meters, and electronic control systems requiring stable numeric visualization.
- 0.56 inch digit height for clear visibility
- SMT compatible SMD package design
- Dual digit numeric display output
- Low power consumption and high brightness
Technical Specifications
| Part No. | HOUKEM-SMD5621-A/BSR |
| Dimension | 19 × 25.1 × 3.9 mm |
| Digit Height | 0.56 inch (14.22 mm) |
| Surface Color | Black / Gray |
| Segment Color | White / Clear |
| Emitting Color | Super Red (620–625nm) |
| Luminous Intensity | 100mcd/chip |
| Pin Configuration | Common Anode / Common Cathode |
Applications
TheSMD 7 Segment LED Display is widely used in:
- Industrial control panels
- Digital measuring instruments
- Power supply display units
- Smart home appliances
- Embedded electronic systems
OEM & Manufacturing Capability
As a professional LED manufacturer, Houkem supports OEM and ODM production of SMD 7 Segment LED Display modules with stable SMT production lines and customized specifications.
- Digit size: 0.25"to 16"
- 1–6 digit customization available
- 7 segment and 16 segment options
- Multiple color and lens configurations
FAQ – SMD 7 Segment LED Display
1. What is SMD 7 Segment LED Display used for?
It is used for numeric display in industrial and electronic devices such as meters and control panels.
2. Can this 2 digit display be customized?
Yes, digit size, color, and pin configuration can be customized for OEM projects.
3. What is the advantage of SMD type?
SMD structure allows easier SMT assembly, better consistency, and lower production cost.
4. Do you support common anode and cathode?
Yes, both electrical configurations are available based on customer requirements.
5. What industries use this display?
Mainly industrial automation, home appliances, and electronic instrumentation industries.
Request a Quote
Looking for a reliable SMD 7 Segment LED Display supplier?Contact us today for datasheet, pricing, and OEM customization support.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
