Model No: HOUKEM-23058-A/BSR

Super red common anode 5mm 5x8 dot matrix led display

5x8 red dot matrix display houkem is dot matrix led display professional manufacturer 8x5 red led dot matrix display
Country of Origin :
Shenzhen/Dongguan
Quantity :
$0.50 - $0.60 / piece
add to cart
Contact Now
  • Place of Origin:Guangdong, China
  • Model Number:KEM-23058-A/BSR
  • Brand Name:KEM
  • Usage:Semi-outdoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:11mm
  • Screen Dimension:60.6*37.8mm
  • Key words:5x8 dot matrix display
  • Dimension:60.6*37.8*8.8mm
  • Dot Color:white or water clear
  • Dot array:5x8
  • Face color:Black, grey or red
  • Dot Dia.:5mm
  • OEM:Yes
  • Package:EPE or as your request
  • Feature:Energy saving & long life
  • Origin:China
common anode 8x5 Matrics 5mm dot matrix 5x8 led display
Pictures of products

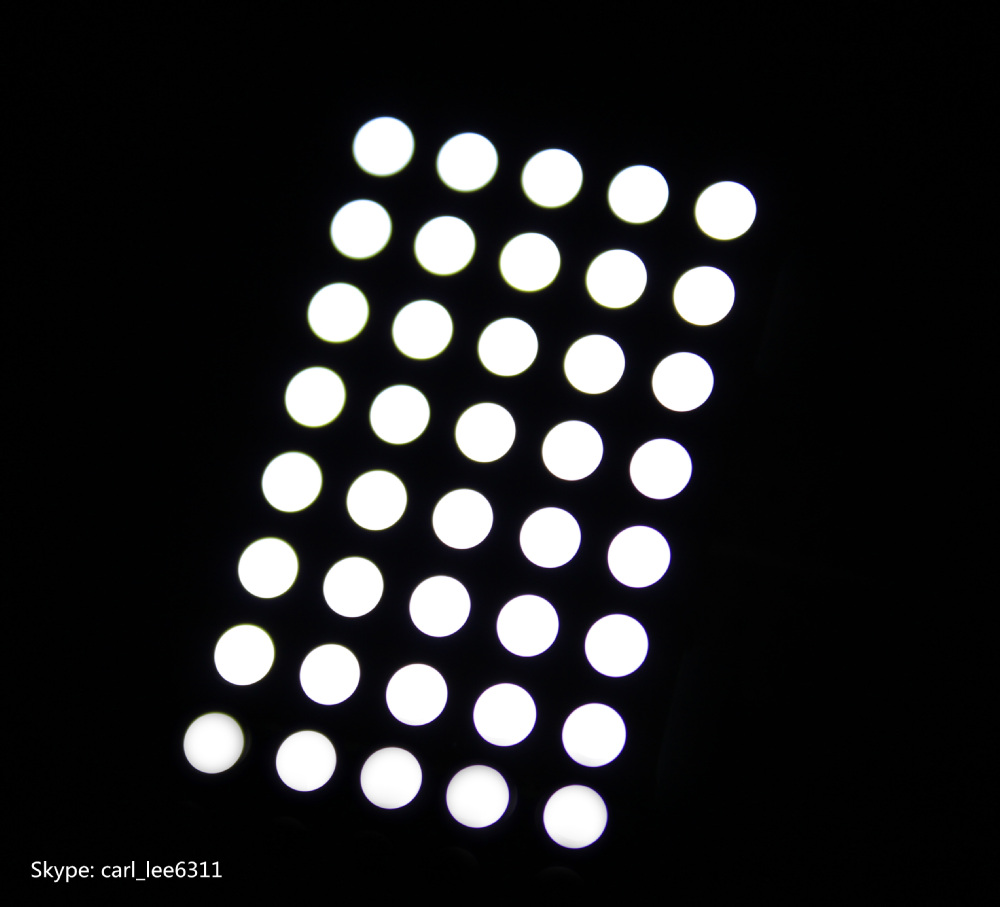

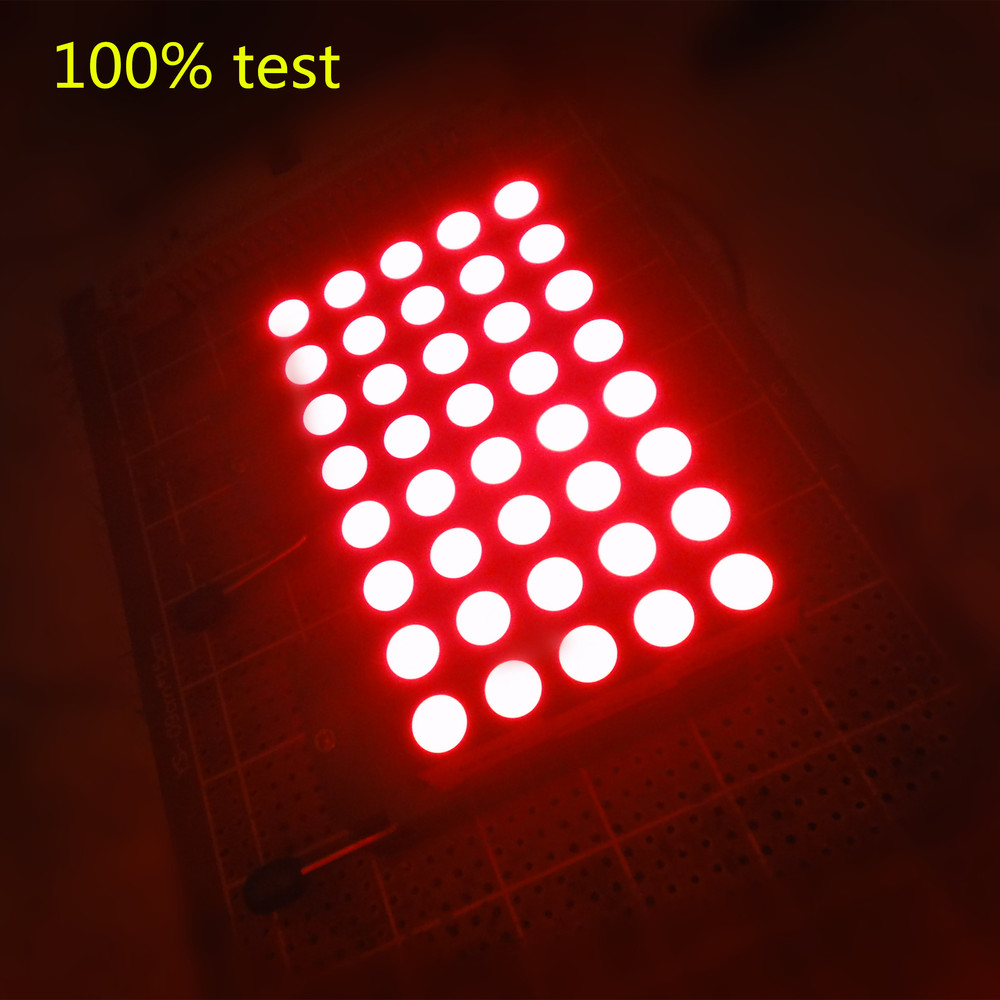

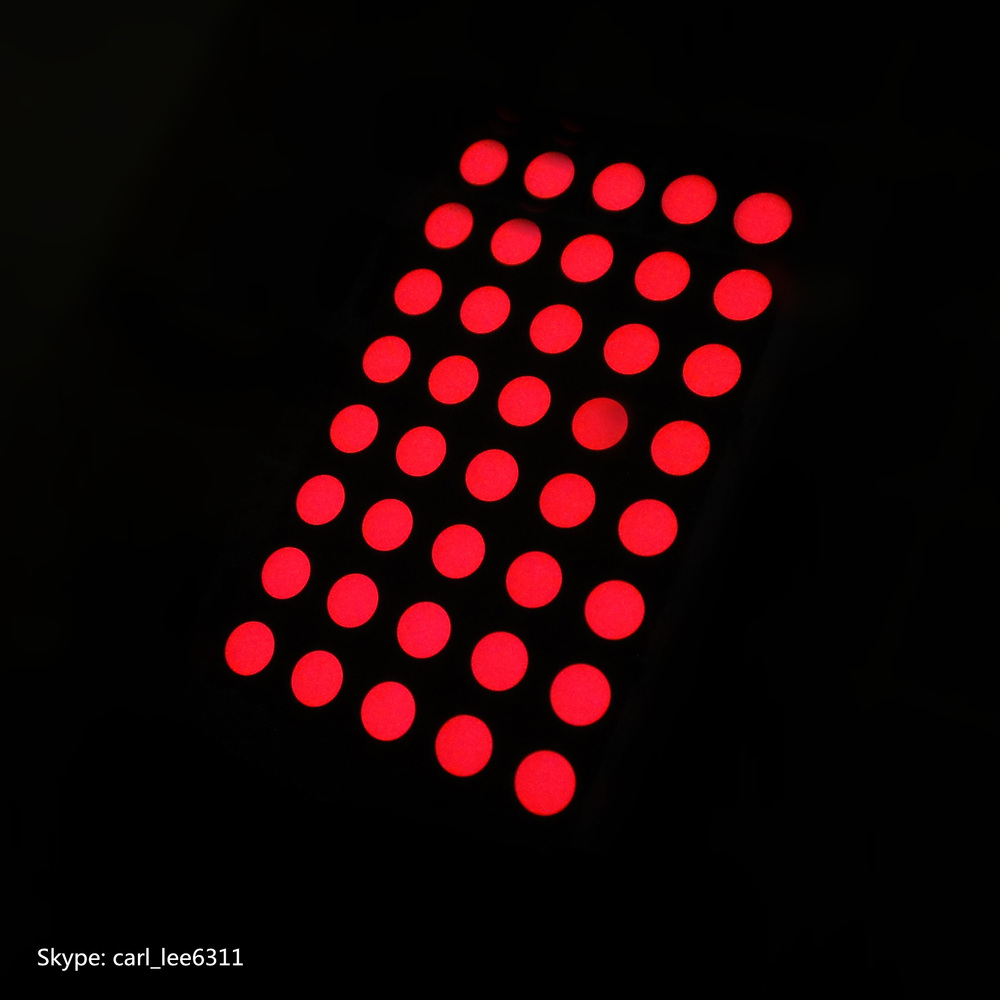

Light on:

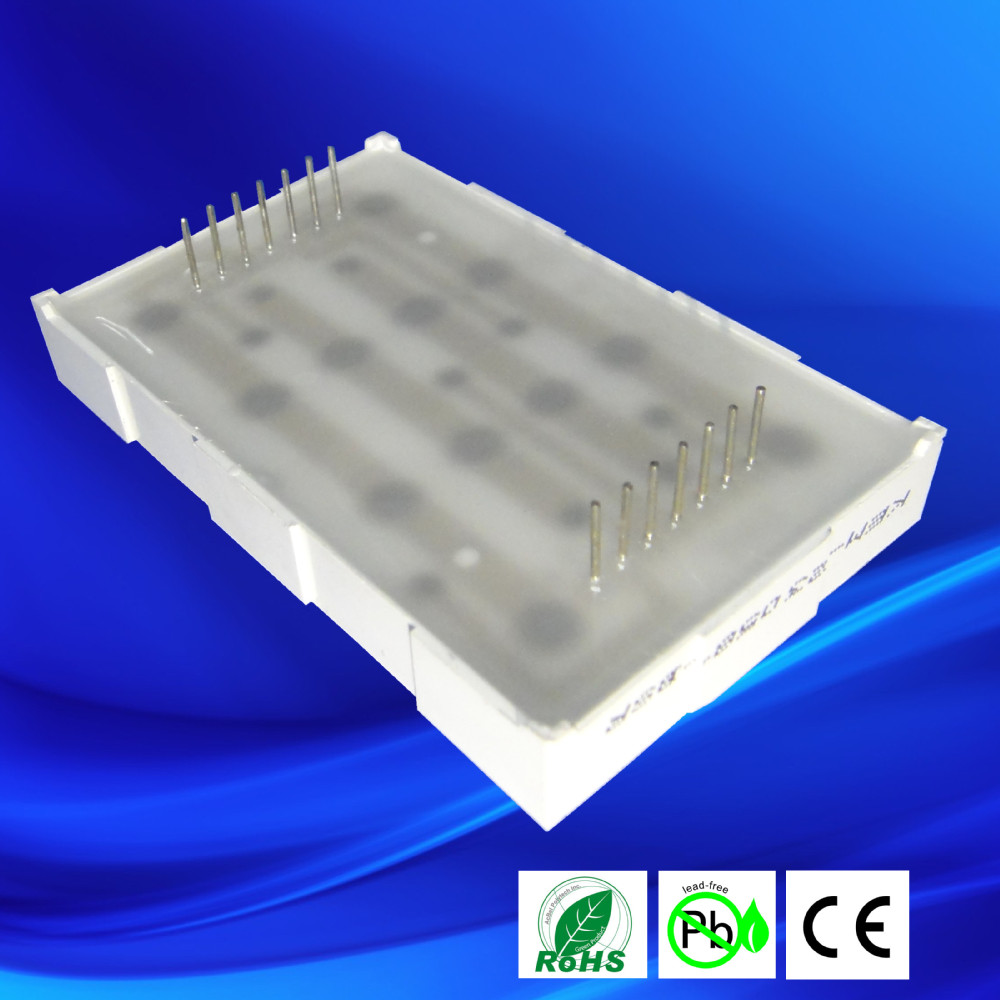

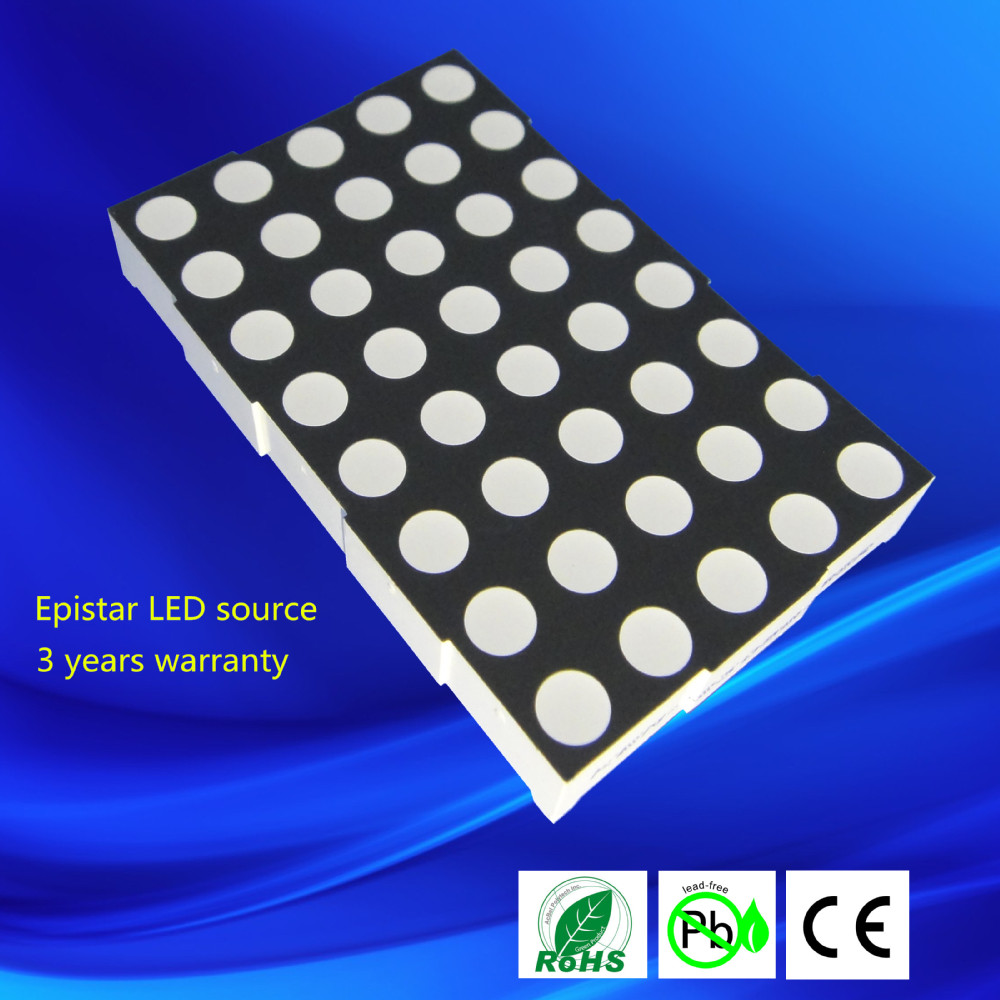

Light off:

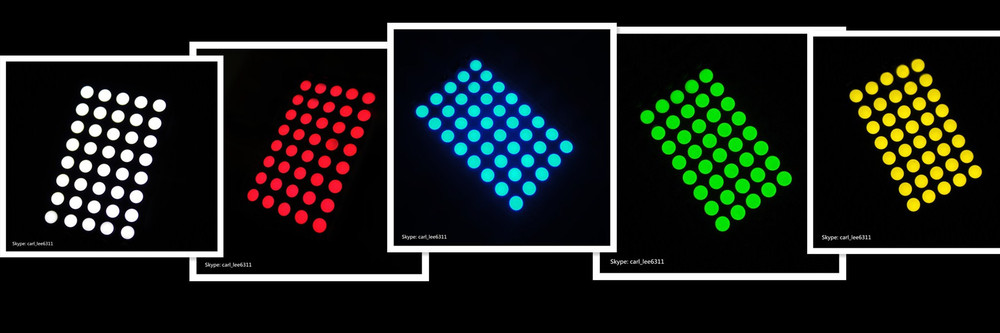

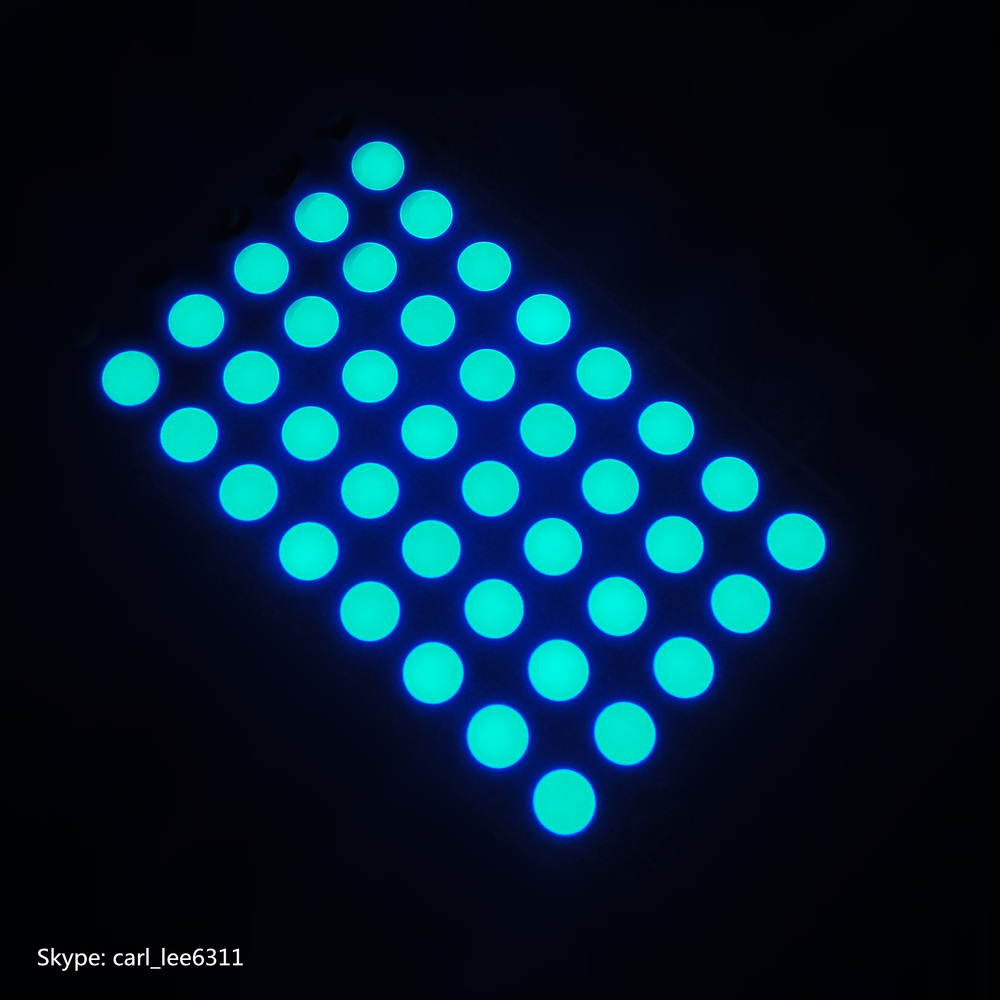

All of single colors and Bi-color are available controled by yourself:

Product Description

Part No

KEM-23058-A/BSR
Dimension60.6*37.8*8.8mm
Dot array5x8
Surface colorBlack/gray
Segment colorwhite / water clear
Emitting colorUltra White
Luminous intensity180mcd/chip
Pin configurationcommon anode/common cathode

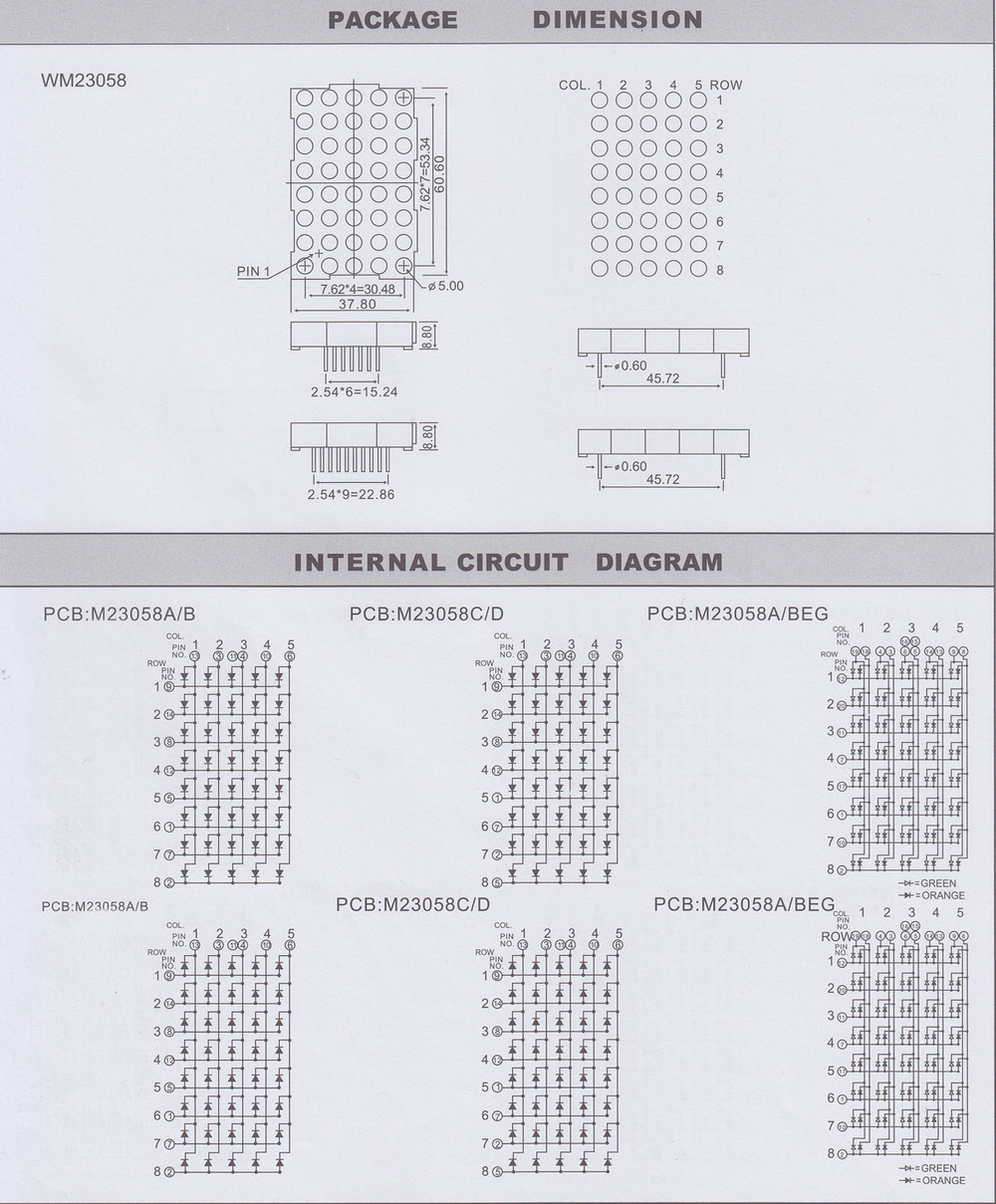

Dimension and Internal Circuit Diagram:

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Application:

What we can do?

Our Services

Overview:

1. We can supply you all kinds of Dot Matrix Display:

---Dot Dia. from 1.9mm to 10mm

---Array type: 5x7 dots, 5x8 dots, 8x8 dots

2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc

3. Available surface color: black and grey

4. Dot exposy color: milky white, water clear or same with emitting color

7 segments led display range:

1. We can supply you all kinds of 7 segment LED display:

---Digit size: from 0.25"to 16"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 16 segment both available

3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color

4. Available surface color: black,grey or red

5. Lens color: white or same as emitting color

Certifications

Warranty

All of our led products made of Epistar led chips with 3 yearswarranty.

Factory Images

Main Processes of Our Segment Display(Factory pictures):

Delivery Time:

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Our safety packing for your goods:

Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)

Shipping way

LED professional manufacturer KEM with over 11 years experience in led field,

we do believe we can become your reliable supplier!
