0.8 Inch 4 Digit Super Red 7 Segment LED Display 12 Pin
0.8 Inch 4 Digit Super Red 7 Segment LED Display
HOUKEM-8041-A/BSR is a 4 digit LED display featuring 0.8-inch (20.4 mm) Super Red 7-segment digits. Designed for clear numeric indication, this 7 segment LED display is suitable for audio equipment, instrument panels, counters, and other electronic devices requiring a compact multi-digit display.
With common anode and common cathode options, reliable LED chips, and original manufacturer support, this 4 digit display can be integrated into OEM electronic products and customized projects.
Product Specifications

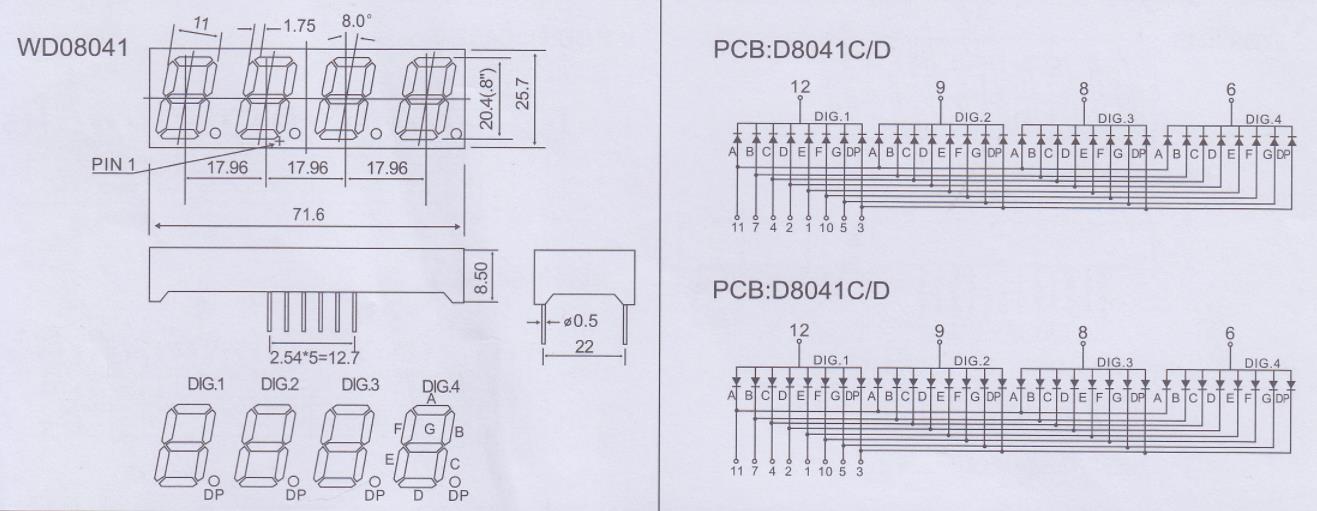

| Part No. | HOUKEM-8041-A/BSR | Dimension | 71.6 × 25.7 × 8.5 mm |
|---|---|---|---|
| Digit Height | 0.8 inch / 20.4 mm | Surface Color | Black / Grey |
| Epoxy Color | Milky White / Clear | Emitting Color | Super Red |
| Luminous Intensity | 80–120 mcd/chip | Polarity | Cathode / Anode |
Additional Product Information
Application: Audio equipment or instrument panels
Color: Super Red
Panel Size: 71.6 × 25.7 mm
Pixel Pitch: 2.54 mm
Supplier Type: Original Manufacturer
Model Number: KEM-8041-A/BSR
Brand Name: KEM
Use: Instrument
Specification: LED
LED Chips: EpiLEDs, Epistar, Bridgelux
Lifespan: 50,000 hours
Current: 20 mA
Voltage: 1.8–2.3 V
Warranty: 3 years
Advantage: High quality with competitive pricing
Certification: CE, RoHS
Media Available: Datasheet, Photos
If you need other specifications or technical configurations, please contact our sales team for confirmation.
Key Features of the 4 Digit LED Display
The 0.8-inch digit height provides a clear numeric display while keeping the overall module compact enough for electronic equipment and instrument panels. The Super Red emitting color offers a strong visual indication for numeric information such as measurements, counts, settings, or operating values.
The4 digit 7 segment display supports common anode and common cathode configurations, allowing engineers to select the connection type that matches their circuit design. With a rated current of 20 mA, 1.8–2.3 V operating voltage, and a stated lifespan of 50,000 hours, the display is designed for integration into a range of electronic products.
Typical Applications
Audio Equipment
The 4-digit configuration can display numerical settings such as channels, levels, frequency values, or other operating information in audio equipment.
Instrument Panels
This0.8 inch 4 digit LED display is suitable for instrument panels where compact dimensions and clear numerical indication are required.
Counters and Digital Indicators
Four-digit 7-segment displays are suitable for counters, timers, measurement devices, and electronic indicators that need to show multiple numerical values.
OEM and Manufacturing Support
HOUKEM is an original LED display manufacturer with experience in developing and manufacturing customized LED products. The company provides 7 segment LED displays, customized LED displays, dot matrix displays, UV LEDs, and IR LEDs for professional electronic applications.
HOUKEM has 19 years of experience in LED product manufacturing, development, and sales and operates under an ISO 9001-certified quality system. Datasheets and product photos are available for technical evaluation, while custom requirements can be discussed with the sales and engineering teams.
FAQ
Can I order samples before bulk production?
Yes, sample orders are accepted so B2B buyers can evaluate the display before placing a larger order.
Is the 4 digit display available with different colors?
Yes, HOUKEM can discuss alternative LED colors according to the required application and technical specification.
Can I choose common anode or common cathode?
Yes, the product specification supports cathode and anode configurations, which should be confirmed according to your circuit requirements.
What is the production lead time?
Stock samples generally take 3–7 days, while mass production normally requires 25–30 days depending on quantity and specifications.
What information should I provide for a quotation?
Please provide the required digit size, color, polarity, application, quantity, and any technical requirements so HOUKEM can confirm the suitable configuration.
Request a Quote
Looking for a reliable 4 digit LED display manufacturer for audio equipment, instrument panels, counters, or OEM electronics?
Contact HOUKEM for factory-direct pricing, samples, datasheets, and technical support. For a faster quotation, send your required display size, digit configuration, emitting color, polarity, application, and order quantity.HOUKEM can help confirm the appropriate 7-segment display solution for your project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
