HOUKEM-2543-A/BSR Mini 4 Digit 7 Segment Display
Mini 4 Digit 7 Segment Display
The HOUKEM-2543-A/BSR is a Mini 4 Digit 7 Segment Display designed for compact indoor numeric display applications. With a 0.25-inch digit height, super red LED output, and a compact 24 × 10 × 5.1mm package, it is suitable for industrial equipment, clock displays, home appliances, electronic instruments, and OEM projects.
As an original LED display manufacturer, HOUKEM provides standard and customized 7 segment LED displays for professional B2B customers, with factory-direct supply, engineering support, samples, and OEM customization.
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Mini 4 Digit 7 Segment Display |
| Part No. | HOUKEM-2543-A/BSR |
| Model Number | KEM-2543-A/BSR |

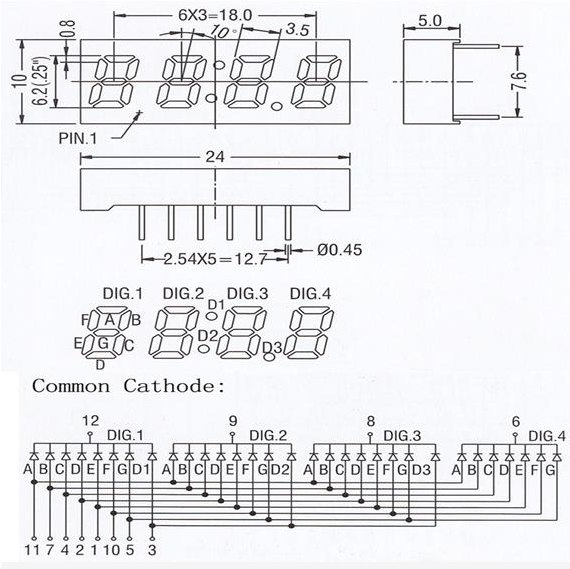

| Dimension | 24 × 10 × 5.1mm |
| Panel Size | 24 × 10mm |
| Digit Height | 0.25 inch / 6.2mm |
| Digit Number | 4 / Four |
| Surface Color | Black / Grey |
| Segment Color | White or same as emitting color |
| Epoxy Color | Milky White / Clear |
| Emitting Color | Super Red |
| Luminous Intensity | 80–100 mcd/chip |
| Polarity | Cathode / Anode |
| LED Source | Taiwan Epistar LED |
| Pixel Pitch | 2.54mm |
| Pixels | 2.5mm |
| Application | Indoor, Numeric LED Display |
| Supplier Type | Original Manufacturer |
| Origin | Guangdong, China |
| Media Available | Datasheet |
The compact structure of this Mini 7 Segment Display helps equipment manufacturers integrate four-digit numerical information where PCB and panel space is limited. The cathode/anode configuration also provides flexibility for different circuit designs.
Applications and Customization

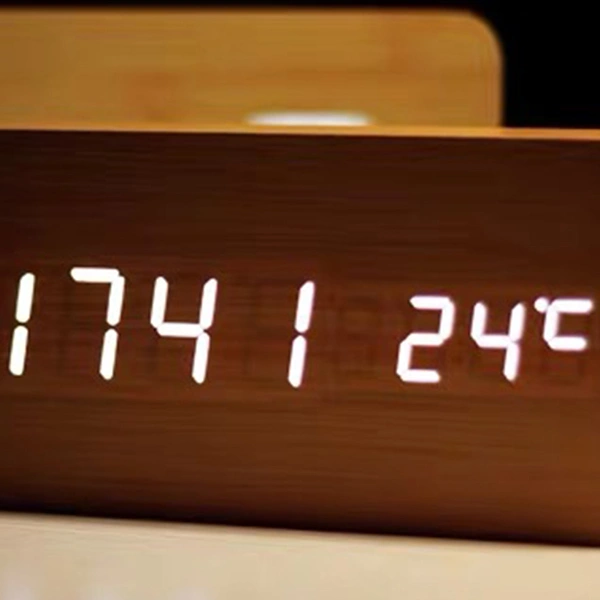

This0.25 Inch 7 Segment Display is designed for indoor electronic equipment requiring clear numeric indication. Typical applications include industrial equipment, clock LED displays, home appliance control panels, and other compact electronic devices.
HOUKEM supports customized LED display projects according to customer requirements. If your project requires different dimensions, colors, digit configurations, electrical characteristics, or other specifications, contact the sales team for technical evaluation and customization.
The company also manufactures customized LED displays, 7 segment SMD and LED displays, dot matrix
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
