Super Red 0.8 Inch Single Digit SMD 7 Segment LED Display
smd 7 segment display
Product Description
0.8 Inch Single Digit 7 segment display smd Super Red
Super Red 0.8 Inch Single Digit 7 segment led display smd
Super Red 0.8 Inch Single Digit smd 7 segment display
| Part No.: | Houkem-8011SMD-A/BSR | Warranty: | 2 years |
| Digit Height: | 20.4 mm= 0.8 inch | Application: | Audio equipment or instrument panels |
| Epoxy Color: | Milky White / Clear | Pixels: | 2.5 mm |
| Luminous intensity: | 80-120 mcd | Operating Temperature: | -20℃~60℃ |
| Product Dimension: | 16.8 x24 x 2.95 mm | Brand name: | Houkem |
| Surface color: | Black / Grey | Certification: | CE, REACH, RoHS |
| Polarity: | Common cathode/ Common anode | HS Code: | 8531200000 |
| Emitting color: | Super Red | Country of Origin | China |
| Current: | 20 mA | Key words: | 7 segment display smd 7 segment led display smd smd 7 segment display |
| Voltage: | 1.8 ~2.3V |
Other colors for options:
Different colors vary in price.. What color do you want ?
| Ultra Red 1 | 625~640 nm, 30 mA, 2.1~2.5 V, 200-270mcd |
| Ultra Red 2 | 625~640 nm, 30 mA, 2.1~2.5 V, 300-350 mcd |
| Super Red | 625~640 nm, 20 mA, 1.8~2.3 V, 80-120 mcd |
| High Red | 640~660 nm, 20mA, 2.1~2.5 V, 12 mcd |
| Amber | 605~615nm, 30mA, 2.1~2.5V, 30 mcd |
| Super Green | 565~575 nm, 30 mA, 1.9 ~2.4 V, 50 mcd |
| Pure Green | 515~525 nm, 40 mA, 3.3~4.0 V, 600 mcd |
| Yellow | 590~600 nm, 35 mA, 2.1~2.5 V, 60 mcd |
| Blue | 465~475 nm, 40 mA, 3.1~3.5 V, 220 mcd |
| White | 3.1~3.5 V, 20 mA,125 mcd |
| New Yellow | 583-586 nm, 35 mA, 2.1~2.5 V, 140-168 mcd |

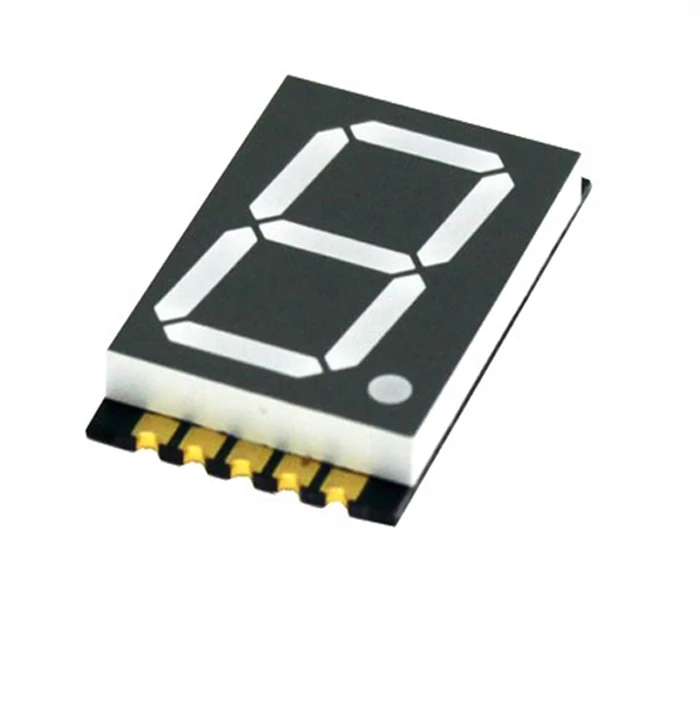

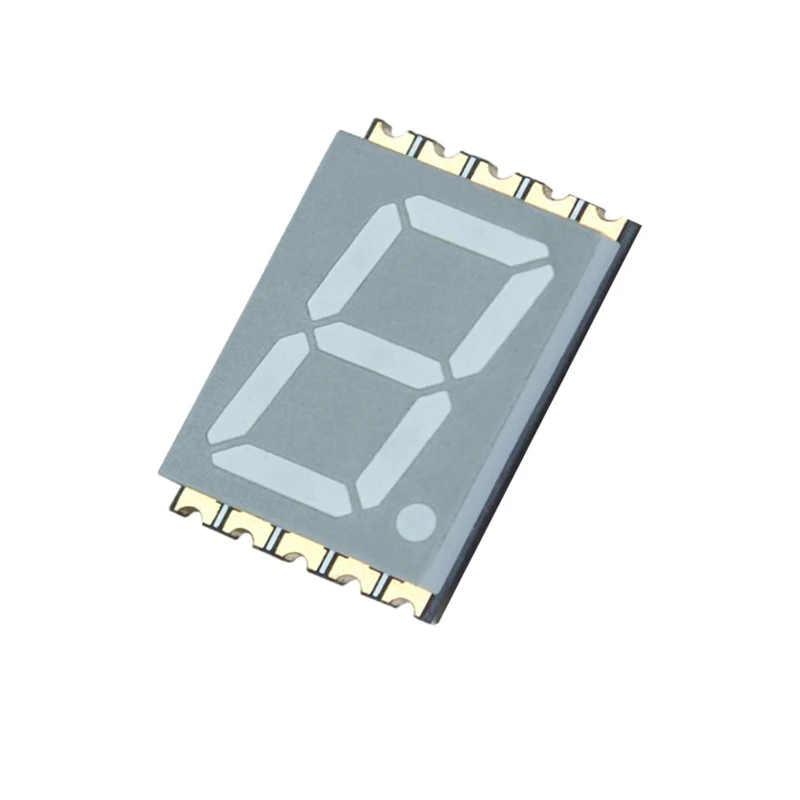

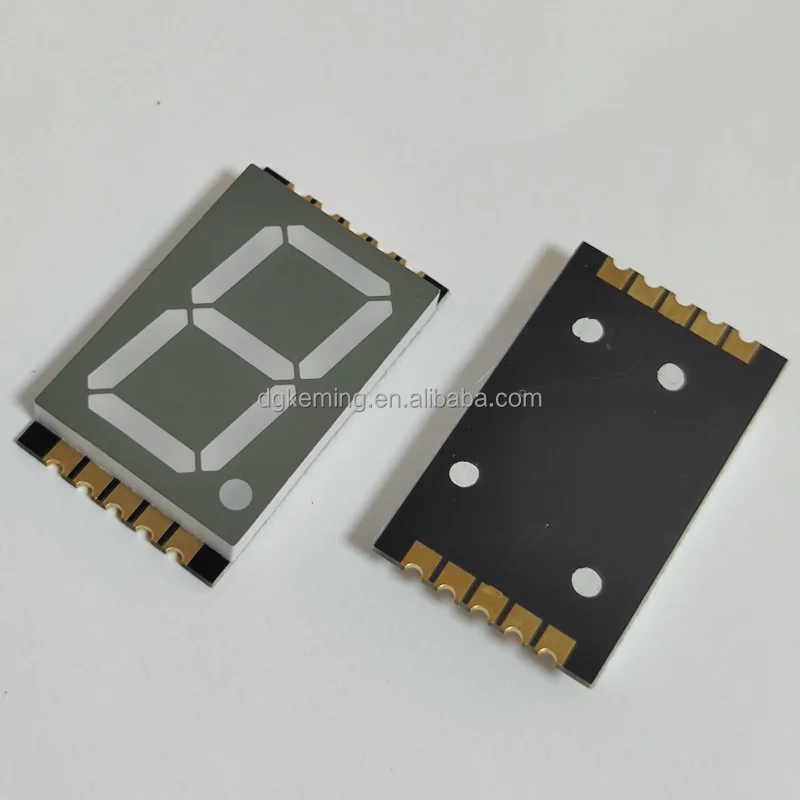

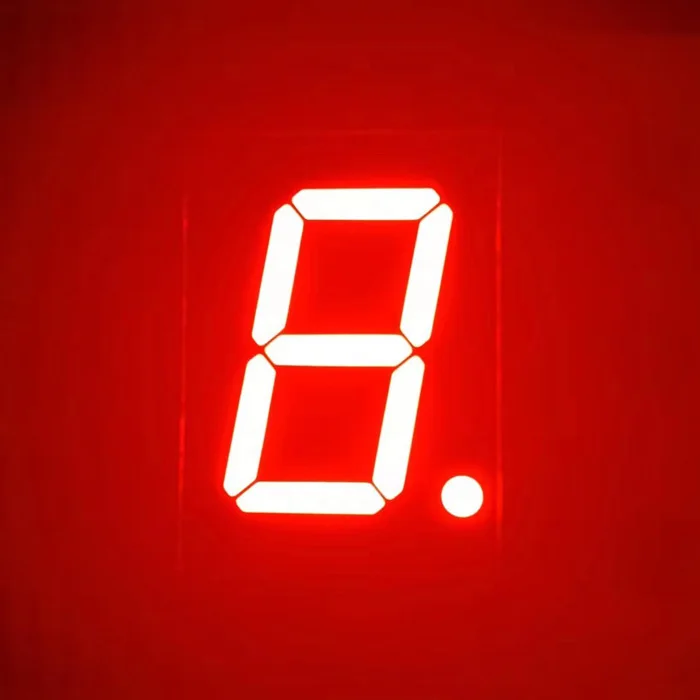

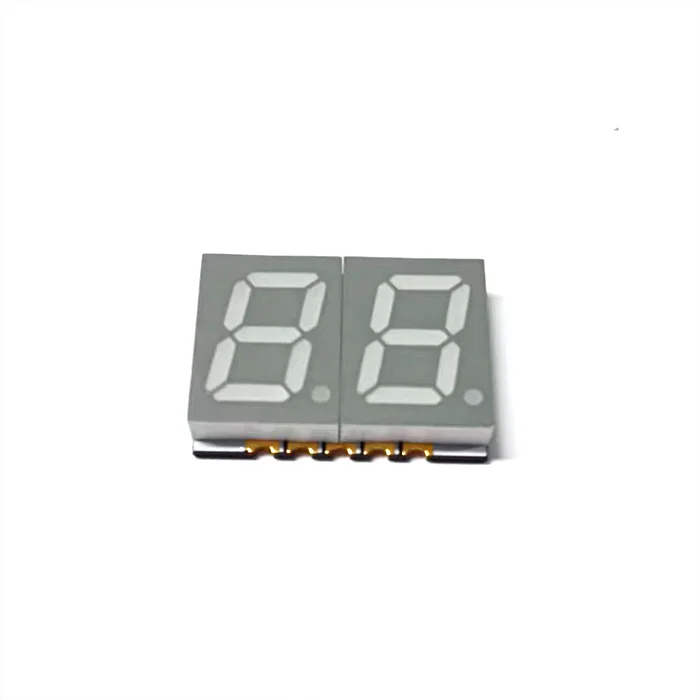

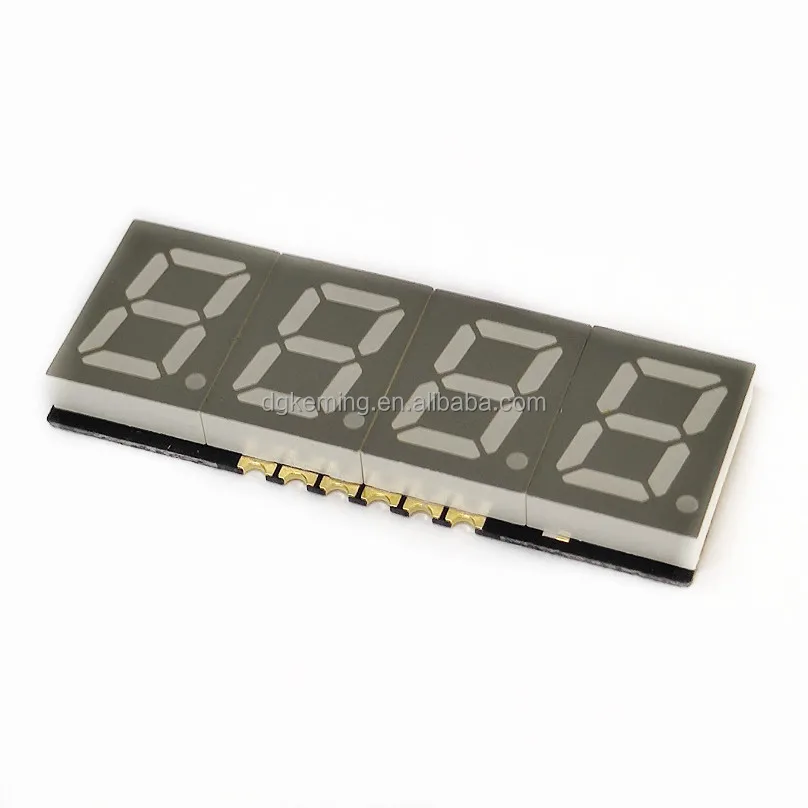

Product pictures
 |  |
 |  |

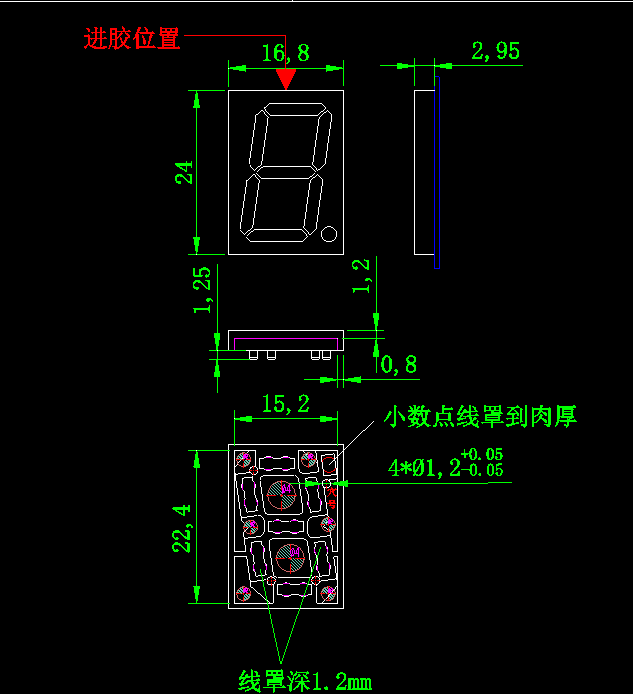

Dimensions and internal circuit diagram
Application

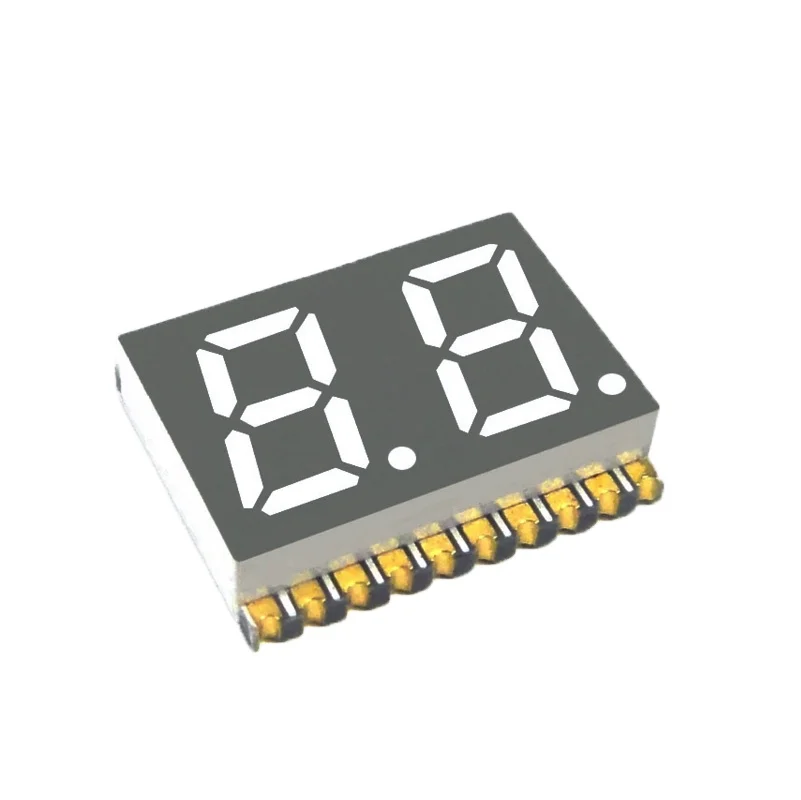

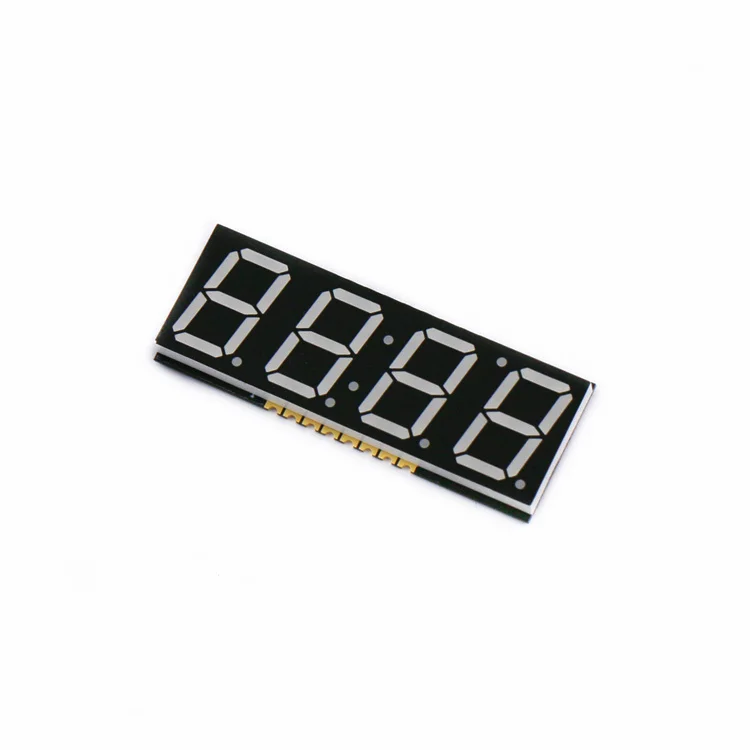

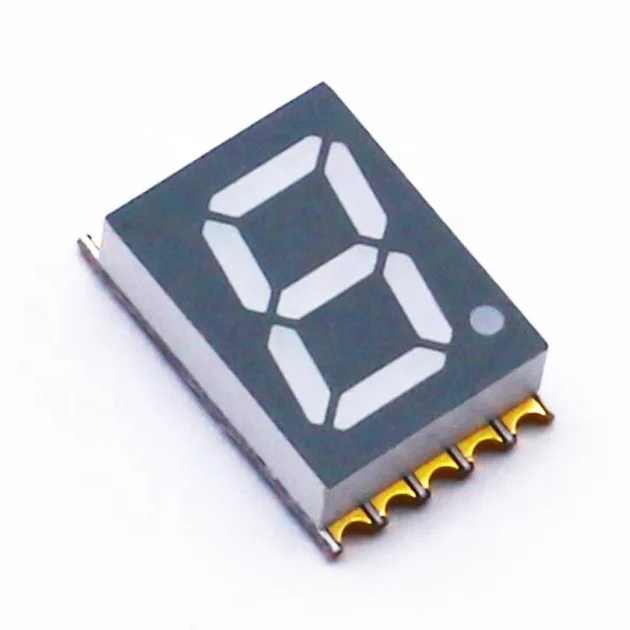

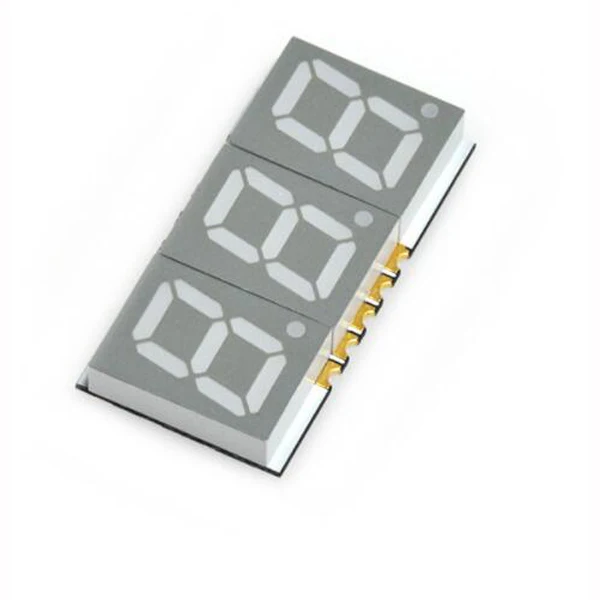

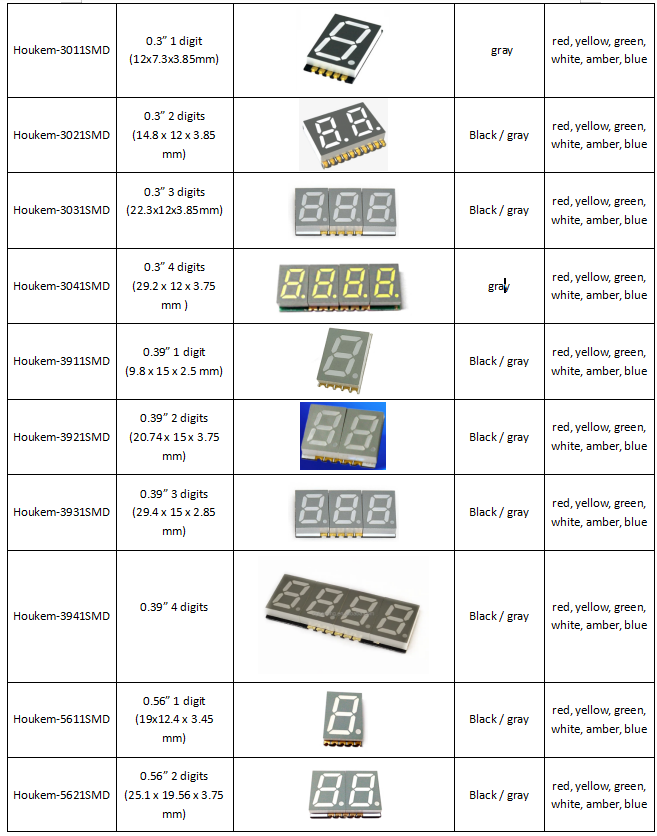

Other relative products
 |  |  |
 |  |  |
