super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix
super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix

super green 3mm dot matrix display/ 16x16 led matrix module 64*64mm screen size led matrix

Model NO.
HOUKEM-31616-ASG
Price:
USD 5.80-6.00
Delivery:
FOB
Minimum order quantity:
1000
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Green
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:HOUKEM-31616-ASG
  • Screen Dimension:64*64mm


Product Describtion



3mm 16*16 LED dot matrix display green 64*64*7.5mm led matrix panel



1, Low consumption

2, High brightness

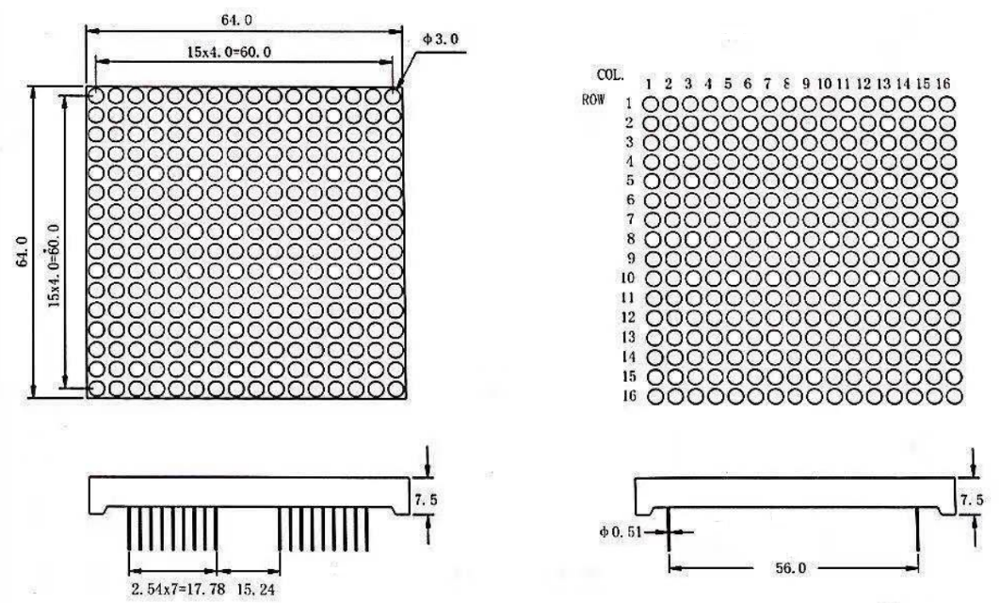

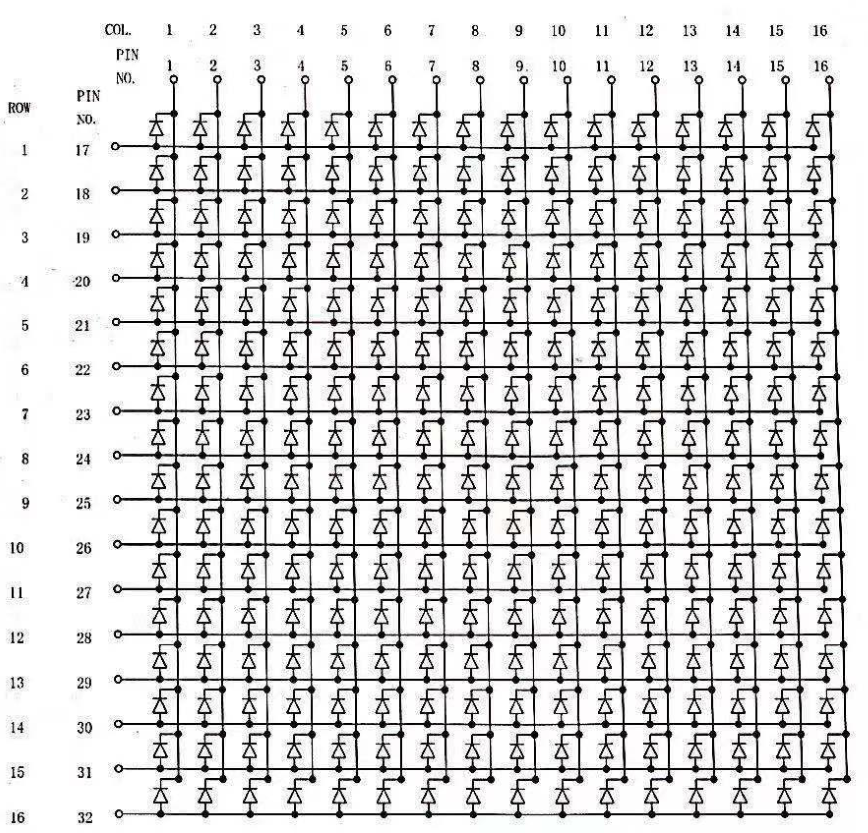

Package dimension & Internal circuit diagram

 paste-pic-dp_uuid_bzxwb

paste-pic-dp_uuid_wif9g





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200



 Product details:

Item No.HOUKEM-31616-ASG
Dimension64*64*7.5mm
dot3mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color super green





Two years quality warranty

 white 16*16 dot matrix display

 16*16 led matrix display white color




Our Services



Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

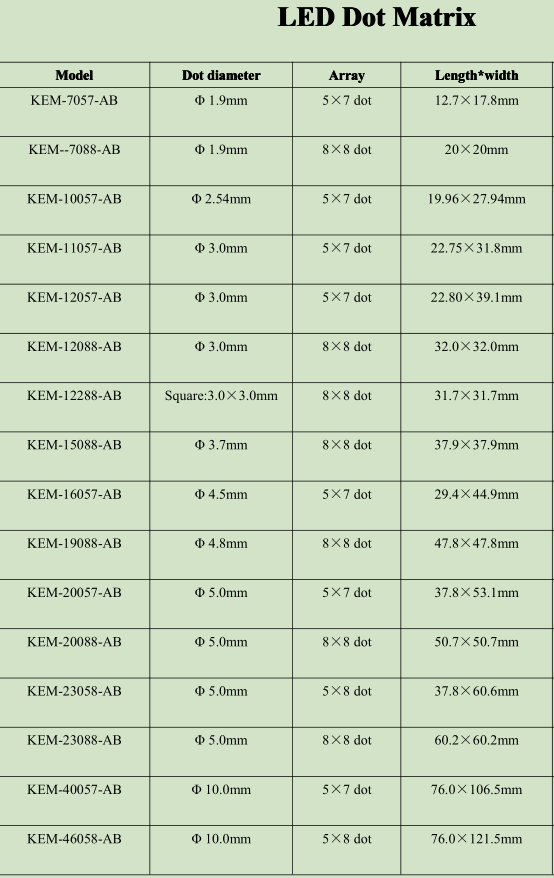

4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led





Packaging & Shipping

packing & shipping

Contact us

 factory

 business



Related Products

 led dot matrix display

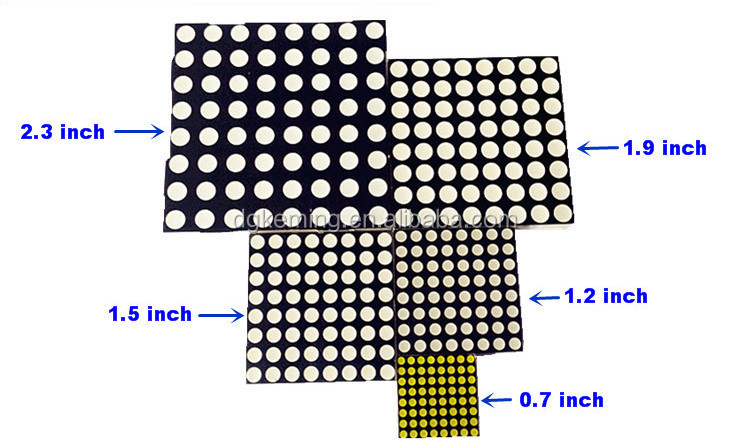

 8x8 dot matrix led related product
