Model NO.
KEM-8011A/B
Price:
USD 0.30-1.50 / pieces
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
SZ/GZ (LED square dot)
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Semi-outdoor
  • Tube Chip Color:FULL COLOR
  • Display Function:Graphics
  • Pixels:16mm
  • Brand Name:KEM
  • Model Number:KEM-8011A/B
  • Screen Dimension:20*27.7mm


super bright cheap single digit afficheur 7 segments

Contact us

Sales:Ellen Liu

MP:+8618825779357

Skype:ellen.liu770

QQ:1766570387

Email:sales3.jpgdgkeming.com.cn



Product Details



Part No

KEM-8011-A/B

Dimension

20*27.7mm

Digit height

0.8 inch

Surface color

Black(gray and other color also available)

Segment color

milky white (other color also available)

Emitting color

green,red,blue

Luminous intensity

60 / 90 mcd per segment for choice

Pin configuration

Common cathode and anode for choice





Emitting Color

Peak Wavelength(nm)

Forward Voltage

IF=20Ma (V)

Luminous Intensity

 IF=20Ma(mcd)

(λp)

λ

Typ

Max

Max

KEM-5611BA

605-615

30

2.1

2.5

30

KEM-5611BSG

565-575

30

2.2

2.6

80

KEM-5611BSR

625-640

20

2.1

2.5

100

KEM-5611BYG

570-580

30

2.2

2.6

12

KEM-5611BY

590-600

35

2.1

2.5

60

KEM-5611BB

465-475

40

3.3

4.0

50

KEM-5611BPG

515-525

40

3.3

4.0

200

KEM-5611BW





3.3

4.0

180

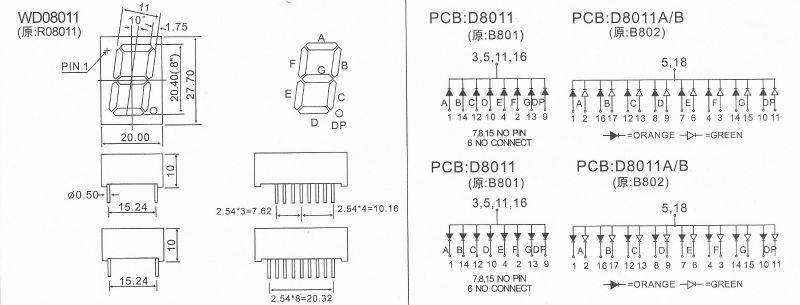

Dimension and circuit diagram  :






Note: If this PCB circuit diagram not meet your requirements, please contact us for other choices. Thank you.

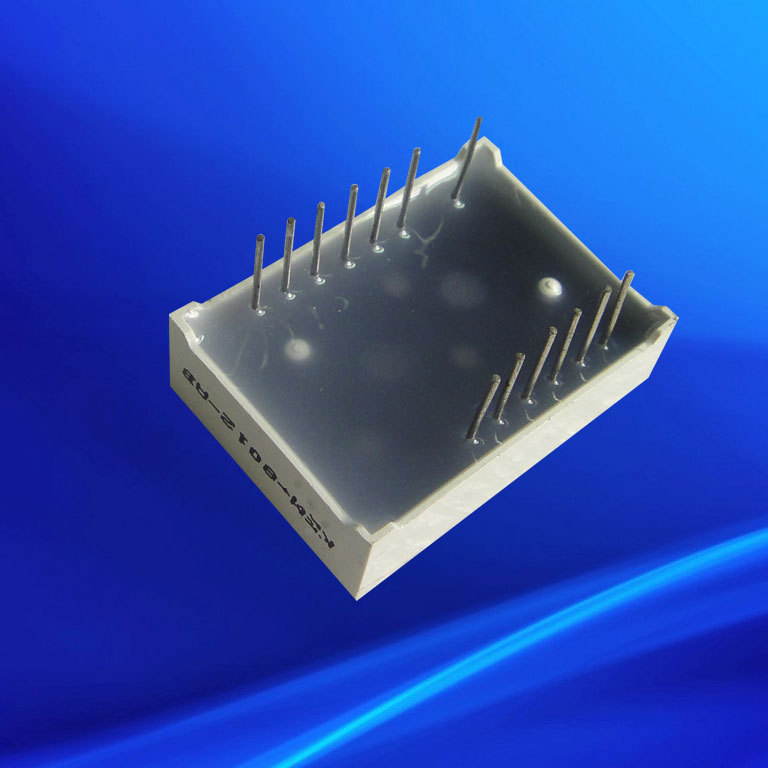

Product Pictures

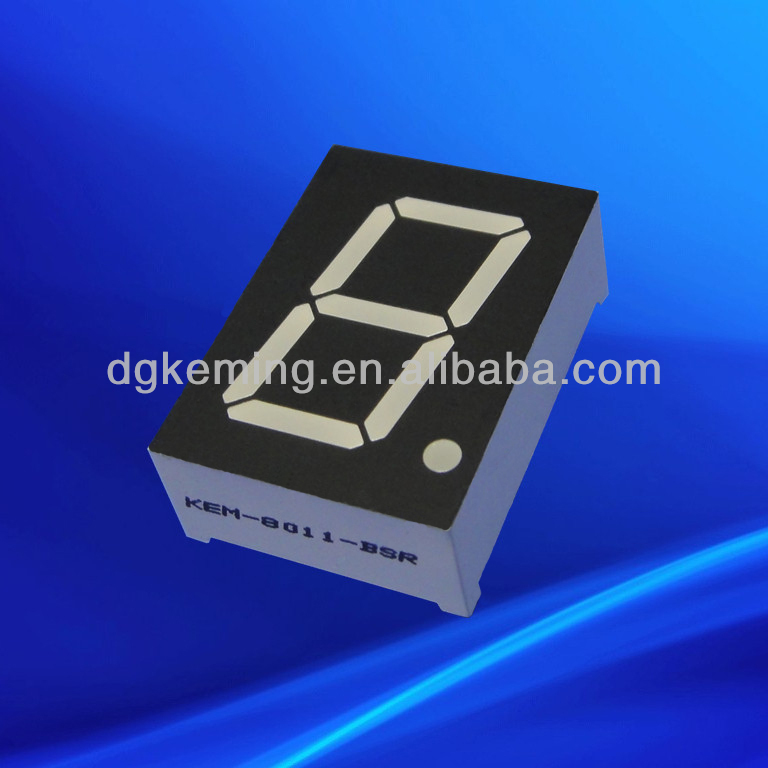

 8011-1

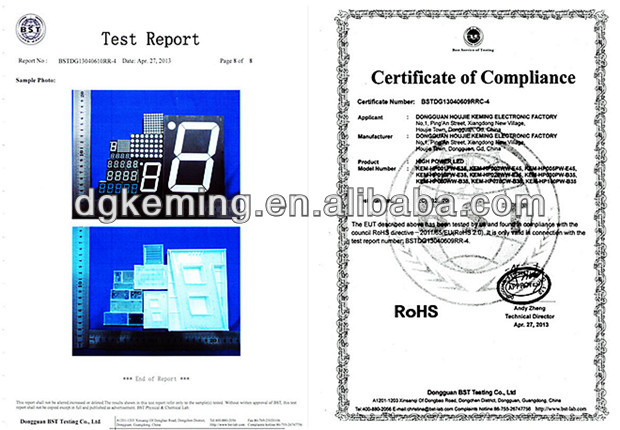

 Certifecate







led 7 segment display rgb

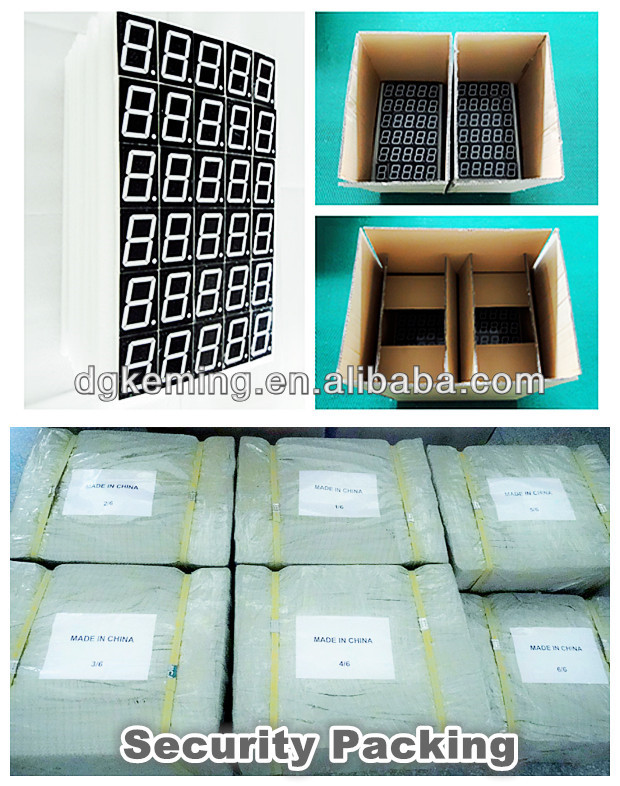

Packing detail:



led 7 segment display rgb

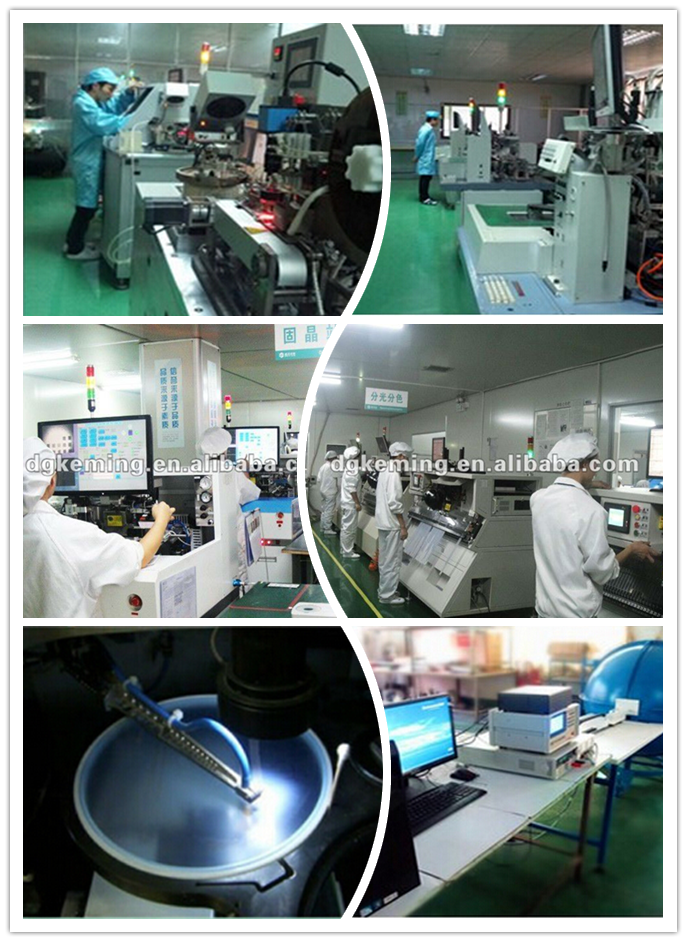

Our factory

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.
