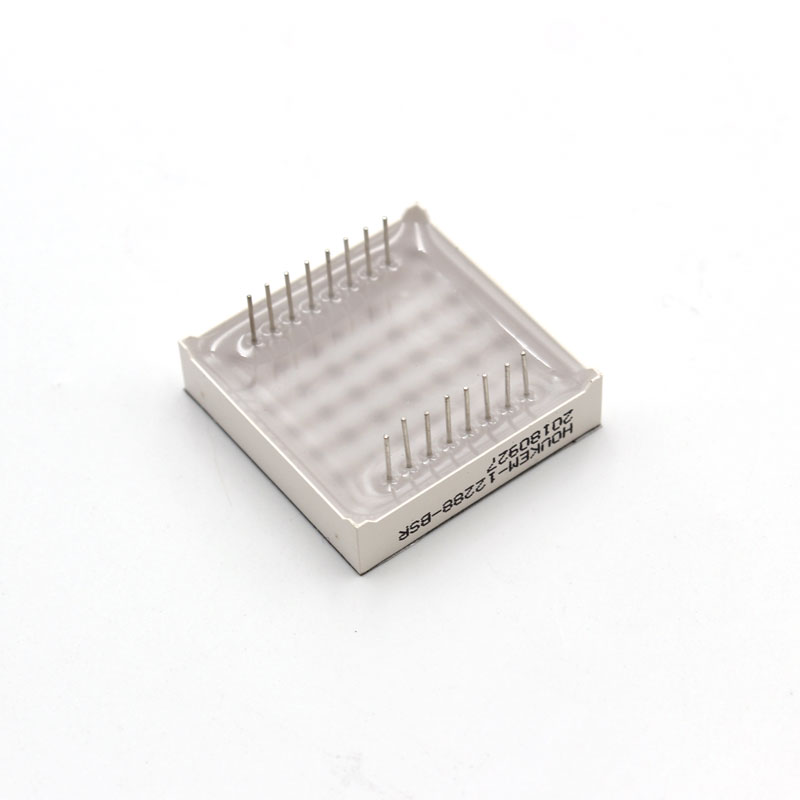

3mm 8x8 LED Matrix Display Module
3mm LED Matrix Display Overview

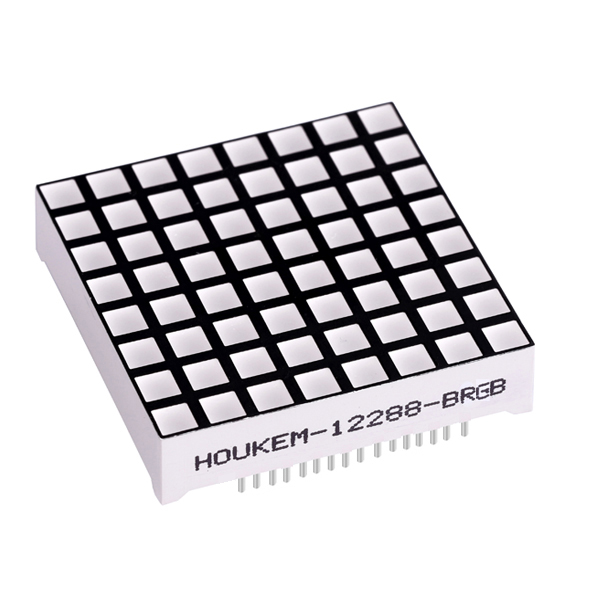

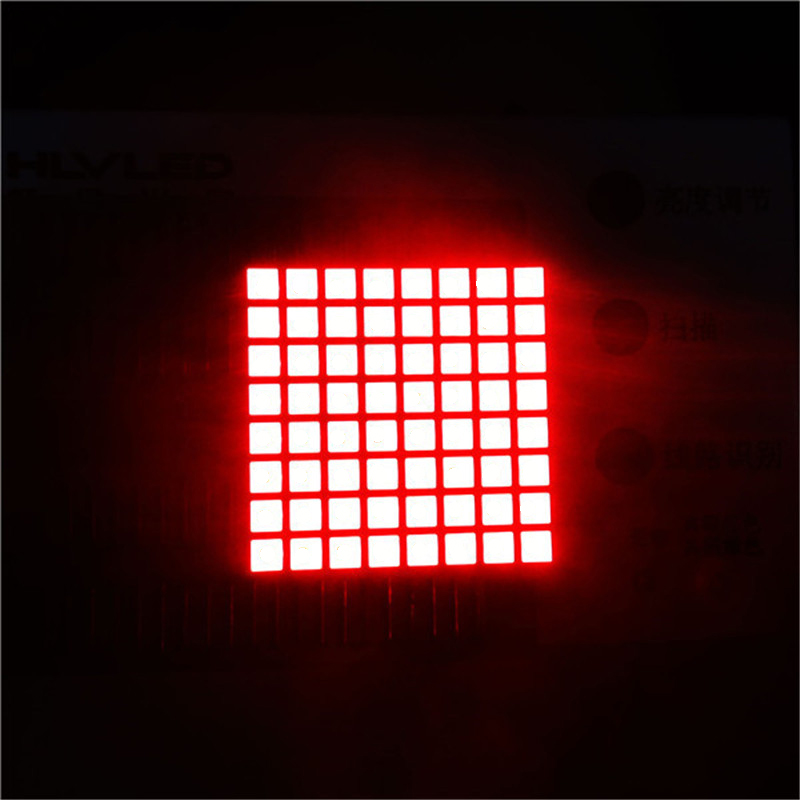

The3mm LED Matrix Display is a compact 8×8 LED module designed for professional electronic applications that require reliable visual indication, high brightness, and space-saving design. Manufactured by Houkem, this 3mm 8x8 LED Matrix Display features a 32×32mm panel size with uniform light output, low power consumption, and stable performance for industrial equipment, arcade machines, control panels, and OEM electronic products.
With an 8×8 dot matrix structure and multiple color options including red, green, yellow, orange, and blue, this compact LED matrix module provides flexible display solutions for embedded systems, digital indicators, and customized electronic devices.
As an experienced LED display manufacturer, Houkem provides factory-direct 3mm LED Matrix Display modules with OEM and ODM support, helping global customers develop reliable and customized LED display solutions.
Product Features of 3mm LED Matrix Display
Compact 8×8 LED Matrix Design
The 3mm LED Matrix Display adopts an 8×8 dot matrix structure with a compact 32×32mm module size, making it suitable for applications where installation space is limited.
Reliable Optical Performance
Key features include:
- 8×8 dot matrix with 3mm pixel size
- Uniform light emission
- Low current consumption
- Stable brightness performance
- Long service life up to 50,000 hours
- Common anode and common cathode options available
- CE and RoHS compliant
- 2-year warranty support
The compact structure and reliable performance make this small LED matrix module suitable for long-term operation in industrial and commercial electronic products.

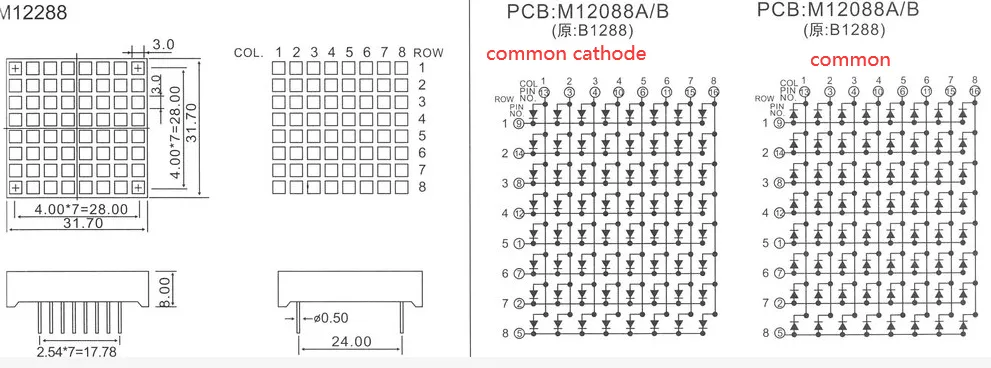

Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 3mm LED Matrix Display |
| Part Number | Houkem-12288-A/BSR |
| Model Number | Houkem-12288-BSR |
| Dot Array | 8 × 8 |
| Panel Size | 32 × 32mm |
| Pixel Size | 3mm |
| Pixel Pitch | 2.54mm |
| Surface Color | Black / Grey |
| Epoxy Color | Milky White / Clear |
| Emitting Color | Red |
| Available Colors | Red, Green, Yellow, Orange, Blue |
| Luminous Intensity | 80–100mcd/chip |
| Forward Voltage | 1.8–2.0V |
| Forward Current | 18mA |
| Polarity | Common Anode / Common Cathode |
| Life Span | 50,000 Hours |
| Certification | CE, RoHS |
| Warranty | 2 Years |

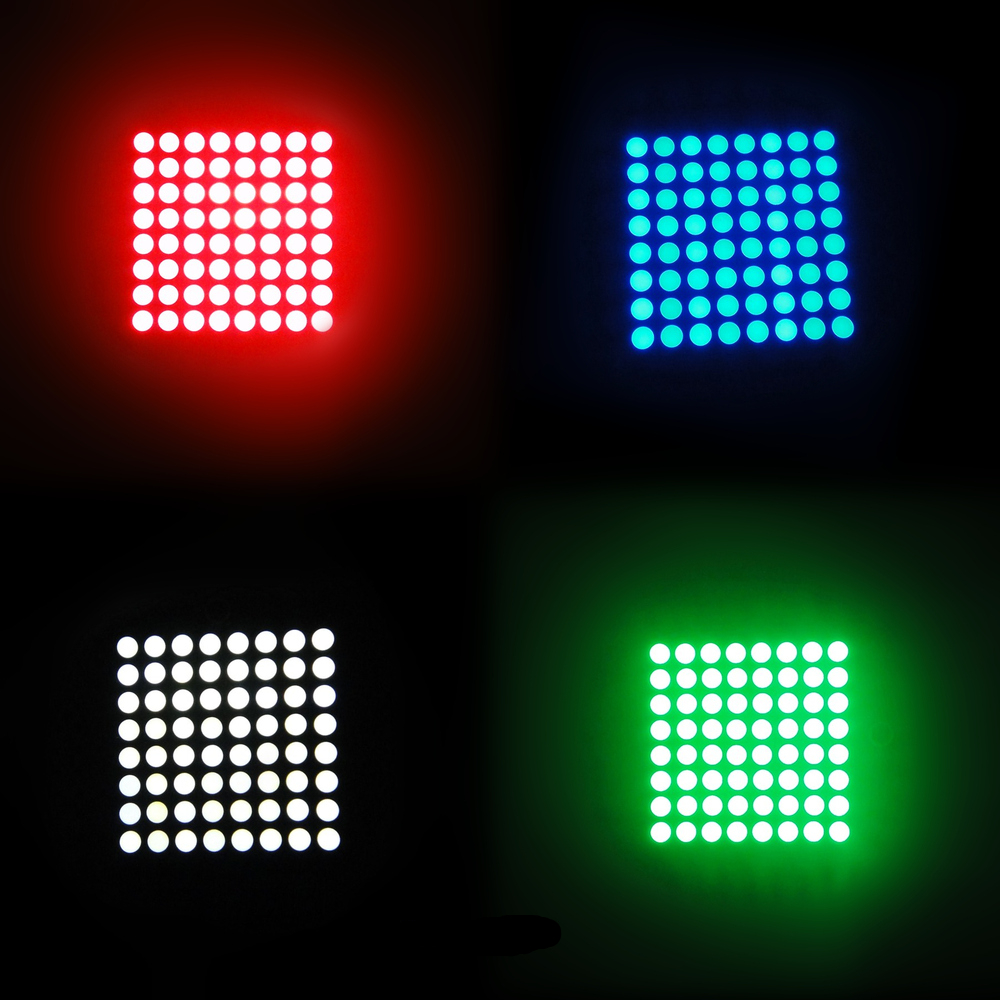

Available LED Color Options
Customized Color Selection
Houkem supplies different LED wavelength options to meet various LED Matrix Display application requirements. Customers can select different colors and brightness levels according to their electronic product designs.
| Color | Wavelength (nm) | Forward Voltage (V) | Forward Current (mA) | Luminous Intensity (mcd) |
|---|---|---|---|---|
| Super Red | 630–635 | 1.8–2.0 | 18 | 100–150 |
| High Red | 638–660 | 1.8–1.9 | 18 | 15–20 |
| Ultra Red | 620–625 | 2.0–2.1 | 18 | 200–300 |
| Super Green | 565–575 | 1.9–2.0 | 18 | 48–55 |
| Pure Green | 615–625 | 2.8–3.0 | 20 | 260–300 |
| White | — | 2.6–2.8 | 20 | 200–250 |
| Blue | 465–475 | 2.8–3.0 | 20 | 150–200 |
| Yellow | 580–600 | 1.9–2.0 | 18 | 70–80 |
| Amber | 600–605 | 1.9–2.0 | 18 | 100–110 |
For special wavelength requirements or customized LED configurations, Houkem provides professional engineering support.
Applications of 3mm LED Matrix Display
Compact LED Display Solutions for Multiple Industries
The3mm LED Matrix Display is widely used in applications requiring compact size and clear visual output.
Typical applications include:
- Industrial equipment LED displays
- Arcade game machine displays
- Digital clock displays
- Home appliance control panels
- Advertising and message displays
- Embedded electronic devices
- Control system indicators
- Custom OEM display products
The 8×8 LED matrix structure allows engineers to create simple characters, symbols, numbers, and information indicators while maintaining excellent reliability.
OEM Custom LED Matrix Display Manufacturing
Professional LED Display Supplier
Houkem provides customized 3mm LED Matrix Display solutions for global OEM customers, distributors, and electronic manufacturers.
Customization services include:
- LED color selection
- Common anode or common cathode configuration
- Pin arrangement customization
- Module size adjustment
- Brightness optimization
- Packaging customization
- Customer logo options
With more than 18 years of experience in LED product manufacturing and an ISO 9001 certified quality system, Houkem supports customers from prototype testing to mass production.

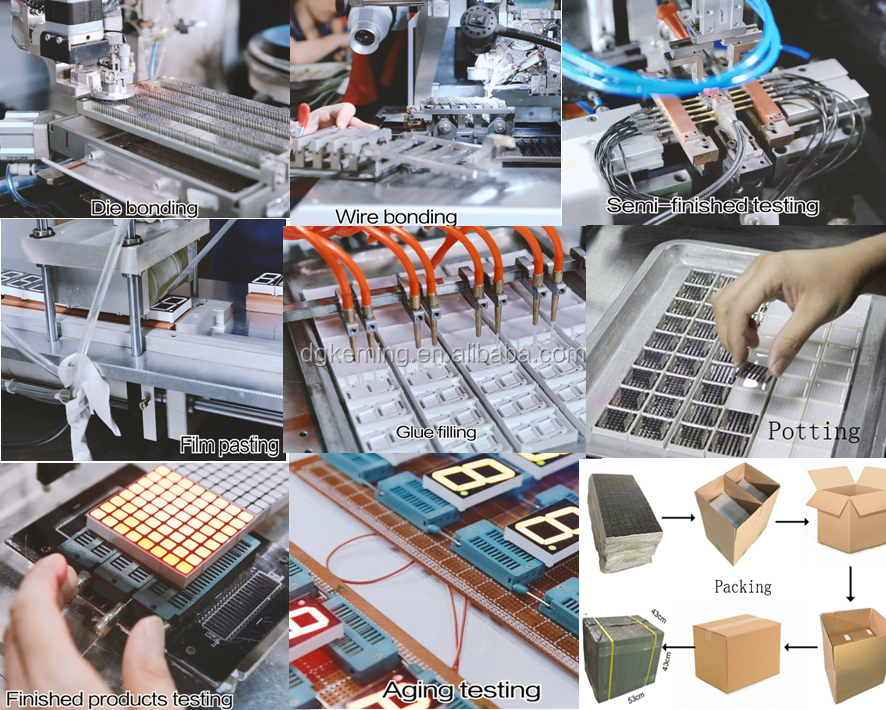

All products are tested before shipment to ensure consistent quality, electrical stability, and reliable performance.
Frequently Asked Questions
What is a 3mm LED Matrix Display used for?
A 3mm LED Matrix Display is mainly used for compact electronic displays, industrial indicators, arcade machines, and embedded control systems.
Can Houkem provide customized LED matrix modules?
Yes, Houkem supports OEM customization including size, color, pin configuration, brightness, and packaging requirements.
Is this 8×8 LED Matrix Display available in different colors?
Yes, multiple colors such as red, green, yellow, orange, and blue are available according to customer requirements.
Does Houkem accept sample orders before bulk production?
Yes, sample orders are available for product testing and quality verification before mass production.
What is the production lead time for LED matrix display orders?
Sample orders usually require 3–7 days, while mass production normally takes 20–30 days depending on quantity and customization needs.
Request a Quote for 3mm LED Matrix Display
Looking for a reliable 3mm LED Matrix Display manufacturer for your electronic project?
Contact Houkem today for product samples, technical consultation, OEM customization, and factory pricing. Our LED engineering team is ready to provide a suitable matrix display solution for your application.
