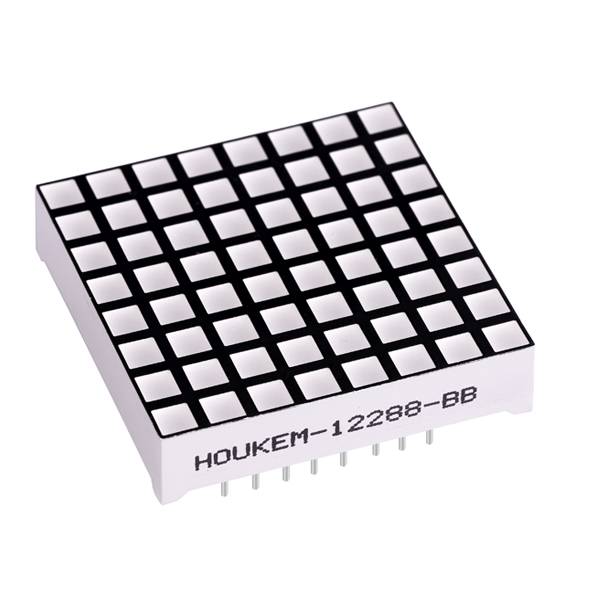

Common Anode Red LED Matrix Display Module
8x8 Square LED Dot Matrix Display Overview
HOUKEM-12288-BSR is a high-quality 8x8 LED Dot Matrix Display designed for professional electronic display applications, including elevator displays, industrial equipment, advertising signs, transportation displays, and information panels.
As an original LED display manufacturer, HOUKEM provides customized LED matrix solutions with stable performance, high brightness, low power consumption, and long service life. This square LED dot matrix display features a compact 32mm module size, 3mm LED dots, and common anode configuration, making it suitable for various embedded display systems.
The module supports OEM and custom manufacturing requirements, allowing customers to select different colors, polarity types, and specifications according to their project needs.
Product Specifications of 8x8 LED Matrix Display
The HOUKEM-12288-BSR 8x8 LED matrix display adopts a square structure with reliable LED chips and optimized optical design for uniform light output.
Key specifications:
| Parameter | Specification |
|---|---|
| Model Number | HOUKEM-12288-BSR |
| Display Type | 8x8 Square LED Dot Matrix Display |
| LED Dot Size | 3mm |
| Module Dimension | 31.7 × 31.7 × 8mm |
| Emitting Color | Super Red |
| Polarity | Common Anode |
| Luminous Intensity | 100-150mcd |
| Operating Temperature | -35℃ ~ +50℃ |
| Forward Voltage | 1.8-2V |
| Warranty | 2 Years |

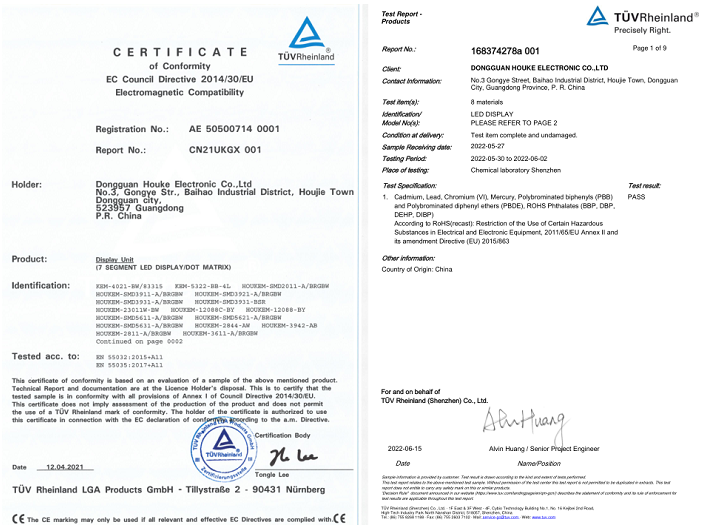

| Certification | CE / ROHS / ISO9001 / REACH |
The display module is available in different configurations, including common cathode (CC) and common anode (CA) versions. Customers can also request dual-color and RGB LED matrix solutions for advanced visual display applications.
Features of Square LED Dot Matrix Display
High Brightness and Uniform Light Output
Thesquare LED dot matrix display uses high-quality LED chips to provide clear and consistent brightness. The optimized internal structure ensures uniform illumination across all 64 LED pixels.
This makes it ideal for applications where clear visibility and reliable operation are required, including elevator indicators, industrial control panels, and public information displays.
Low Power Consumption and Long Lifespan
Designed for continuous operation, the 8x8 LED matrix module offers efficient power consumption while maintaining stable brightness performance.
With proper installation and operating conditions, the LED display provides long-term reliability for commercial and industrial equipment.
Flexible Customization Options
HOUKEM supports OEM and ODM services for customers requiring customized LED display solutions.
Available customization options include:
- Different emitting colors such as super red, ultra red, green, yellow, blue, white, amber, and RGB
- Common anode or common cathode polarity
- Customized dimensions and electrical specifications
- Logo printing and packaging customization
Applications of 8x8 LED Dot Matrix Display
The HOUKEM 8x8 LED Dot Matrix Display is widely used in various electronic display systems.
Typical applications include:
Elevator Display Systems
The compact size and stable performance make this LED matrix module suitable for elevator floor indicators, direction displays, and information panels.
Industrial Equipment Displays
The module can be integrated into industrial machines, control systems, and automation equipment requiring simple and reliable visual indicators.
Advertising and Information Displays
The bright LED output allows the display to be used in advertising signs, exhibition equipment, shopping malls, and public information systems.
Transportation and Embedded Electronics
The module can also be applied in bus signs, digital indicators, and other embedded electronic products.
Why Choose HOUKEM LED Matrix Display Manufacturer
Established in 2003, HOUKEM specializes in manufacturing LED display products, including LED dot matrix displays, 7 segment LED displays, SMD LED products, UV LED, and infrared LED solutions.
With professional production capability, ISO9001 quality management system, and strict quality inspection processes, HOUKEM provides reliable LED display components for global customers.
Each product is tested before shipment to ensure stable electrical performance and consistent quality. We support sample orders, mass production, OEM customization, and worldwide shipping services.
Contact HOUKEM today for a customized quotation and professional LED matrix display solution for your project.

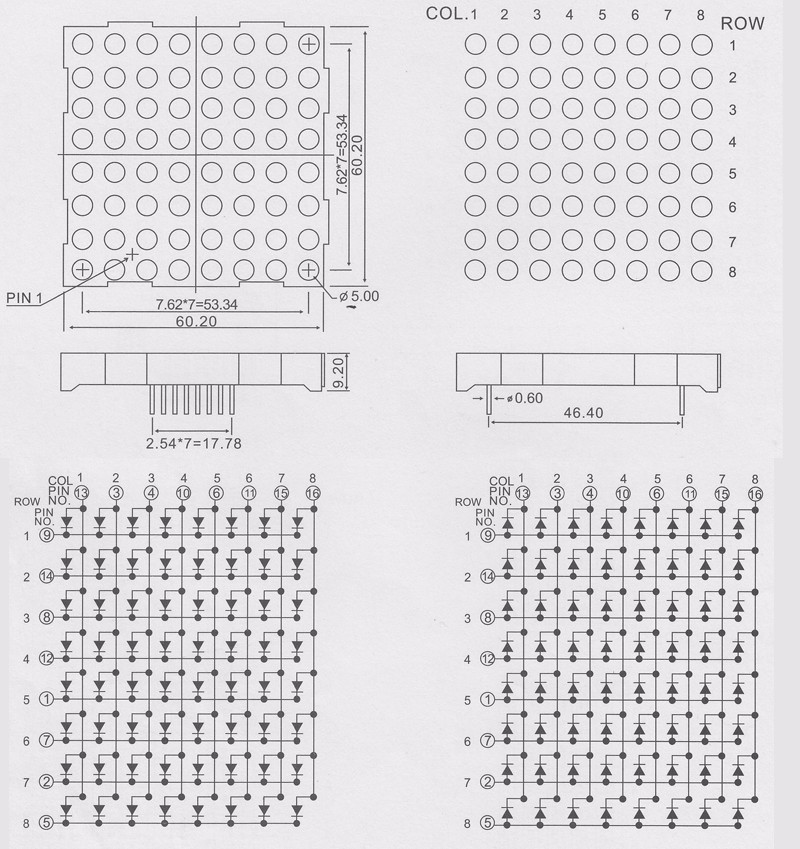

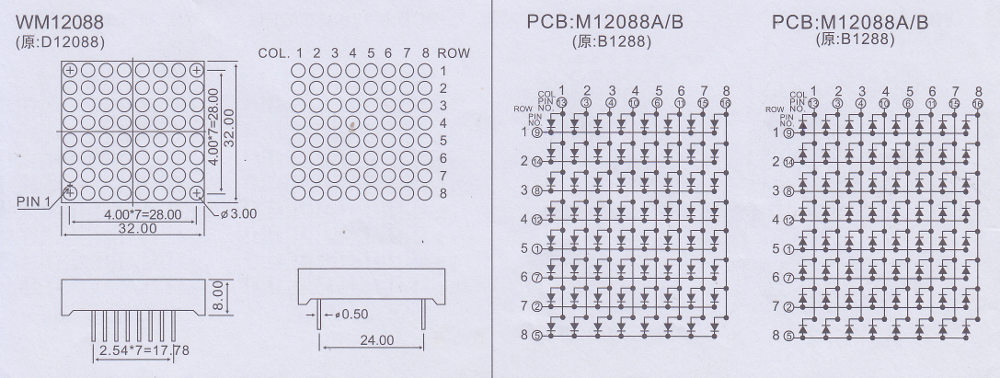

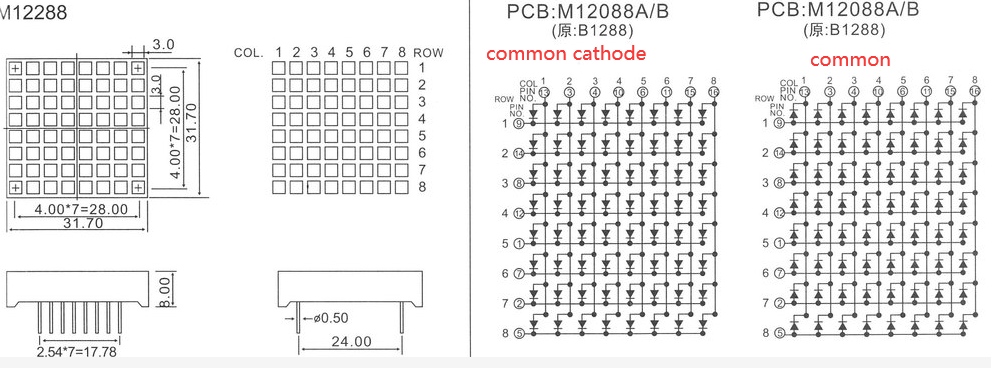

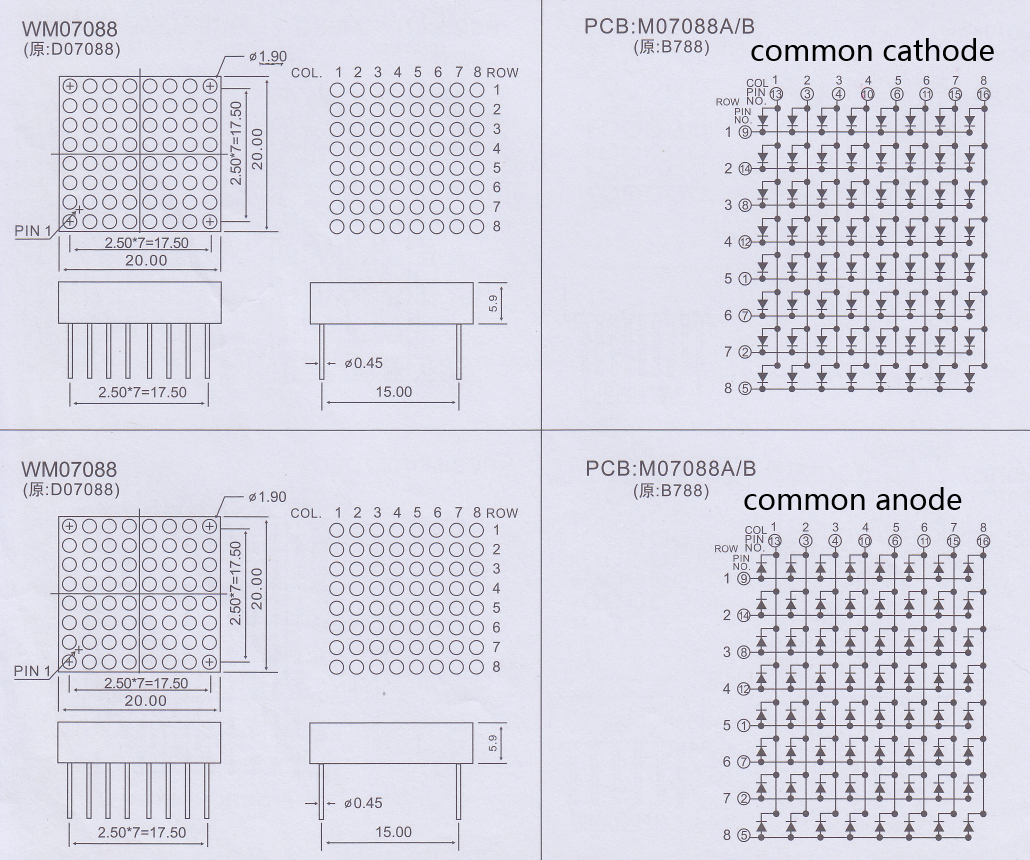

Package dimension & Internal circuit diagram
