SMD LED 5050 Tri-Color(Red-Blue-Green) 5050 Full Color LED Chip smd type

Price:
USD 30.00-50.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Month
Country of Origin:
Shenzhen/ Guangzhou
Quantity:
  • Type:High Power LED
  • Chip Material:AlGaInP
  • Power:1-3W
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Emitting Color:UV
  • Luminous Flux(lm):0.2-1.5lm
  • Viewing Angle(°):140 Degree
  • Color Rendering Index(Ra):80
  • Color Temperature:standard
  • Operating Temperature(℃):-40 - 100
  • Storage Temperature(℃):-40 - 100
  • Brand Name:KEM




1





  SMD type LED 5050 rgb led chip

Product Description

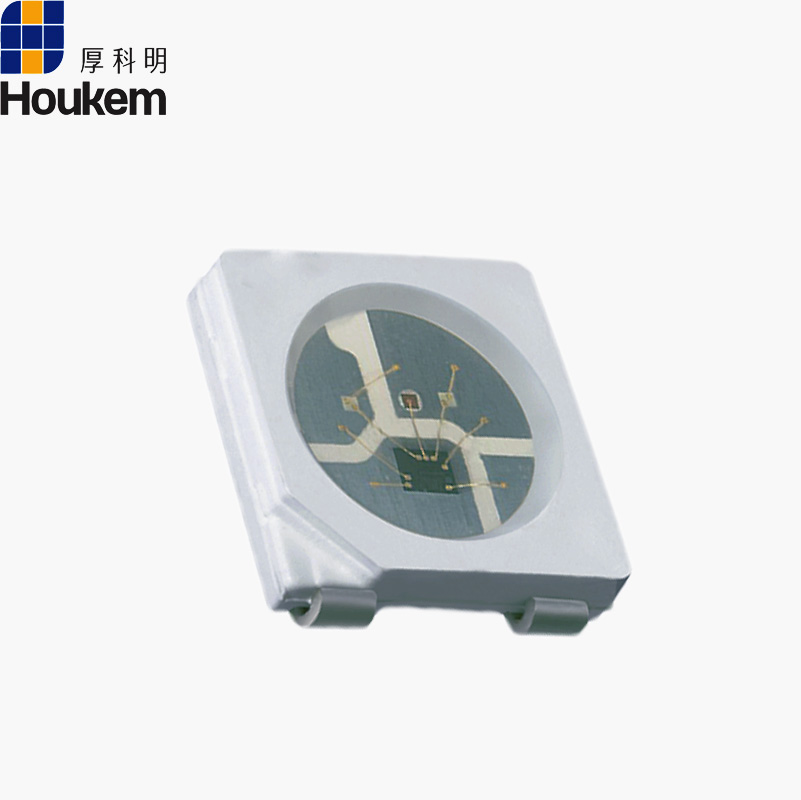

 5050 rgb.jpg

 0.2w 265nm uv led











Electrical Characteristics at 20mA,Ta=25°C





Item5050 SMD Package rgb led chip
Power0.2w
Part noKEM-rgb-5050
Colorrgb
Chip Size5050 SMD type
Radiation Flux0.5-3.0mW
Wavelength

R:620-625nm G:520-525nm B: 460-465nm

Working Current20-30mA
Forward Voltage5-7v
CertificationCE, RoHS
Wire Material
Pure Gold

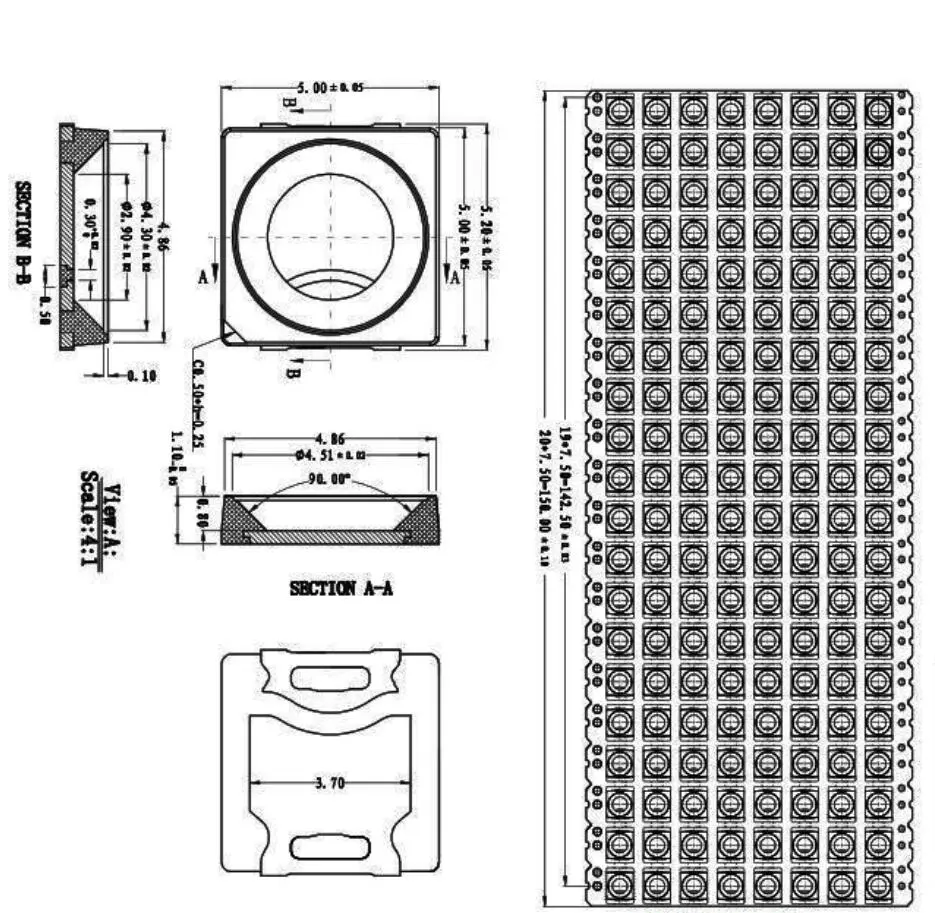

Outline Drawing



d5050 1w.jpg





Notes:

1. All dimensions area in mm tolerance is ±0.25mm unless otherwise noted.

2. An epoxy meniscus may extend about 1.2mm down the leads.

3. Burr around bottom of epoxy may be 0.5mm max.















Related Products

 5050WWW5050-RGB5050-Bw5050BW2

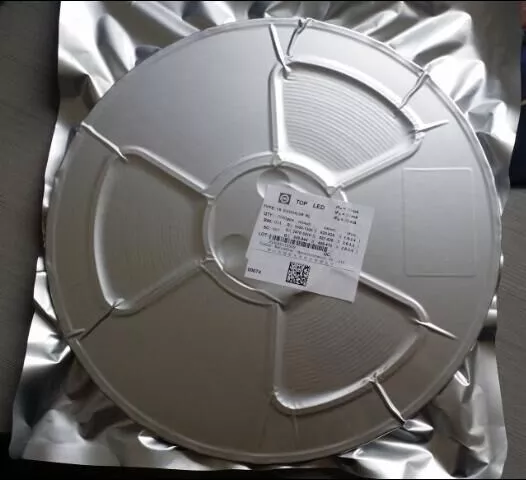

Packing





package 5050.png

 express-611



Certificates

Rohs 1w 660nm red high power led diode with cree chip
