mini 0.2 inch led 7 segment smd display
- Place of Origin:Guangdong, China
- Model Number:KEM-SMT2011-BY
- Brand Name:KEM
- Display Function:ANIMATION
- Pixels:20mm
- Usage:Indoor
- Digit height:0.2"
- Digit quantity:single / 1 digit
- Full size:10*6.9*3mm
- Emitting color:super red
- Wavelength:640nm
- Luminous intensity:100mcd/chip
- Segment color:white diffused
- Surface color:black
- Input voltage:2.1-2.5V
- Tube Chip Color:Yellow
- Screen Dimension:10*6.9mm

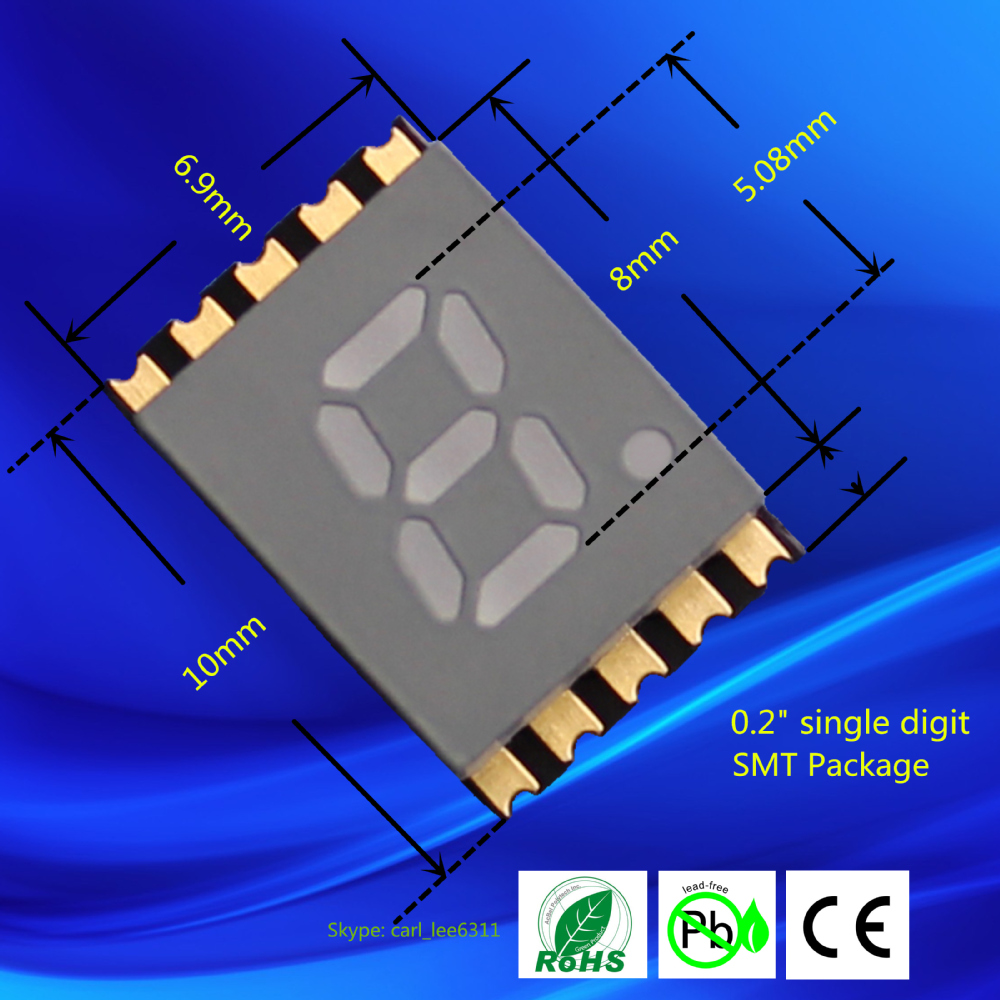

Smallest size 7 segment mini 0.2 inch led 7 segment smd display

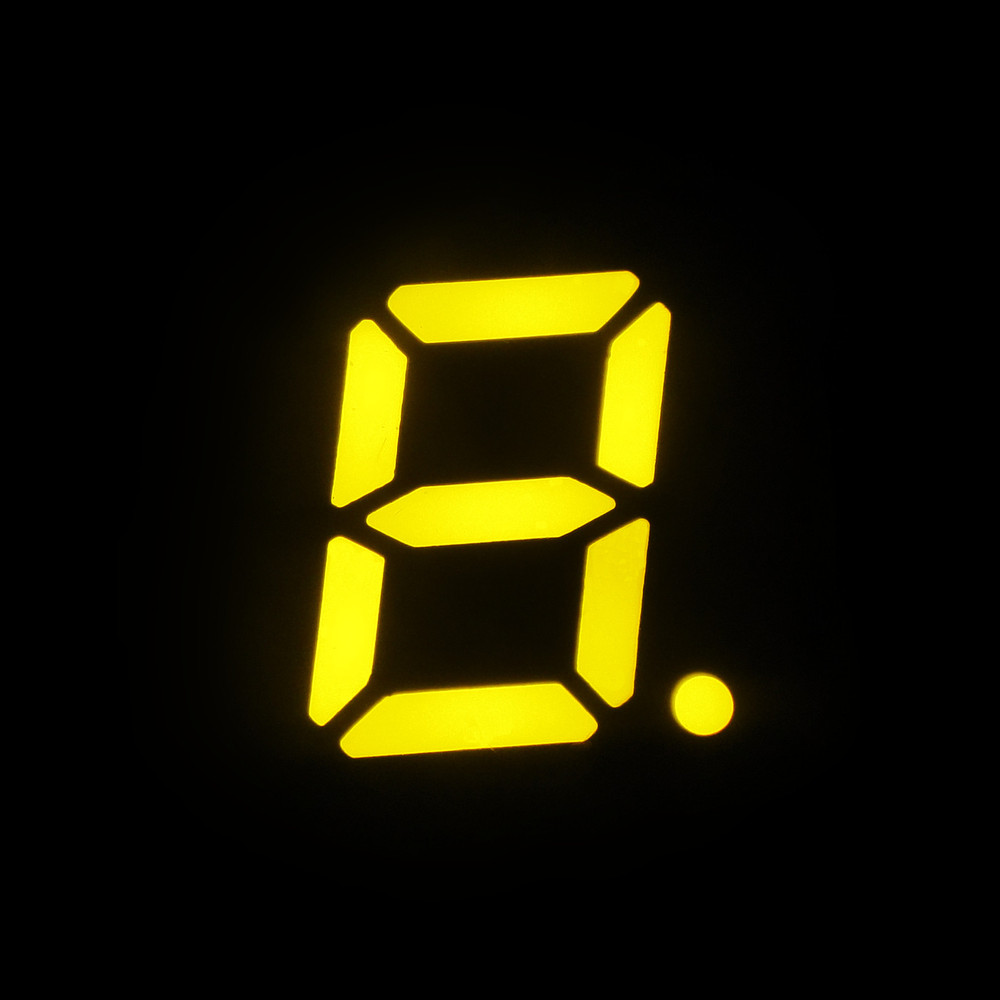

Light on
All of colors are available
Light off
Selection guide
Model | KEM-SMD2011-BY |
Digit height | 0.2 inch |
Digit number | Single |
Segment color | White |
Face color | Black |
Emitting color | Ultra yellow |
Dominant wavelength | 590-600nm |
Luminous intensity | 60mcd/chip |
Forward voltage | 2.1 v/ chip |
Reverse voltage | 5 v |
Recommend used current | 20mA |
Operating temperature range | 25~75 |

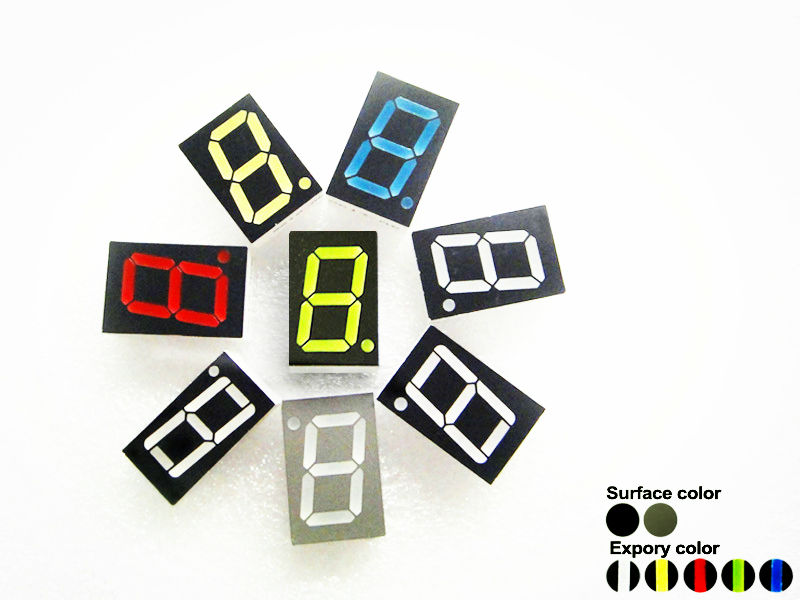

Choice for Surface color & Epoxy color

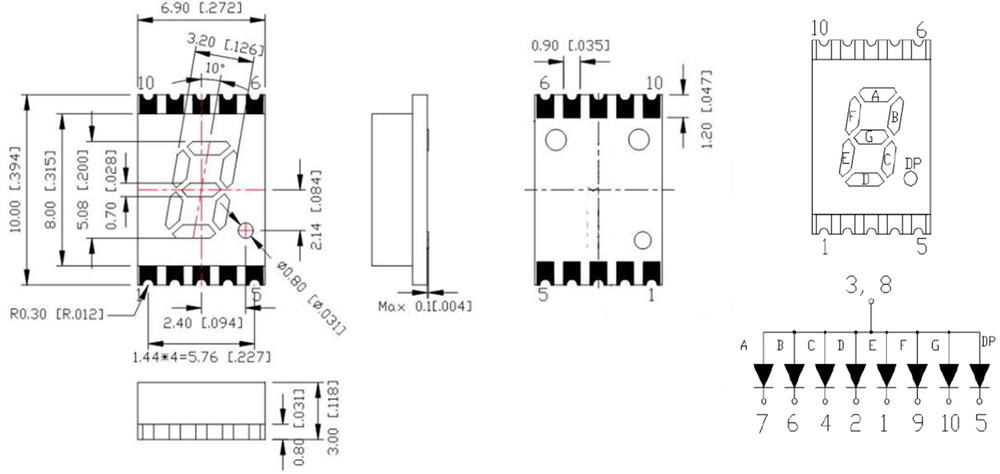

Package dimension & Internal circuit diagram
Quantity lead time
1-10Kpcs 3-7 days
10.1K-50Kpcs 7-15 days
All delivery way is available.
Under proper use, all the displays made of Epistar led chips are with
three yearswarranty.
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey and red
5. Lens color: milky white or same with emitting color
Notice
In order to ensure you receive your order with low tax upon import, we will declare with
a lower value according to your inform.
Factory & main process pictures:
With over 11 years experience in this field, we do
believe we can become your reliable supplier!
