4 Digit 0.2 Inch Red SMD 7 Segment LED Display
0.2 Inch 4 Digit 7 Segment Display
The HOUKEM-2041SMD-BR is a compact 0.2 inch 4 digit 7 segment display designed for electronic equipment requiring clear numeric information in limited PCB space. This red SMD LED display features a 5.08 mm digit height and a compact 28.5 × 10 × 3 mm package, making it suitable for home appliances, clocks, counters, industrial equipment, and other OEM applications.
With its SMD package and 4-digit configuration, the display helps equipment manufacturers integrate numeric indicators into space-constrained product designs. HOUKEM supports OEM and custom LED display requirements for professional B2B applications.
Key Specifications of the 0.2 Inch 4 Digit LED Display
| Specification | Details |
|---|---|
| Part No. | HOUKEM-2041SMD-BR |
| Product Name | 0.2 inch 4 digit SMD 7 segment LED display |

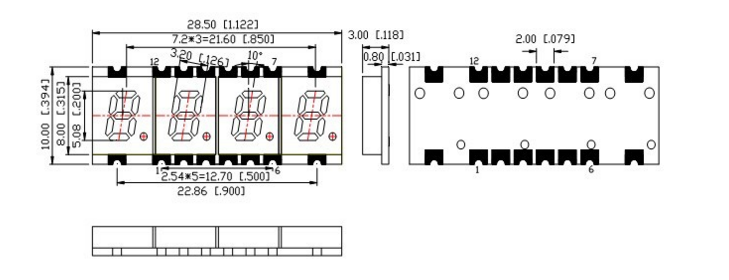

| Dimension | 28.5 × 10 × 3 mm |
| Digit Height | 5.08 mm / 0.2 inch |
| Surface Color | Grey |
| Epoxy Color | Milky White |
| Emitting Color | Red |
| Luminous Intensity | 50 mcd/chip |

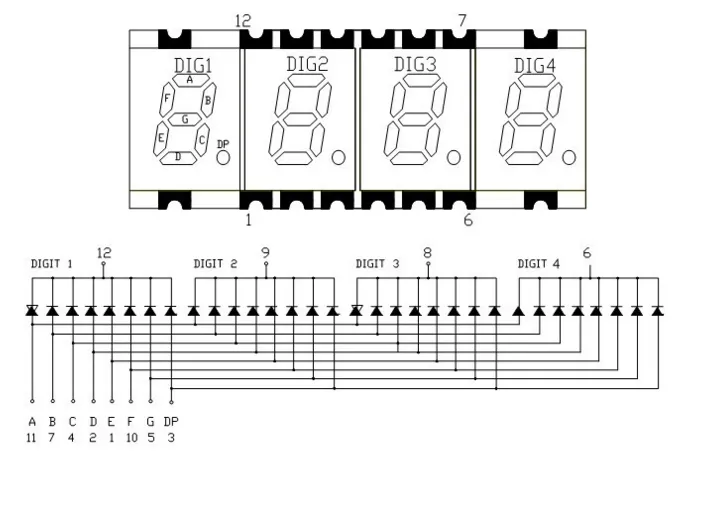

| Polarity | Common Cathode / Anode |
| Forward Voltage | 1.8–2.4 V |
| Operating Temperature | -35 to +50°C |
| Type | SMD LED |
| Warranty | 2 years |
| OEM | Yes |
| Custom Made | Yes |
| Certification | CE, RoHS |
| Place of Origin | Guangdong, China |
| Supplier Type | Original Manufacturer, ODM, OEM |
The compact 5.08 mm digit height provides a practical solution when a standard numeric display is required but installation space is limited. The 28.5 × 10 × 3 mm package is designed for compact electronic assemblies and PCB-based equipment.
Applications for Compact 4 Digit SMD Displays
Thisred 4 digit 7 segment display is intended for applications that require simple and highly visible numeric information. Typical applications include:
Industrial equipment
Digital clocks and timers
Home appliance control panels
Electronic counters
Measuring and control equipment
Other compact electronic devices
The 7 segment format is suitable for displaying numbers and commonly used numeric parameters, while the SMD construction helps manufacturers save installation space compared with larger through-hole display packages.

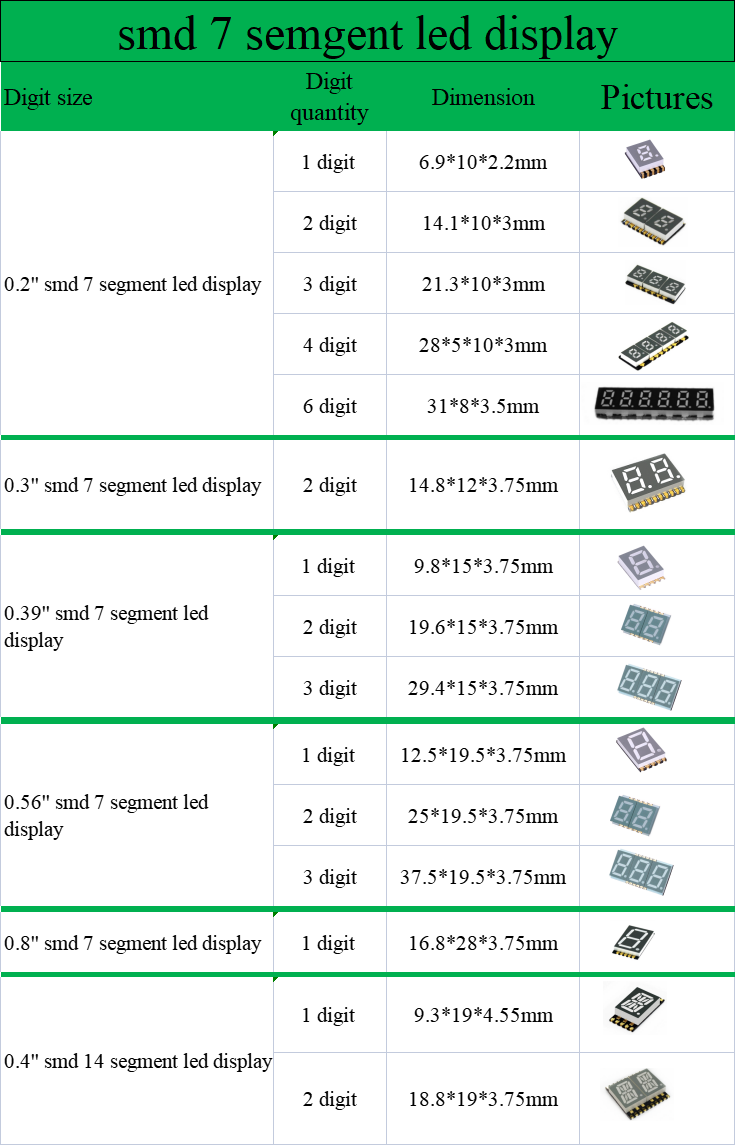

Related 7 Segment LED Display Sizes
HOUKEM provides different digit configurations and display sizes for OEM and electronic equipment projects.
| 7 Segment LED Display | Available Sizes |
|---|---|
| 1 digit | 0.28"/0.3"/0.31"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.6"/0.8"/1"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/9"/10"/12"/16"/20" |
| 2 digit | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5" |
| 3 digit | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" |
| 4 digit | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" |
| 5 digit | 0.28"/0.36"/0.39"/0.56" |
| 6 digit | 0.3"/0.36" |
HOUKEM also provides 14 and 16 segment LED displays in selected digit configurations for applications requiring alphanumeric characters.
OEM and Custom 7 Segment LED Display Manufacturing
HOUKEM is an LED display manufacturer established in 2003, supplying 7 segment LED/SMD displays, alphanumeric displays, dot matrix LED displays, bar graph arrays, and other LED components. The company supports OEM and ODM projects and provides customized solutions according to customer requirements.
For B2B projects, customers can provide the required digit number, digit height, display dimensions, emitting color, polarity, operating conditions, and estimated quantity. HOUKEM can then evaluate the specification and recommend a suitable display configuration.
Standard sample orders are available for product evaluation, with sample lead times of approximately 3–7 working days and mass production generally requiring 1–3 weeks, depending on the order requirements.
FAQ
Can I order a sample before placing a bulk order?
Yes, HOUKEM accepts standard sample orders, allowing engineers to verify mechanical and electrical compatibility before production.
Can this 4 digit display be customized for OEM projects?
Yes, HOUKEM supports OEM and custom-made LED displays based on required dimensions, digit configuration, color, and other technical specifications.
What information should I provide for a custom LED display inquiry?
Provide the required digit height, digit number, dimensions, emitting color, polarity, operating conditions, application, and estimated order quantity for technical evaluation.
How quickly can HOUKEM provide samples and mass production?
Standard samples normally require 3–7 working days, while mass production generally takes 1–3 weeks depending on the project requirements.
What quality and compliance documents are available?
The product is listed with CE and RoHS certification, and HOUKEM can provide relevant product documentation for B2B sourcing and project evaluation.
Request a 0.2 Inch 4 Digit 7 Segment Display Quote
If you are sourcing a 0.2 inch 4 digit 7 segment display for industrial equipment, home appliances, clocks, counters, or other electronic products, contact HOUKEM with your required specifications and estimated quantity.
Our team can review your application, confirm technical requirements, provide samples for evaluation, and support OEM or customized LED display projects.

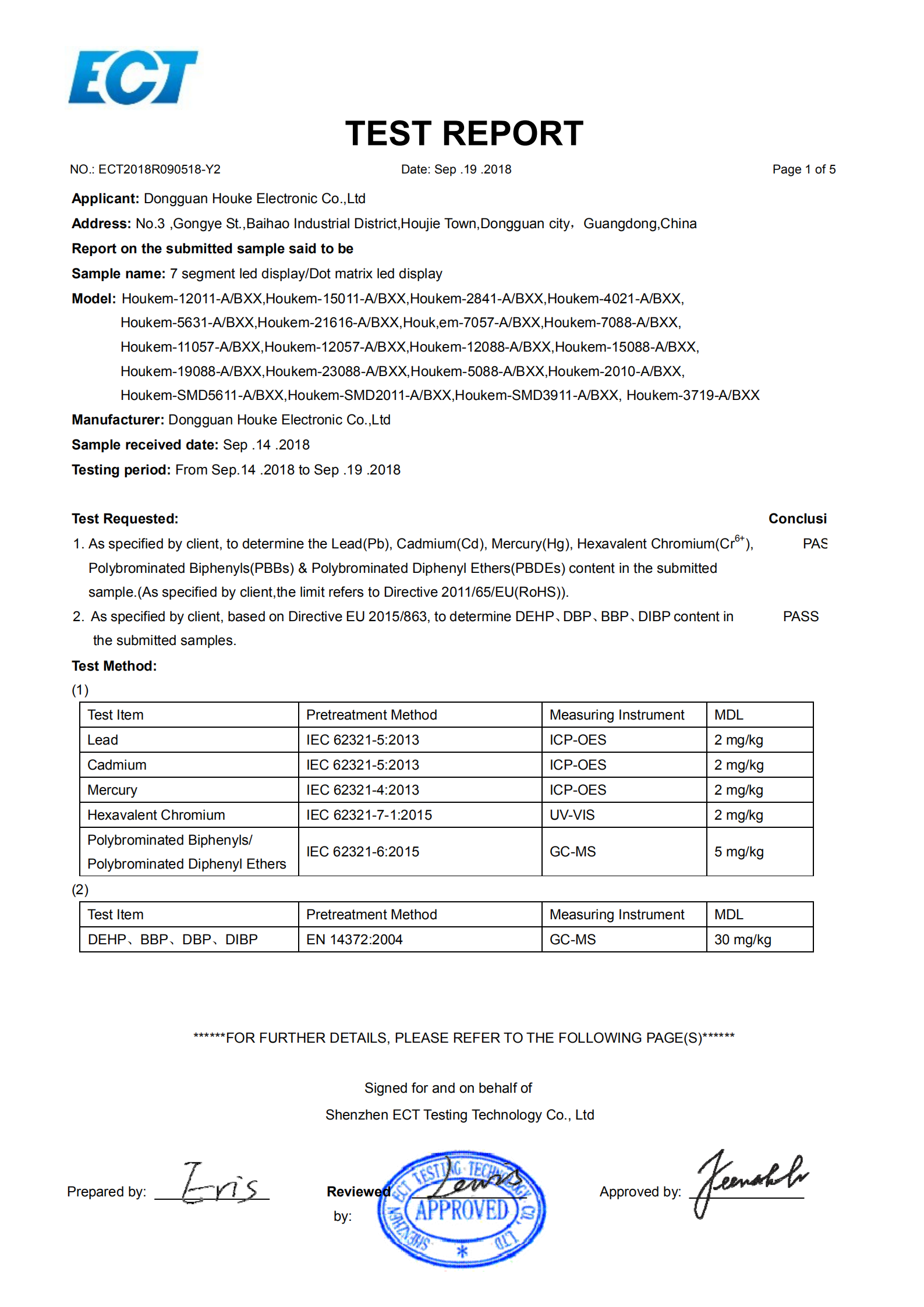

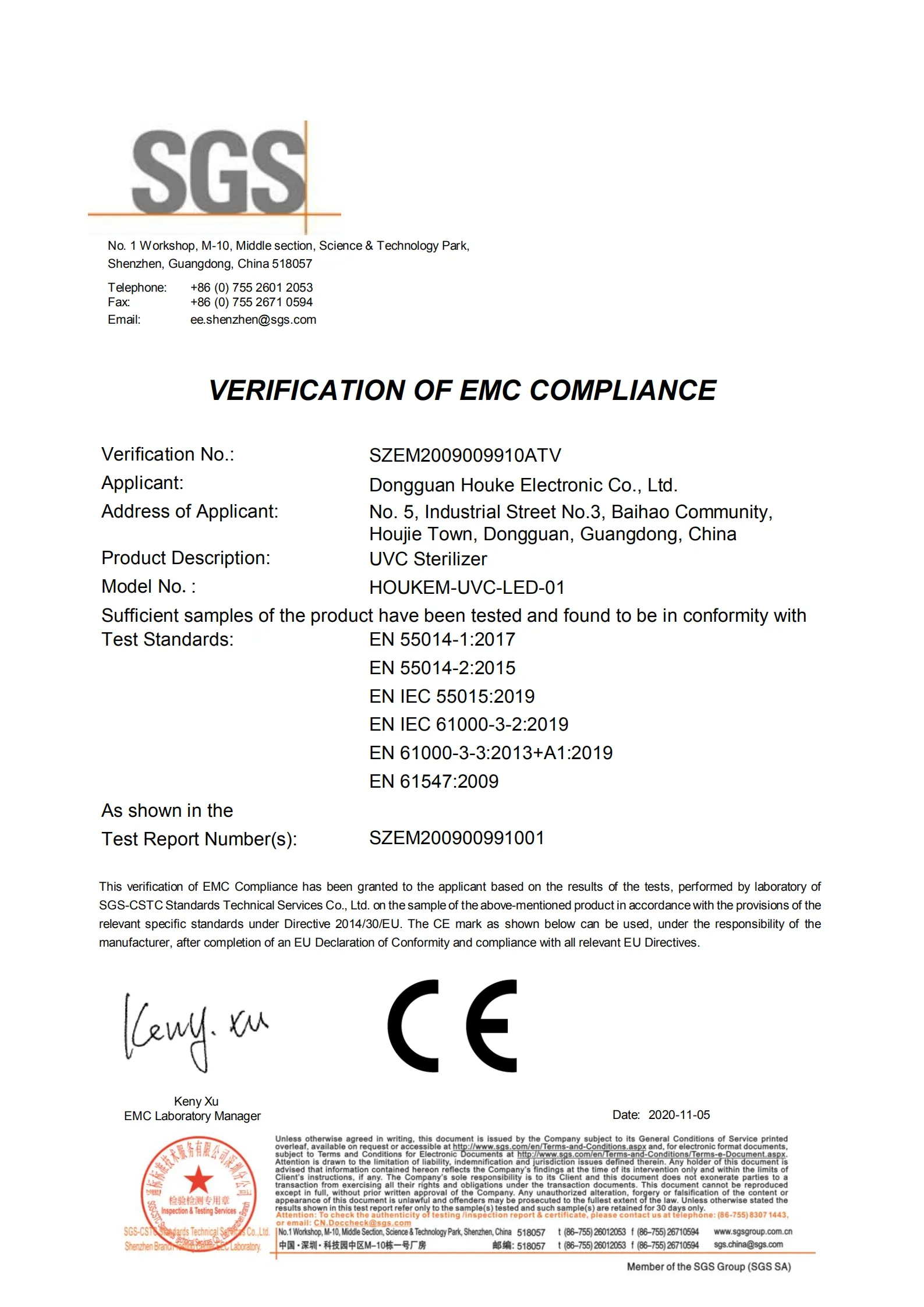

Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
