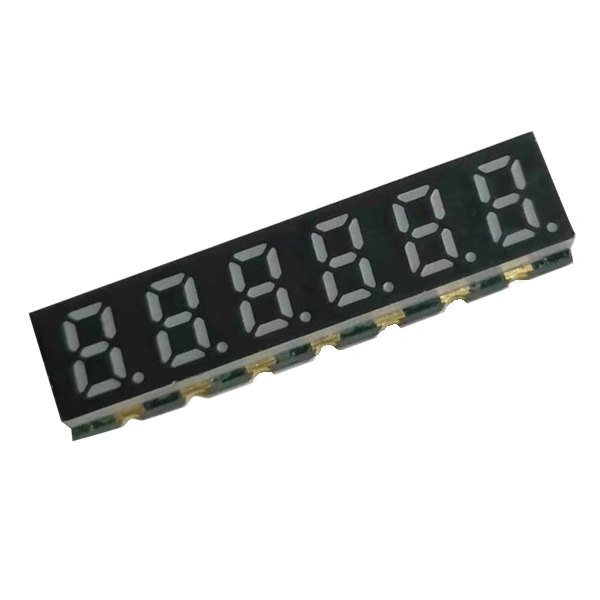

HOUKEM 0.2 Inch 6 Digit 7 Segment Display
6 Digit 7 Segment Display for Compact Electronic Equipment
The HOUKEM-2011-BW is a compact 6 Digit 7 Segment Display designed for electronic equipment that requires clear numeric indication within limited installation space. With a 0.2-inch digit height, 7mm digits, and a 10 × 28.5 × 3.8mm package, this SMD LED display is suitable for clocks, weighing scales, counters, price signs, and other professional electronic applications.
The display uses an AlGaInP chip and is available in white, red, or blue. Common anode and common cathode configurations are supported, allowing engineers to select the electrical configuration required for their equipment design.
6 Digit 7 Segment Display Specifications
| Specification | Details |
|---|---|
| Model | Houkem-2011-BW |
| Product Name | LED 7 Segment SMD |

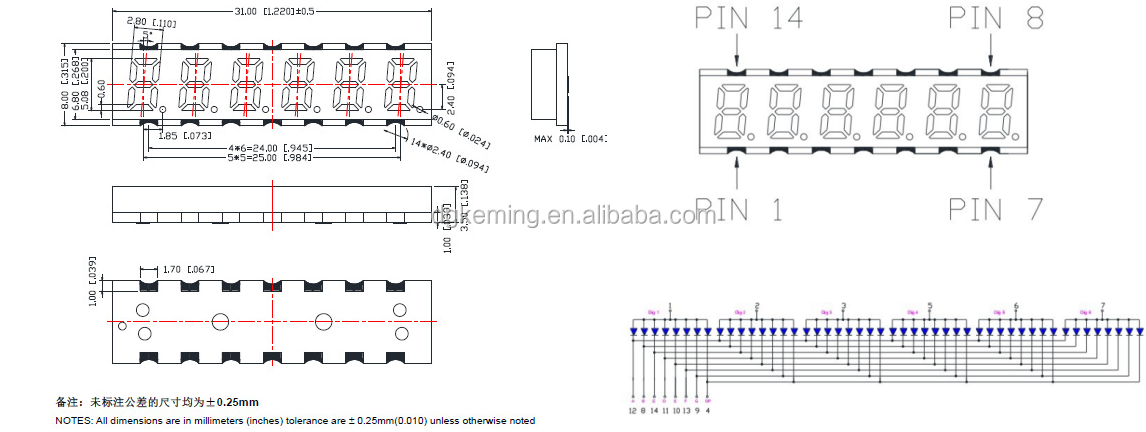

| Digit Height | 7mm / 0.2 inch |
| Digit Number | 1 / 2 / 3 / 4 / 6 digit |

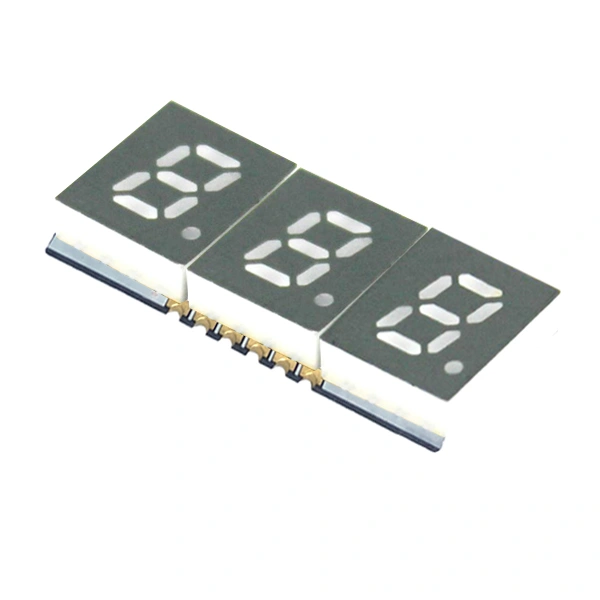

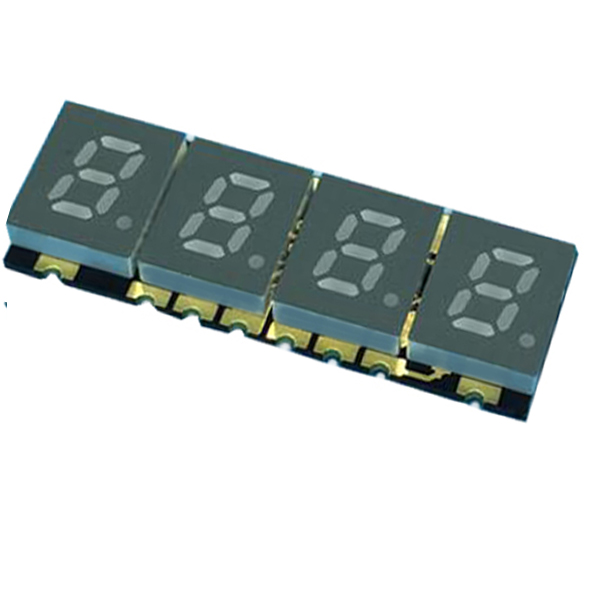

| Emitting Color | White / Red / Blue |
| Face Color | Gray |

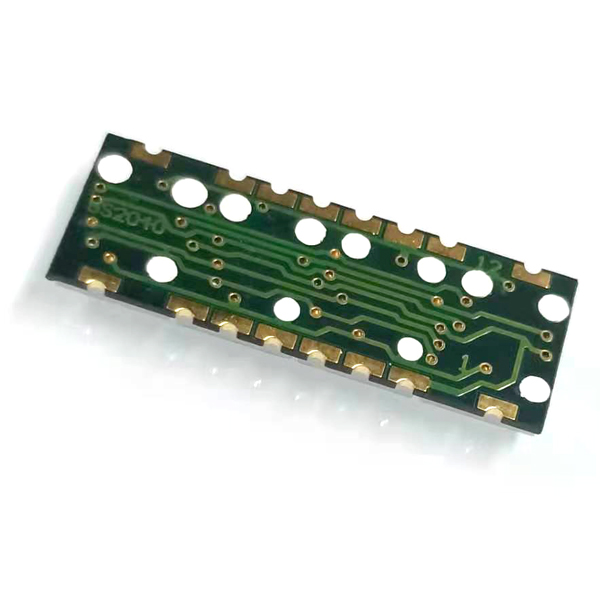

| Polarity | Common Anode / Common Cathode |

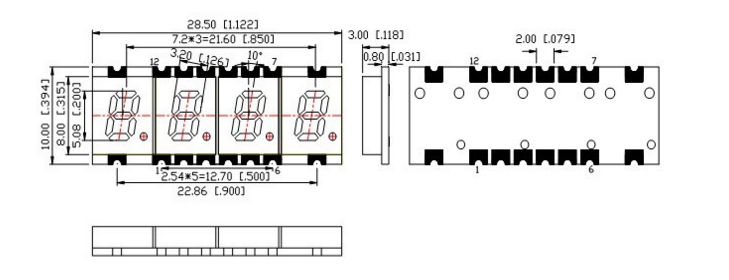

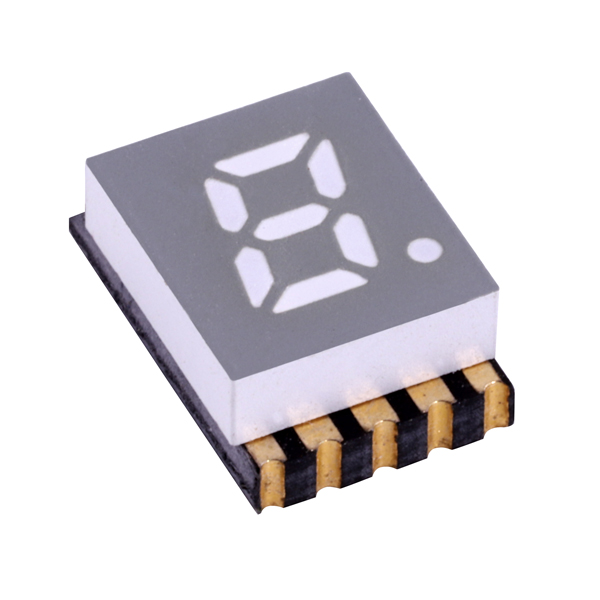

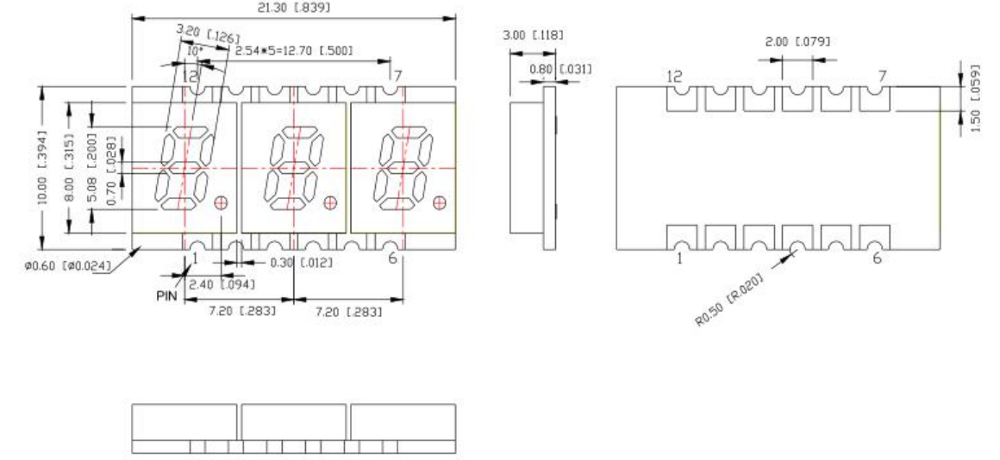

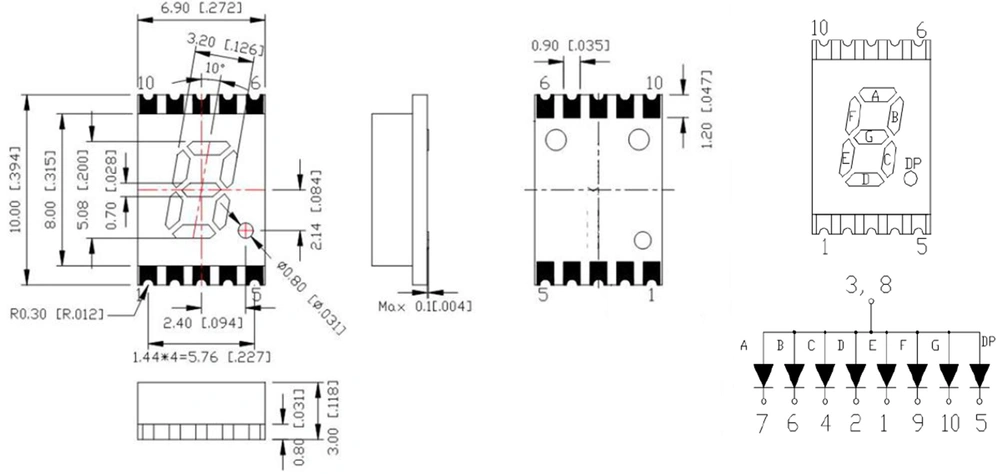

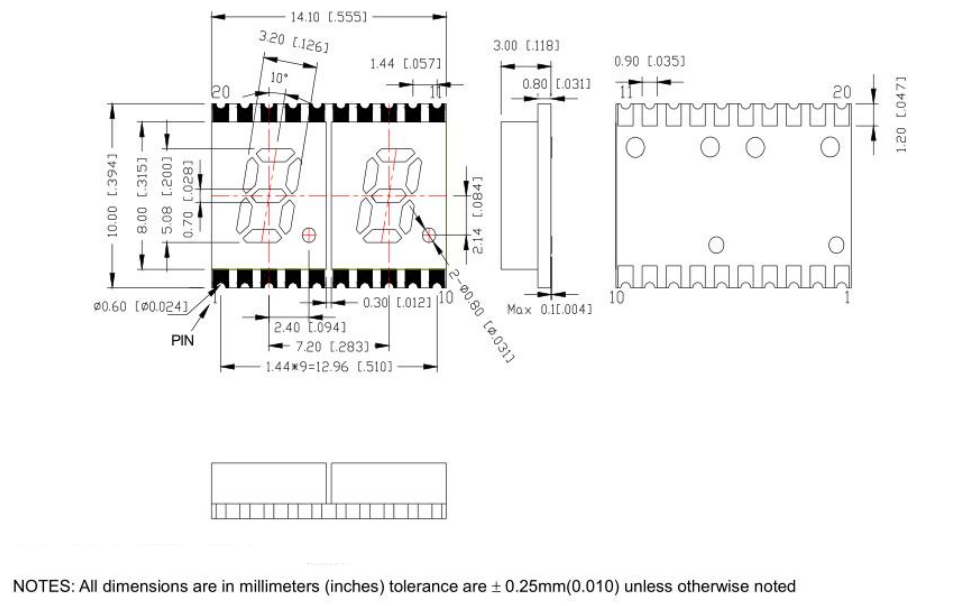

| Dimension | 10 × 28.5 × 3.8mm |

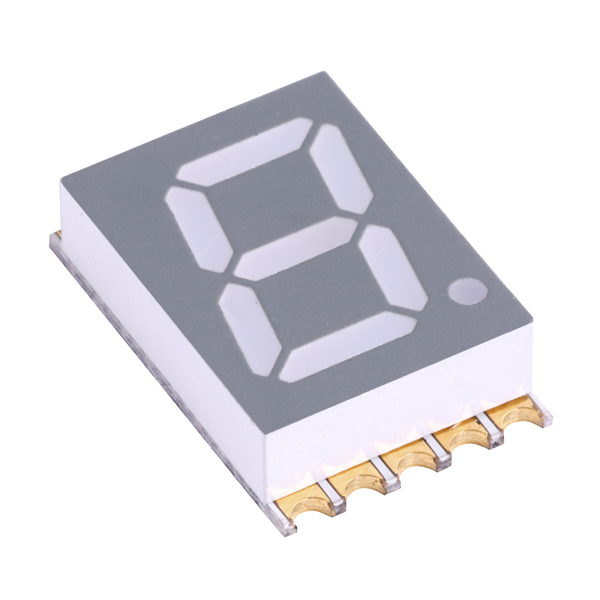

| Forward Voltage | 2.8V |
| Forward Current | 20mA |
| Input Voltage | 3V |
| Chip Material | AlGaInP |
| Luminous Intensity | 20 |
| Luminous Flux | 5lm |
| Power | 0.06W |
| Power Dissipation | 0.06W |
| Viewing Angle | 120° |
| Color Temperature | 10000–12000K |
| Operating Temperature | -20 to 45°C |
| Storage Temperature | -25 to 85°C |
| Lifespan | 100,000 hours |
| Working Time | 100,000 hours |
| Product Weight | 0.002kg |
| Type | SMD LED |
| Warranty | 2 years |
| Place of Origin | Dongguan, Guangdong, China |
The compact SMD package helps equipment manufacturers integrate numeric displays into space-constrained PCB designs. The standard product is supplied with EPE + carton or tube packaging, with EXW delivery available. The listed minimum order quantity is 2 pieces, with a supply capacity of approximately 1,000 pieces per month and a stated stock time of 7–14 days.

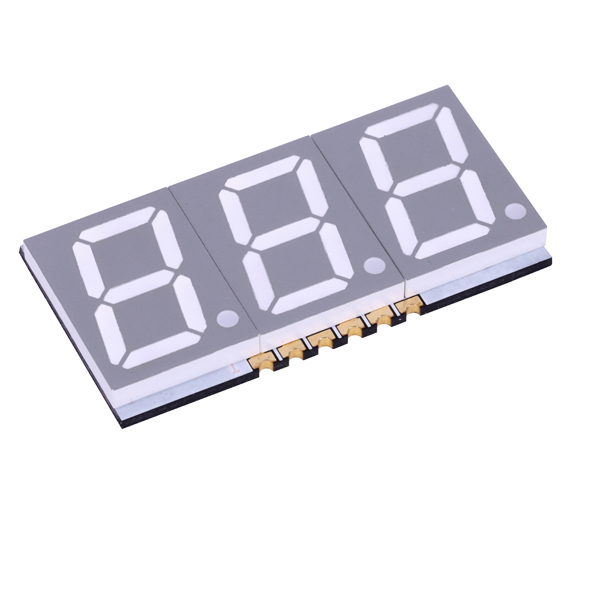

Applications of the Mini 7 Segment Display
This0.2 Inch 6 Digit 7 Segment Display is designed for applications where compact numeric information needs to remain easy to identify. Typical applications listed for this product include:
Digital clocks and timers
Electronic weighing scales
Counters
Price signs
Industrial and electronic equipment
HOUKEM also supplies 1-, 2-, 3-, 4-, and 6-digit configurations, allowing equipment manufacturers to select the required digit count without changing to a different display technology.
Related 7 Segment SMD Display Options
For projects requiring different display sizes or digit configurations, HOUKEM provides related SMD and 7-segment products, including:
| Related Product | Configuration |
|---|---|

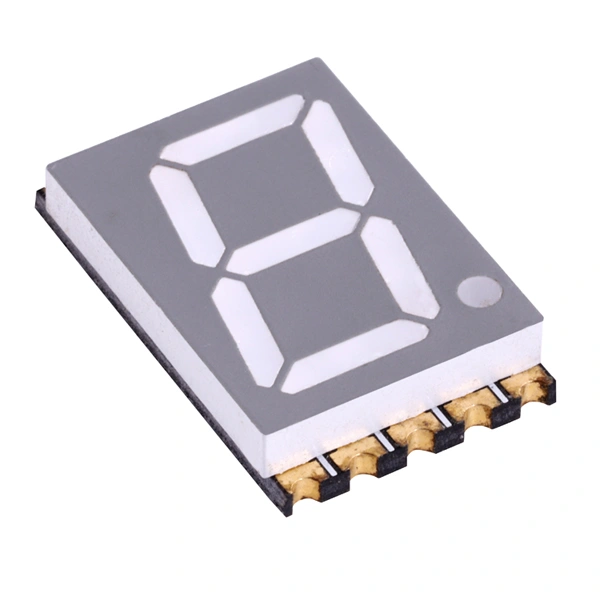

| 0.39 inch 1 digit 7 segment SMD | 1 digit |

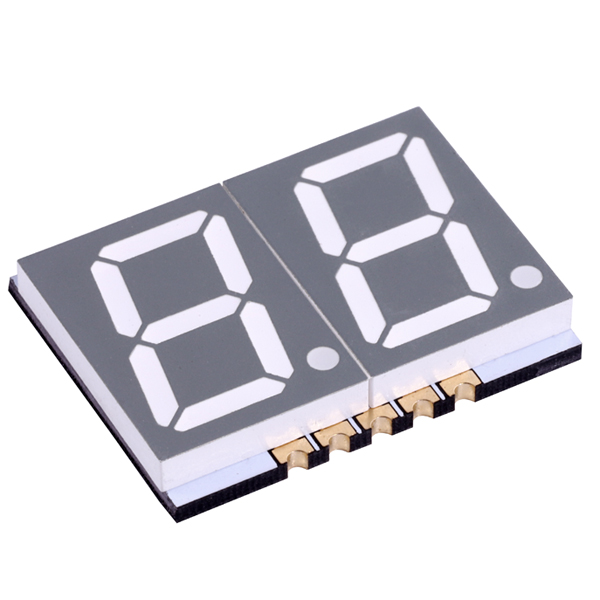

| 0.39 inch 2 digit 7 segment SMD | 2 digits |
| 0.39 inch 3 digit 7 segment SMD | 3 digits |
| 0.56 inch 1 digit 7 segment SMD | 1 digit |
| 0.56 inch 2 digit 7 segment SMD | 2 digits |
| 0.56 inch 3 digit 7 segment SMD | 3 digits |
| 0.3 inch 2 digit 7 segment SMD | 2 digits |

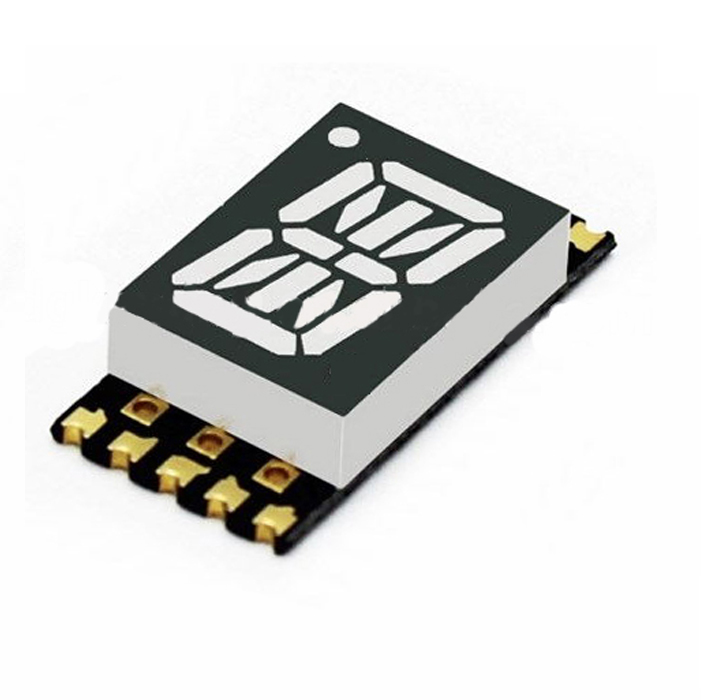

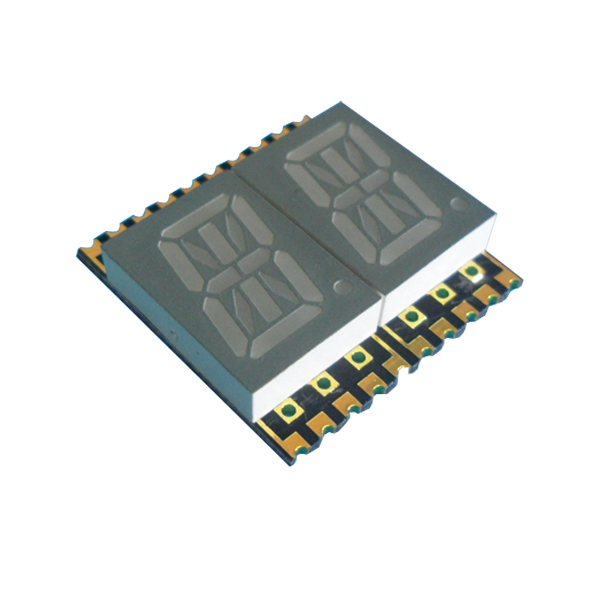

| 0.4 inch 2 digit 14 segment SMD | 2 digits |
| 0.4 inch 1 digit 14 segment SMD | 1 digit |
OEM and Custom LED Display Manufacturing

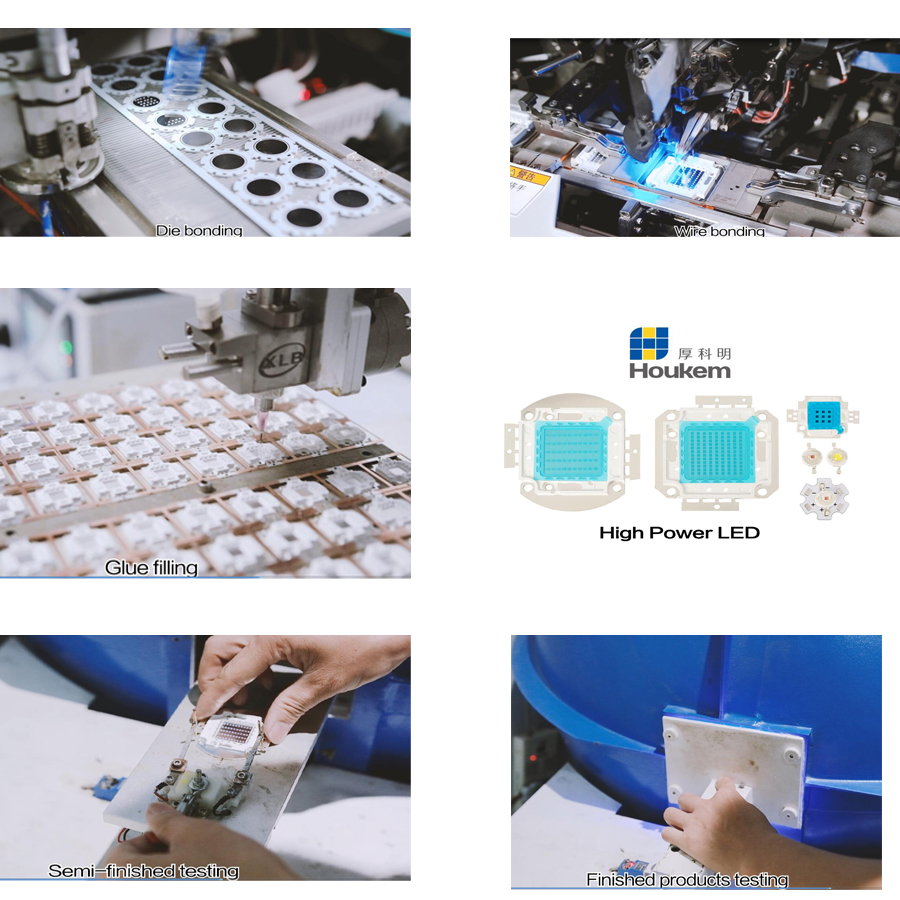

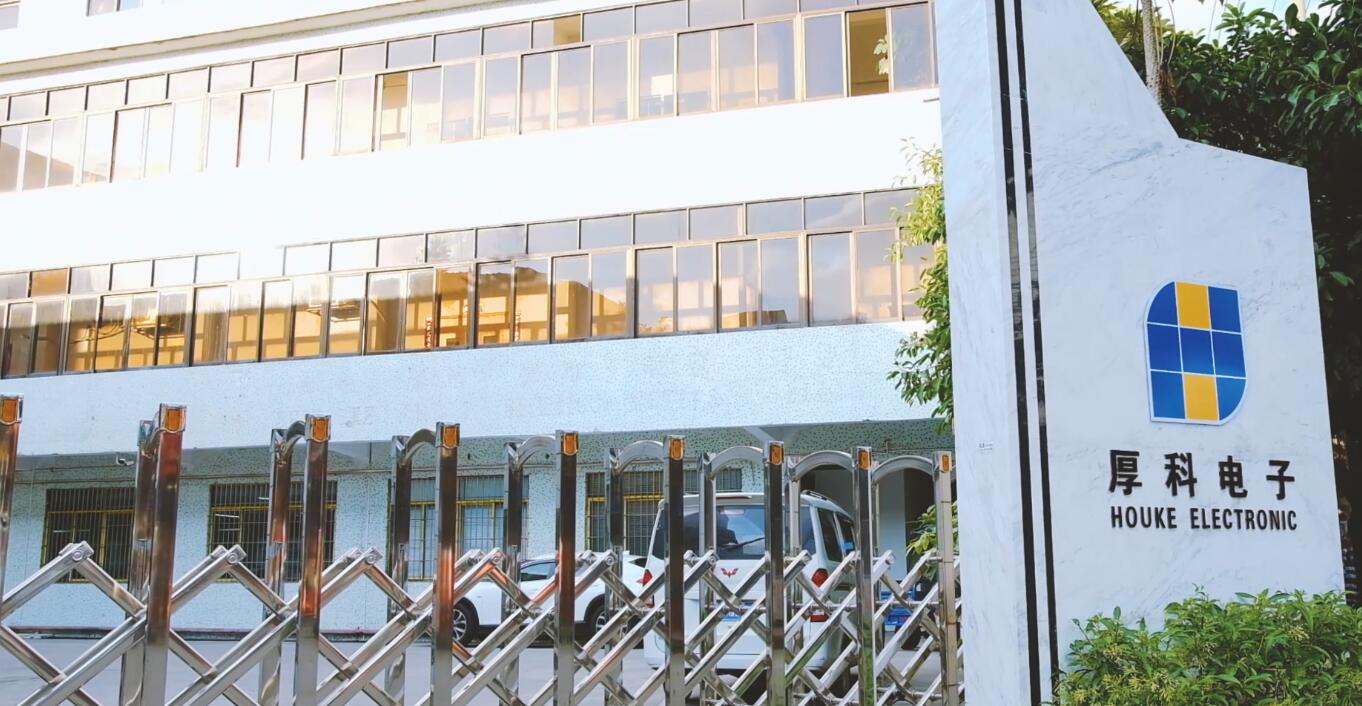

HOUKEM is a professional LED display manufacturer established in Dongguan in 2003, specializing in 7 segment LED/SMD displays, dot matrix displays, and high-power IR and UV LEDs. The company supports OEM and ODM projects and provides engineering assistance for application-specific display requirements.
For B2B projects, customers can submit the required digit number, digit height, dimensions, emitting color, polarity, operating conditions, and estimated quantity for technical evaluation. Standard samples are available for testing, with sample lead time of 3–7 days and mass production generally requiring 1–3 weeks according to the current product information.
FAQ
Can I order samples of the 6 Digit 7 Segment Display?
Yes, HOUKEM accepts sample orders for standard displays, allowing engineers to verify dimensions and electrical compatibility before production.
Can this 0.2 inch display be supplied in different colors?
Yes, the listed configurations include white, red, and blue emitting colors for different equipment display requirements.
Does HOUKEM support common cathode versions?
Yes, the product can be supplied with common anode or common cathode polarity depending on the circuit design.
What is the typical lead time for bulk orders?
Samples normally require 3–7 days, while mass production is generally quoted at 1–3 weeks depending on order requirements.
Can HOUKEM develop a customized 7 segment display?
Yes, HOUKEM provides OEM and ODM support and can review customized display specifications based on the customer's application and engineering requirements.
Request a 6 Digit 7 Segment Display Quote
If you are sourcing a 6 Digit 7 Segment Display for clocks, weighing scales, counters, price signs, or other electronic equipment, contact HOUKEM with your required digit configuration, color, polarity, dimensions, and estimated quantity. Our engineering team can review your application and provide a suitable SMD 7 segment display solution.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
