1.9mm Blue LED Matrix Display 8x8
Compact 8x8 LED Matrix Display with High Brightness and Reliable Performance
HOUKEM 1.9mm Blue LED Matrix Display 8x8 is a compact LED display module designed for industrial equipment, control panels, home appliances, running machines, and customized electronic applications.
With an 8x8 dot matrix structure, small 1.9mm pixel diameter, and high brightness blue LED chips, this led matrix display 8x8 provides clear visual output while maintaining low power consumption and long operating life.
As a professional LED display manufacturer, HOUKEM supports OEM and customized solutions for global customers requiring reliable 8x8 LED dot matrix display modules.
Product Specifications
| Item | Specification |
|---|---|
| Product Model | HOUKEM-7088-BB |
| Product Name | 1.9mm Blue LED Matrix Display 8x8 |
| Display Type | LED Dot Matrix Display |
| Array | 8x8 Dots |
| Dot Diameter | 1.9mm |

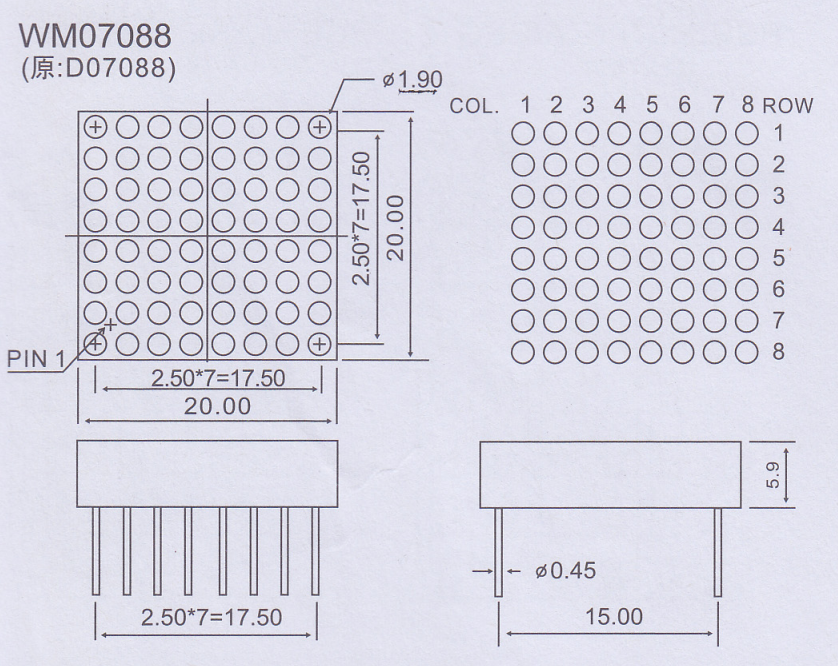

| Dimension | 20 × 20 × 6.5mm |
| Emitting Color | Blue |
| Surface Color | Black / Grey |
| Epoxy Color | White |
| Pixel Pitch | 2.54mm |
| Luminous Intensity | 200mcd |
| Forward Voltage | 1.8-2.0V |

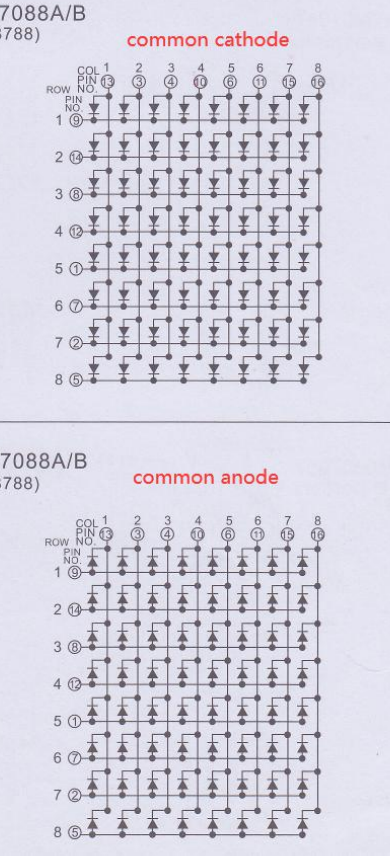

| PCB Polarity | Common Anode |
| Operating Temperature | -35 ~ +50℃ |
| Warranty | 2 Years |
| Certification | CE / ROHS / ISO9001 |
| OEM Service | Available |
| Customization | Available |
Features of 1.9mm LED Matrix Display
Small Size Design for Space-Limited Applications
The 20×20mm compact structure makes this 1.9mm LED matrix display suitable for applications where installation space is limited. It can be integrated into control panels, intelligent devices, measuring instruments, and electronic equipment.
High Brightness Blue LED Performance
Equipped with high-quality blue LED chips, this mini LED dot matrix display delivers clear and stable lighting performance. The optimized optical design ensures excellent visibility for indoor display applications.
Low Power Consumption and Long Lifetime
The LED matrix module features low power requirements, solid-state reliability, and long operational lifetime, helping customers reduce maintenance costs and improve product durability.
OEM and Customized Solutions
HOUKEM provides flexible customization services including emitting colors, PCB design, electrical specifications, and packaging solutions according to customer requirements.
Available LED colors include:
- Blue
- Red
- Green
- Yellow Green
- White
- Amber
- RGB
- Customized colors
Electrical and Optical Characteristics
Test Condition: IF = 15mA
| Emitting Color | Wavelength (nm) | Forward Voltage (V) | Luminous Intensity (mcd) |
|---|---|---|---|
| Amber | 600-605 | 1.9-2.0 | 90-100 |
| Super Green | 565-575 | 1.9-2.0 | 48-55 |
| Super Red | 620-625 | 1.8-2.0 | 110-130 |
| Ultra Red 1 | 620-625 | 1.8-2.0 | 200-210 |
| Ultra Red 2 | 620-625 | 1.8-2.0 | 300-350 |
| High Red | 638-660 | 1.8-1.9 | 15-20 |
| Yellow Green | 570-580 | 1.9-2.0 | 43-50 |
| Yellow | 580-600 | 1.9-2.0 | 70-80 |
| Blue | 465-475 | 2.95-3.0 | 150-200 |
| Pure Green | 515-525 | 2.95-3.0 | 600-640 |
| White | - | 2.8-2.9 | 180-200 |
Applications of 8x8 LED Dot Matrix Display
The HOUKEM 8x8 LED dot matrix display is widely used in various electronic products and industrial applications, including:
- Industrial equipment displays
- Digital control panels
- Home appliance displays
- Air conditioning control systems

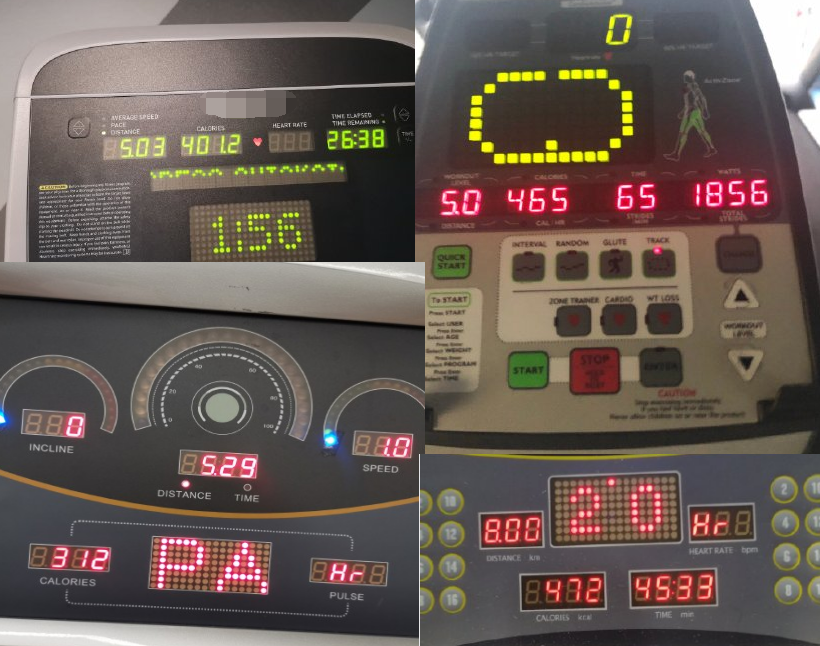

- Running machines and fitness equipment
- Electronic indicators
- Custom embedded display systems
- Advertising and information displays
Its compact design and flexible customization capability make it an ideal display solution for manufacturers developing electronic devices.
Why Choose HOUKEM LED Matrix Display Solutions?
HOUKEM has many years of experience in LED display manufacturing, specializing in:
- LED dot matrix displays
- 7 segment LED displays
- SMD LED products
- Customized LED modules
- UV LED and IR LED solutions
With professional production capability and ISO9001 certified quality management, HOUKEM provides stable products, customized solutions, and reliable technical support for customers worldwide.
Our factory supports OEM projects from prototype samples to mass production.
FAQ
Q1: What applications are suitable for the 8x8 LED Matrix Display?
This LED matrix display is mainly used for industrial equipment, control panels, home appliances, fitness machines, and customized electronic devices.
Q2: Can HOUKEM customize the LED matrix display module?
Yes. HOUKEM supports OEM customization including color options, PCB design, polarity configuration, and product dimensions.
Q3: What is the difference between a 1.9mm LED matrix display and standard LED modules?
The 1.9mm design provides a smaller and higher-density display structure, making it suitable for compact electronic products requiring clear visual output.
Q4: Is this 8x8 LED dot matrix display available in other colors?
Yes. Besides blue, HOUKEM provides red, green, yellow, white, amber, RGB, and customized color options.
Q5: What quality certifications does HOUKEM provide?
HOUKEM LED display products are available with CE, ROHS, and ISO9001 certifications to support international electronic manufacturing requirements.
Request a Quote for Your LED Matrix Display Project
Looking for a reliable led matrix display 8x8 manufacturer?
HOUKEM provides high-quality LED modules, OEM customization, and professional technical support for global B2B customers.
Contact HOUKEM today for samples, specifications, and customized LED display solutions.
