kem-7088-AY four digit 7 segment led display
kem-7088-AY four digit 7 segment led display
kem-7088-AY four digit 7 segment led display
kem-7088-AY four digit 7 segment led display
kem-7088-AY four digit 7 segment led display
kem-7088-AY four digit 7 segment led display
Model No: HOUKEM-7088-AY

Small 1.9mm dot matrix yellow color 8x8 digital signage and displays modules

dot matrix led display houkem is 7 segment led display professional manufacturer
minimum order :
1 piece
Supply Ability :
50000piece / Day
Country of Origin :
shenzhen guangzhou
Quantity :
USD0.50 - USD1.00 / piece
add to cart
Contact Now
  • Place of Origin:CN;GUA
  • Application:Graphics, air conditioner, running machine
  • Color:yellow
  • Panel Size:20*20mm
  • Model Number:HOUKEM-7088-AY
  • Brand Name:HOUKEM
Product Describtion

yellow 8*8 dot matrix

1,Low consumption 2, High brightness

Item No.HOUKEM-7088-AY
Dimension20*20*6.5mm
Surface color Black /Grey
epoxy colorWHITE
Emitting color yellow

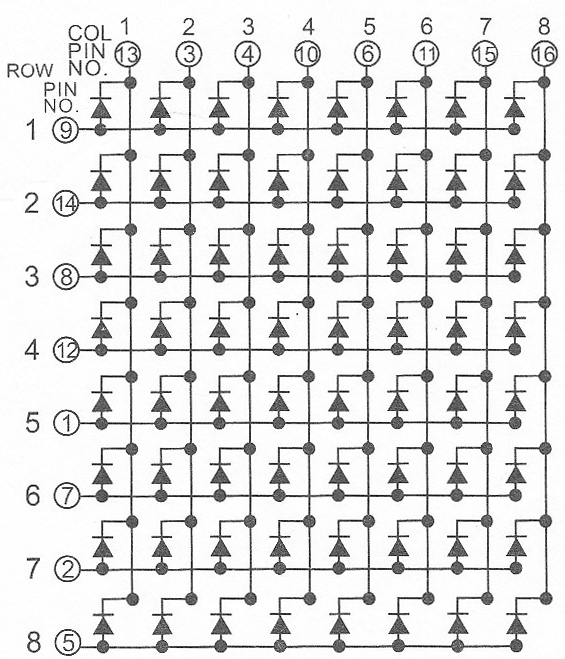

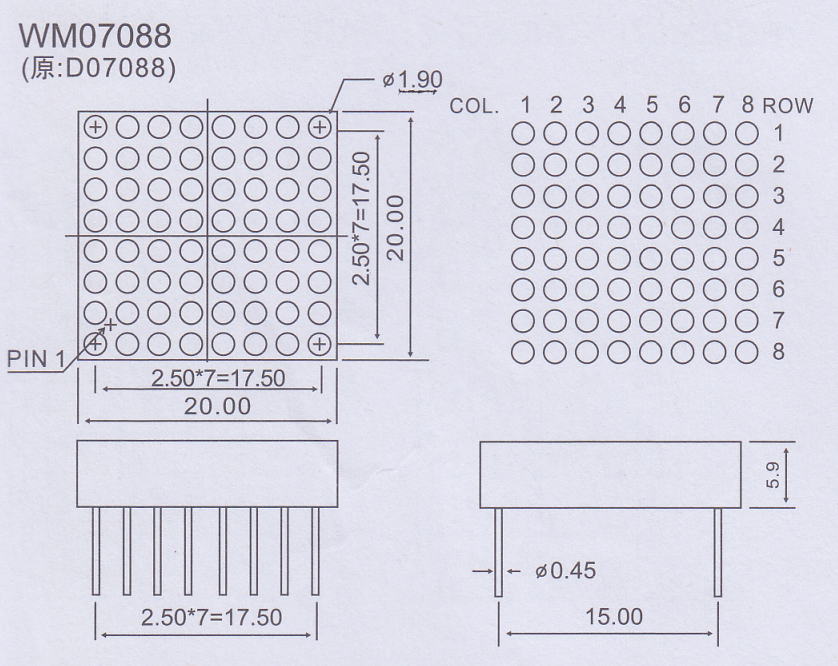

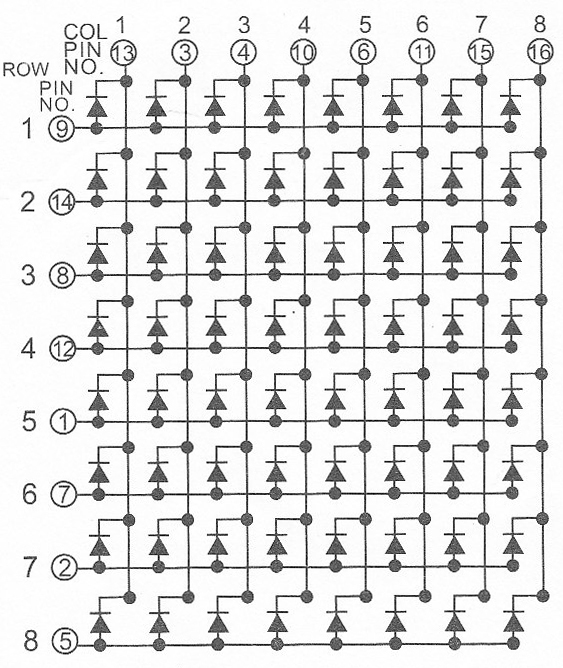

Package dimension & Internal circuit diagram

7088

7088.037088.02

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200

Two years quality warranty


7088 (2).png

Application

application

application

Our Services

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39'', 0.54''


Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display
3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

Custom 7 segment display are available

customized 7 segment led display
