one digit 4'' 7 segment led display rgb
one digit 4'' 7 segment led display rgb
one digit 4'' 7 segment led display rgb
one digit 4'' 7 segment led display rgb
one digit 4'' 7 segment led display rgb
one digit 4'' 7 segment led display rgb
Model No: HOUKEM-40011-BRGB

single digit big size 4 inch 7 segment rgb led display 100mm tri- color red green blue

7 segment display houkem is led 7 segment display professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $4.00 - US $5.00 / piece
add to cart
Contact Now
  • Application:Graphics, Indoor digital, time clock
  • Color:red green blue
  • Panel Size:90*122mm
  • Pixel Pitch:2.54
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-40011-BRGB
  • Brand Name:HOUKEM
  • use:advertising publish
  • Pixels:2.54
  • Specification:-
  • Usage:Indoor
  • Display Function:Graphics
  • Screen Dimension:90*122mm
  • Warranty:2Years
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE ROHS ISO9001 REACH
  • Product name:4'' rgb 7 segment led display
Product Describtion

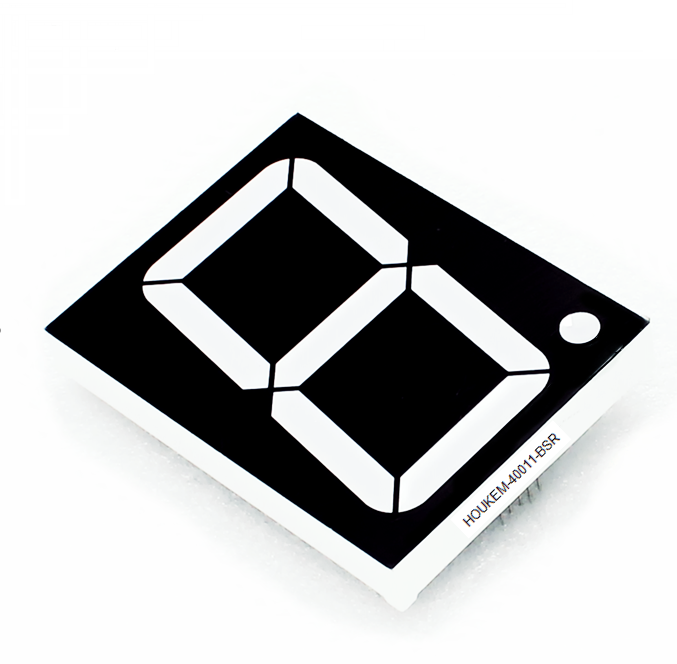

Led Digital Display 4"height 1 Digit 7-Segment rgb led display

HOUKEM-40011-BRGB---------common andoe(CA)

HOUKEM-40011-ARGB----------common cathode(CC)

Item No.HOUKEM-40011-BRGB
dimension90*122*15mm
Surface color Black /Grey
epoxy colorwhite
Emitting color red+green+blue

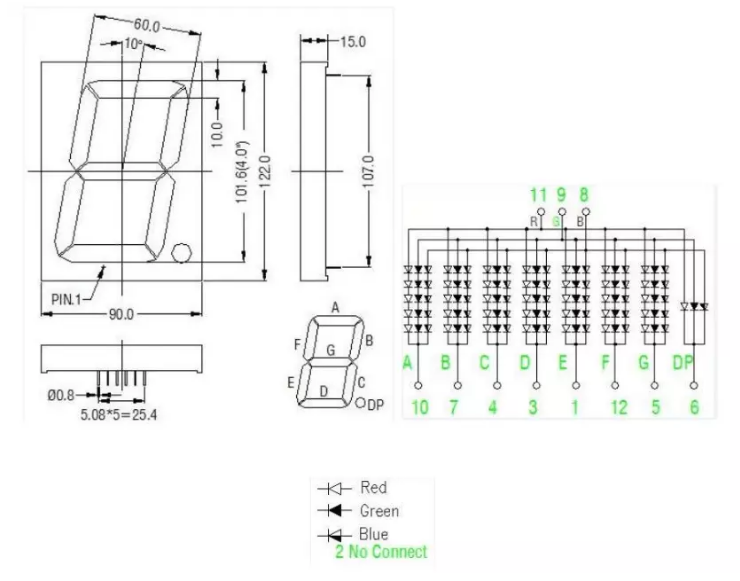

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Two years quality warranty

1,Low consumption

2, High brightness

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

2

2.1

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.8

3.0

150

200

Pure green

IF=15mA

515-525

40

2.8

3.0

600

640

White

IF=15mA

-

-

2.8

3.0

180

200

Our Services

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54'', 0.4''
3 digit0.54''
4 digit0.39'', 0.54''

Customized product are available

Contact us

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,

SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.
