5W 310nm UVB LED 6363 SMD
5W 310nm UVB LED 6363 SMD

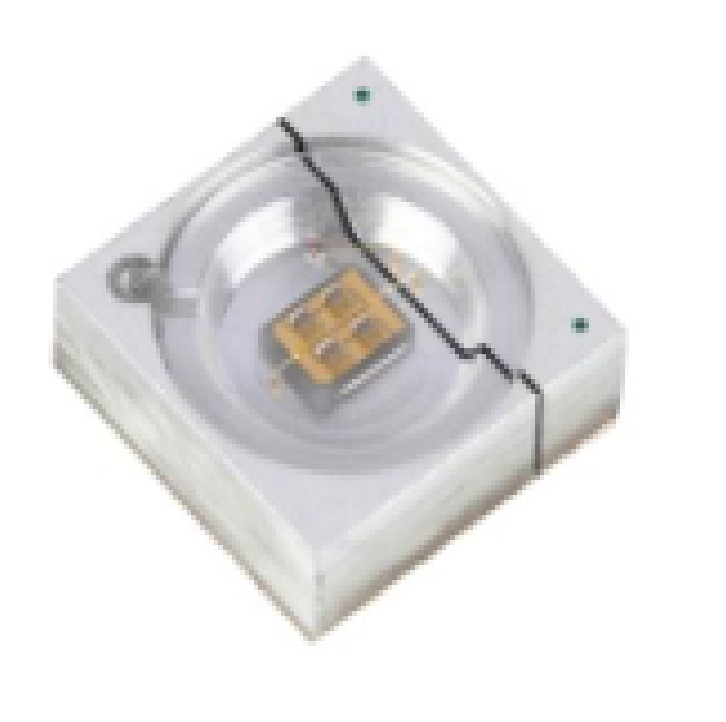

HOUKEM high power 5W 310nm UV LED is a deep-UV SMD LED designed for professional UV irradiation, fluorescence spectroscopy, chemical and biological analysis, and selected air and water sterilization applications. The LED uses an InGaN chip, full aluminum package, UV-transparent optical window, and low thermal resistance design for integration into professional UV equipment and systems.

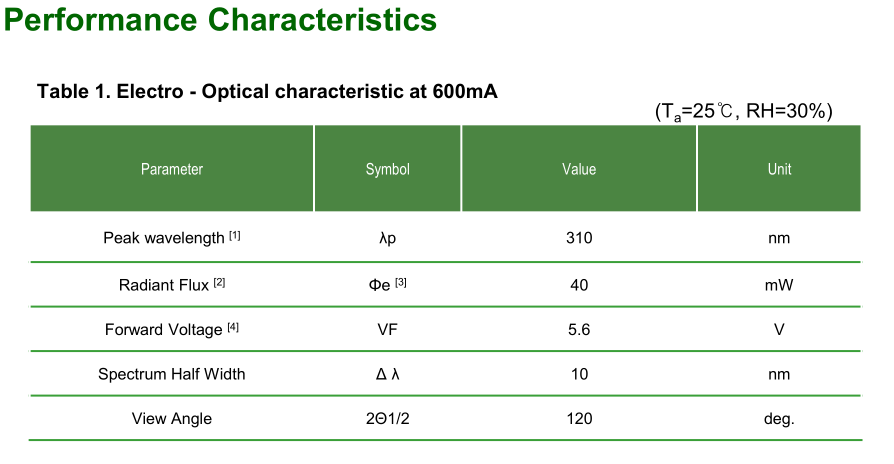

Key Specifications
| Parameter | Specification |
|---|---|
| Product Type | High Power UV LED |
| Model No. | Houkem-305nm |
| Power | 5W |

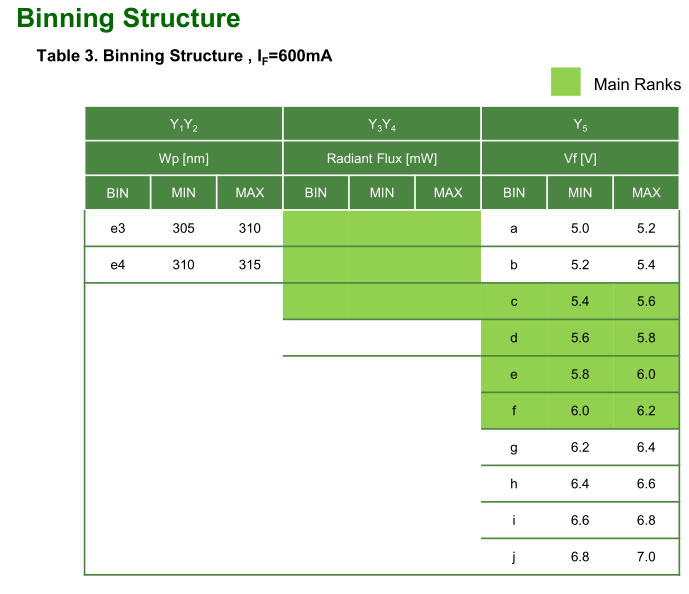

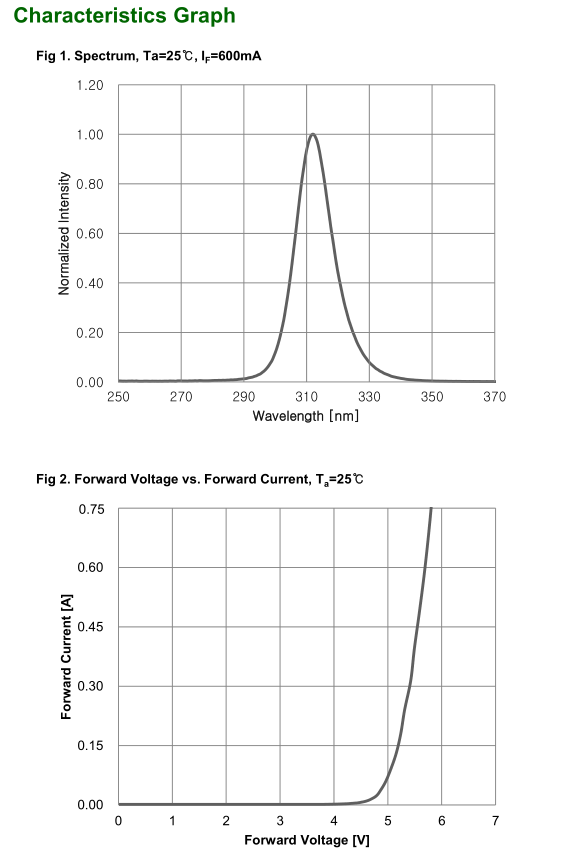

| Wavelength | 305–310nm / 310–315nm |
| Forward Current | 600mA |
| Forward Voltage | 6V |
| Chip Material | InGaN |
| Viewing Angle | 140° |
| Emitting Color | UV |
| Optical Attenuation | 2% |
| Luminous Efficacy | 10 lm/W |
| Color Rendering Index | Ra 80 |

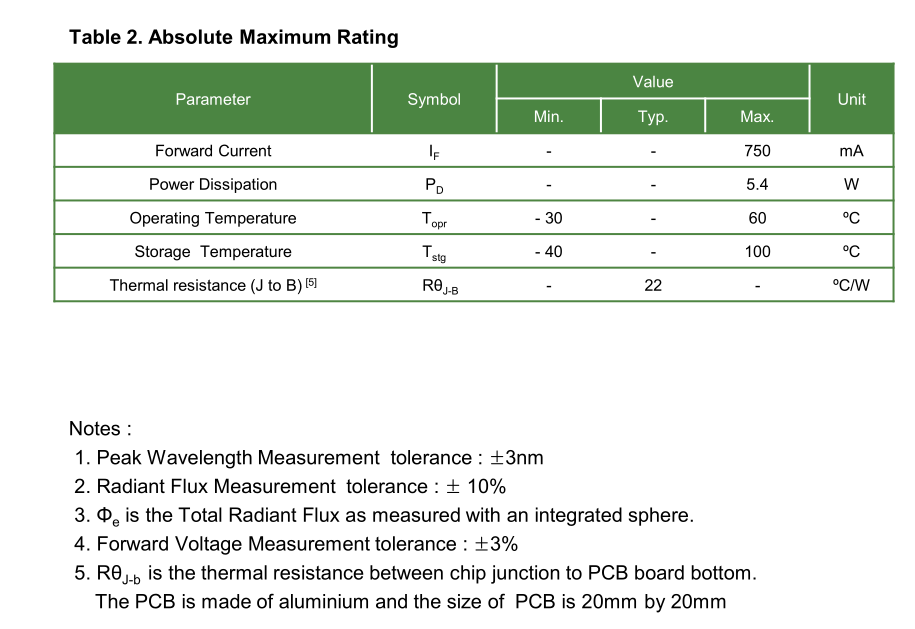

| Power Dissipation | 60 |
| Operating Temperature | -30 to 60°C |
| Storage Temperature | -40 to 100°C |
| Warranty | 1 year |
| Certification | CE, RoHS |

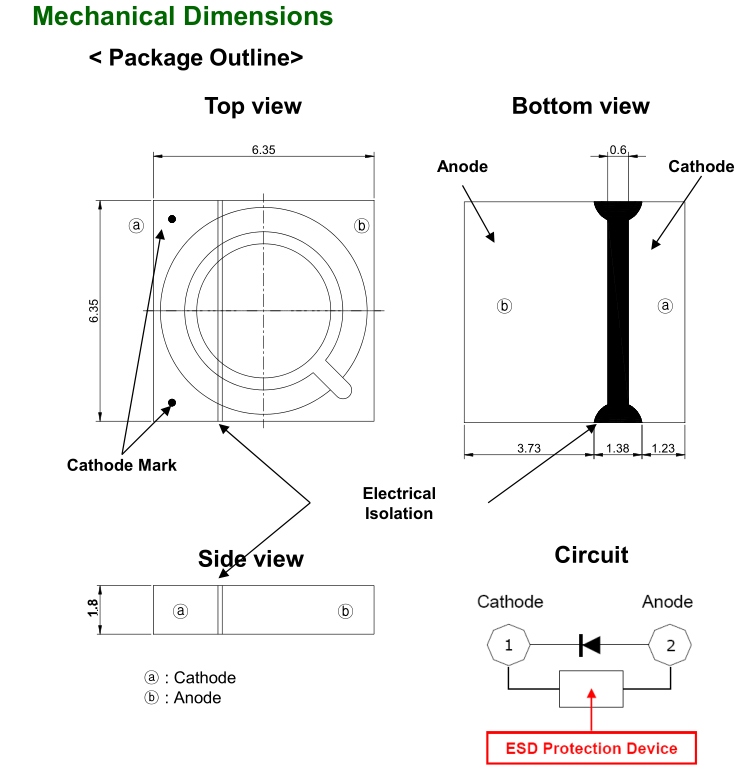

| Package | 6363 SMD / Full Aluminum |
| Origin | Guangdong, China |
| Brand | HOUKEM |
Specifications are based on the current product data. Please contact HOUKEM to confirm the exact wavelength bin, optical window, thermal specifications, and other engineering parameters before mass production.
310nm UV LED for Professional Applications
This high power 310nm UV LED is designed for applications requiring deep-UV output in the 305–315nm range. The SMD structure supports compact equipment integration, while the full aluminum package and low thermal resistance design help with thermal management during operation.
Typical applications include:
UV irradiation and specialized disinfection equipment
Air and water sterilization systems
Fluorescence spectroscopy
Chemical analysis equipment
Biological analysis instruments
UV excitation and optical sensing systems
Customized industrial UV LED modules
For sterilization or disinfection equipment, actual performance depends on wavelength, radiant output, exposure time, distance, optical design, and required UV dose. System-level validation should be completed according to the target application.
Key Features of the 5W UV LED
Deep-UV Wavelength Range
The product supports wavelength options from 305nm to 315nm, including 305–310nm and 310–315nm configurations. This makes it suitable for professional UVB and deep-UV applications where wavelength selection is important.
6363 SMD and Low Thermal Resistance
The LED uses an advanced SMD design with a full aluminum package and low thermal resistance. It is SMT solderable and suitable for compact UV LED modules and equipment integration.
Professional B2B UV LED Supply
HOUKEM provides factory-direct UV LED supply for professional buyers, equipment manufacturers, and OEM/ODM projects. Our independent R&D department supports product development and maintenance, while strict quality control, advanced production equipment, branded raw materials, and repeated testing are used before shipment.
HOUKEM Manufacturing and Customization Support

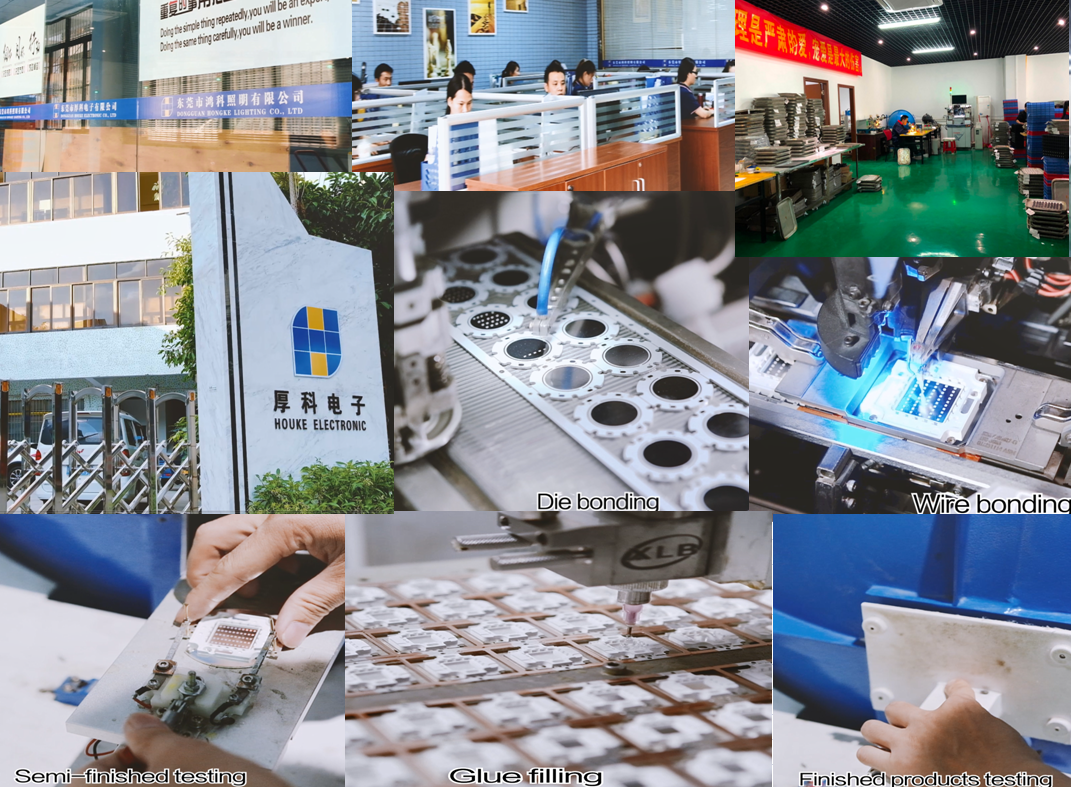

Established in 2003, HOUKEM specializes in LED products including 7-segment LED/SMD displays, alphanumeric displays, SMD LEDs, dot-matrix LED displays, bar graph arrays, high power LEDs, UV LED and IR LED products, COB LEDs, and high-power LED arrays covering wavelengths from 255nm to 1550nm.
For UV LED projects, HOUKEM can provide lighting and circuitry design support and discuss customized wavelength, package, power, and application requirements for professional equipment integration.
FAQ
Can I order a 310nm UV LED sample before mass production?
Yes. Samples are available for testing and quality evaluation, with sample charges applying when the product value is higher.
Can HOUKEM customize the UV LED wavelength or specifications?
Yes. HOUKEM supports customized LED solutions and can discuss wavelength, package, power, and circuit requirements based on your equipment design.
What is the typical lead time for this UV LED?
Stock products can be shipped according to availability, while special colors, specifications, or customized products generally require additional production time.
Can you provide engineering support for UV LED integration?
Yes. HOUKEM provides lighting and circuitry design support and can work with professional buyers on UV LED module and equipment integration requirements.
What certifications and quality controls are available?
This product is listed with CE and RoHS certification, and HOUKEM states that products undergo repeated testing and quality control before shipment.
Request a 310nm UV LED Sample or Quote
Contact HOUKEMfor310nm UV LED samples, technical specifications, wavelength options, OEM/ODM requirements, and bulk pricing. Share your target wavelength, power, application, quantity, and equipment requirements so our sales and engineering team can recommend a suitable configuration.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
