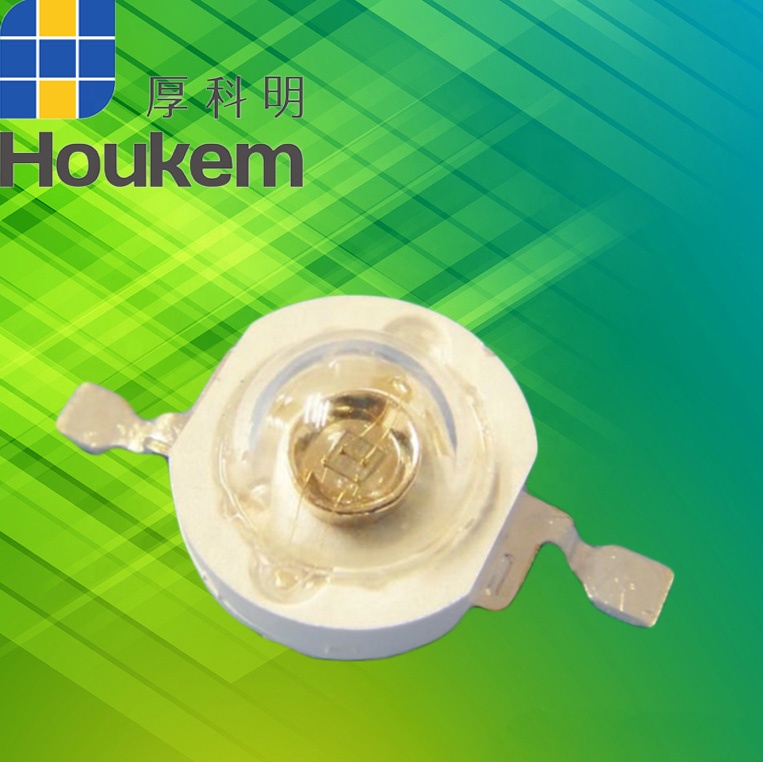

Rohs CE 1w high power 380nm 385nm uv led

Price:
USD 0.85-1.10
Minimum order quantity:
1
Quantity:
  • Type:High Power LED
  • Lighting solutions service:Lighting and circuitry design
  • Warranty(Year):1-year
  • Chip Material:InGaN
  • Power:1-3W
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Luminous Efficacy(lm/w):10
  • Color Rendering Index(Ra):80
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:HOUKEM
  • Emitting Color:purple







Product Describtion




Electeical Characteristics at 350mA,Ta=25°C

Color

Part No

Forward  Voltage

Units

Min

Typ

Max

purple

HOUKEM-HP001UVW-385

3

-

3.4

V







































1w (2).jpg

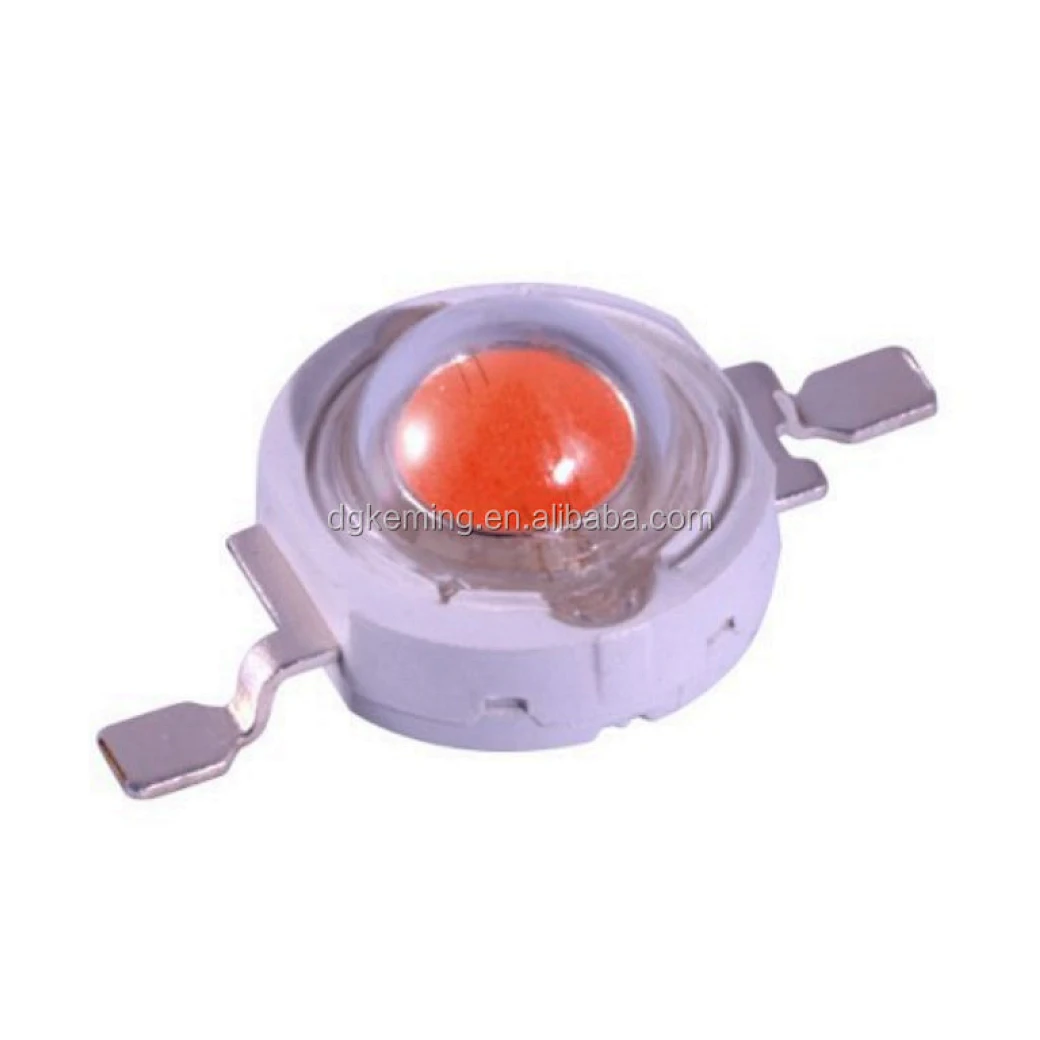

Rohs 1w 660nm red high power led diode with cree chip





















Absolute Maximum Ratings



Parameter

Symbol

Rating

Unit

RED



DC Forward Current(mA)

If

350

mA

Peak Pulse Current(mA)

If

350

mA

Reverse Voltage

VR

5

V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-20--60

°C

Storage Temperature

Tstg

-20--80

°C

Soldening Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V

































Luminous Flux at 350mA,Ta=25°C



Color

Part No

Wavelength



CRI

Flux

Units

Min

Typ

Max



Purple

HOUKEM-HP00UVW-385380-385nm

75

40



50

lm













uv application1

application



 high power ledhigh power cob led







Packing

50pieces/tray,10 trays/box,4boxes/carton


2000pcs/carton


Tray size:20cm*15cm*1cm


Box size:25cm*20cm*10cm


Carton size:55cm*45cm*15cm


Or as per customer's request

Package





 packing (2)



Certifications

 Hongke-certificates



Factory pictures

 Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,

SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm to 1550nm LED arrays,

COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, led grow light, street light,and all LED lighting application solution, etc.factory-LED
